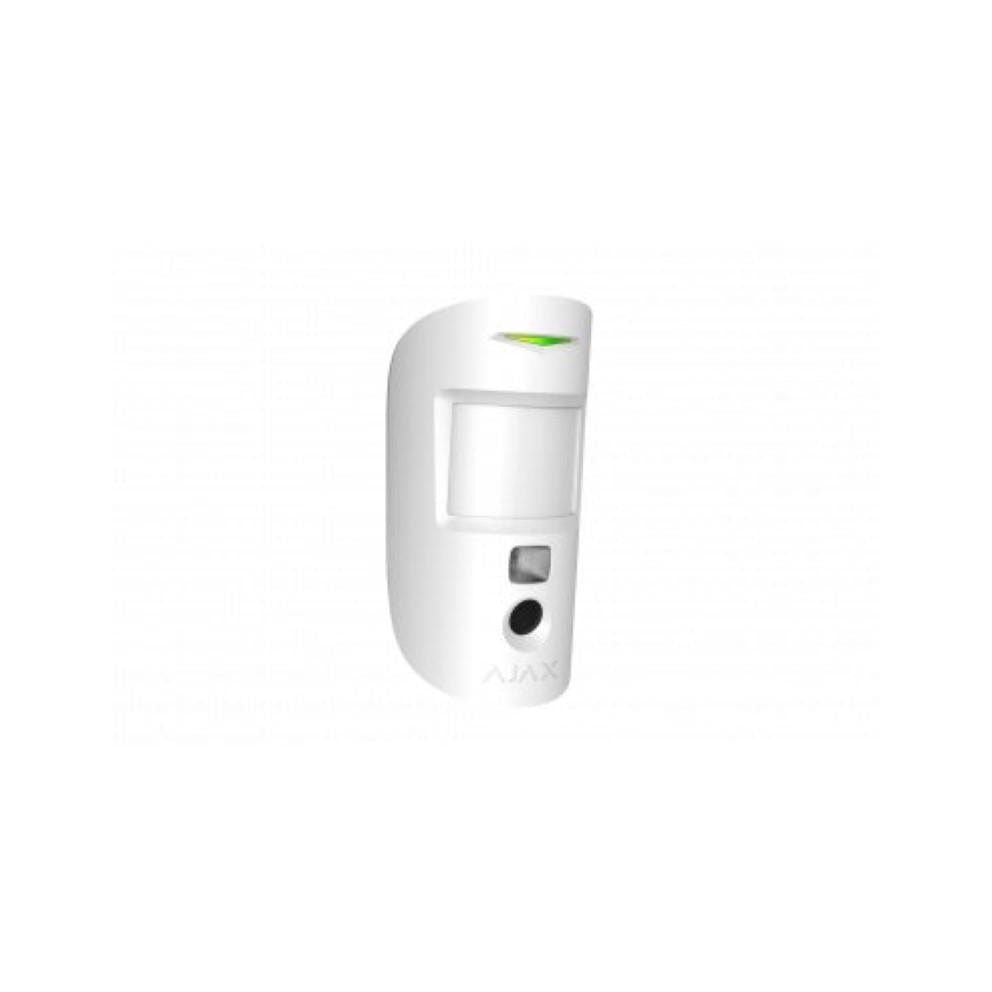

Ajax MotionCam Wi-Fi Jeweller White 10309.23.WH1

Ajax MotionCam Wi-Fi Jeweller White

Intellect against false alarms

We have combined special optics with a software filter for false alarms in motion detectors. Along with a professional installation, it gives high detection accuracy.

Special lens

The pattern of the Fresnel lens sections is designed so that the diagrams of the infrared radiation of a human, an animal, and thermal noise have significant differences. Large sections of the lens capture radiation at the level of the head and torso of an adult. Smaller sections make the diagram more detailed. The MotionCam Jeweller lens provides the detector with accurate information about the thermal object in the detection zone and the nature of its movement.

Professional installation

Installing the MotionCam Jeweller in the right spot, at the optimum height, and perpendicular to the likely intrusion path ensures an informative thermal diagram. It significantly improves detection accuracy. Professional installation also makes the pet immunity feature more effective.

Filter for thermal interferences

The detector instantly analyzes the thermal diagram from the sensor: the infrared radiation intensity, the heat spot size, the motion speed, the time spent in the detection zone, and other parameters.

Ajax engineers have analyzed thousands of IR sensor triggerings caused by humans, animals, and thermal interference and developed SmartDetect. The software algorithm finds false alarm markers instantly and with high accuracy. As a result, the detector accurately responds to a human and does not bother the user with false alarms.

Temperature compensation

Temperature compensation is a software mechanism keeping the thermal diagram contrast even if the ambient temperature is close to the temperature of the human body.

With each ambient temperature measurement, the detector corrects the PIR sensor data according to the coefficient table stored in its memory. The detector is effective over the entire operating temperature range.

Sensitivity level

With the sensitivity setting, the detector adapts to the conditions of a particular room, considering possible thermal interference or pets. Changing the sensitivity setting affects the markers by which false alarms are filtered.

With low sensitivity, the detector is less likely to respond even to an active pet. And with high sensitivity, it will raise the alarm in case of any motion in the detection zone.

Sensitivity is configured in the Ajax app both on-site and remotely.

More than a photo. Faster than a video.

MotionCam Jeweller will show the actual situation from the scene even before the burglars understand that they’re busted. An animated series of photos follows the instant alarm for an accurate situation appraisal. MotionCam Jeweller can only take photos in case of an alarm. The detector software architecture does not support taking a photo on demand.

Less concern

Up to 70% of false alarms happen when disarming the security system. With MotionCam, system users and monitoring company operators can verify in seconds whether an alarm is real and respond accordingly.

More security

Both system users and a rapid response team need to clearly understand what happens on the scene in case of an alarm. MotionCam will show how many intruders are armed and whether they are still in the room. This will help a security company patrol prepare, and the users avoid danger.

Evidence in a smartphone

A series of animated photos provide the law enforcers with the description of intruders, no time wasted. MotionCam will capture them even in complete darkness, thanks to the IR backlight. The chances of catching burglars in the act increase.

MotionCam PhOD

MotionCam Jeweller detector is also available in a PhOD (Photo on Demand) version. The photos are taken when the user and the security company operator request them or when the FireProtect Jeweller and FireProtect Plus Jeweller fire detectors trigger.

Privacy as a top priority

MotionCam is designed to control security, not privacy. Photos are protected from prying eyes at the detector, system and software levels.

Unique wireless technologies

MotionCam detector uses two radio protocols simultaneously: to inform about alarms and Wings to transmit photos. Provides instant alarm delivery, while Wings delivers the first photo from the scene in just 9 seconds. Even with communication breakdowns and a weak signal. The communication range with the hub is up to 1,700 meters, so the detector can be easily installed where it will be the most effective.

Intuitive installation and connection

Add the MotionCam detector to an Ajax security system with a few taps. Open the Ajax app, scan the QR code and assign the detector to the room. There is no need to disassemble the detector enclosure. The SmartBracket mounting panel allows you to securely install the detector on a flat surface or in a corner.

Jeweller communication technology

Proprietary wireless communication technology to transmit alarms and events.

Features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote configuration via the Ajax apps.

Specifications:

Compatibility

Compatible hub models

• Hub 2 (2G)
• Hub 2 (4G)
• Hub 2 Plus
• Hub Hybrid (2G)
• Hub Hybrid (4G)

Compatible range extenders

• ReX 2

Maximum effective radiated power (ERP): up to 20 mW

Radio signal modulation: GFSK

Radio signal range: up to 1,700 m

Encrypted communication: All the data stored and transmitted are protected by block encryption with a dynamic key.

Radio frequency hopping: Radio communication uses frequency hopping to prevent interception and jamming.

Detection

Sensitive element: 1 × PIR sensor

Motion detection distance: up to 12 m, When installed at a height of 2.4 m.

Motion detection angles: horizontal — 88.5°, vertical — 80°

Motion detection speed: from 0.3 to 2.0 m/s

The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.

Sensitivity: 3 levels

False alarm prevention: SmartDetect, Software algorithm.

Temperature compensation: Effective motion detection at temperatures from −10°C to +40°C.

Photo verification

Photo by alarm: A built-in camera is activated if the detector is armed, and motion is detected.

IR backlight: For night photography and low light conditions.

Pictures in a series: from 1 to 5 images with resolution of 320 × 240 px or 160 × 120 px, from 1 to 3 images with resolution of 640 × 480 px.

Photo resolution

• 640 × 480 px
• 320 × 240 px (by default)
• 160 × 120 px

Photo delivery time

• up to 7 s — 160 × 120 px resolution
• up to 9 s — 320 × 240 px resolution
• up to 20 s — 640 × 480 px resolution

Power supply: 2 × CR123A battery

Dimensions: 135 × 70 × 60 mm

Weight: 167 g

Operating temperature range: from −10°C to +40°C

Operating humidity: up to 75%

Protection class: IP50
