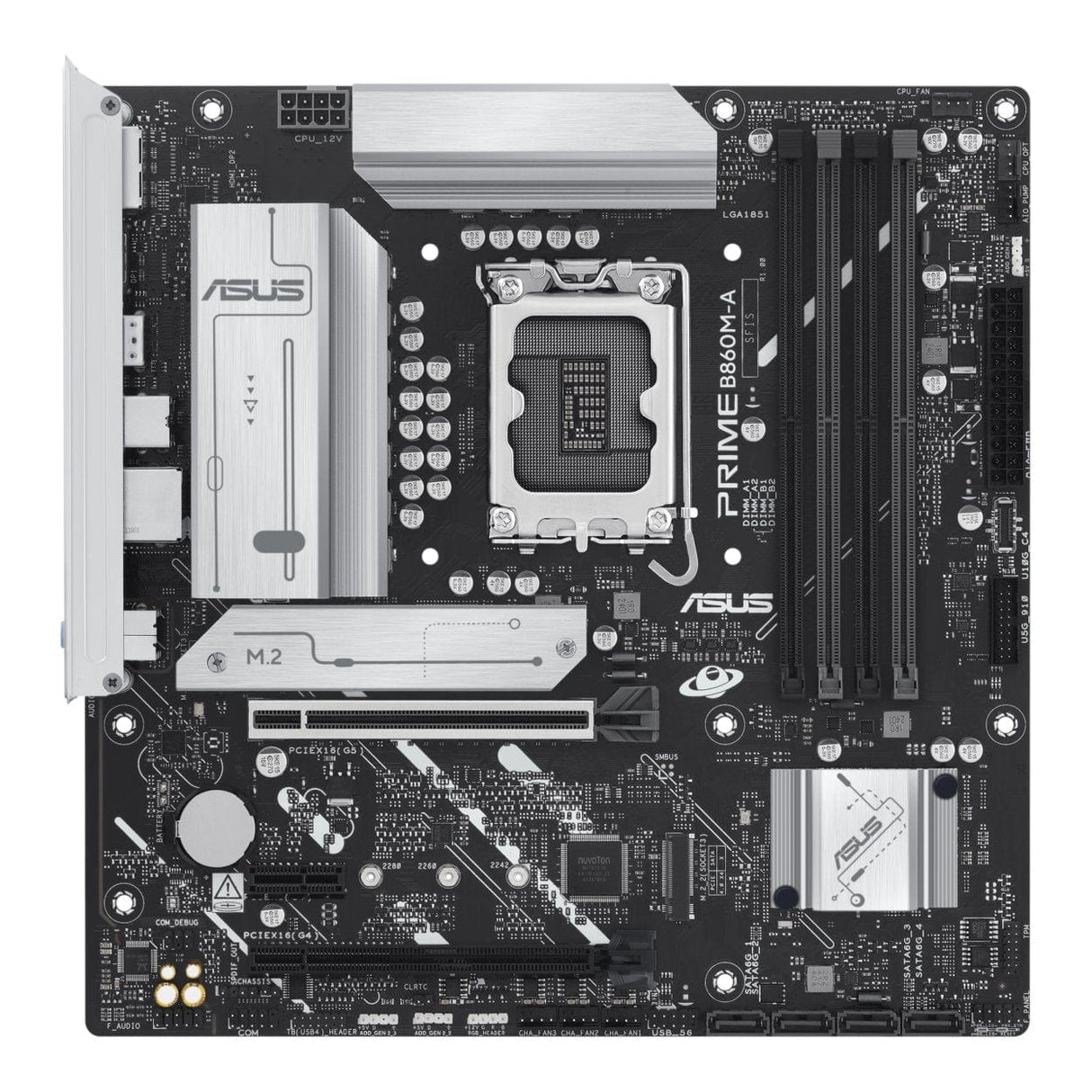

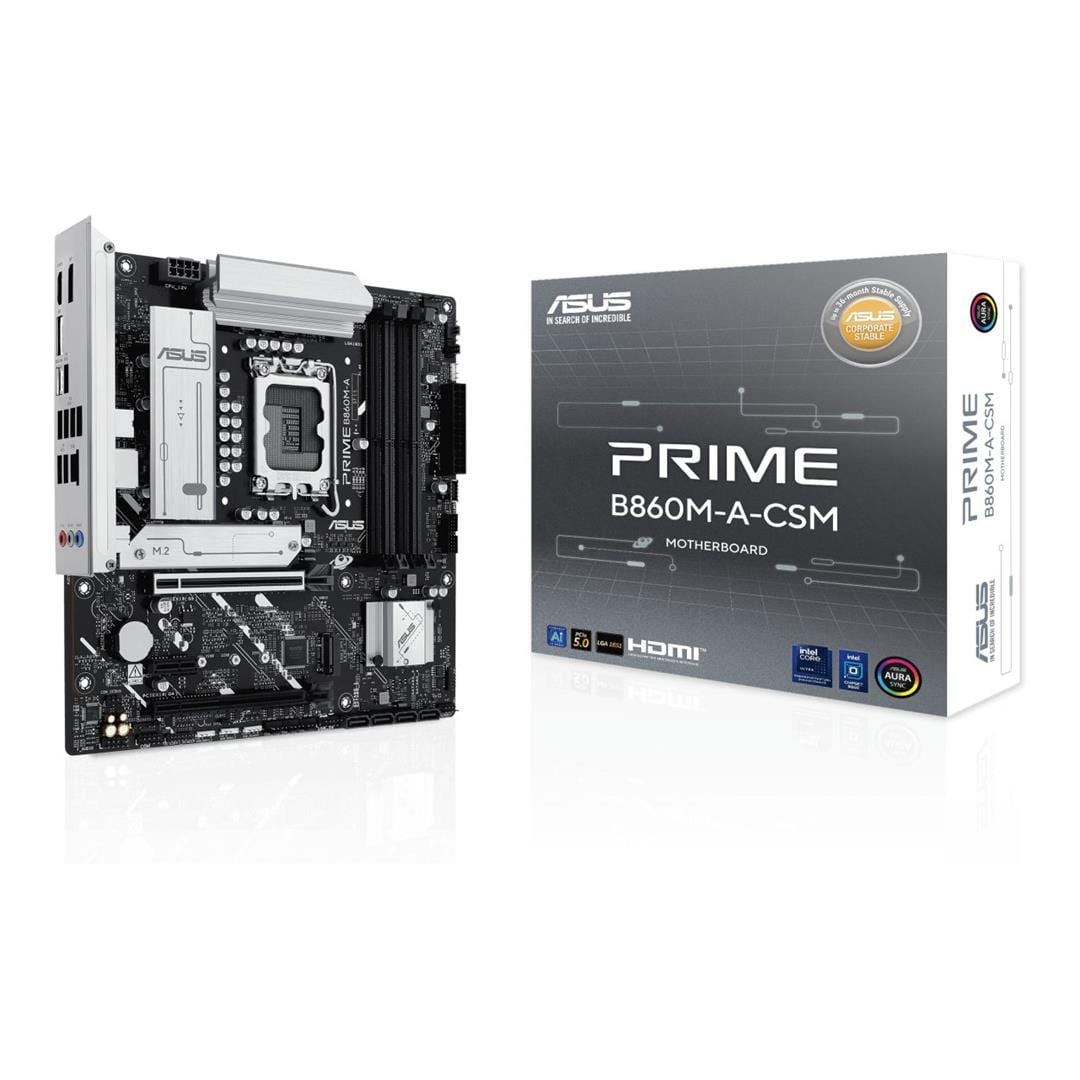

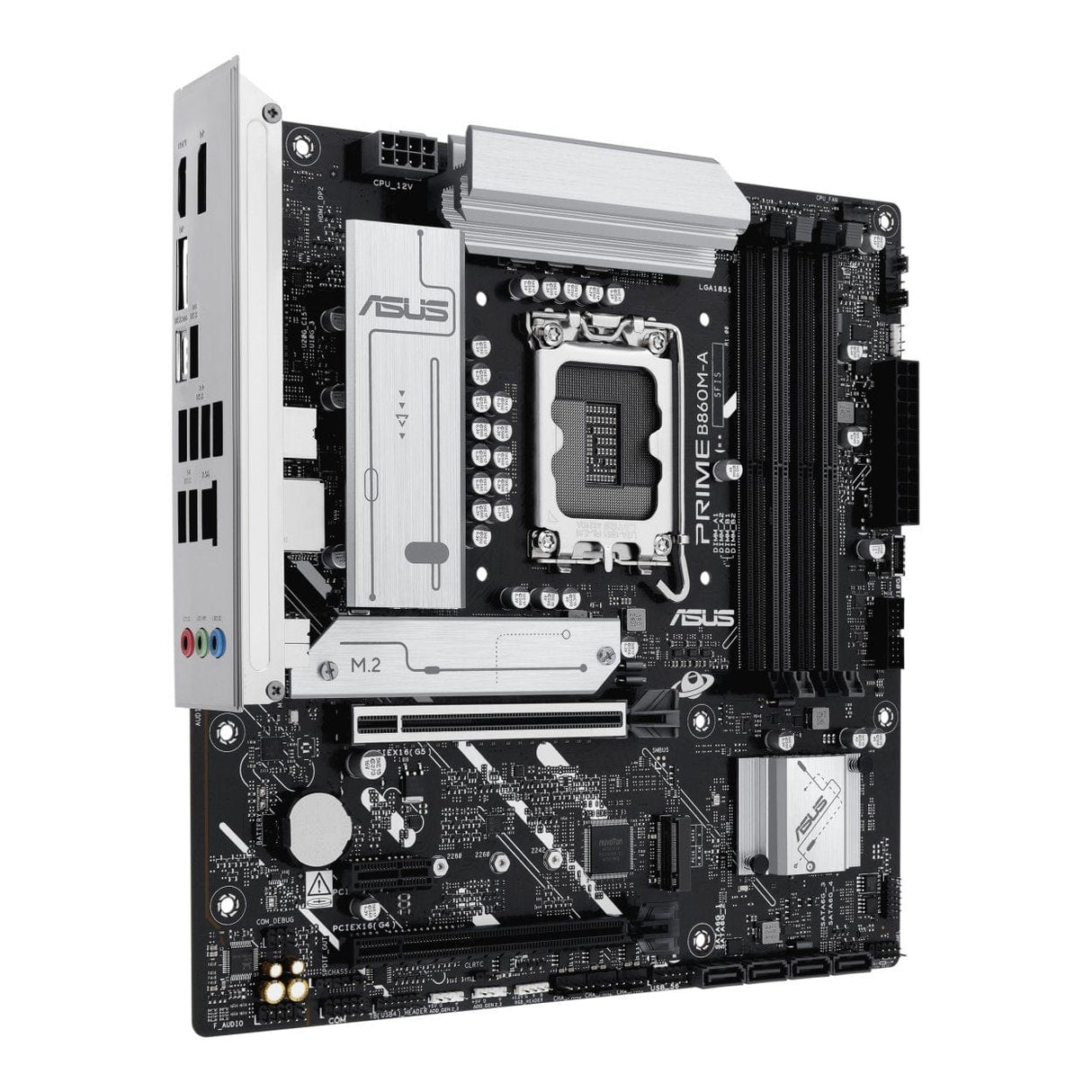

ASUS Prime B860M-A-CSM Intel LGA 1851 micro ATX Motherboard 90MB1K00-M0EAYC

ASUS Prime B860M-A-CSM Intel LGA 1851 micro ATX Motherboard 90MB1K00-M0EAYC

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.

• Intel LGA 1851 Socket: Support Intel® Core™ Ultra Processors (Series 2).

• Enhanced Power Solution: 7+1+1+1 80A DrMOS power stages, 6-layer PCB, 8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery.

• Latest M.2 Support: One onboard PCIe 5.0 M.2 slot equipped with one M.2 heatsink and one PCIe 4.0 M.2 slot.

• Ultrafast Connectivity: PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C® port, front USB 10Gbps Type-C® connector.

• Comprehensive Cooling: VRM heatsink, one M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.

• DIY Friendly Design: Q-Dashboard, Q-DIMM, Q-LED, Q-slot and Pre-mounted I/O shield.

• Unmatched Personalization: Three Addressable Gen 2 headers, all configurable with ASUS-exclusive Aura Sync.

• Renowned Software: ASUS DriverHub, ASUS MyHotkey, Aura Sync.

PRIME B860M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance

Robust power design

Stable power is crucial for maximizing the performance of Intel^® Core^™ Ultra Processors (Series 2). The PRIME B860M-A-CSM is designed to meet the needs of high-core-count CPUs. It features 7(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel^® processors.

Enhanced Memory & Storage Performance

AEMP III for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

Cooling

Cooler by design

The PRIME B860M-A-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Flexibility

Empowering connections

The PRIME B860M-A-CSM motherboard offers a versatile range of connectivity, including support for the latest version of PCI Express and an arsenal of USB ports which includes Type-C connections.

Customization

Personalization

The PRIME B860M-A-CSM enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
