Aten CL5708M 17-inch 8-port TFT-LCD VGA KVM Switch

Aten CL5708M 17-inch 8-port TFT-LCD VGA KVM Switch

The Aten CL5708 8 port 17″ Slideaway Combo KVM switch is Dual Interface – supports computers and console with PS/2 or USB keyboards and mice, Multiplatform support – Windows, Linux, Mac, and Sun, and Supports one administrator and four user accounts with separate profiles. The LCD module rotates up to 115 degrees for a more comfortable viewing angle and has Two level password security – only authorized users can view and control computers.

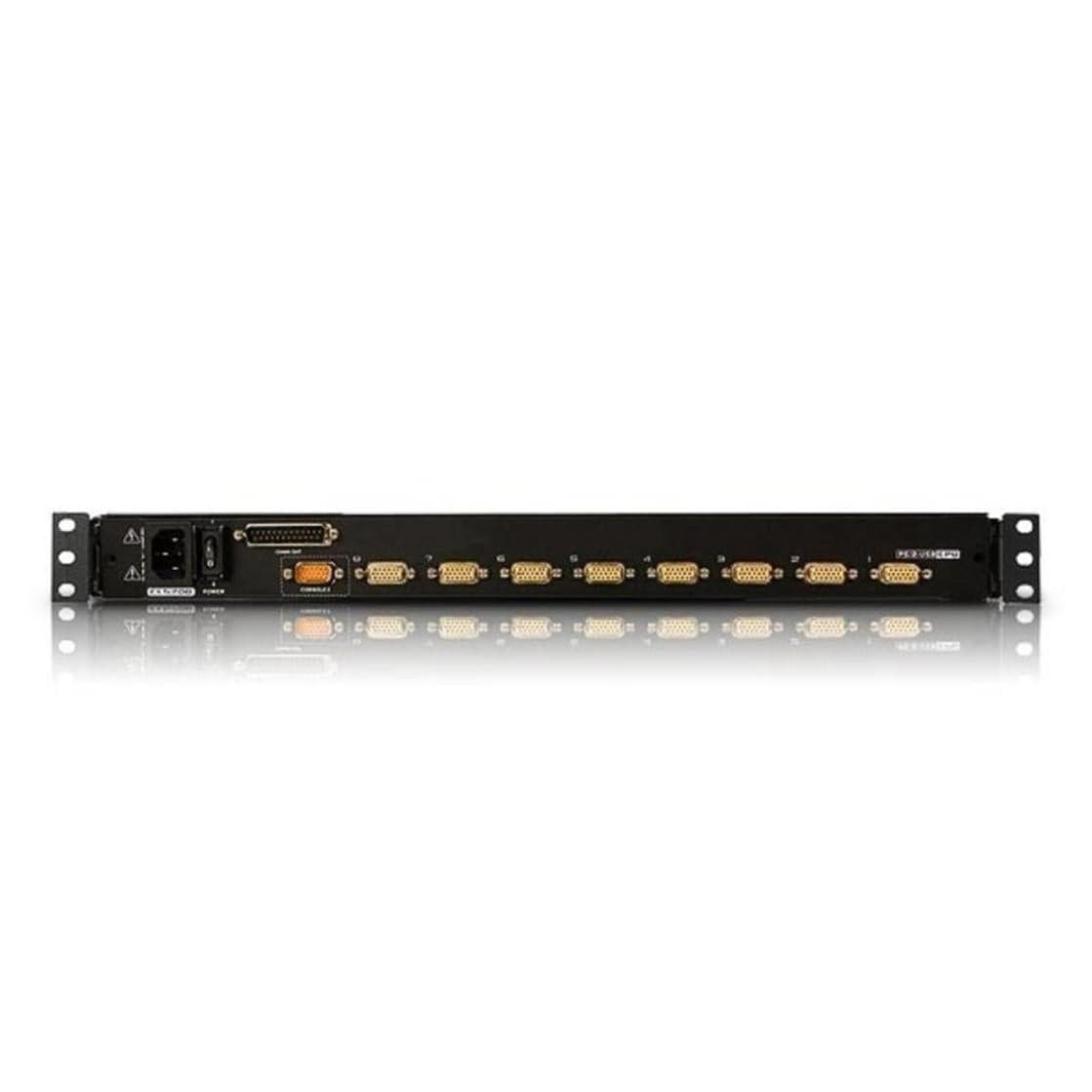

The Aten CL5708M Slideaway™ 17″ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708M, so that up to 256 computers can all be controlled from a single KVM console.

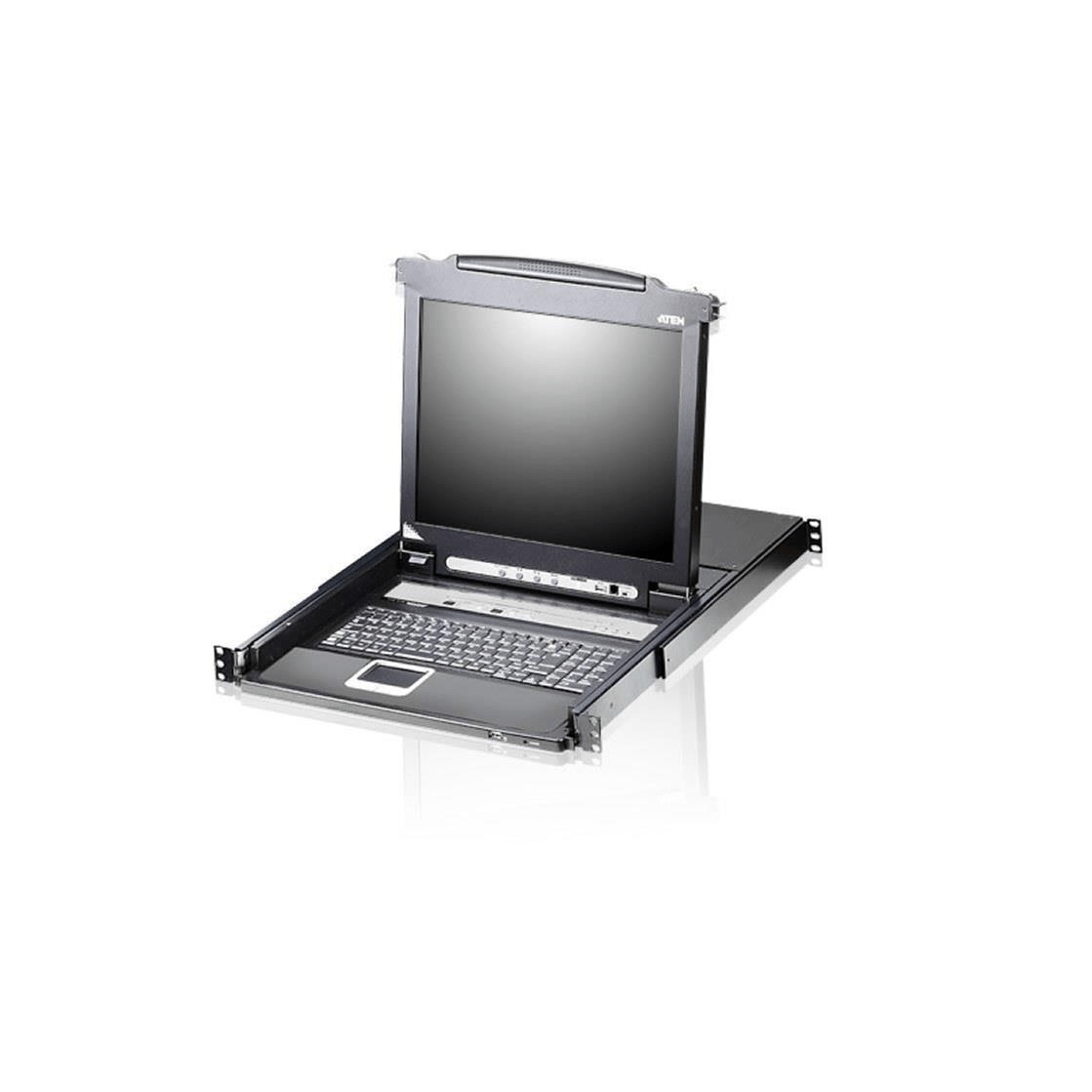

The CL5708M offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17″ or 19″ LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.

Features:

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 17″ or 19″ LED-backlit LCD monitor in a Slideaway™ housing
• Available with or without Fingerprint Identification Reader**
• Space saving technology – up to two consoles (one bus) control up to 8 computers
• Daisy-chain up to 31 additional units – control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
• Dual Interface – supports computers and console with PS/2 or USB keyboards and mice
• LCD module USB port allows each computer to access USB peripherals*

Specifications:

• LCD module rotates up to 115 degrees for a more comfortable viewing angle
• Multiplatform support: Windows, Linux, Mac, and Sun
• Supports multimedia USB keyboards for PC, Mac and Sun
• Auto PS/2 and USB interface detection
• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
• Supports external USB mouse
• Superior video quality: supports resolutions up to 1280 x 1024 @ 75 Hz
• No software required: convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
• Auto-senses station’s position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station’s position
• Port names automatically reconfigured when station sequence is changed
• Two level password security: only authorized users can view and control computers
• Supports one administrator and four user accounts with separate profiles
• Auto Scan mode enables continuous monitoring of user-selected computers
• Broadcast support: commands from the keyboard can be broadcast to all available computers on the installation
• Hot pluggable: add or remove computers without having to power down the switch
• Beeper on/off via hotkey and OSD
• Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
• Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
