FirstShop | SKU:
DS-KD8003-IME1(B)/SURFACE

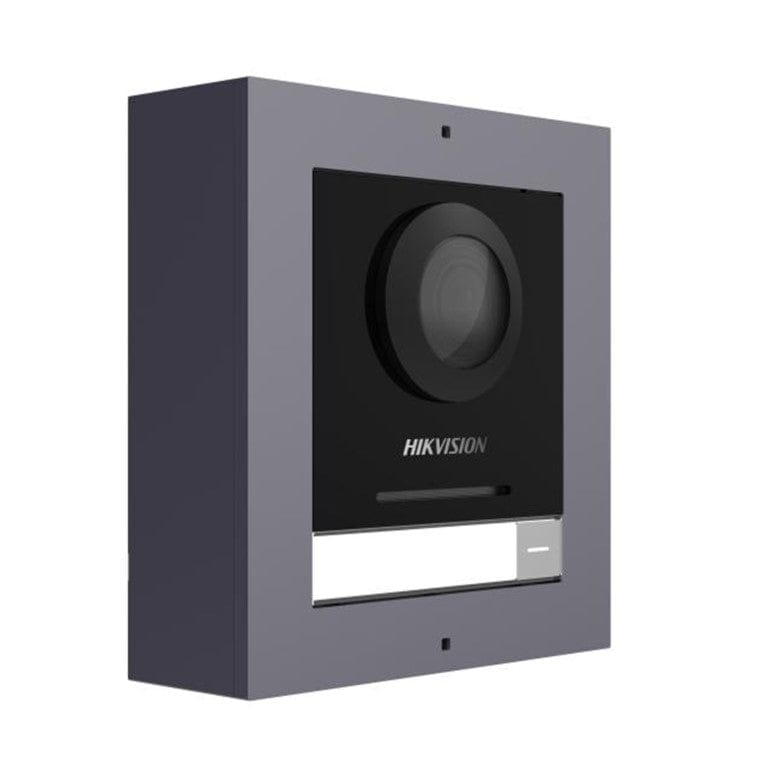

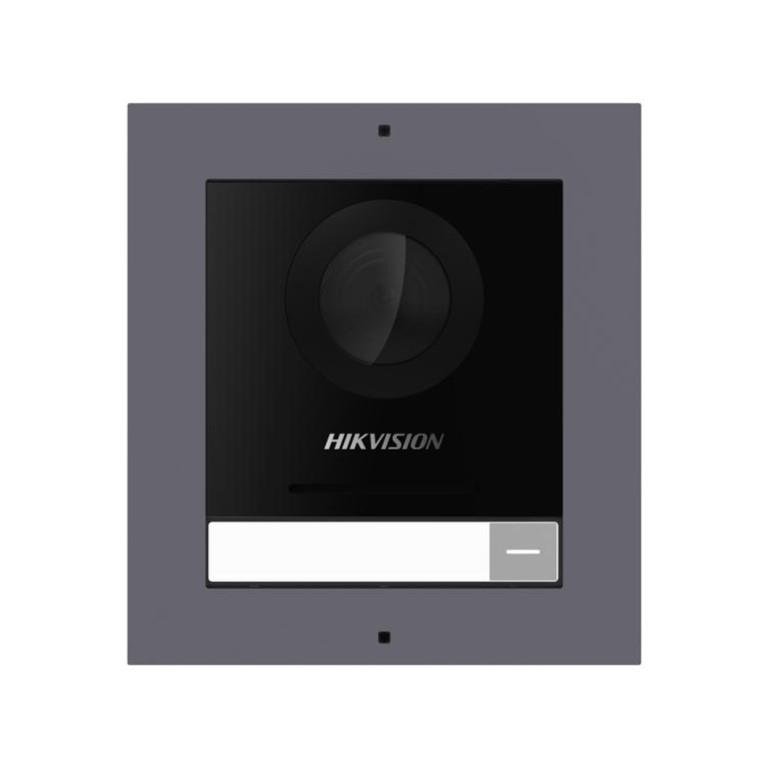

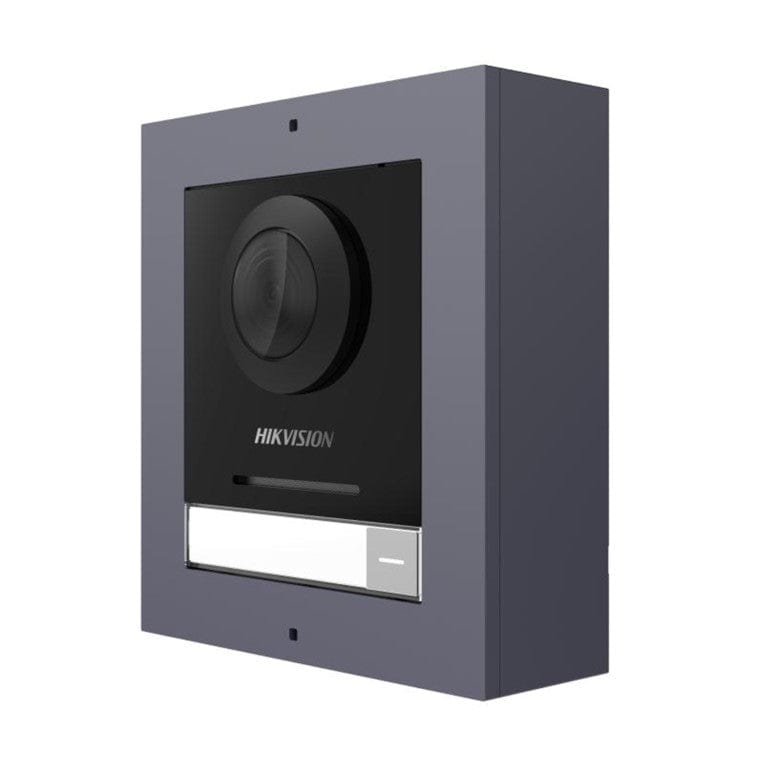

Hikvision KD8 Series Pro Modular Door Station DS-KD8003-IME1(B)/SURFACE
R 2,55000
Unit price
/
Unavailable
- Brand:Hikvision
Hikvision KD8 Series Pro Modular Door Station DS-KD8003-IME1(B)/SURFACE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
* Next Business Day Shipping Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Gurantee
Price Match Gurantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description
Hikvision KD8 Series Pro Modular Door Station
Features
- Surface mounting main unit of modular door station
- 2 MP fisheye Camera with IR Supplement
- One call Physical Button For easier calls
- Two-lock control
- Standard PoE power supply
- IP65 protection level
- Convenient configuration via Web remotely
- Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
Technical Specification
Operating system: Embedded Linux operation system
ROM 32 MB
RAM 256 MB
CPU: Embedded Processor
Supplement light: Low illumination, IR supplement lights
Video standard: H.264
Lens: 1
FOV: Horizontal: 146°, Vertical: 82° WDR Support
Resolution: 2 MP
Audio input: Built-in omnidirectional microphone
Audio output: Built-in loudspeaker
Audio compression standard: G.711 U, G.711 A
Audio compression bitrate: 64 Kbps
Audio quality: Noise suppression and echo cancellation
Volume adjustment: Adjustable
User capacity: 2000
Card capacity: 6000
Linked indoor station capacity: 500
Sub door station capacity: 16
Wired network: 10/100 Mbps self-adaptive Ethernet
Alarm input: 4 (2 exit buttons and 2 door contacts by default)
TAMPER: 1
Network interface: 1x RJ45
Exit button: 2 (2 for lock control)
Door contact input: 2
RS-485: 1 (1 for Hikvision's sub module communication)
Lock control: 2 (2 relay, max to 30 V, 2 A)
Power supply: 12 VDC/PoE ( IEEE 802.3af)
Protective level: IP65
Installation: Surface mounting
