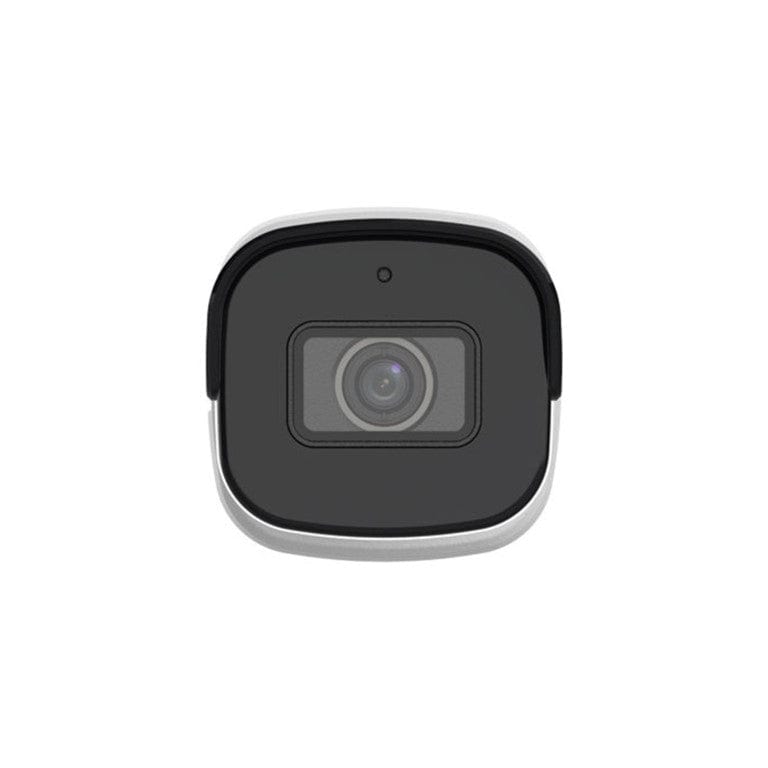

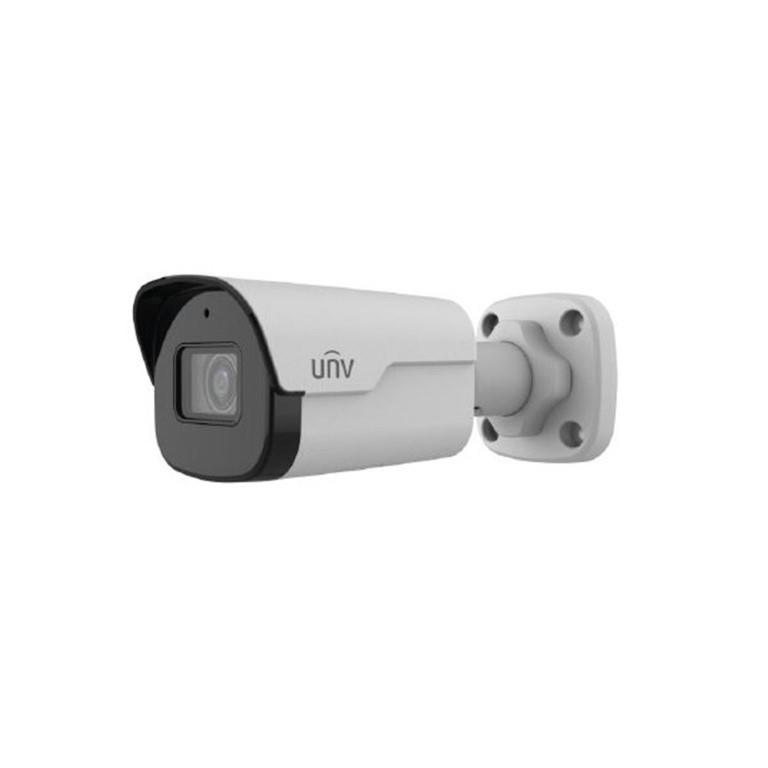

Uniview 2MP 4mm HD Intelligent LightHunter IR Fixed Bullet Network Camera IPC2122S-ADF40-I0

Uniview 2MP 4mm HD Intelligent LightHunter IR Fixed Bullet Network Camera IPC2122S-ADF40-I0

Features

• High quality imaging with 2MP, 1/2.8"CMOS sensor

• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps

• Ultra 265, H.265, H.264, MJPEG

• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection

• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle

• Intelligent People Flow Counting and Crowd Density Monitoring

• LightHunter technology ensures ultra-high image quality in low illumination environment

• 120dB true WDR technology enables clear imaging in strong light scene

• Support 9:16 Corridor Mode

• Built-in Mic

• Smart IR, up to 40m (131ft) IR distance

• Supports 256 G Micro SD card

• IP67 protection

• Support PoE power supply

Technical Specification

Camera

Sensor 1/2.8", 2.0 megapixel, progressive scan, CMOS

Minimum Illumination:

• Colour: 0.001Lux ( F1.6, AGC ON)
• 0 Lux with IR on

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

S/N: >52dB

WDR: 120dB

Lens

Lens: 4.0mm@F1.6

Iris: Fixed

Angle of View (H): 87.5°

Angle of View (V): 46.3°

Angle of View (O): 92.4°

DORI

DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)

4.0mm: 62.1m 24.8m 12.4m 6.2m

Illuminator

IR Range: Up to 40m (131 ft) IR range

Wavelength: 850nm

IR On/Off Control: Auto/Manual
