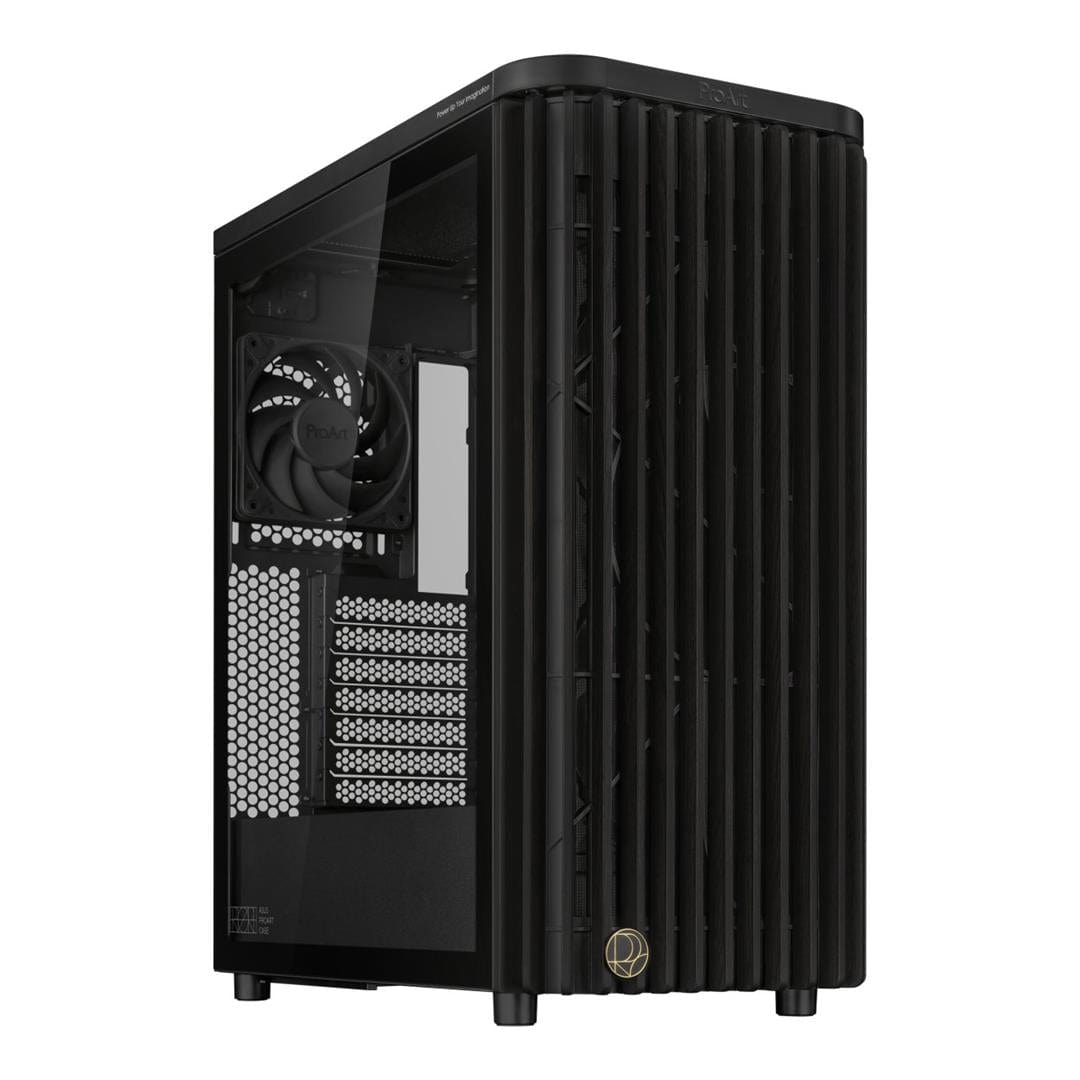

ASUS ProArt PA401 Wood Edtiton ATX Tower Case with Tempered Glass Panel 90DC00M0-B39000

ASUS ProArt PA401 Wood Edtiton ATX Tower Case with Tempered Glass Panel 90DC00M0-B39000

Tempered Glass Panel

Natural Elegance, Optimal Airflow

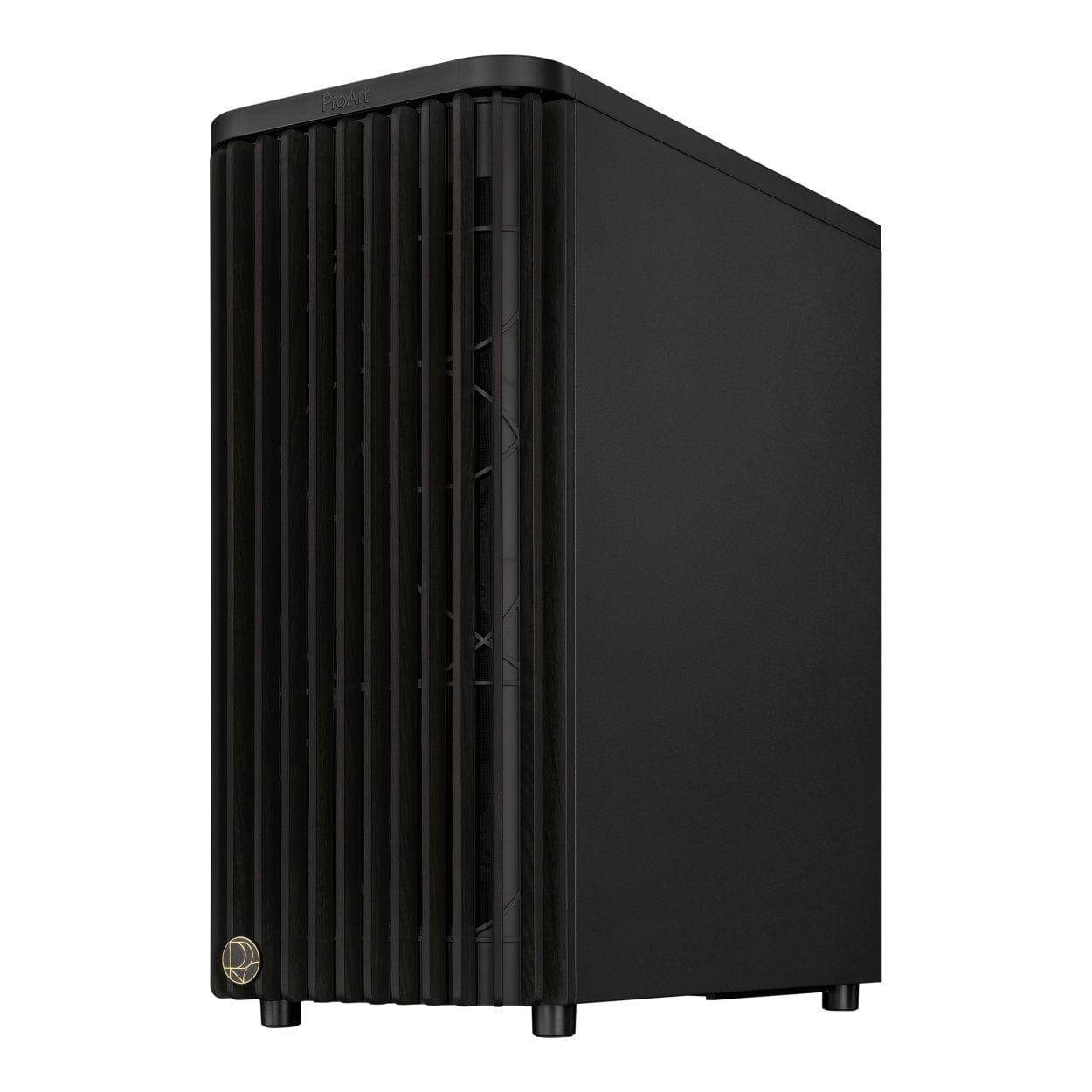

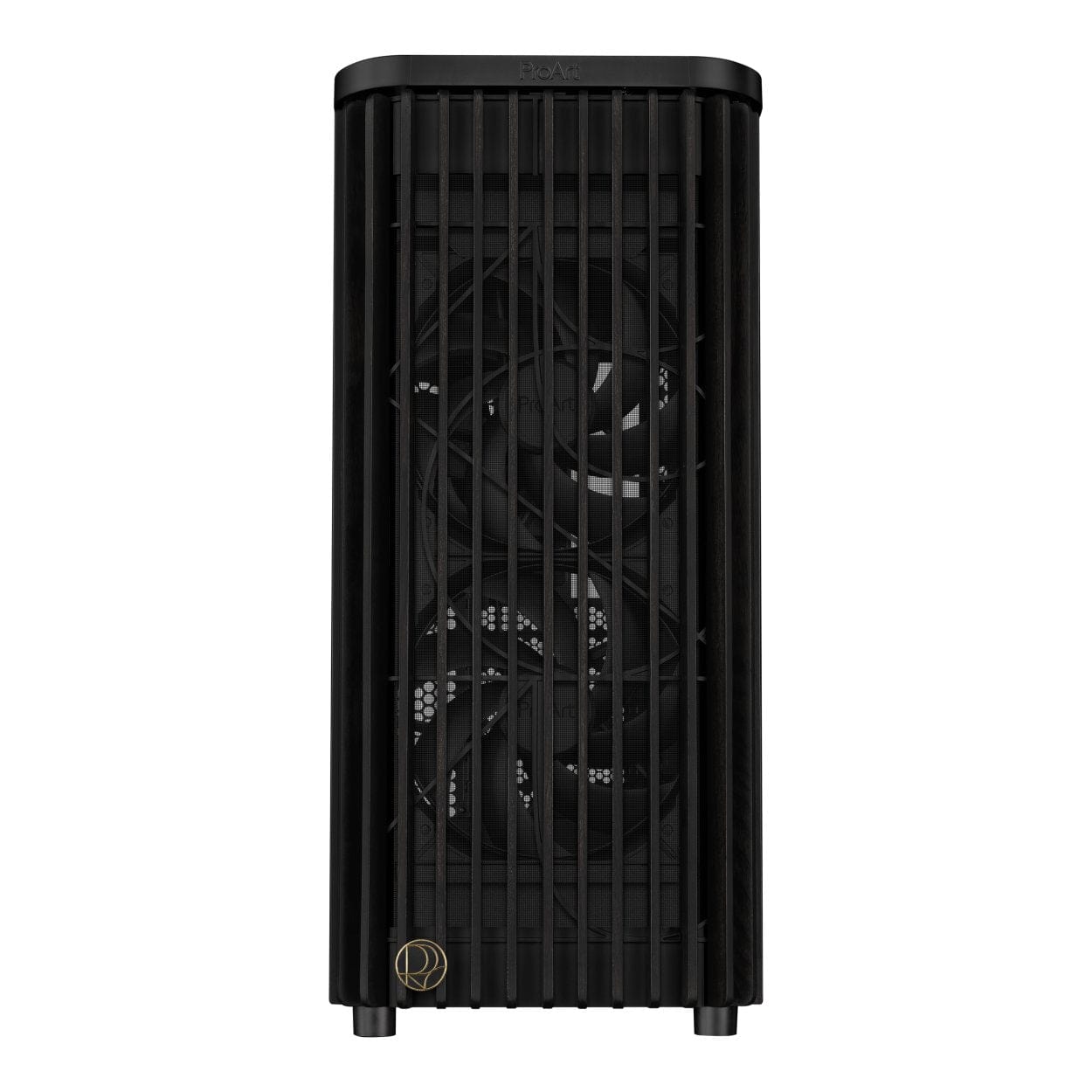

The ProArt PA401 Wood Edition showcases a wooden front panel that creates a distinctive, elegant style while promoting sustainability. The wood used is certified by the Forest Stewardship Council® (FSC®), and is finished using a six-stage process. The case also boasts optimal built-in cooling, with two 160mm front fans and one 120mm rear fan, along with an integrated fan hub, enabling optimal airflow.

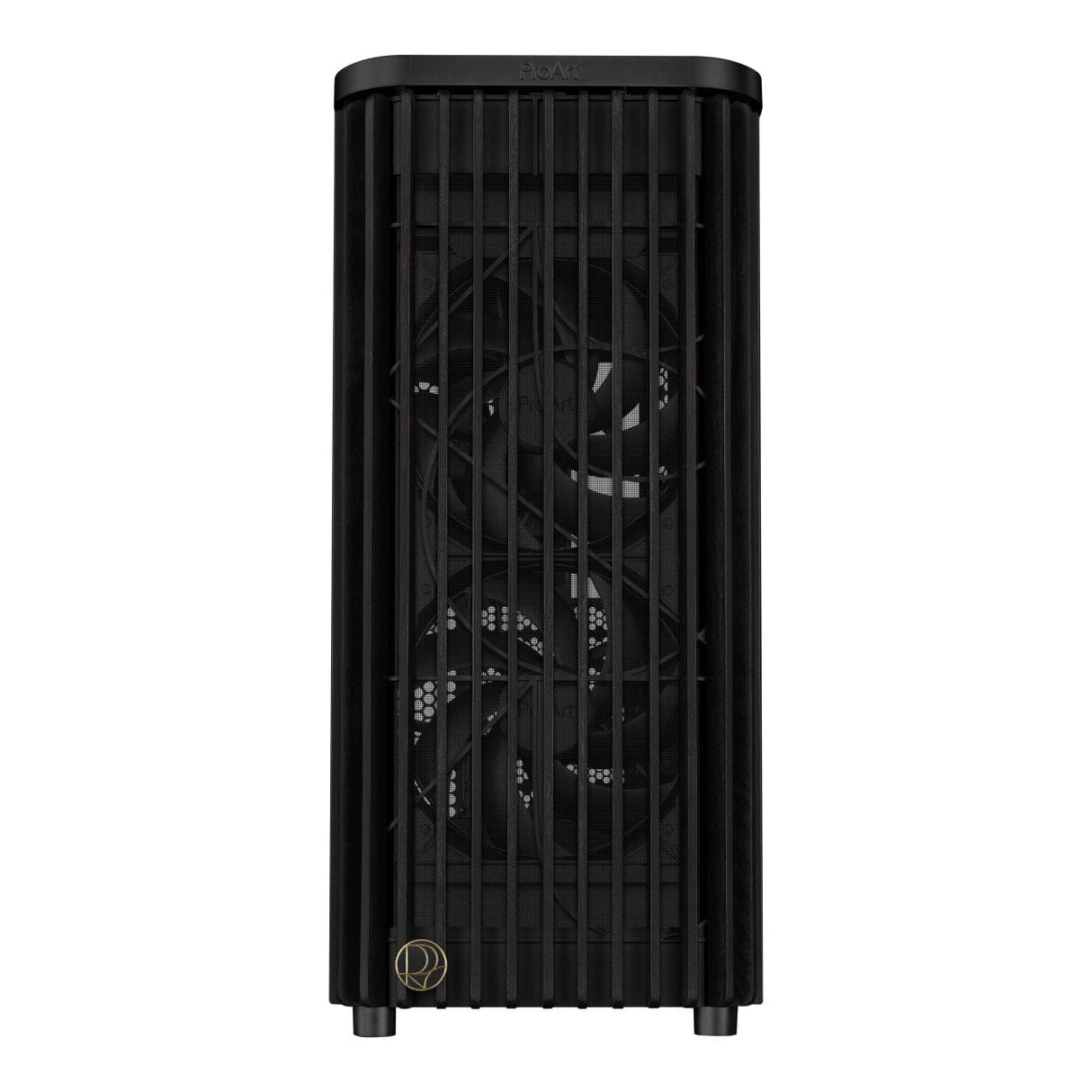

• Open grille for maximum air intake
• 160 x 32mm front ring fan blades for enhanced thermal performance
• Durable, FSC^® certified ash wood

Cooling

Exceptional Cooling Performance

The PA401 Wood Edition features a front grille with 33% porosity to maximize airflow and ventilation. Meanwhile, built-in dual 160mm front fans efficiently deliver up to 138cfm of airflow to graphics cards and CPU coolers, and the outer ring connecting these fan blades helps reduce initial vibration. The front fans and the 120mm rear fan with PWM control yield optimal airflow, low noise, low vibration and high reliability.

Natural Elegance

Crafted Wood

Ash wood, an uncommon choice for this style of case, has been selected for its durability. The special six-stage production process used to create the front panel begins with thermowood treatment, protecting the wood from insects, humidity and heat. The panel material is then shaped to exact specification. Finally, a two-step coating elevates the unique Ash grain with a glossy finish.

The ash wood used for ProArt PA401 Wood Edition is sustainably sourced and is certified by the FSC®.

• Note: As natural wood varies in texture and characteristics, each ProArt PA401 Wood Edition case will have a distinct finish, adding to its unique charm and character.

Connectivity

Flexible, Fast I/O

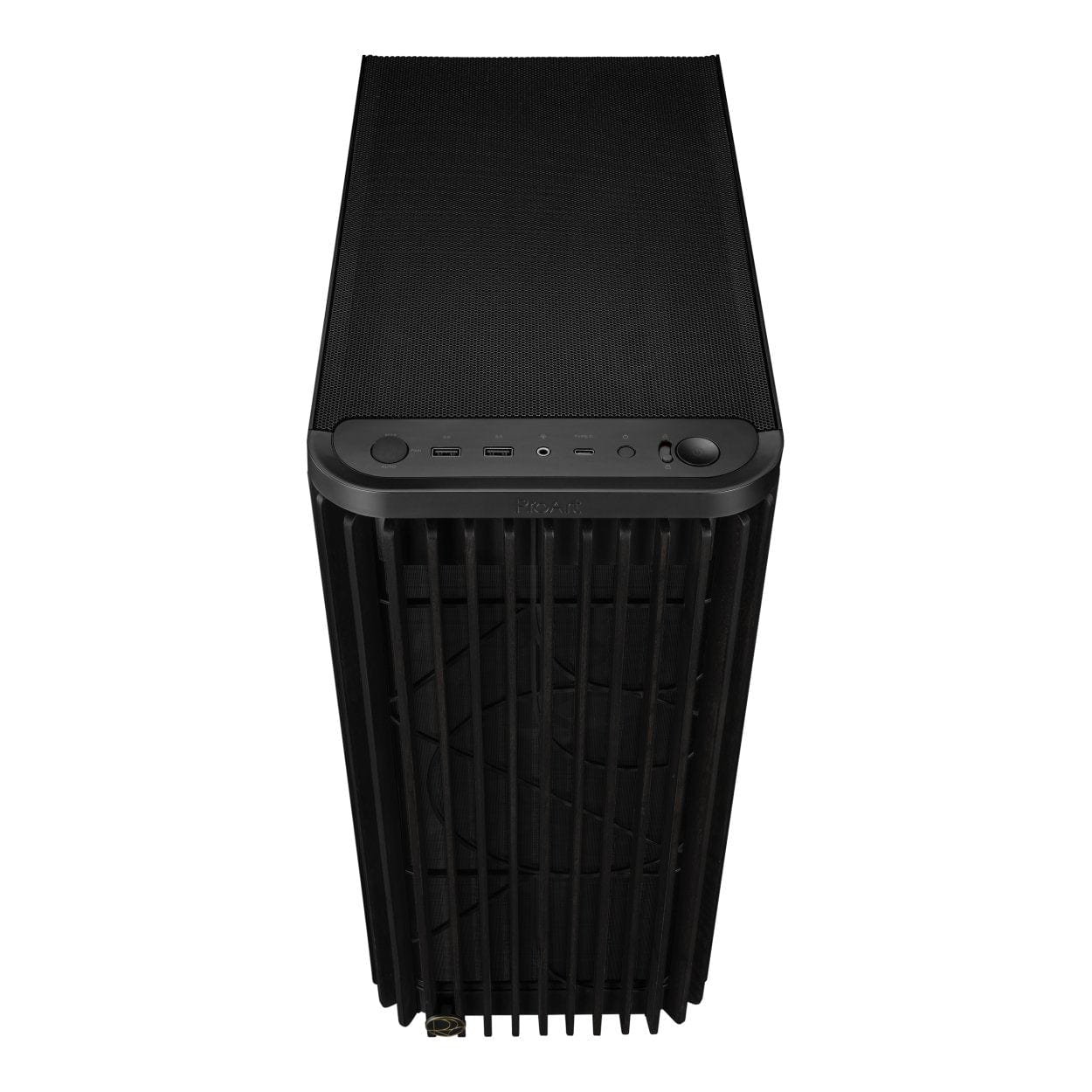

Connectivity options are easily accessible via the front I/O panel, including one two-section PWM control, one 20Gbps USB Type-C® port, two USB-A 3.0 ports, HD audio and a Power and Reset button lock.

• Premium Fan Speed Control: With integrated PWM control, fan speed adjusts automatically, making it easy to switch between normal and working scenarios and intensive scenarios.
• 20Gbps USB Type-C®: The PA401 Wood Edition incorporates one 20Gbps USB Type-C port for current and future devices and connectivity with compatible motherboards.
• Power and Reset Button Lock: This lock prevents the user from accidentally pressing the Power and Reset buttons.

Design

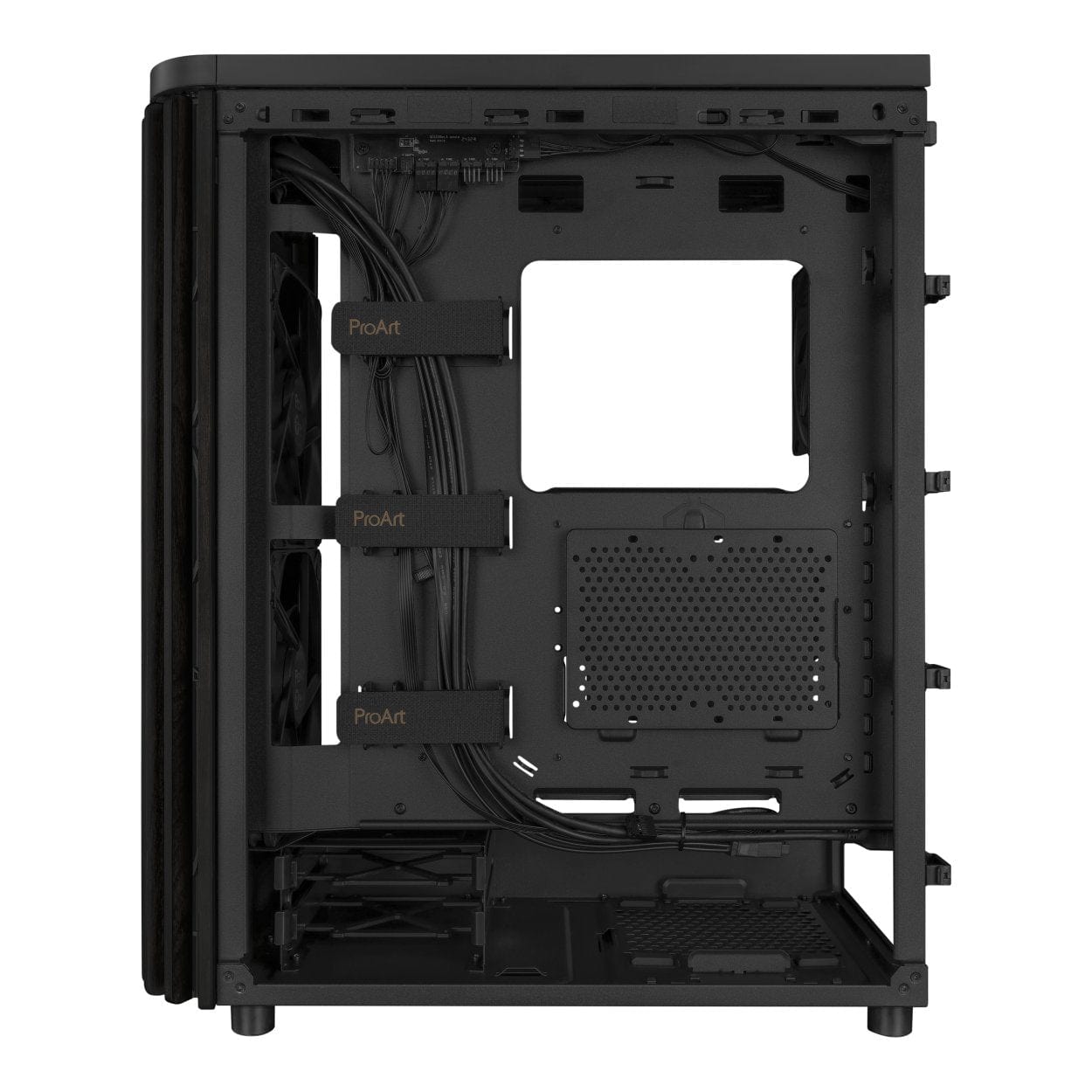

Builder-Friendly Installation

The ProArt PA401 Wood Edition optimizes the PC building experience, offering better functionality with user-focused features.

Compatibility

Compact Form, Ample Interior

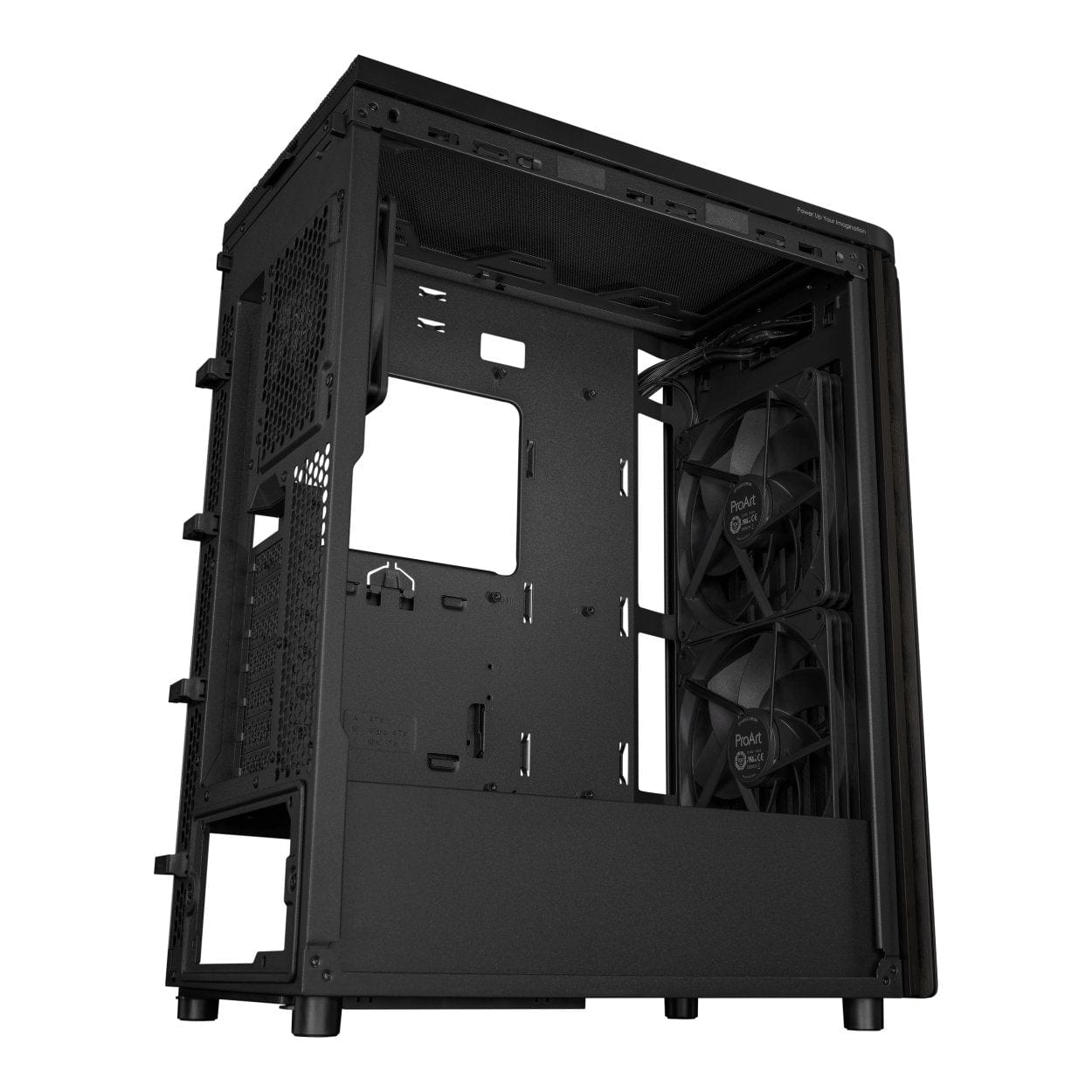

The ProArt PA401 Wood Edition features two pre-installed 160mm front fans and accommodates both horizontal and vertical graphics card mounting.

• Graphics Card Support: Support 2-way Graphics Card Installation
• Fan Compatibility: 120mm, 140mm, 160mm

Versatile Choices

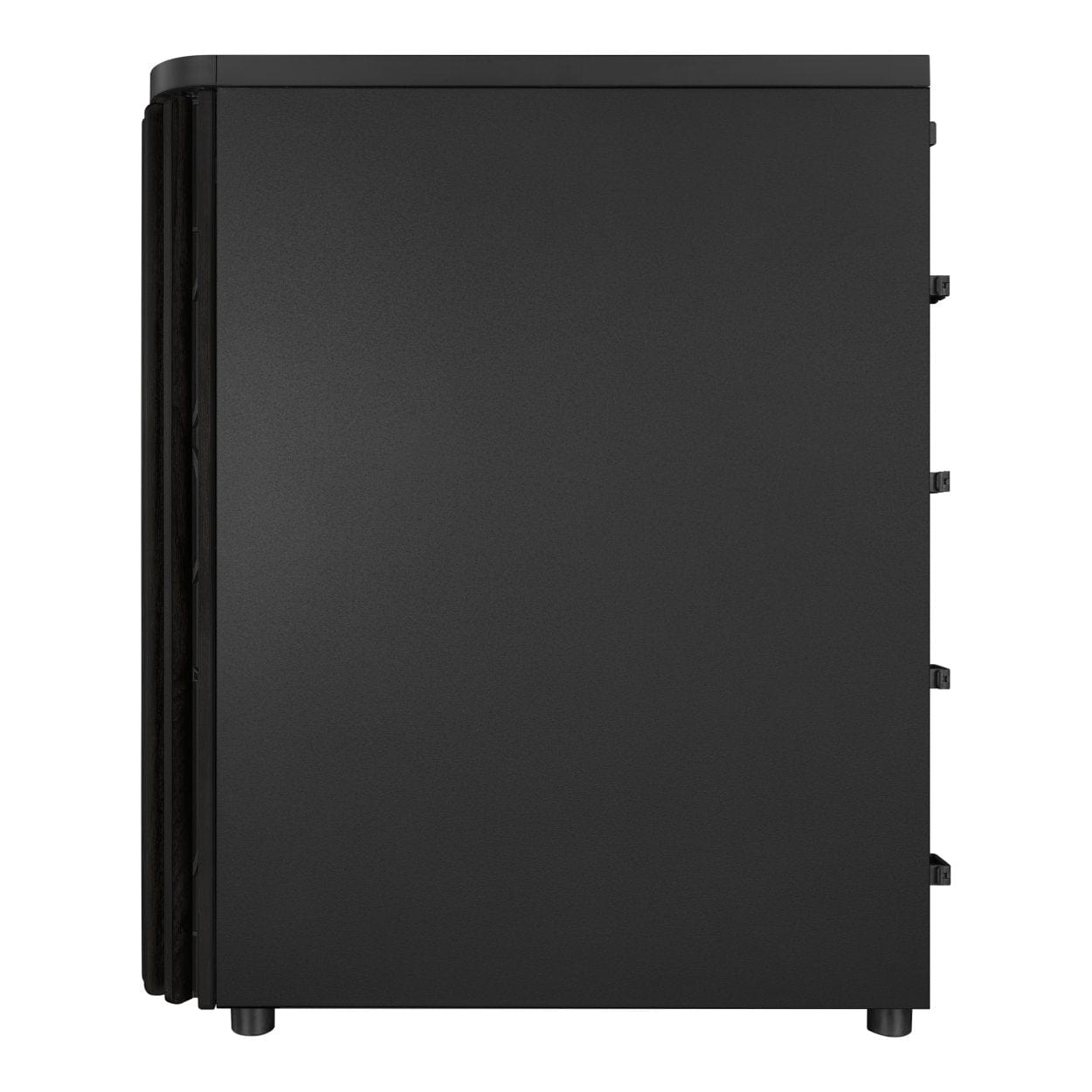

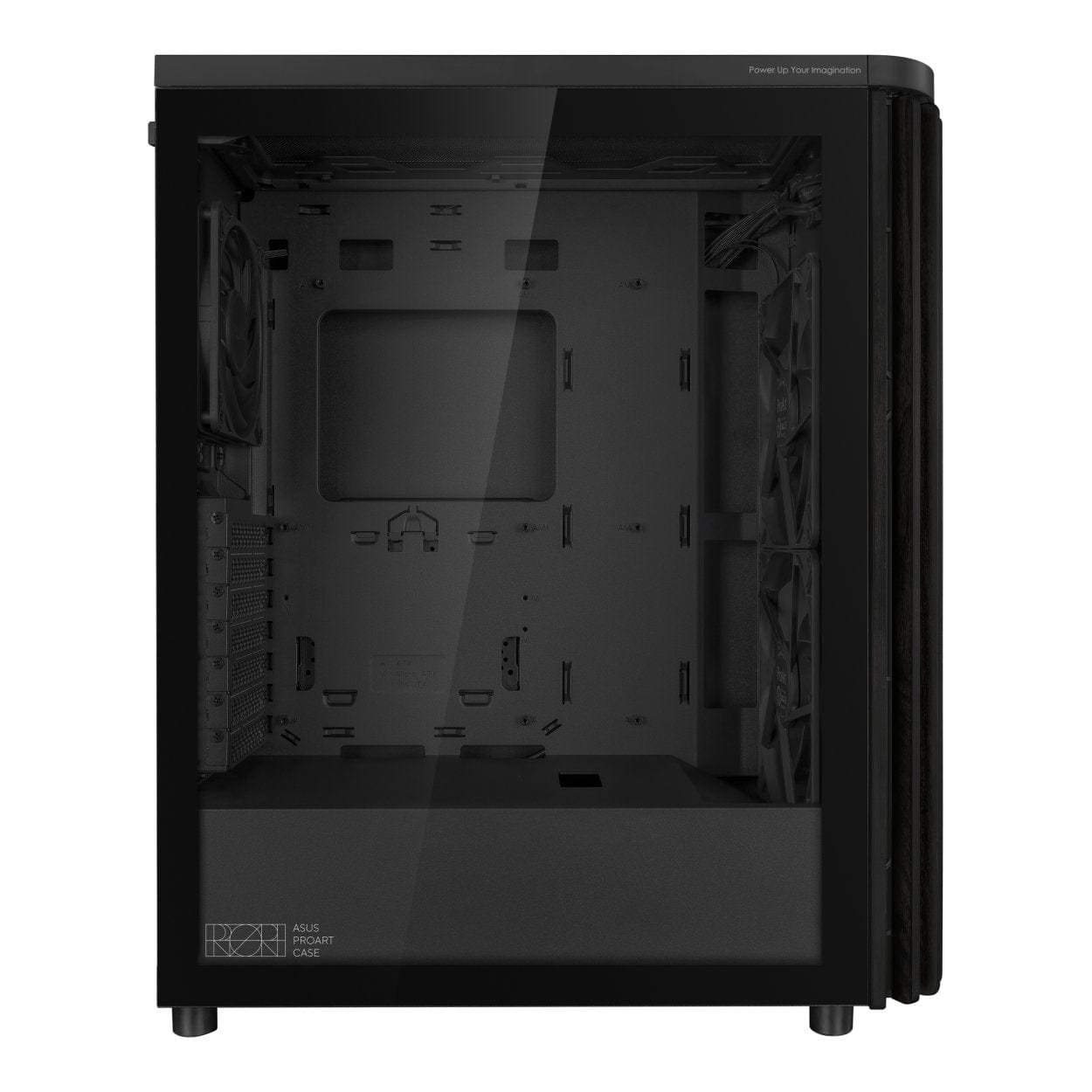

To accommodate the preferences of diverse builders, the PA401 Wood Edition comes in two versions. The metal side panel version focuses on durability, whereas the tempered-glass version offers durability while providing a window for showing off internal aesthetics.

Technical Specification

Product: ProArt PA401 Wood Edition - Tempered Glass Panel

Form factor: Tower

Type: PC

Supported HDD sizes: 2x 2.5", 2x 2.5"/3.5" Combo Bay

Expansion Slots: 7

Radiator Support (Top)

• 120 mm
• 140 mm
• 240 mm

Cooling Support (Front)

• 2x 140 mm
• 2x 160 mm

Cooling Support (Top)

• 2x 120 mm
• 2x 140 mm

Cooling Support (Rear): 1x 120 mm

Pre-installed Fans (Front): 2x 160 mm

Pre-installed Fans (Rear): 1x 120 mm

Maximum CPU Cooler Height: 160 mm

Maximum GPU Length: 315 mm

Maximum PSU Length: 170 mm

Dimensions (DxWxH): 412 x 225 x 503 mm

Motherboard Support: ATX

Product colour: Black (Wood Edtiton)

Weight: 8.61 kg

Accessory: Pre-installed Fan Hub Support PWM Fan Output x 5

Front I/O Port

• 1x Headphone / Microphone
• 2x USB 3.2 Gen1
• 1x USB 3.2 Gen 2x2 Type C
