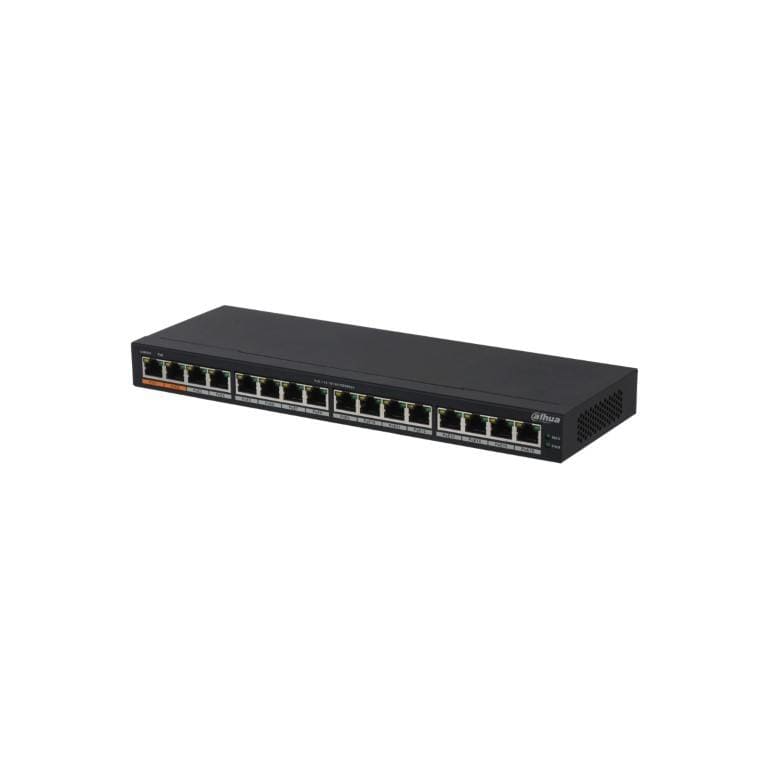

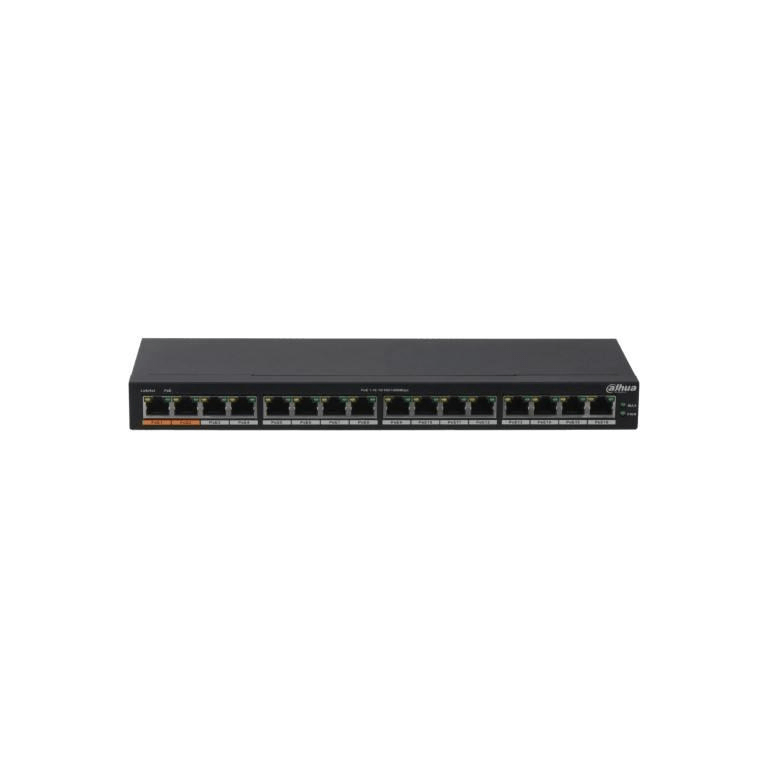

Dahua PFS3016-16GT-190 16-port Gigabit PoE Unmanaged Switch 1.0.01.20.10599

Dahua PFS3016-16GT-190 16-port Gigabit PoE Unmanaged Switch 1.0.01.20.10599

Features

Intelligent PoE Adopt

PoE power consumption management strategy, and supply power to important ports first. When total power consumption exceeds the set threshold value of the system, power down the ports from large port number to small port number. Adopt smart detection to prevent outage.

Hi-PoE 60W (Orange Port)

All ports support IEEE802.3af and IEEE803.3at power supply standards; orange ports also support max. 60W output.

Full Gigabit Port

RJ-45 port supports 16 × 10/100/1000 Mbps self-adaptation, and IEEE802.3, IEEE802.3u, IEEE802.3X, and IEEE802.3ab standards.

Installation

With small dimensions, the product supports desktop and wall mounting.

More Features

• 16-Port Unmanaged Gigabit PoE Switch

• Organge port supports 60W Hi-PoE standard

• Intelligent PoE

• Plug-and-play

• Ethernet port supports eight-pin PoE

• Wide range of working temperature: –10 to +55°C (14°F to +131°F)

• Full gigabit port design

Technical Specification

Performance

Layer: Layer 2

Switching Capacity: 32 Gbps

Packet Forwarding Rate: 23.808 Mpps

Packet Buffer Memory: 4.1 Mb

MAC Table Size: 8K

Hardware Feature

Standard Power Supply: Yes

PoE: Yes

Ethernet Port: 16

Ethernet Port Rate: 1 Gbps

Number of Bussiness Card Slots: Port 1–port 16: 16 × RJ-45 10M/100M/1000M (PoE)

Power Supply: 100V AC –240V AC

Operating Temperature: –10°C to +55°C (14°F to +131°F)

Operating Humidity: 10%–90%

Storage Humidity: 5%–95%

Power Consumption:

• Idling: 18W

• Full load: 190W

PoE

PoE Standard: IEEE802.3af, IEEE802.3at, Hi-PoE

PoE Budget: Port 1–port 2 ≤ 60W, port 3–port 16 ≤ 30W, total ≤ 190W

PoE Pin Assignment: PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)
