Club 3D Gen2 Type-C with Smart PD Charging Dock Station CSV-1568

Club 3D Gen2 Type-C with Smart PD Charging Dock Station

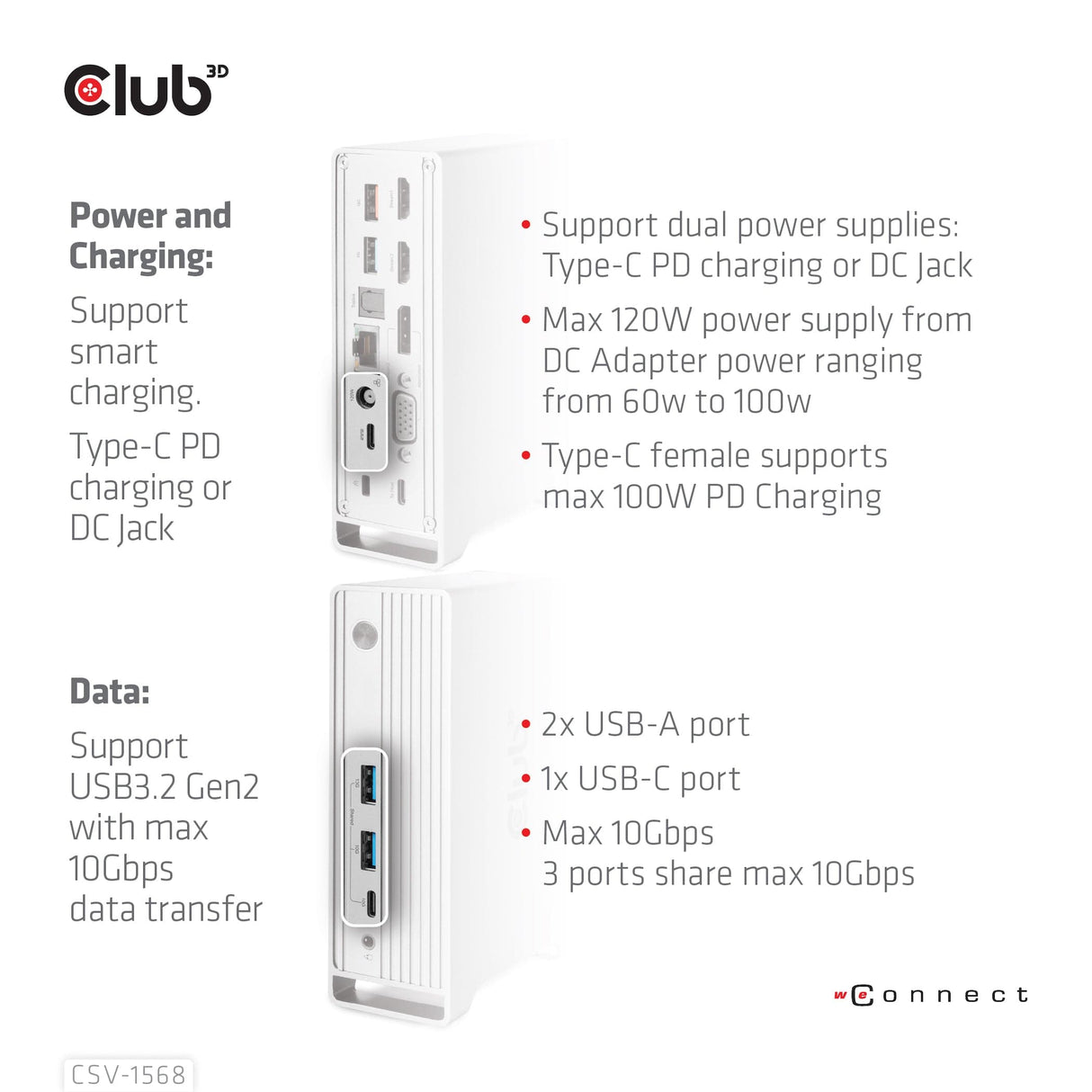

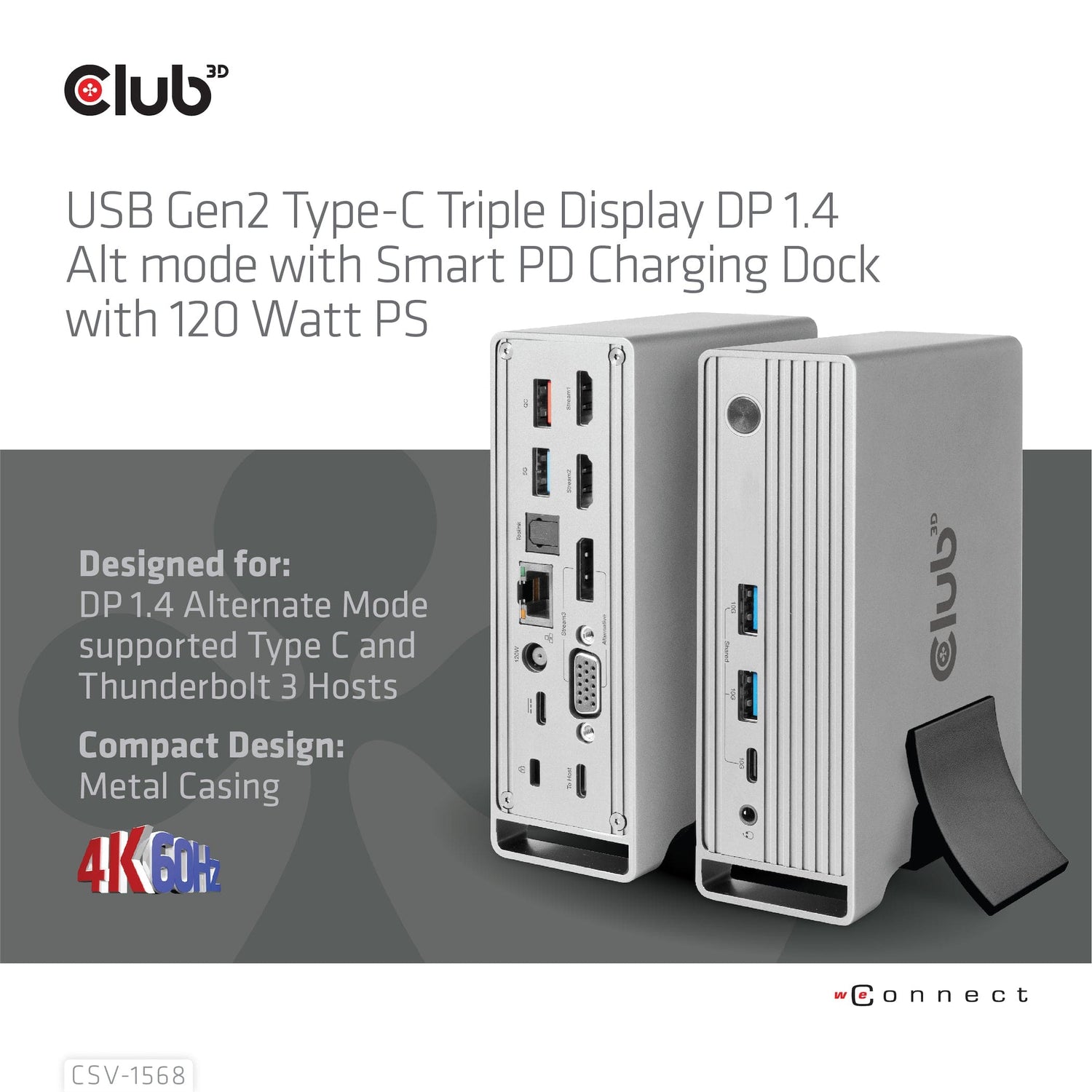

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).

It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt™ 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.

Specifications

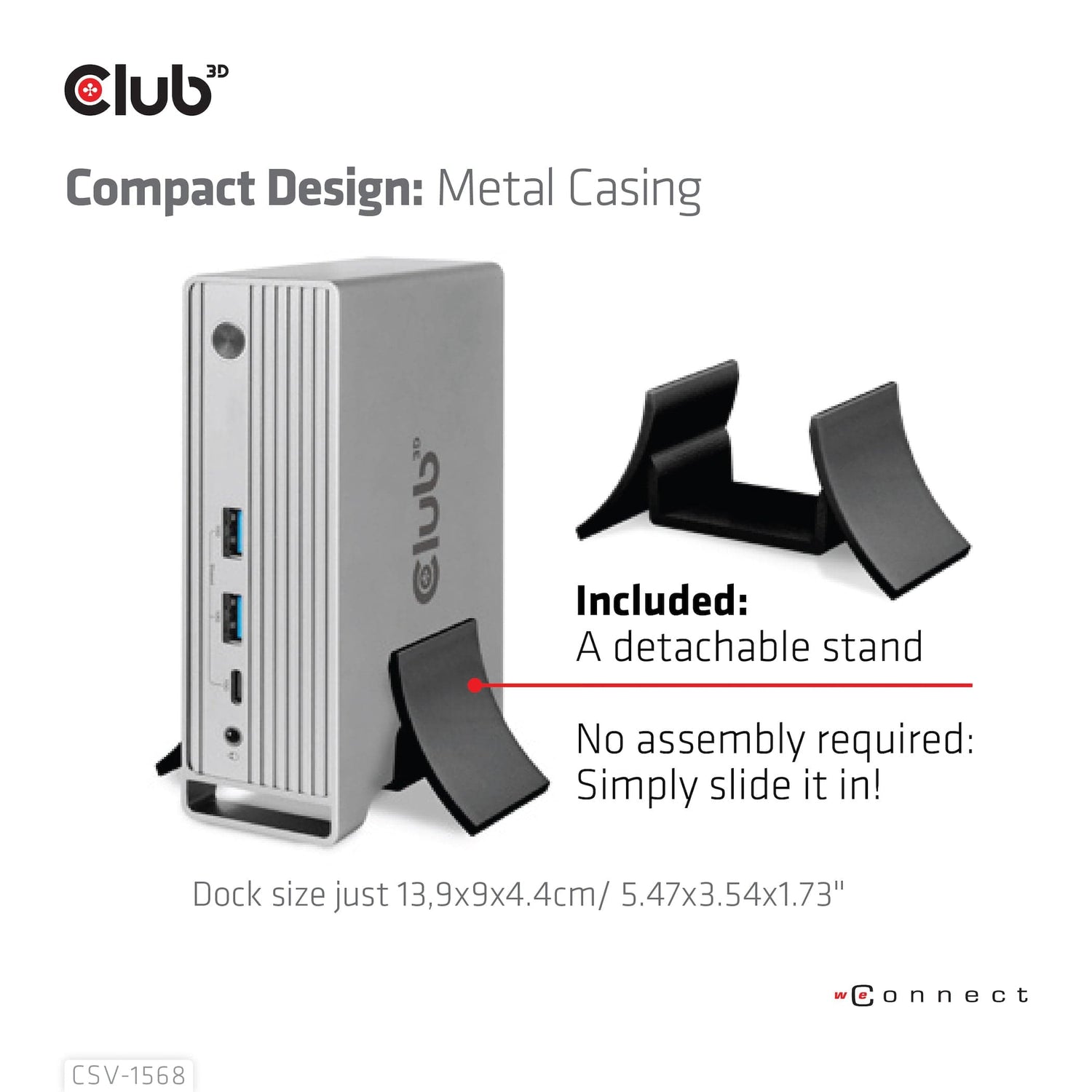

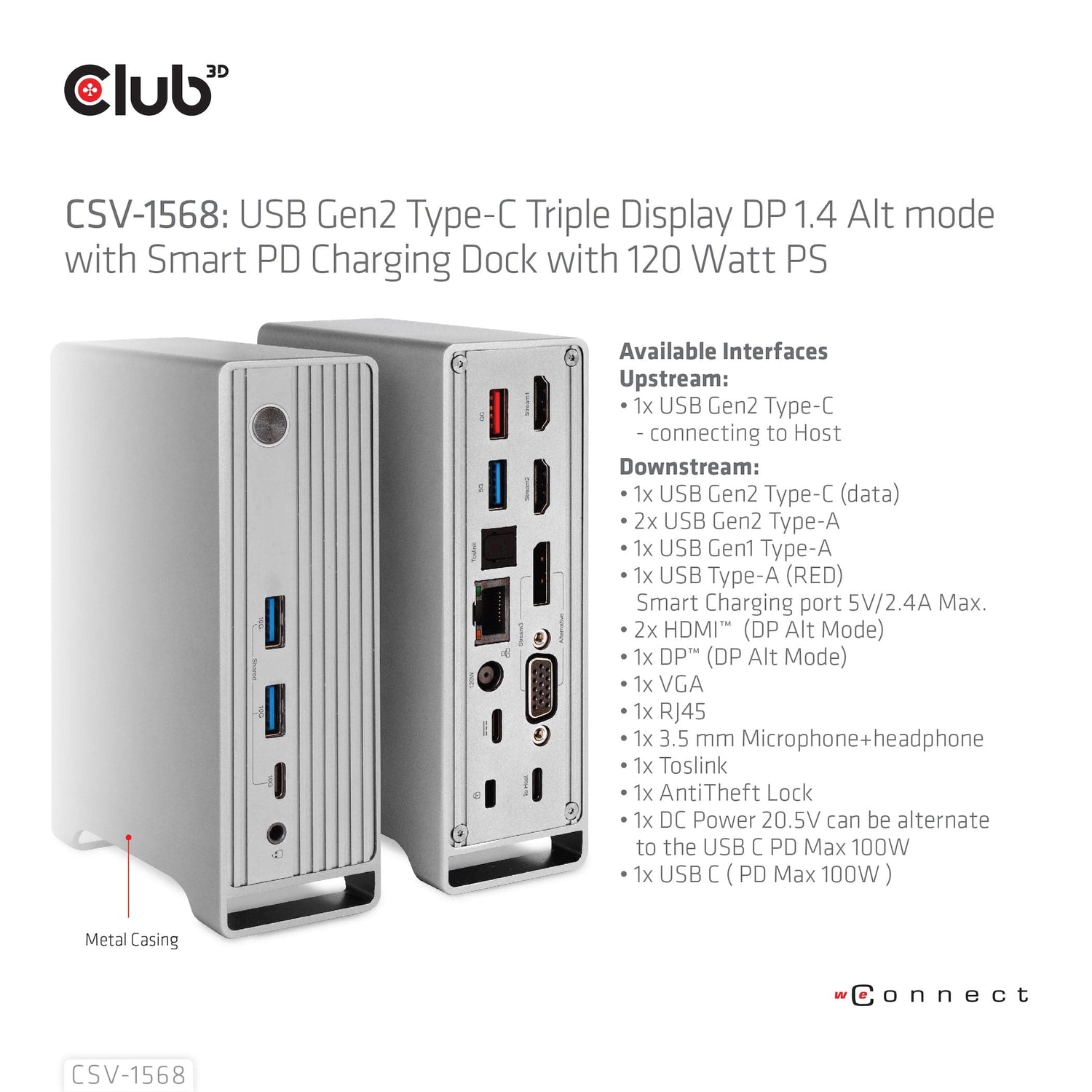

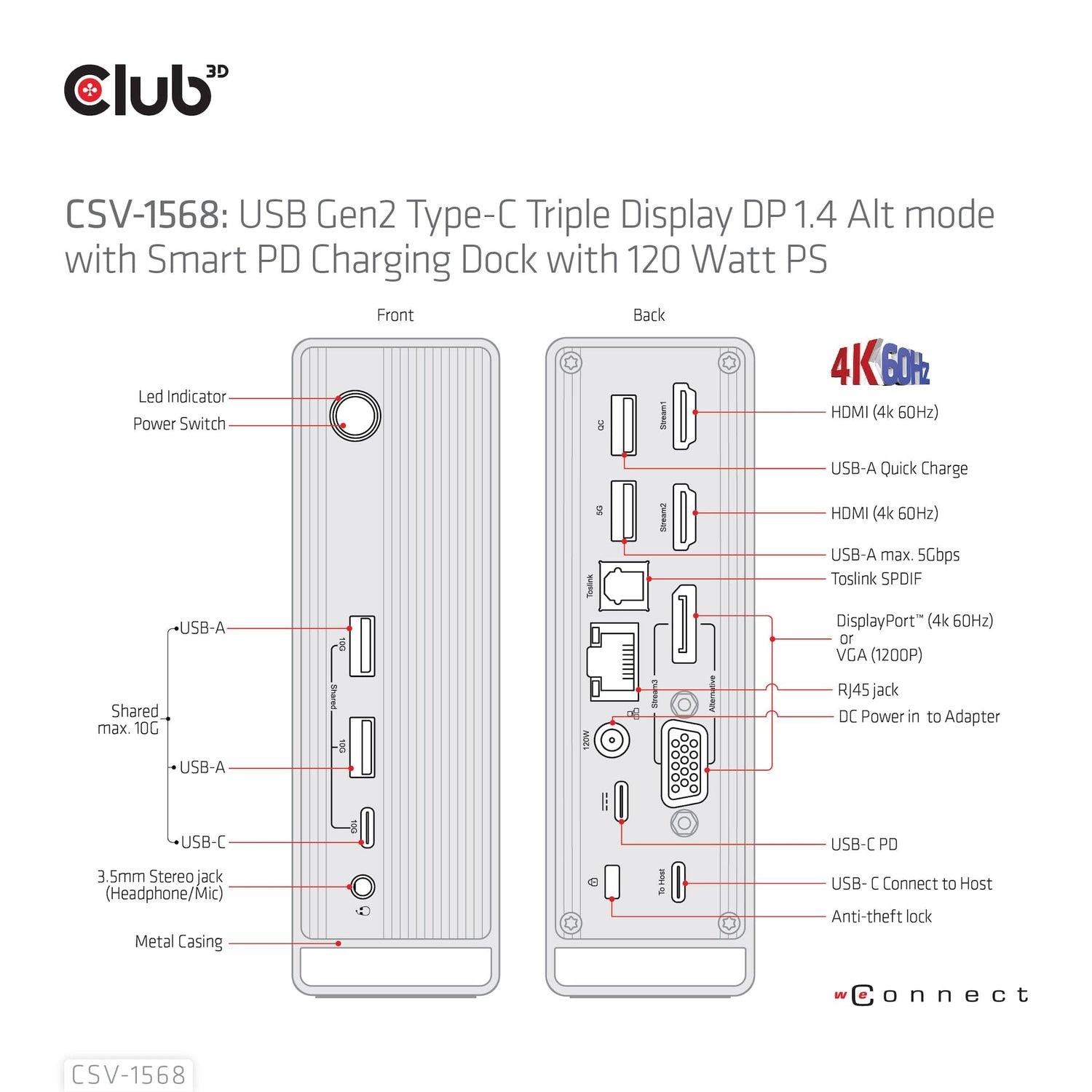

• Product: CLUB3D Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. • 2x HDMI™ (DP Alt Mode) 1x DP™ (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt
• Connectivity technology: Docking
• Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
• Headphone connectivity: 3.5 mm
• Product colour: Metallic
• Maximum refresh rate: 60 Hz
• Country of origin: China
• Power consumption (max): 120 W

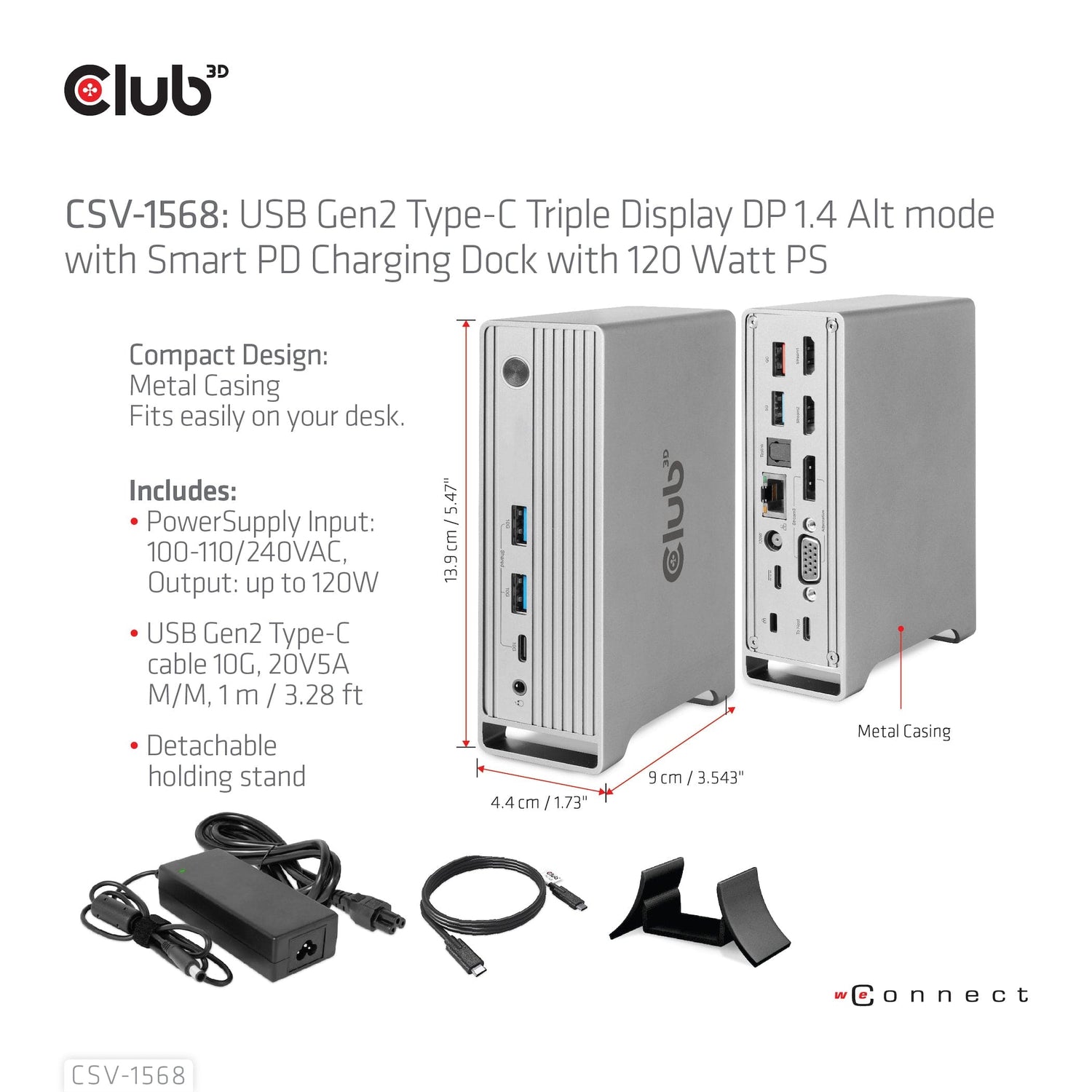

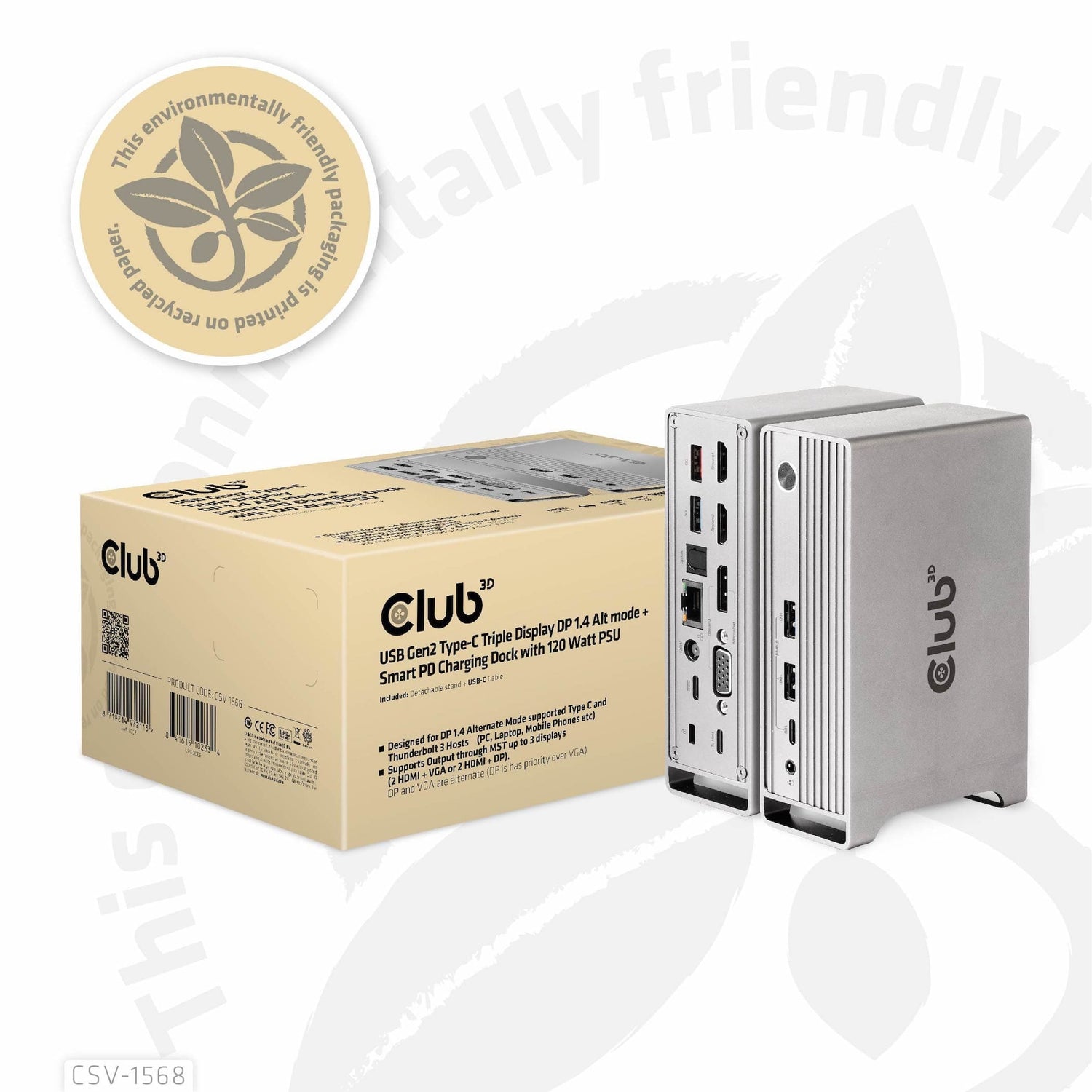

• Special features: In the box: • CSV-1568 Docking Station • PowerSupply Input:100-110/240VAC, Output: up to 120W...
