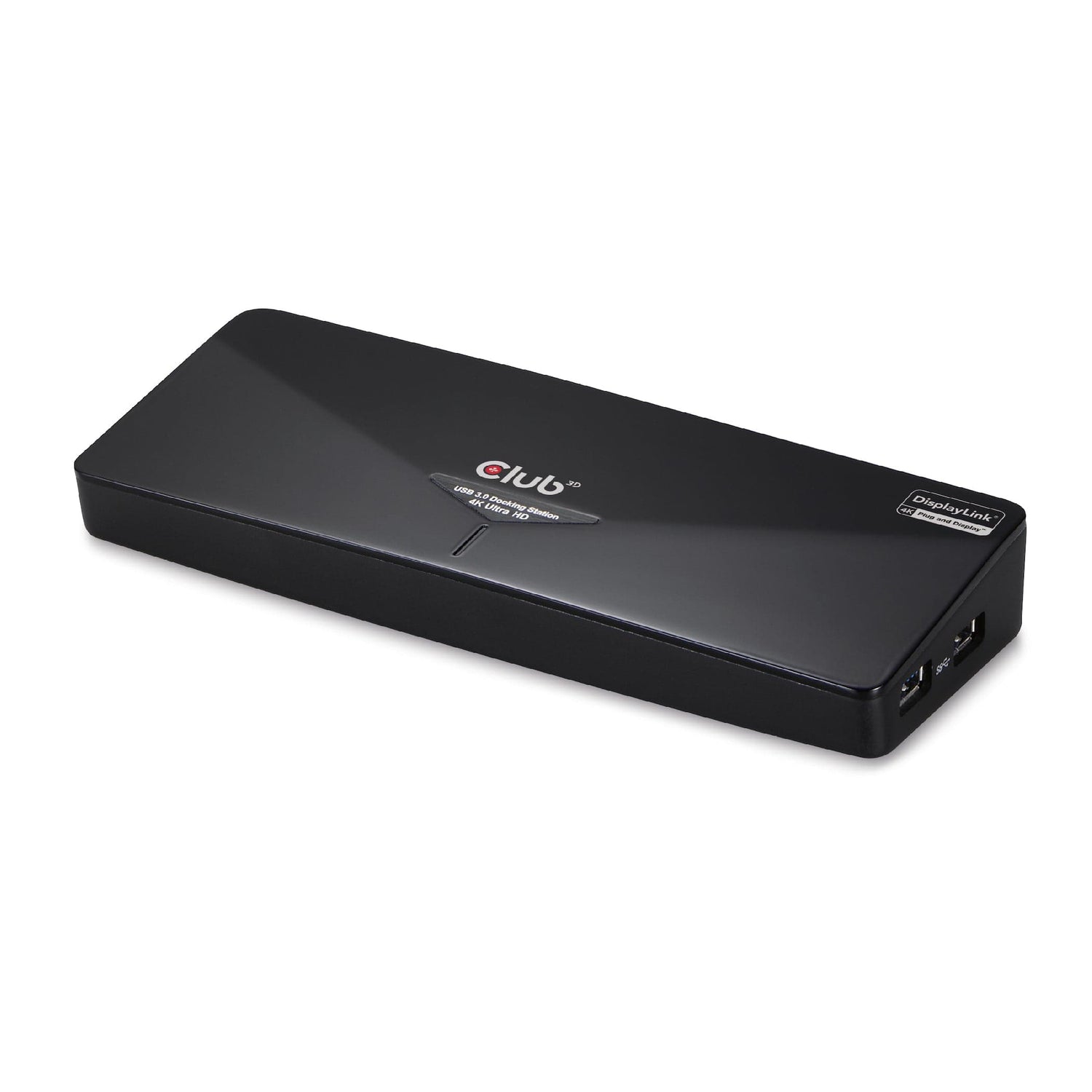

Club 3D USB 3.2 Gen1 4K Docking Station CSV-3103D

Club 3D USB 3.2 Gen1 4K Docking Station

SenseVision USB 3.0 4K Docking Station The Club 3D Universal USB 3.0 4K Docking station is designed for all your connectivity needs. With the built-in USB 3.0 ports, the docking station enables you to enjoy the super speed data transmission (up to 5Gbps) of your USB peripherals, reducing cable clutter and bringing data and display connectivity to your notebook or tablet via a single USB 3.0 uplink port. Dual Monitor support allows you to chose from either the DP or HDMI™ output plus a DVI output. It supports display resolution up to 4K at 30Hz for single Monitor setup or full HD at 60Hz for Dual Monitor setups. It offers separate connections for your Speakers or Headset and Microphone. You can even charge your Mobil Phone thru the BC1.2 Fast Charge Port in a manner of minutes. Functionality is also dependent on the functionality of the connected devices. BC 1.2 charging Quick charge your USB enabled devices. It charges three times faster than a standard computer USB 2.0 port. Share

Features:

• Display: Link Certified

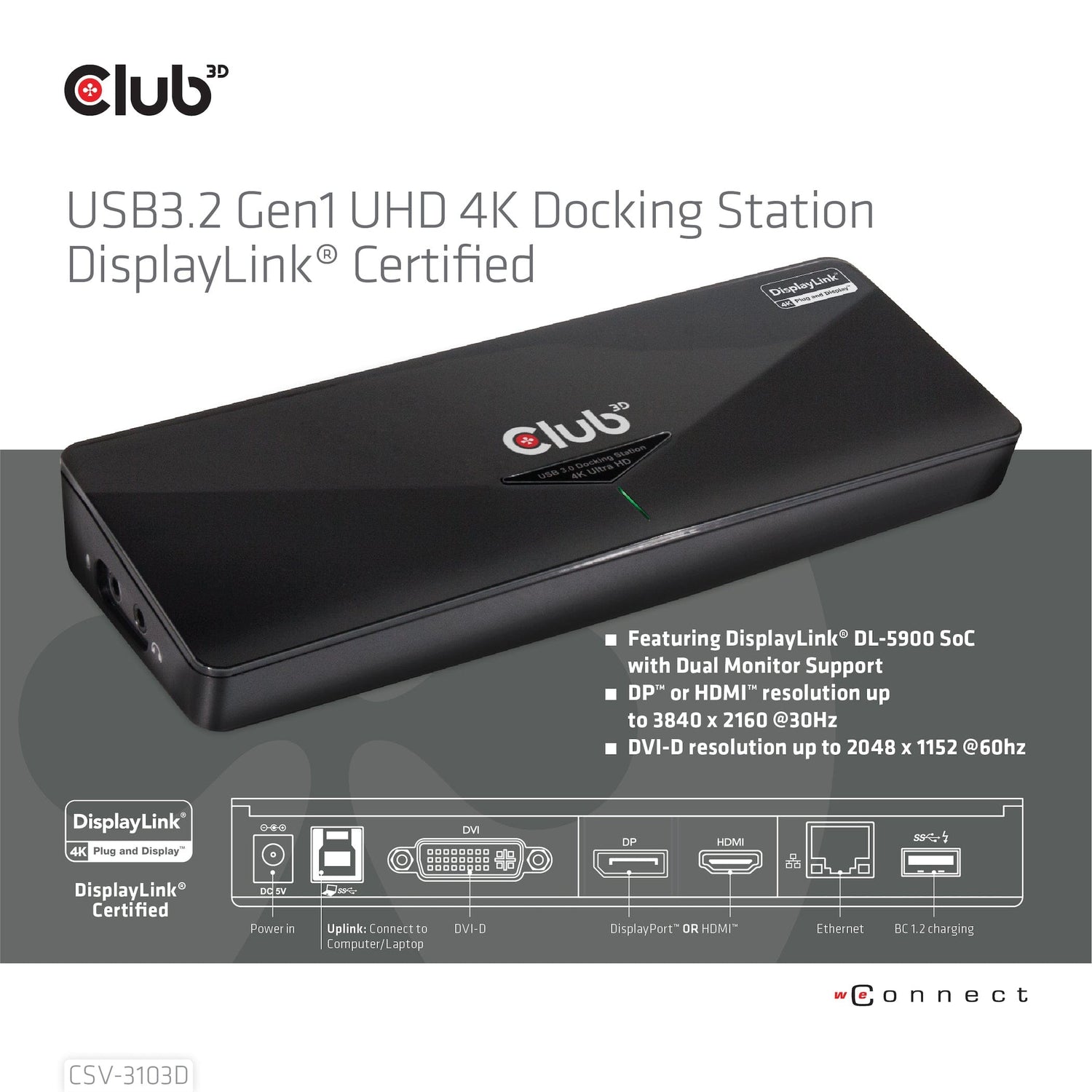

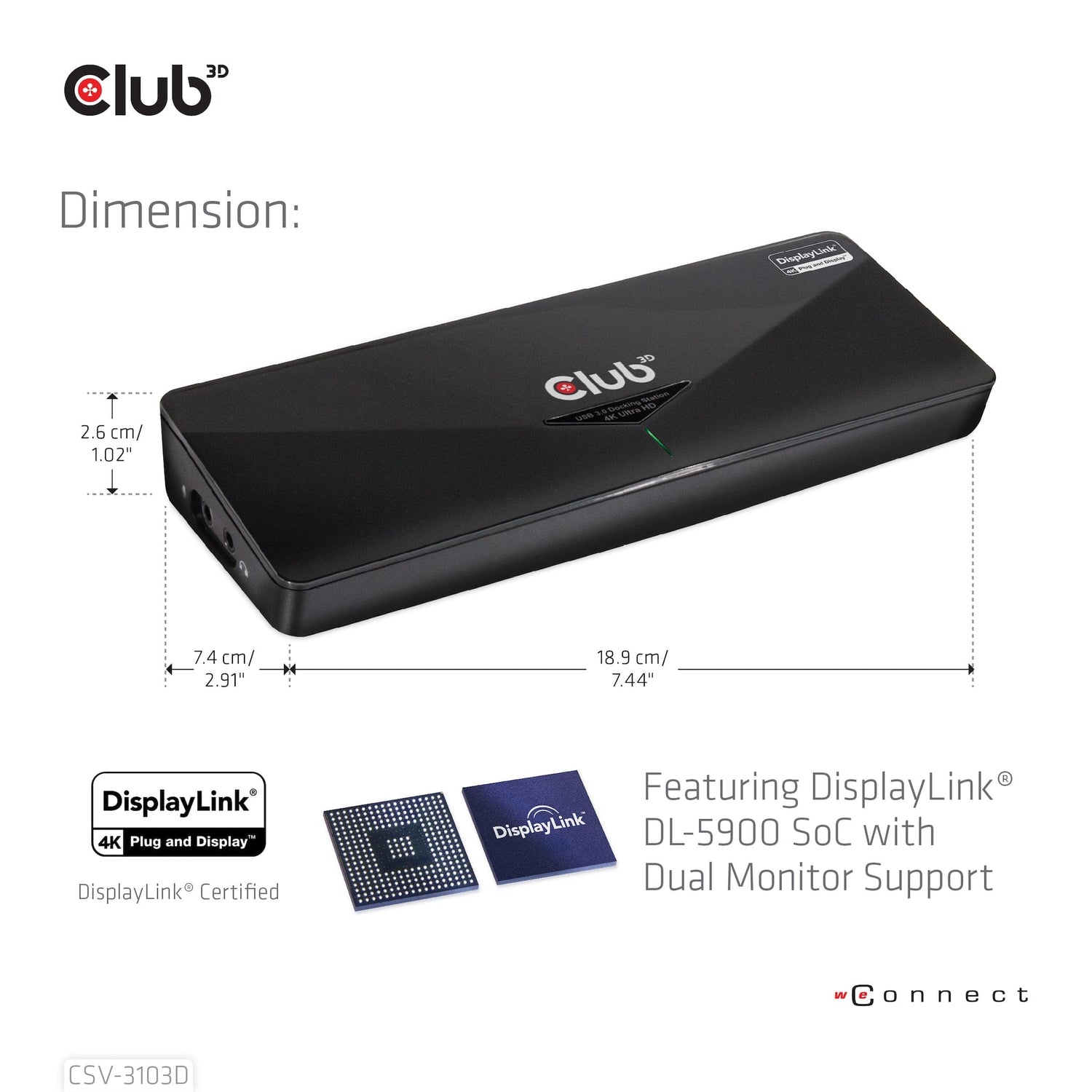

• Featuring Display: Link® DL-5900 SoC with Dual Monitor Support
• DP™ or HDMI™ resolution up to 3840 x 2160 @30Hz
• DVI-D resolution up to 2048 x 1152 @60hz
• Compatible with USB 3.2 Gen1/2.0 specification

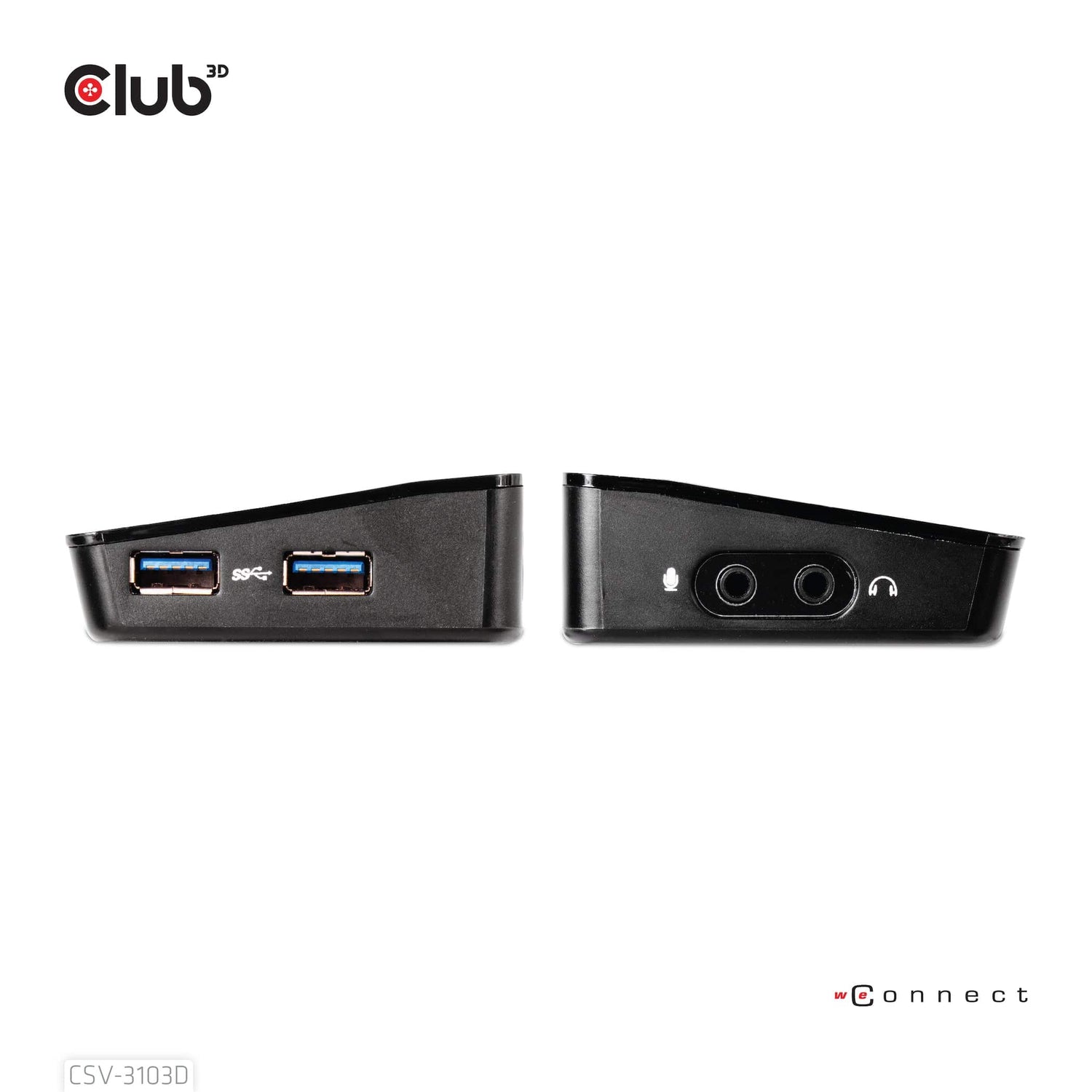

• Audio 2.1 channel connection 3.5mm Jack
• Microphone connection 3.5mm Jack
• Supports Gigabit Ethernet 10/100/1000

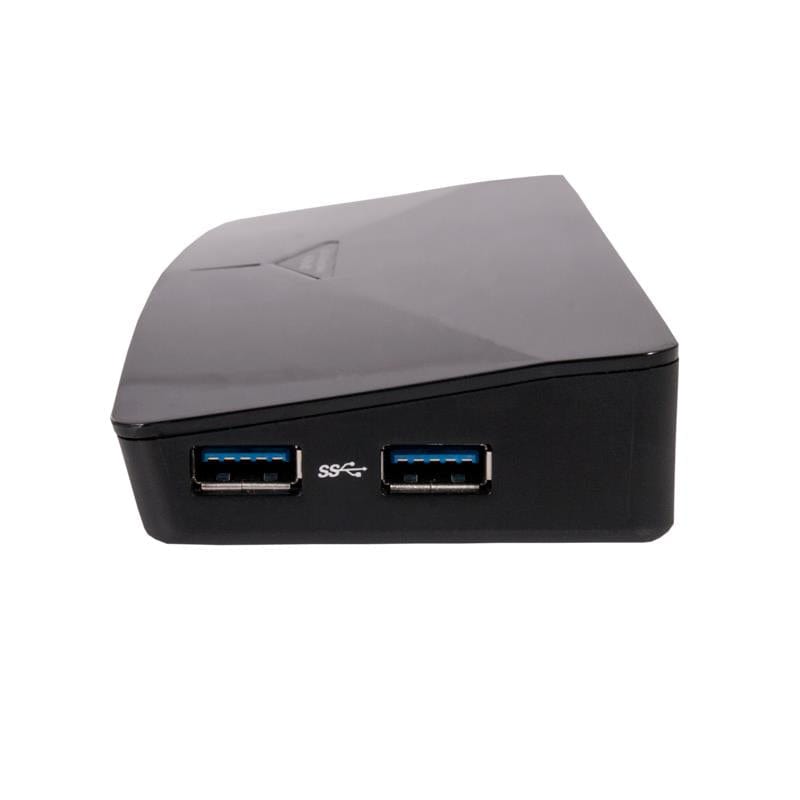

• 3 x USB 3.2 Gen1 output ports

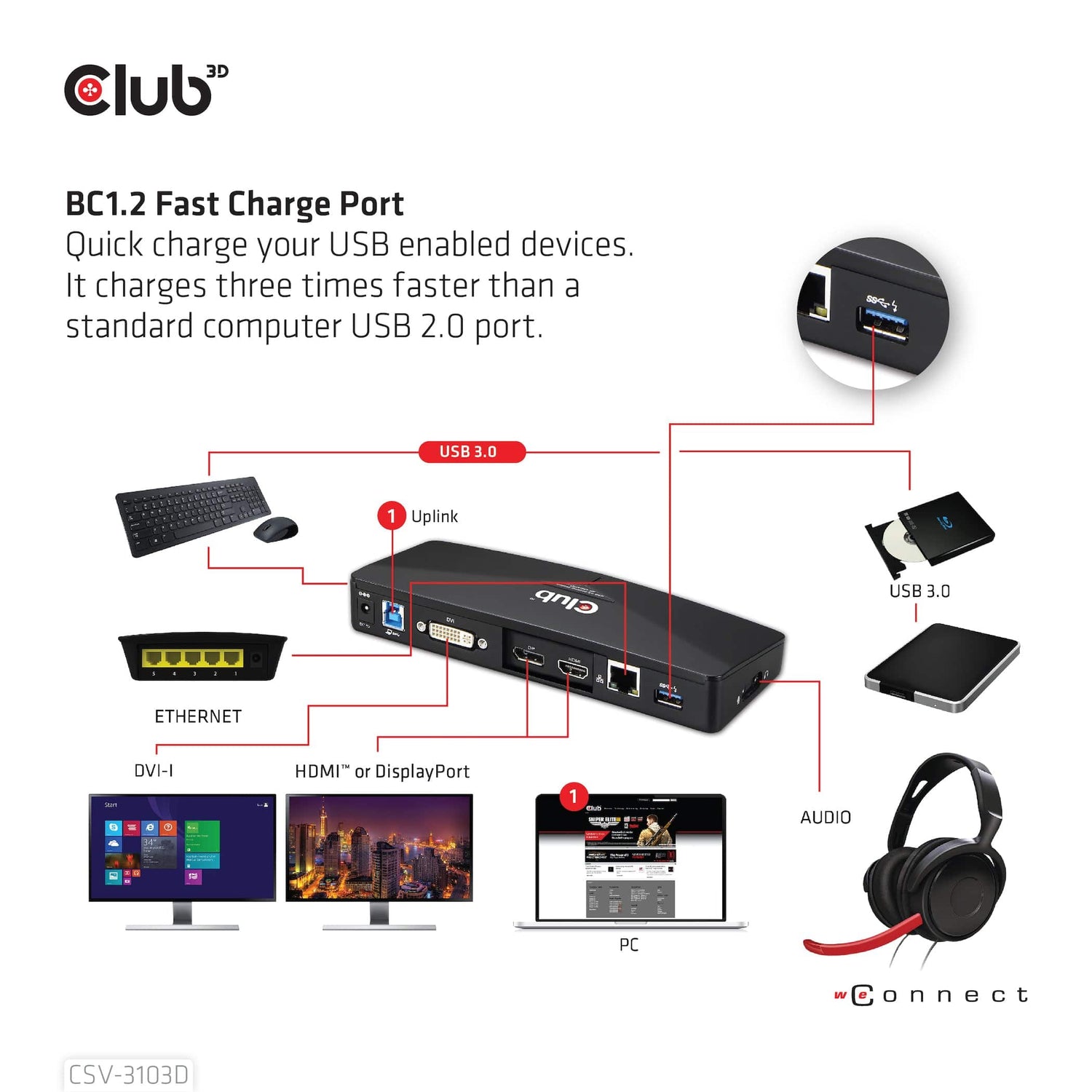

• Supports BC 1.2 charging for fast charging your compatible devices

Specifications:

• Club 3D CSV-3103D The Club 3D Universal USB 3.1 Gen 1 UHD 4K Docking station DisplayLink
• Connectivity technology: Wired
• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
• HDMI version: 1.4a
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Product colour: Black
• Maximum digital resolution: 3840 x 2160 pixels
• Maximum analog resolution: 2048 x 1152 pixels
• Power source type: AC
• Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64

What's In the box:

• USB 3.2 Gen1 UHD 4K Docking Station DisplayLink® Certified
• External Power Supply 100-240VAC, 135W, PowerCord (specify plug when ordering)
• USB3.2 Gen1 Type-A to Type-B cable 1m/3.28ft• Quick Installation Guide
