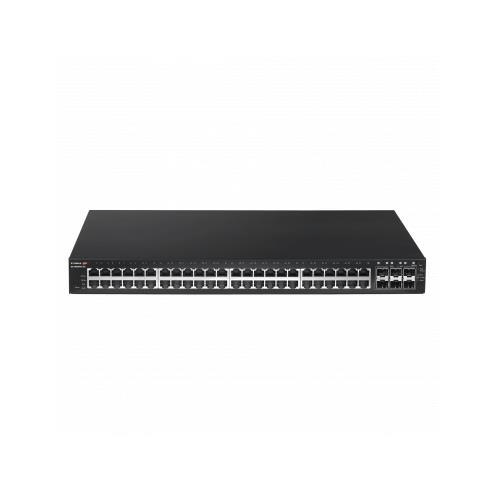

Edimax 54-port Web Smart 48 Gigabit PoE+ Long Range Switch with 6 SFP+ Ports GS-5654PLX-V2

Edimax 54-port Web Smart 48 Gigabit PoE+ Long Range Switch with 6 SFP+ Ports GS-5654PLX-V2

• 48 Gigabit Ethernet PoE+ ports and 6 10GbE SFP+ ports

• Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction

• PoE powered devices (PD) alive check to enhance the reliability of the network

• Dual-firmware image for robust failover mechanisms

• Guaranteed PoE long distance to 200 meters

• Power backfeed protection to avoid damaging the PoE ports

• IP Surveillance VLAN and Voice VLAN to enhance video and voice quality

• DHCP snooping to protect the integrity of the legitimate DHCP server and its operations

• IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 400W) for powering PoE-enabled devices

• Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.

• Supports 216Gbps backplane bandwidth, 160.7Mpps forwarding rate, 32K MAC address table and 12KB jumbo frame

Empower your Enterprise Network with High Performance

The 48-port Gigabit RJ45 and 6-port 10GbE SFP+ uplink connectivity fully utilizes the power of your office networking for demanding tasks, such as data backup, video conferencing, IP surveillance, high volume transaction processing, large file transferring, and more.

No More Uplink Bottleneck

Equipped with 6 10GbE SFP+ ports for up to 60Gbps speed and long range fiber-optic uplinking capability, the switch removes the network bottleneck and gets all the connectivity you need to your devices without congestion.

Strong Data Switching Capability

With 216Gbps backplane bandwidth, the switch has a strong switching capability for sending data to the destination devices at ultra-high speed. It supports a forwarding rate of 160.7Mpps (64-byte package size), utilizing the maximum available bandwidth without delay.

Power Saving Implementation

With a dedicated and intelligent microchip for thermal detection and system cooling control, the switch can measure the environtial temperature and control fan speeds, also turn on/off each fan for power saving and noise reduction.

Cost-effective PoE Solution

Offering high-speed network connection with power supply to Powered Devices (PDs) for cost saving of power line deployement, the switch PoE Powered Device (PD) alive check monitors real-time status of connected PDs and enables reboot fail PDs, further enhancing network reliability.

Stable and Reliable Network

The switch has two firmwares stored. The additional backup firmware can be activated while the main firmware goes under restoration, reducing system downtime.

Further Network Connection

The long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.

Safety Guard Your Devices

Each port is equipped with power backfeed protection in order to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.

Intuitive and Powerful Smart Tool

This web smart switch meets the network growing need by providing Layer 2 managed functions with advanced essential features such as SNMP v1/v2c/v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, Link Aggregation, Broadcast Storm Control, Loop Detection/Prevention.

For Enterprise and SMB Networks

Ideal for use in environments that require extensive IP-based network devices deployment. Such as office spaces/business buildings, residential buildings/community, parking lots, shopping centers, campus, hotels, hospitals, airport/transportation stations, construction sites, casinos, theme parks/amusement parks and more.
