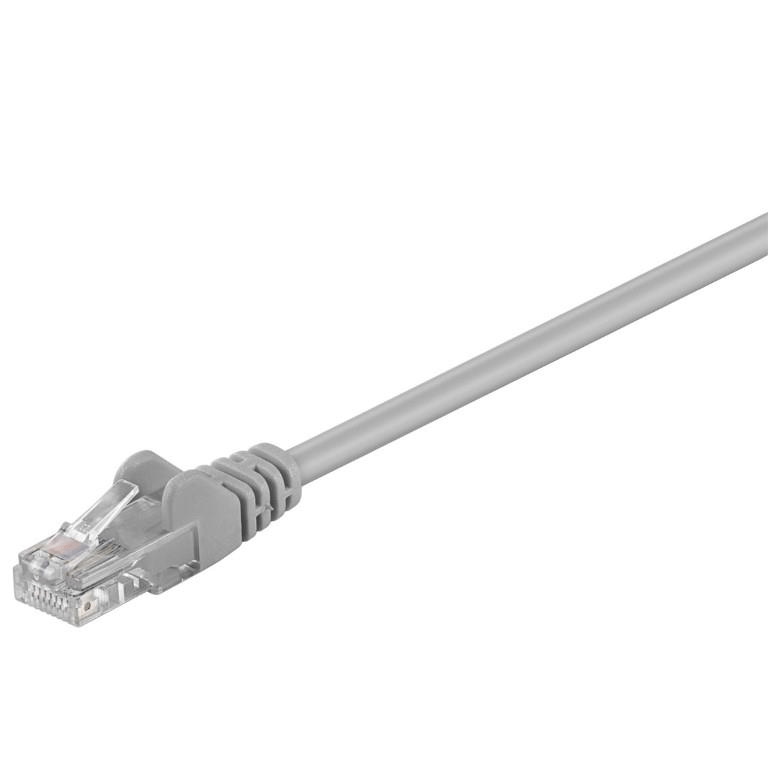

Goobay CAT 5e U/UTP 5m Patch Cable Grey 68377

Goobay CAT 5e U/UTP 5m Patch Cable Grey 68377

Copper-clad aluminium wire (CCA)

Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

• Prewired, unshielded LAN cable with 2x RJ45 plugs for connecting network components
• High-quality copper-clad aluminium wire (CCA) and gold-plated contacts guarantee an excellent, powerful network connection.
• Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
• Bend protection and a sturdy PVC jacket effectively protect the Ethernet cable from breakage.
• Length of the network cable indicated on the overmoulded slimline strain relief.
• Network connector: pair sequence according to EIA/TIA 568B
• CAT 5e network cable suitable for Gigabit Ethernet with speeds of up to 10/100/1000 Mbit/s

Technical specifications

Connections

Connection, type: RJ45 male (8P8C)

Connection 2, type: RJ45 male (8P8C)

Kink protection: both sides

Latch protection: both sides

Connection, shielding: no

Contacting: EIA/TIA-568B

Cable

Specification: CAT 5e

Cable type: round cable

Shielding class: U/UTP

AWG: 28/7 (stranded)

Inner conductor material: CCA (copper-clad aluminium)

Material cable sheath: PVC

Cable sheath diameter (approx.): 4.5 mm

bending radius >: 36.8 mm

Cable length: 5 m

Signal transmission

max. bandwidth: 100 MHz

General

Markings: WEEE, CE

Color: grey

Special feature: Length indication on connector

Operating temperature from: -20 °C

Operating temperature up to: 60 °C
