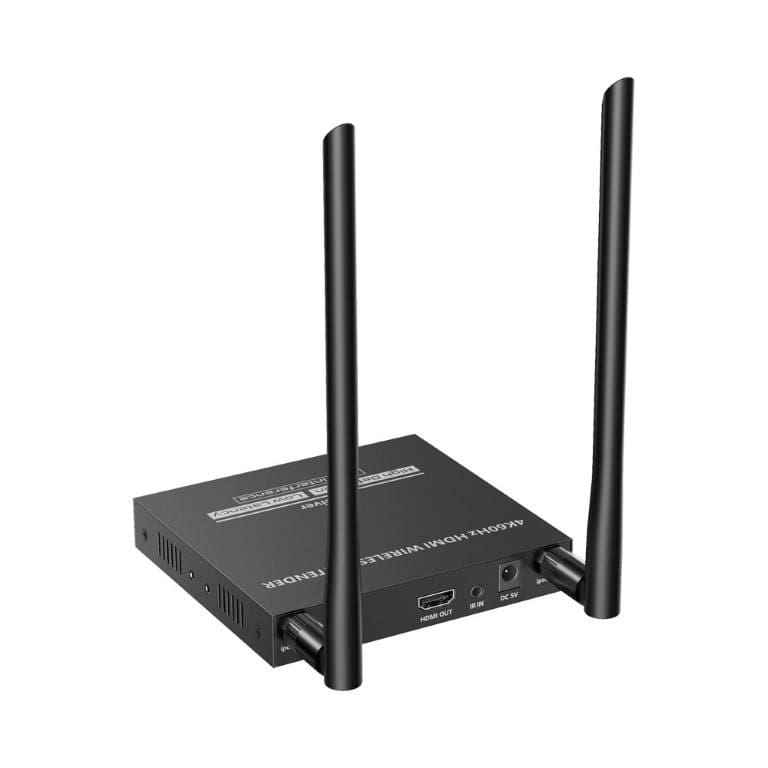

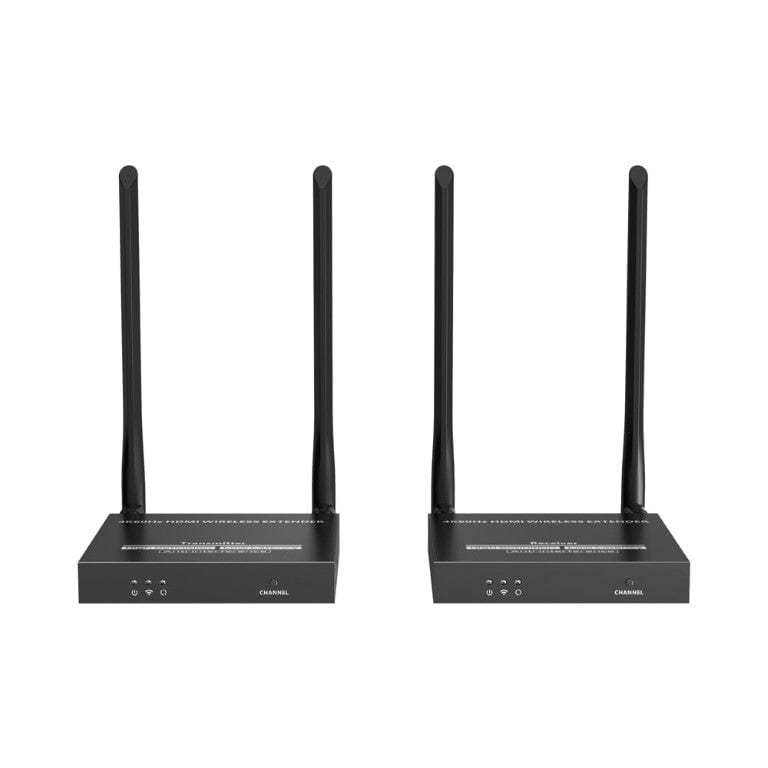

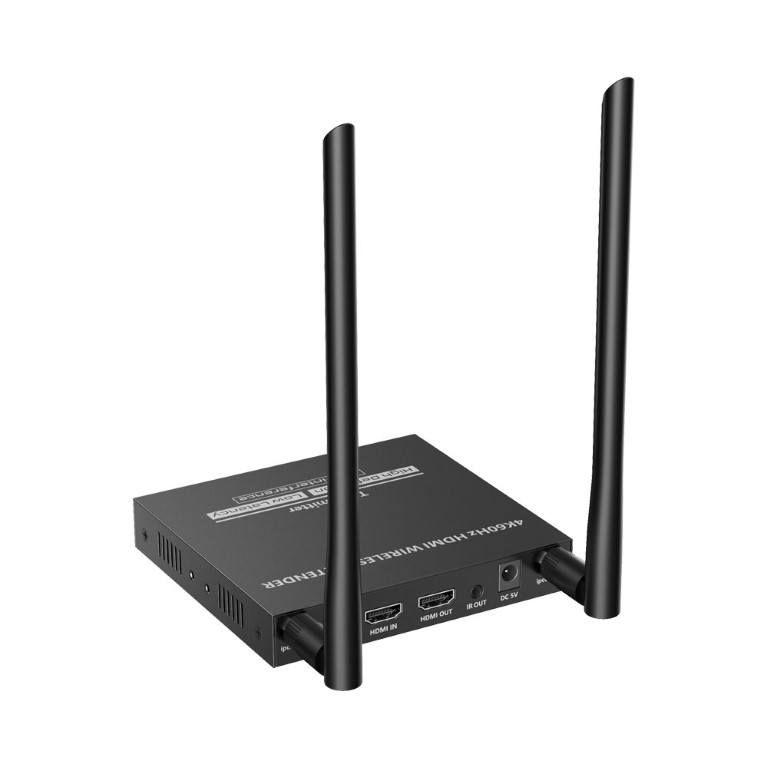

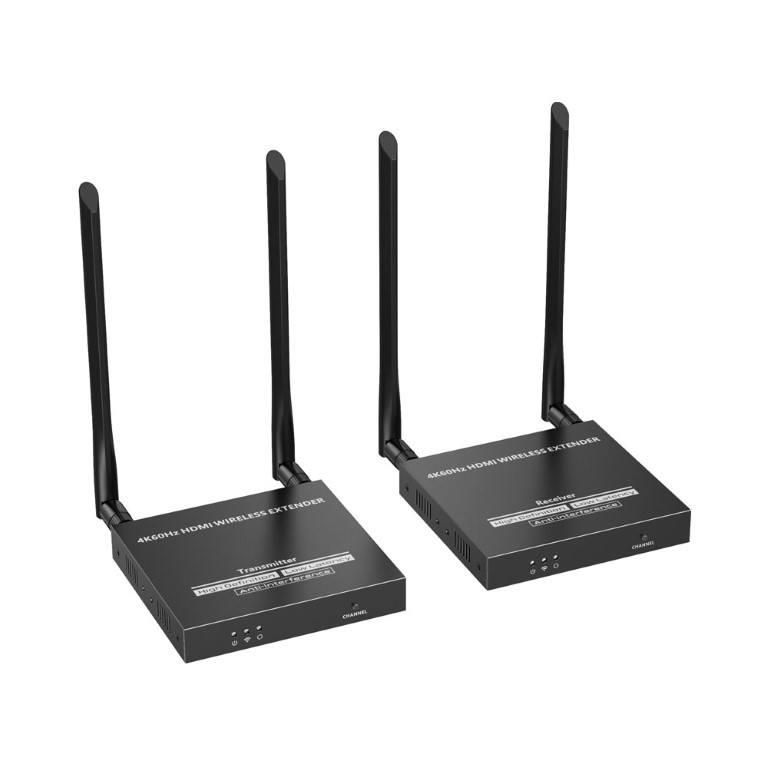

Lenkeng 4K HDMI Wireless Extender with Through Wall Dual Antenna 50m CNV-LKV699

Lenkeng 4K HDMI Wireless Extender with Through Wall Dual Antenna 50m

Lenkeng LKV699 50m 4K HDMI Wireless Extender with Through Wall Dual Antenna and Loop-Out

This is a 4K @60Hz HDMI wireless extender, including a transmitter and a receiver. Adopting ipcolor STREAM technology to transmit high definition with low-latency. Based on the 5G wireless frequency band, with stable anti-interference and safety performance. It supports 1-to-1 wireless transmission up to 50 meters, effectively solving problems caused by complicated wiring.

Features:

• Low Latency
• Distance up to 50m - 4K @60Hz (Wall Material and Environment Dependant)
• 5.1~5.8GHz Band - Channel Switchable
• Anti-Interference
• HDMI Loop-Out
• IR Pass-Through Function

Specifications:

• Voltage/Current: DC5V / 2A
• Power Consumption: TX ≤ 6W, RX ≤ 4W
• HDMI Version: HDMI 2.0
• HDCP Version: HDCP 1.4/HDCP 2.2
• Maximum Transfer Rate: 18Gbps
• Resolution Supported: 3840 × 2160@24/30/50/60Hz, 1080P @50/60Hz, 720P @50/60Hz, 1920 × 1200, 2560 × 1440, 2560 × 1600
• Input and Output TMDS Signal: 0.7~1.2Vp-p (TMDS)
• Input and Output DDC Signal: 5Vp-p (TTL)
• Wi-Fi Frequency Bands: 5.18~5.24GHz
• Transmission Distance: ≤ 50m
• Latency: 130~180ms
• Connection Types: One-to-one
• SSID Pairing: Supported
• ESD Protection: 1a Contact Discharge Level 3
• 1b Air Discharge Level 3Standard: IEC61000-4-2
• Infrared Frequency: 20~60kHz
• Receiving Range: ≤ 5m
• Working Temperature: -20~60°C
• Storage Temperature: -30~70°C
• Humidity (No Condensation): 0~90% RH
