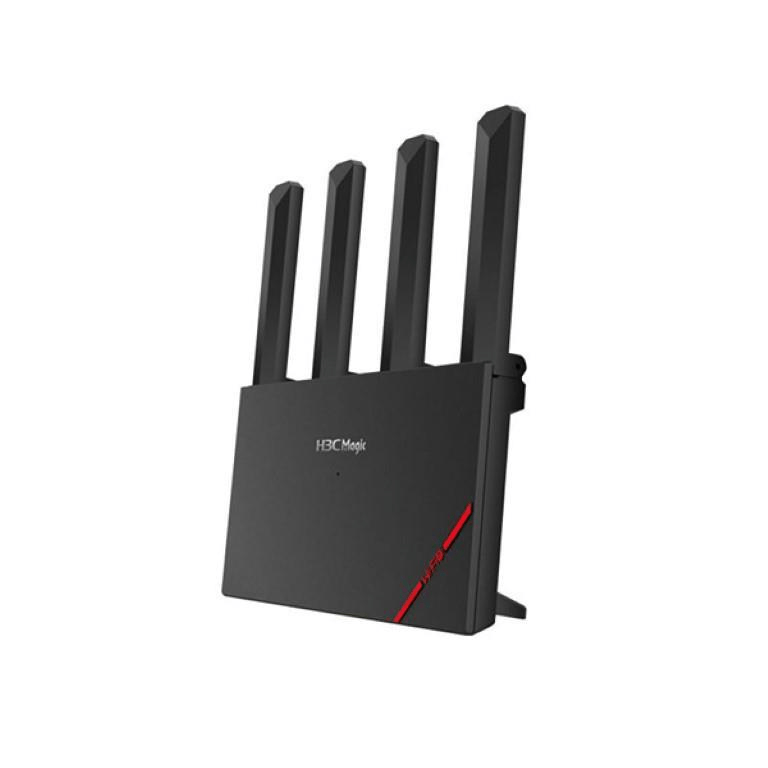

H3C Magic NX30 AX3000 Gigabit Dual-Band Wi-Fi 6 Router

H3C Magic NX30 AX3000 Gigabit Dual-Band Wi-Fi 6 Router

The signal field strength is fuller and the transmission performance is more stable. Adopting "I" design, the antenna is reatively djusted to 180° compared to the traditional 90° "L" which increases the distance between the antenna and the metal PCB board to reduce the possibility of signal attenuation and effectively improve the signal.

Transmission Efficiency

Improve cooling efficiency Adopt three-dimensional transparent cooling design, back overhang, combined with a large area of air convection.Ensure stable operation With a large metal heat sink,effectively improve the cooling efficiency of the machine to ensure stable operation.

Less interference Antenna spacing using the "1:0.618" golden ratio, less interference between antennas, More beautiful modeling The length of the antenna and the width of the body are designed in equal proportion, more beautiful modeling, signal and aesthetics are good.

Reasonable layout design Considering the coverage strength and directionality of dual-band antennas, reasonable antenna layout design is adopted.

Balanced wireless coverage Verified by OctoScope international authority test so that the dual-band can have better directional performance.

The device is difficult to be blocked Adopt uprignt design, no more stacking of modems.

Signal "field of view" is more open The equipment is difficult to be blocked the signal "field of view" is more open.

Easy rotation of the antenna in one direction, the user does not need to adjust the antenna angle, a wrench to the top, in one step.

Vertical placement smaller footprint right-angle simple design, perfectly fit the corner, refuse to bloa.

Equipped with a new generation dual-core Qualcomm chip 1GHz CPU + NPU 12-channel dual-band concurrent, stronger performance.

Network operation remains stable when multiple applications are processed concurrentlyAdopts independent special NPU (Network Processing Unit) to handle network flow CPU focuses on handling upper-level application data, Provides higher multi-applications concurrency processing speed.

Specifications:

• Fixed port: 4 10/100/1000Base-T Ethernet ports, Independent reset key, function keys (Mesh, wireless optimization)
• Wireless: 4 external 5dBi high gain omnidirectional antennas
• CPU: Dual-core 1.0 GHz
• Memory: 256 MB
• Indicator: Front LED: system status indicator
• Dimensions (W×D×H): 210mm x222mm x 64mm
• Power supply: 12V⎓1A
• Cooling method: Natural cooling
• Certification: CE,WEEE,RoHS

Wireless

• Wireless protocol: 2.4 GHz: 802.11ax/n/g/b, 5 GHz: 802.11ax/ac/n/a
• Spatial flow: 2.4 GHz 2x2 MIMO, 5 GHz 2x2 MIMO
• Wireless bandwidth: 2.4G HT20/HT40, 5G HT20/HT40/HT80/HT160
• Wireless rate: Dual-frequency concurrency 2,976 Mbps, 2.4 GHz: 574 Mbps & 5 GHz: 2,402 Mbps
• Wireless roaming: Support of IEEE 802.11k/v
• MU-MIMO: Upstream and downstream MU-MIMO

Software

• Internet connection: Routing mode: DHCP/PPPoE/Static IP, Bridge mode: wired relay/wireless relay
• EasyMesh: Support
• IPv6: Support
• Security features: WPA3 encryption, Anti-Wi-Fi squatting/anti-attack, Firewall, DMZ, DoS attacks
• Network management: Guest Wi-Fi, access allowlist/denylist, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch
• Features: Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP, DynDNS), VPN(PPTP Client,L2TP Client)
• Management method: Support for H3C Magic APP (iOS, Android), Web
• Fault diagnosis: Link detection, Internet diagnosis
