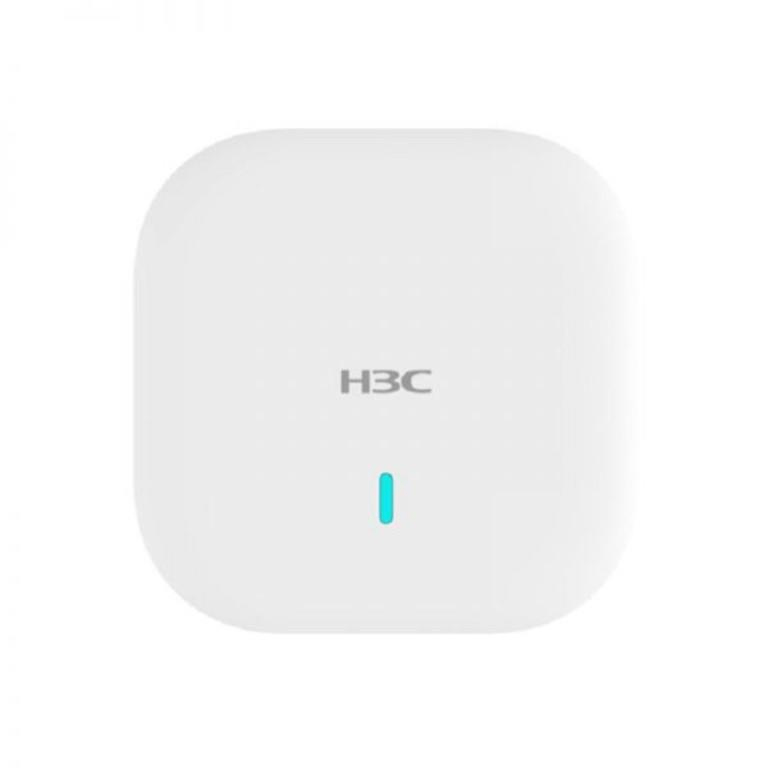

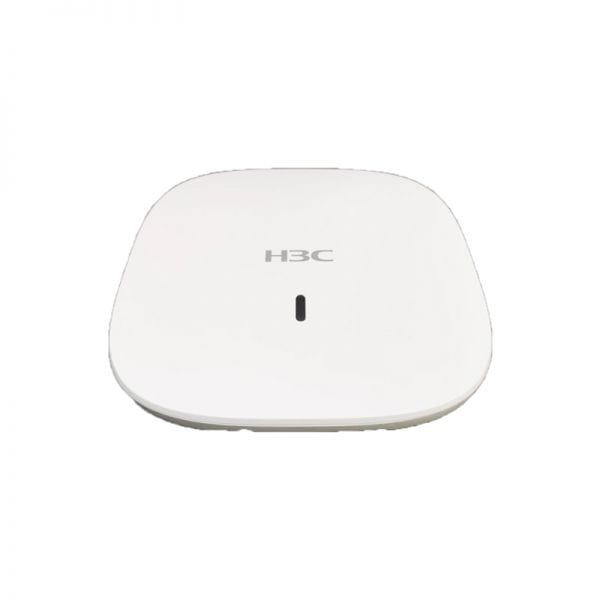

H3C WA530 PoE Wi-Fi Access Point White 9801A1NR

H3C WA530 PoE Wi-Fi Access Point White

H3C 802.11ac Wave2 series Access Point (AP) is based on the new generation of self-developed Gigabit 802.11ac MIMO and
802.11ac Wave2 MU-MIMO technology

Specifications:

• Operating temperature/storage temperature: Operating Tem: -10 ºC ~ 55 ºC ; 0ºC～45ºC(Recommended) Storage Tem: -40ºC～70ºC0ºC～40ºC/-40ºC～70ºC
• Operating humidity/storage humidity: 5% to 95% (non-condensing)
• Speed: 867Mbps (5G) 400Mbps (2.4G)
• Fixed port: Two 10/100/1000Mbps Ethernet ports (one of two works on PoE+) One console port One USB port
• Antenna gain: 2.4GHz: 3.8dBi 5GHz: 5dBi
• PoE: 802.3af/802.3at compatible power supply
• Operating frequencies: 802.11ac/n/a : 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz 802.11b/g/n : 2.4GHz-2.483GHz
• Modulation: OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps MIMO-OFDM (11n): MSC 0-15 (0-31 for WA560) MIMO-OFDM (11ac): MCS 0-9
• Safety compliance: IEC 60950-1, EN 60950-1
• EMC: EN 301489-1, EN 301489-17, EN 55032, EN 55024, EN 60601-1-2
• Radio frequency certification: EN 300 328, EN 301 893
• Health: EN 50385
