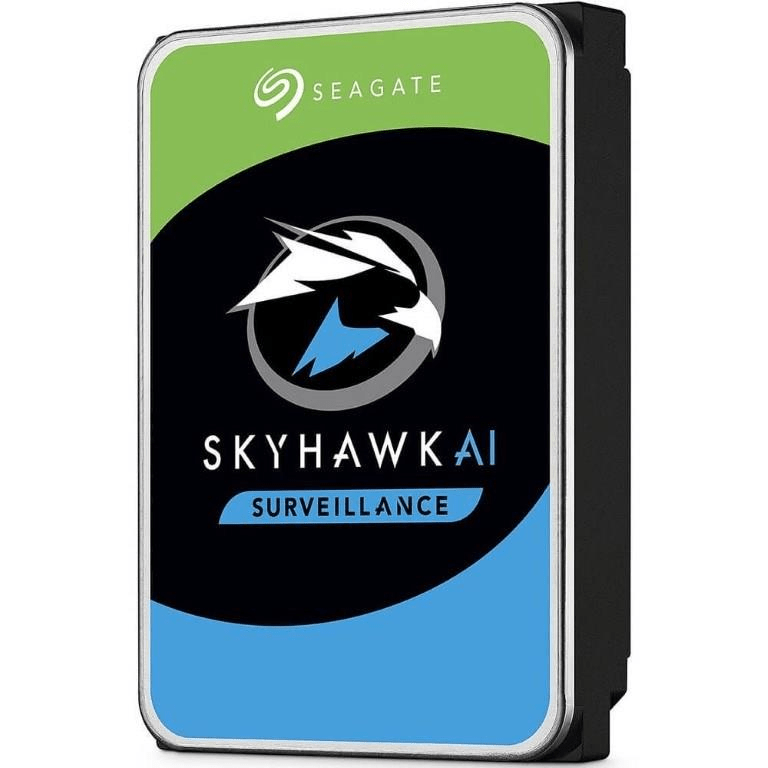

Seagate Surveillance SkyHawk 3.5-inch 12TB Serial ATA III Internal Hard Drive ST12000VE001

Seagate Surveillance SkyHawk 3.5-inch 12TB Serial ATA III Internal Hard Drive

Specifications

• Capacity: 12 TB
• Standard Model Numbers: ST12000VE001
• Interface: SATA 6 Gb/s
• Recording Technology: CMR
• Drive Design: Helium
• Features and Performance
• Drive Bays Supported: 16+
• AI Channels: 32
• AI Real Time Capture Events/Sec: Up to 120
• AI Real Time Compare Events/Sec: Up to 96
• HD Cameras Supported: Up to 64
• RV Sensors: Yes
• Max. Sustained Transfer Rate OD (MB/s): 250MB/s
• Cache (MB): 256
• Reliability/Data Integrity
• Tarnish Resistant: Yes
• Load/Unload Cycles: 600,000
• Non-recoverable Read Errors Rate, Max: 1 per 10E15
• Power-On Hours per year: 8,760
• Workload Rate Limit (WRL): 550
• Mean Time Between Failures (MTBF) (hours): 2,000,000 hr
• Rescue Data Recovery Services (years): 3
• Power Management
• Startup Current, Typical (12V, A): 2
• Average Operating Power (W): 8 W
• Idling Average (W): 5.3 W
• Standby Mode/Sleep Mode, Typical (W): 1.3/1.3
• Voltage Tolerance (5 V): ±5%
• Voltage Tolerance (12 V): ±10%
• Environmental/Temperature
• Operating (Ambient, min °C): 0
• Operating (drive reported, max °C): 65
• Non-operating (ambient, min °C): -40
• Physical
• Height (mm/in, max): 26.11 mm/1.028 in
• Width (mm/in, max): 101.85 mm/4.01 in
• Depth (mm/in, max): 146.99 mm/5.787 in
• Weight (g/lb, typical): 670 g/1.477 lb
