Solarix Ultra Power 24V 20A Lithium Ion Phosphate Battery Charger SOLUPLIBC24V

Solarix Ultra Power 24V 20A Lithium Ion Phosphate Battery Charger SOLUPLIBC24V

The Solarix Ultra Power 24V 20 A Lithium Ion Phosphate Battery Charger is designed to optimise the performance and lifespan of Lithium Ion Phosphate (Lifepo4) batteries and can safely achieve a 100% State of Charge. This 24V 20 A battery charger operates from mains AC 220-240V as input, supplying up to 20A charging output suitable for nominal 24V LiFePO4 battery banks. The charger's built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit making it very safe to use. With energy efficiency > 85%, the charger produces less heat, delivers more energy and allows faster charging around 2 hours .The Lightweight Aluminium Casing is equipped with active ventilation fan system that allows the charger to be used in harsh environments or hot climates.

Highlights

• Ultra Power Lithium Ion Phosphate Battery Charger
• 4 Steps Charging
• Maximum Charging Output Voltage(CV) 29.2V
• Maximum Constant Output Current (CC): 20 Amps
• AC Input Voltage 220VAC Max 240VAC
• AC Input Frequency 50 Hz
• Power Efficiency >85% At Full Load
• Output Power 600W Maximum Output

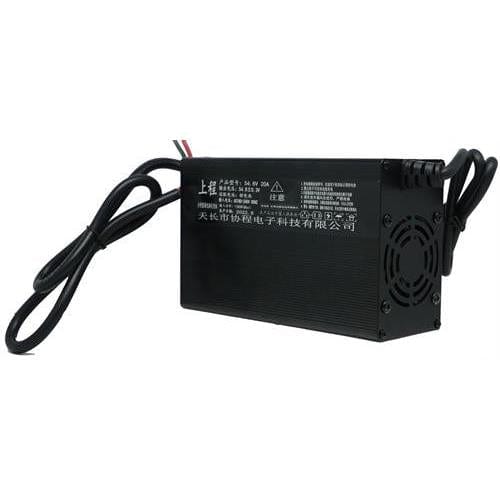

• Lightweight Aluminium Casing With Ventilation Fan
• 2x Round 8.2mm Output Connector Lugs

Specifications

• Product Type 4 Steps Charging System
• Input Voltage Min 220VAC to Max 240VAC
• Output Power 600W Maximum Output
• Constant Charge Voltage Max 29.2VDC
• Constant Current 20A
• Charge Complete Current VDC Min 1.2A to Max 1.8A
• Power Efficiency >85% At Full Load
• Colour Black
• Dimensions Length 150mm x W-80mm x H-70mm
• Weight 2.0Kg
