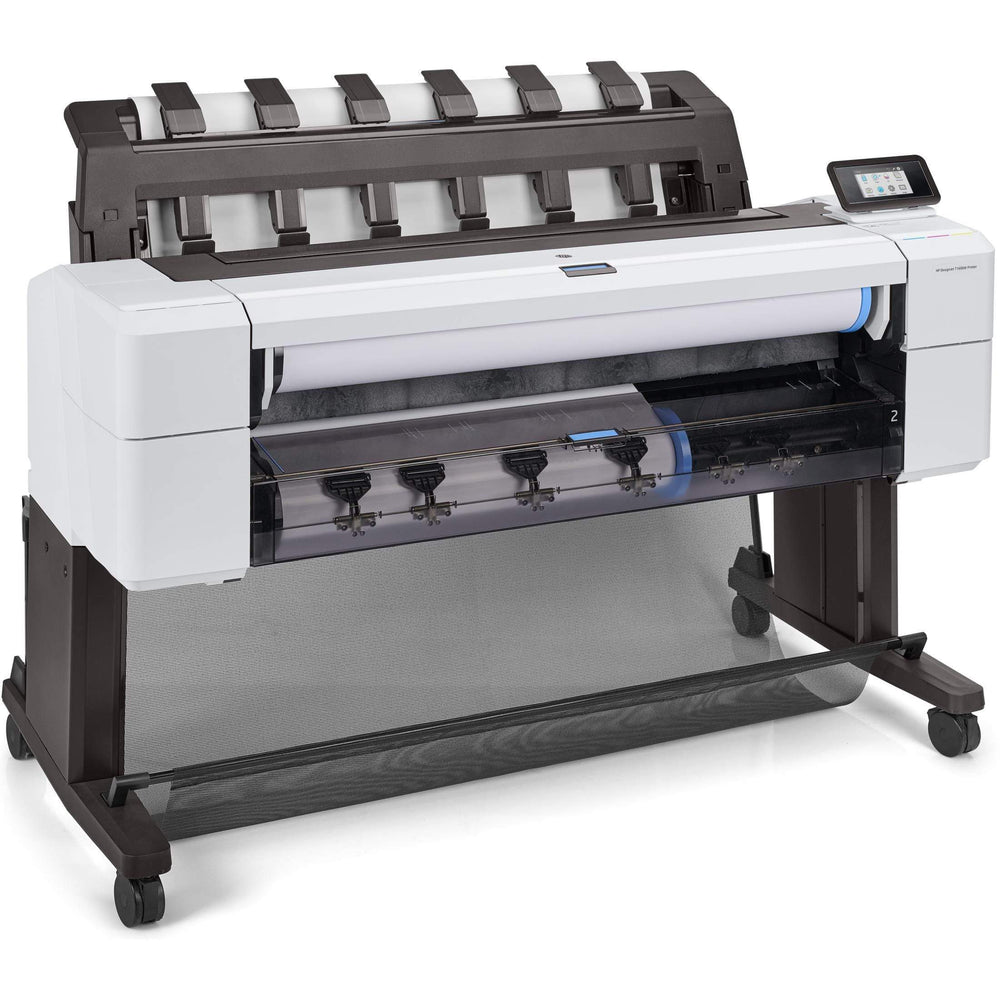

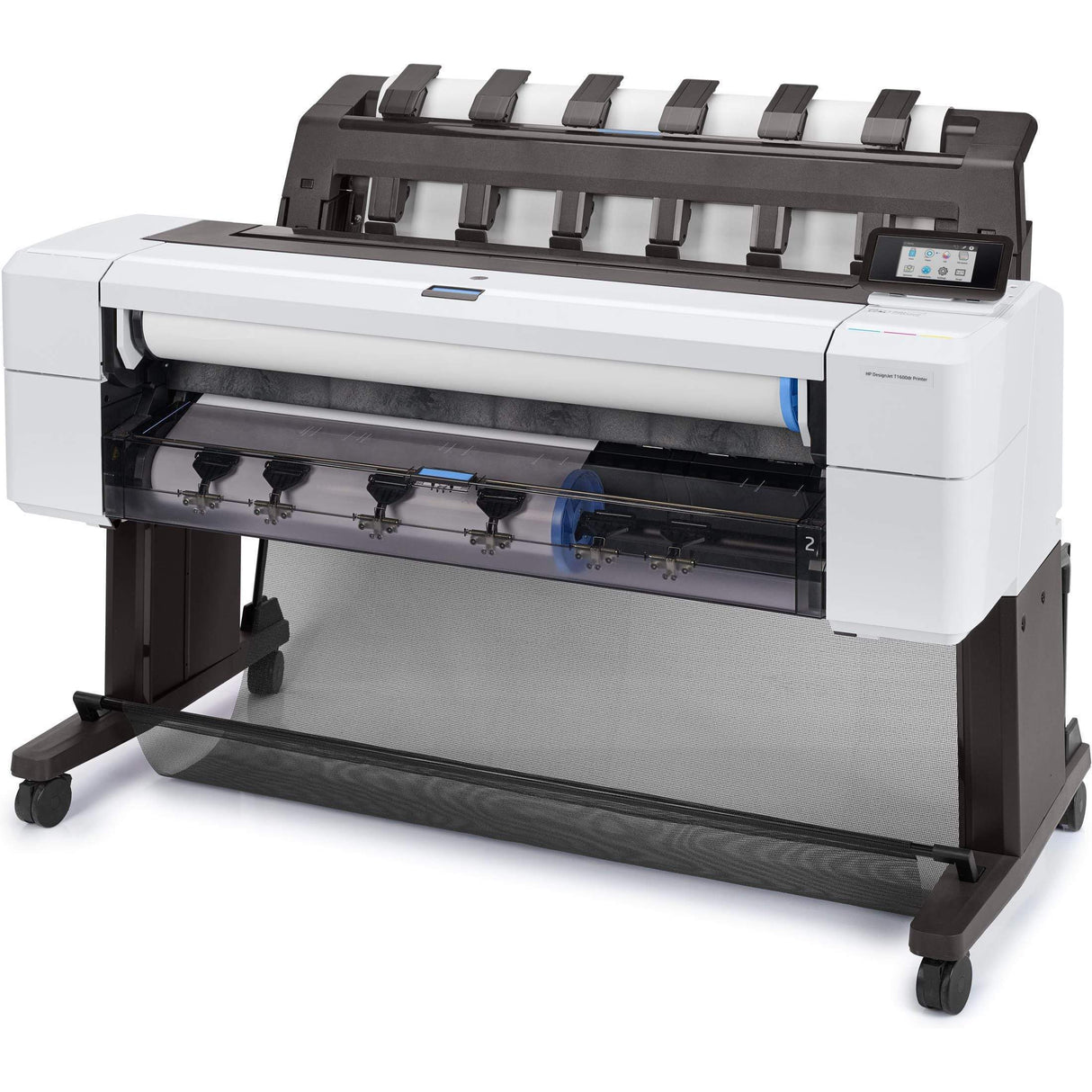

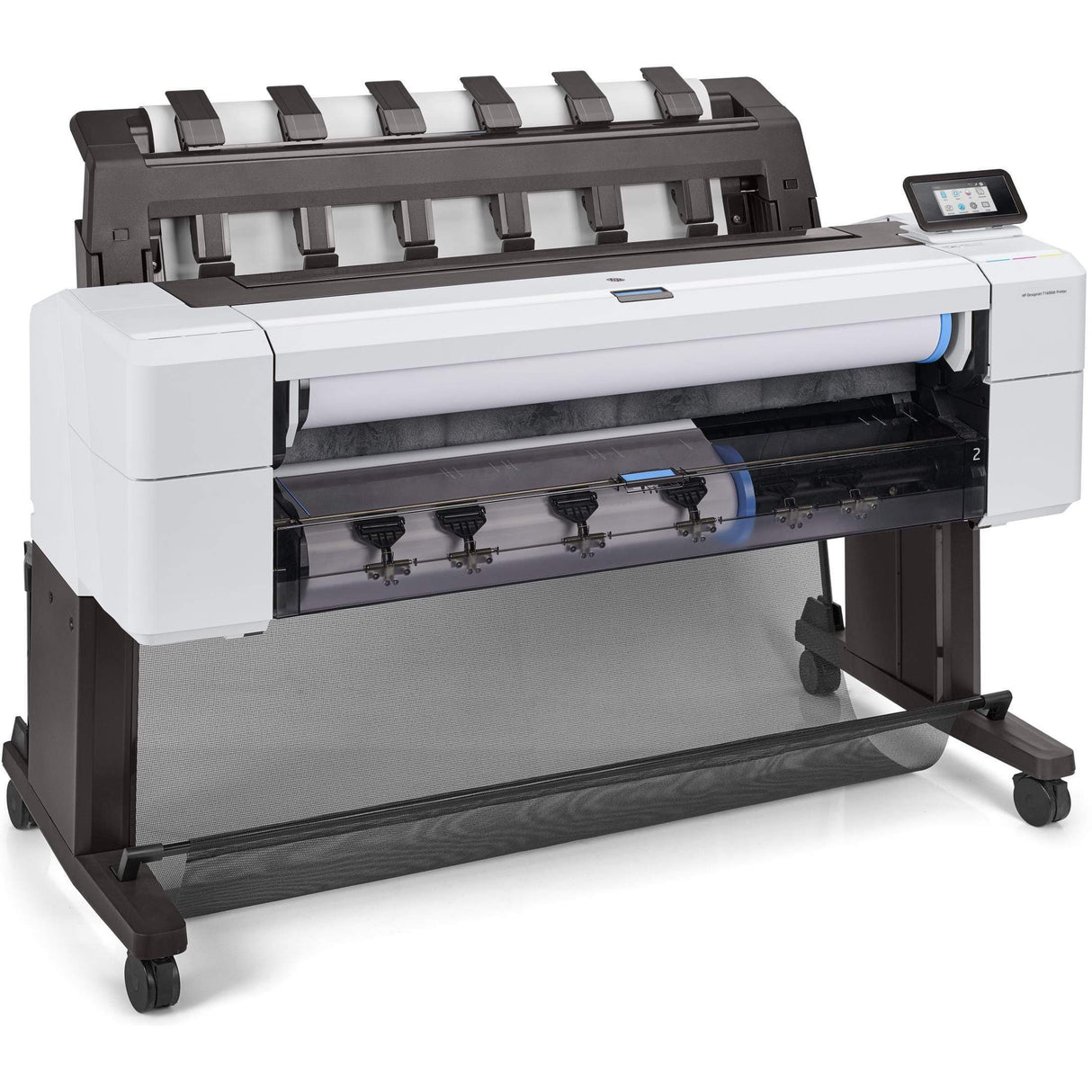

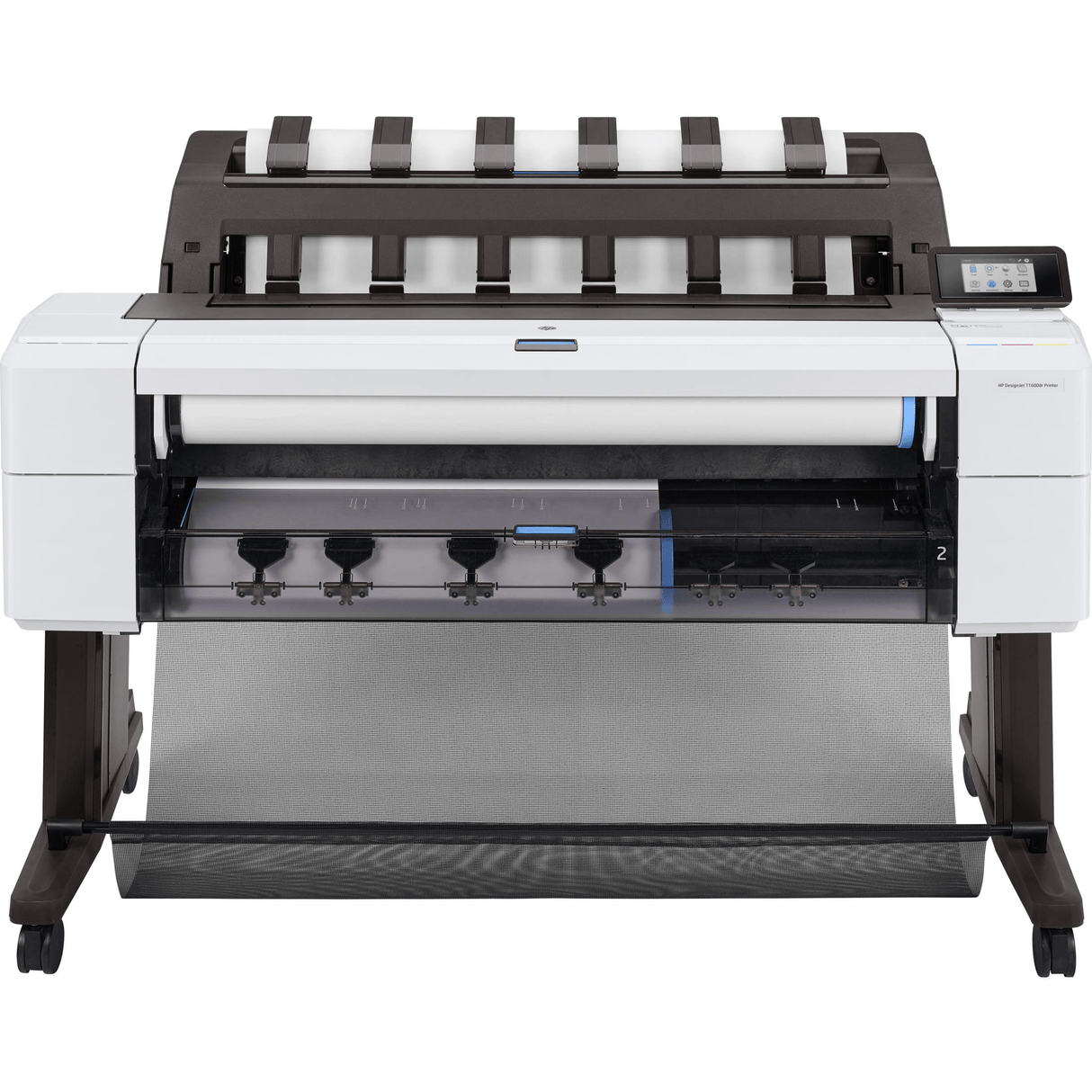

HP Designjet T1600dr Thermal inkjet Large Format Printer 3EK12A

HP Designjet T1600dr Thermal inkjet Large Format Printer 3EK12A

Keep the project momentum. With radically simple solutions and the easiest PDF printing, it's easy for everyone to get great results every time. Meet deadlines with the fastest print speed in the most compact, quiet printer.

This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges.

Experience simplicity – At the high-end

• Adopt a smart workstyle with the easiest PDF printingusing HP Click software.

• Empower your workforce. Easily print and share jobs from the cloud with your mobile device and HP Smart app.

• Fits your workplace with the most compact footprint and most quiet operation, with up to 87% less noise.

SECURE – World's most secure large-format printer

• Rely on the best network protection with features like HP Secure Boot and whitelisting.

• Control who accesses the printer and its confidential documents with secure user authentication.

• Keep your fleet secure at any time with HP JetAdvantage Security Manager.

Unleash performance – To turn design into delivery

• Showcase design versatility from precise line drafts to boldly colored 3D renders, with HP Bright Office Inks.

• Provide the highest accuracy and display the finest details with the unique Adobe PDF Print Engine.

• Meet deadlines with the fastest speed up to 180 D/hr, and dual roll option.

Specifications:

• Functions: Print

• Model size: 914 mm

• Print speed: 180 A1/hr, 19.3 sec/A1

• Print technology: HP Thermal Inkjet

• Printer drivers included: Raster driver for Windows, AirPrint for macOS

• Print quality color (best): Up to 2400 x 1200 optimized dpi

• Print languages: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4

• Number of print cartridges: 6 (C, M, Y, G, pK, mK)

• Ink types: Dye-based (C, M, Y, pK, G); pigment-based (mK)

• Line accuracy: ±0.1%

• HP ePrint capability: Yes

• Connectivity, standard: Gigabit Ethernet (1000Base-T), Wi-Fi (with optional Jetdirect accessory), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS

• Network ready: Standard

• Memory: 128 GB (file processing)

• Internal Storage: 500 GB self-encrypting

• Finished output handling: Sheet feed, two automatic front-loading roll feeds, smart roll switching, integrated output stacker, media bin, automatic horizontal cutter

• Media sizes standard (metric rolls): 279 to 914 mm

• Media sizes, custom: 210 x 279 to 914 x 1219 mm

• Media types: Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)

• Media weight, recommended: 60 to 328 g/m²

• Roll external diameter: 140 mm

• Media thickness: Up to 19.7 mil

• Power: Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max

• Power consumption: 100 W (printing); <36 W (ready); <10 W (sleep); 0.3 W (off)

• Energy star certified: Yes

• Operating temperature range: 5 to 35ºC

• Minimum dimensions (W x D x H): 1390 x 760 x 1080 mm

• Weight: 85 kg

• UPC number: 193808345906

• Package dimensions (W x D x H): 1477 x 767 x 800 mm

• Package weight: 117 kg

• What's in the box: HP DesignJet T1600 Printer, printer stand and media bin, spindles (x2), printheads, introductory ink cartridges, user guide, power cords

• Software included: HP Click, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartTracker (optional)

• Manufacturer Warranty: Two-year limited hardware warranty. Warranty and support options vary by product, country and local legal requirements.
