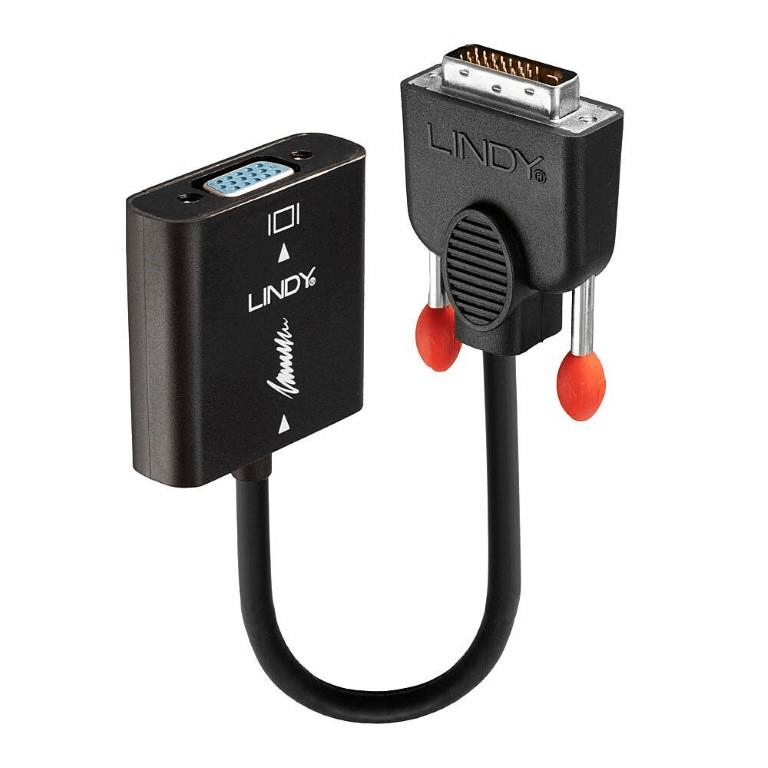

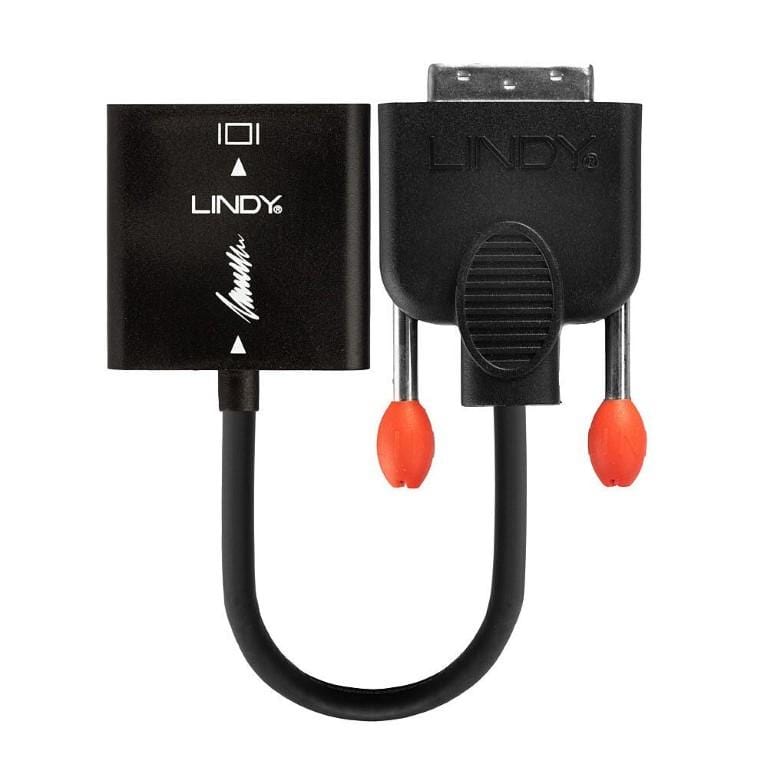

Lindy DVI to VGA Converter 38189

Description

• Converts DVI-D signals into VGA
• Supports resolutions up to 1920x1200 including 1080p
• Can be used to add a secondary monitor for extended or mirrored desktop
• Quick and simple plug and play installation
• 2 year warranty

The Lindy DVI to VGA converter converts signals from a DVI-D equipped source into a VGA signal. It supports resolutions up to 1080p and 1920x1200 for VGA displays. This allows the connection of DVI capable devices, such as PC’s, notebooks and ultrabooks, to an older VGA display or projector.

This converter can also be used to add a secondary monitor for extended or mirrored desktop modes to increase productivity and screen real estate. With its lightweight, low profile design and plug & play installation this converter is perfect for use while travelling.

Technical details

Specifications

• AV Interface: DVI to VGA
• Interface Standard: DVI-D (Single Link), VGA
• Supported Bandwidth: 4.45Gbps
• Maximum Input Resolution: 1920x1200@60Hz 12bit
• Maximum  Output Resolution: 1920x1200@60Hz 12bit
• Chipset: CH7101
• HDCP Support: -
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: DVI-D Male (Single Link)
• Output: VGA Female

Physical properties

• Dimensions (approx.) WxDxH:
  • 44x45x15mm (1.73x1.77x0.59in) / DVI
  • 40x52.25x16.5mm (1.57x2.06x0.65in)
• Cable Length: 100mm (3.94in)
• Housing Material: PVC
• Jacket Material: PVC
• Jacket Diameter: 5.5mm (0.22in)
• Minimum Bend Radius: 55mm (2.17in)
• Net Weight: 0.062kg (0.14lb)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -20°C - 80°C (-4°F - 176°F)
• Humidity:  20 - 90% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.077kg (0.17lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• DVI to VGA Converter

Purchasing Information

• No.: 38189
• EAN: 4002888381895
