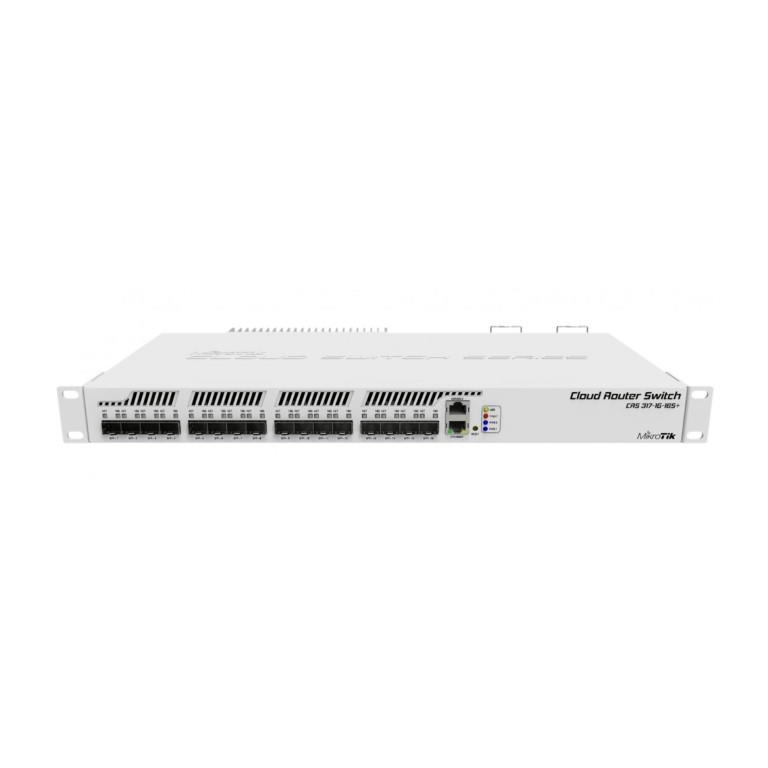

MikroTik Cloud Router Switch with 16x SFP+ ports CRS317-1G-16S+RM

MikroTik Cloud Router Switch with 16x SFP+ ports CRS317-1G-16S+RM

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.

CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol (MSTP) and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

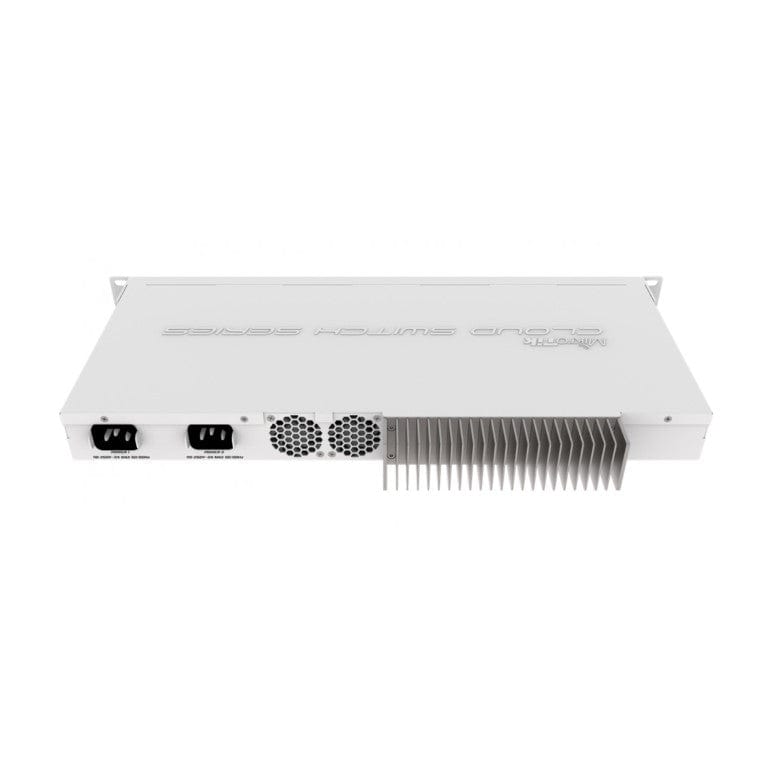

The unit has dual redundant power supplies and passive cooling case for hot environments, like outdoor communications boxes. Two redundant fans will automatically keep the system cool if needed.

Features

• Boot option for SwOS or RouterOS
• Non-blocking Layer 2 switching capacity
• 128K host table
• IEEE 802.1Q VLAN
• Supports up to 4K simultaneous VLANs
• Port isolation and Port security
• MSTP
• HW MPLS forwarding
• SFP 1.25 and SFP+ 10Gbit module support
• Dual power supplies
• Broadcast storm control
• Port mirroring of ingress/egress traffic
• Rapid Spanning Tree Protocol (RSTP)
• Link Aggregation (LACP)
• Access Control List
• MikroTik neighbour discovery
• SNMP v2/v3
• Rackmount and tabletop
• Supports -20 to +60 C ambient temperatures
• Passive cooling with automatic fan for high temperatures

Technical Specification

Product: MikroTik Cloud Router Switch

Ethernet Ports: 1x 10/100/1000 (Management Port)

SFP Ports: 16x 10Gbps

Hardware Button: Reset

Max. Power Consumption: 44W

Mounting: Rack-Mount

Operating System: Dual Boot - SwOS or RouterOS (Level 6 Licence)

Power Input: Power Input: 2x IEC Power Cord (Included)

Processor: 2 Core 800MHz 98DX8216

Serial Interface: 1x RJ45 Serial Port

Supported Voltage Range: 100V-240V

System Memory: 1GB
