MikroTik RB912R-2nD-LTm&R11e-LTE 650MHz CPU 64MB RAM 1xLAN LtAP mini LTE kit 100 Mbit/s Black PoE

Mikrotik LtAP mini LTE kit. Maximum data transfer rate: 100 Mbit/s, Wi-Fi data rate (max): 54 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. USB connector type: Micro-USB, WAN connection: Mobile network (SIM). Input voltage: 9 - 57 V, Power consumption (max): 9 W. Placement: Table, Product colour: Black. Antenna gain level (max): 1.5 dBi

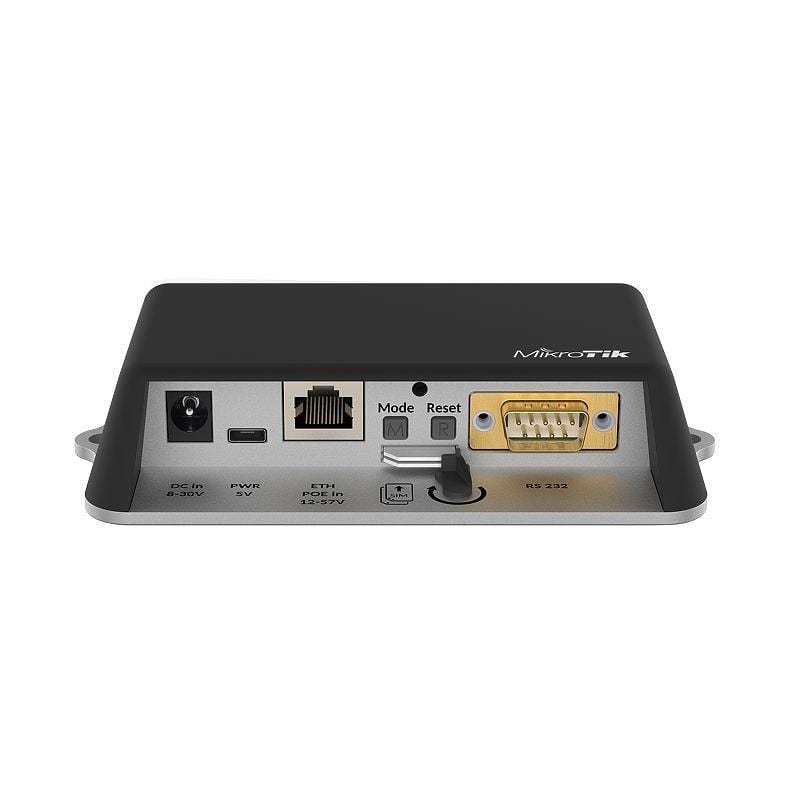

The LtAP mini LTE kit is a small waterproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity on International LTE bands 1,2,3,7,8,20,38 and 40. Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging. LtAP mini has a special enclosure with with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. External GPS antenna is available for ordering separately (not included, product code ACGPSA). The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB. Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.

Product code:    RB912R-2nD-LTm&R11e-LTE

Architecture:     MIPSBE

CPU:      QCA9531

CPU core count:                1

CPU nominal frequency:               650 MHz

Dimensions:       139 x 77 x 28,5 mm

RouterOS license:            4

Operating System:           RouterOS

Size of RAM:       64 MB

Storage size:       16 MB

Storage type:     FLASH

MTBF:   Approximately 200'000 hours at 25C

Tested ambient temperature:    -40°C to 70°C
