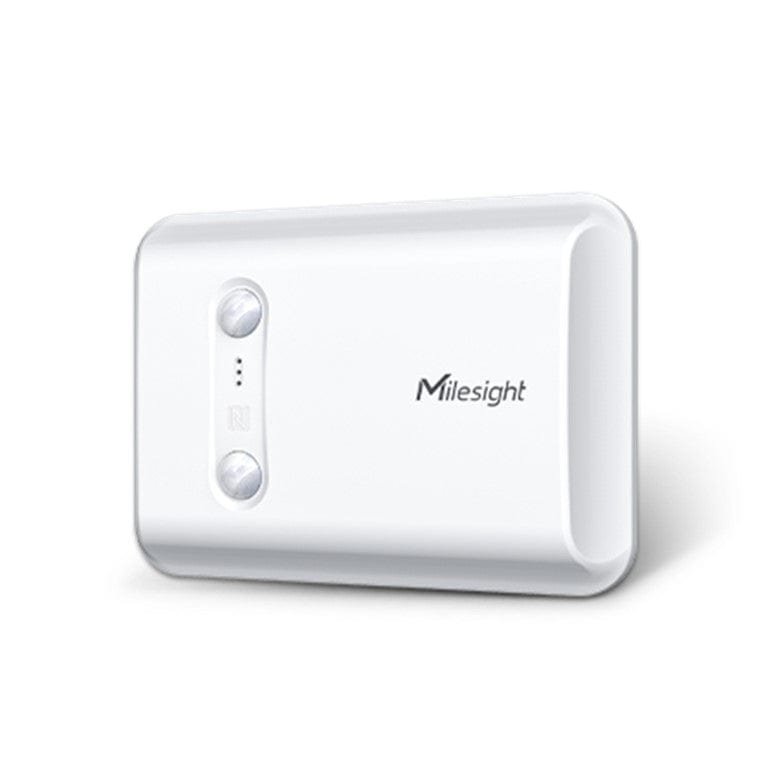

Milesight VS350 Passage People Counter Sensor VS350-868M

Milesight VS350 Passage People Counter Sensor VS350-868M

The VS350 is an exceptional indoor passage people counter that detects and analyzes the flow of people, allowing for optimum space management and usage. Equipped with dual PIR sensors, it offers a high accuracy rate for bi-directional people counting. When combined with the additional temperature sensor, the VS350 can achieve even more potential triggers, increasing its detection capabilities. As a Milesight D2D controller, the VS350 seamlessly communicates with other Milesight D2D devices, establishing more possible connections and paving the way for smoother operations.

With easy configuration and wireless detection, the VS350 facilitates simple deployment and connectivity. Compliant with the Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can know the number of passage people and trigger other sensors or appliances easily via a webpage or mobile App remotely.

Features

• LoRaWAN Wireless Deployment
• Flexible Bi-Directional People Counting
• Cost-Effective Accuracy Performance
• 100% Anonymous Detection
• Large Detection Area
• 4 Years Long Battery Life with High Report Frequency
• Unique Milesight D2D Communication
• Device Management & Application Development
• 2x 2700 mAh ER14505 Li-SOCl₂ Replaceable Batteries

Technical Specification

People Counting
Technology: Dual PIR
Installation Height

• Ceiling Mount: ≤ 3.0m
• Wall Mount: 1.2m - 1.3m

Detection Range

• Ceiling Mount: Passage Width = 2.8 m ( At the height of 3m)
• Wall Mount: Passage Width < 2.3m

Detection Rate

• Single Person: Up to 95%
• Multiple People: Up to 80%

Bi-directional Counting: Support

Temperature
Range: -30°C - 70°C
Accuracy: ± 0.5°C

Wireless Transmission
Protocol: LoRaWAN, Milesight D2D
Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz)
Sensitivity: -137dBm
Mode: OTAA/ABP Class A

Others
LED: 1x LED Indicator (Internal)
Button: 1x Reset Button (Internal)
Configuration NFC: Configuration via Mobile App
Advanced Feature: Data Storage, Data Retransmission, Milesight D2D Controller
