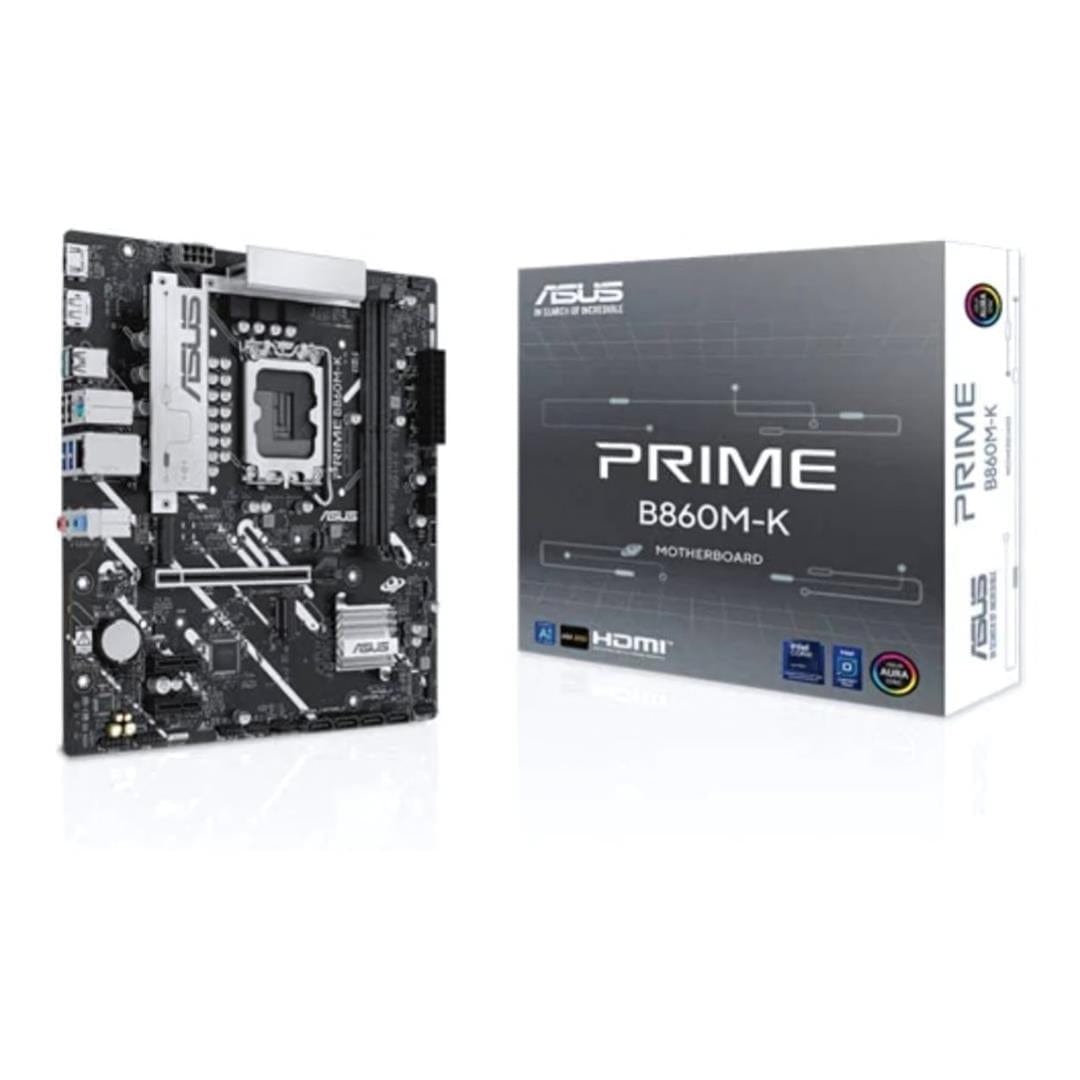

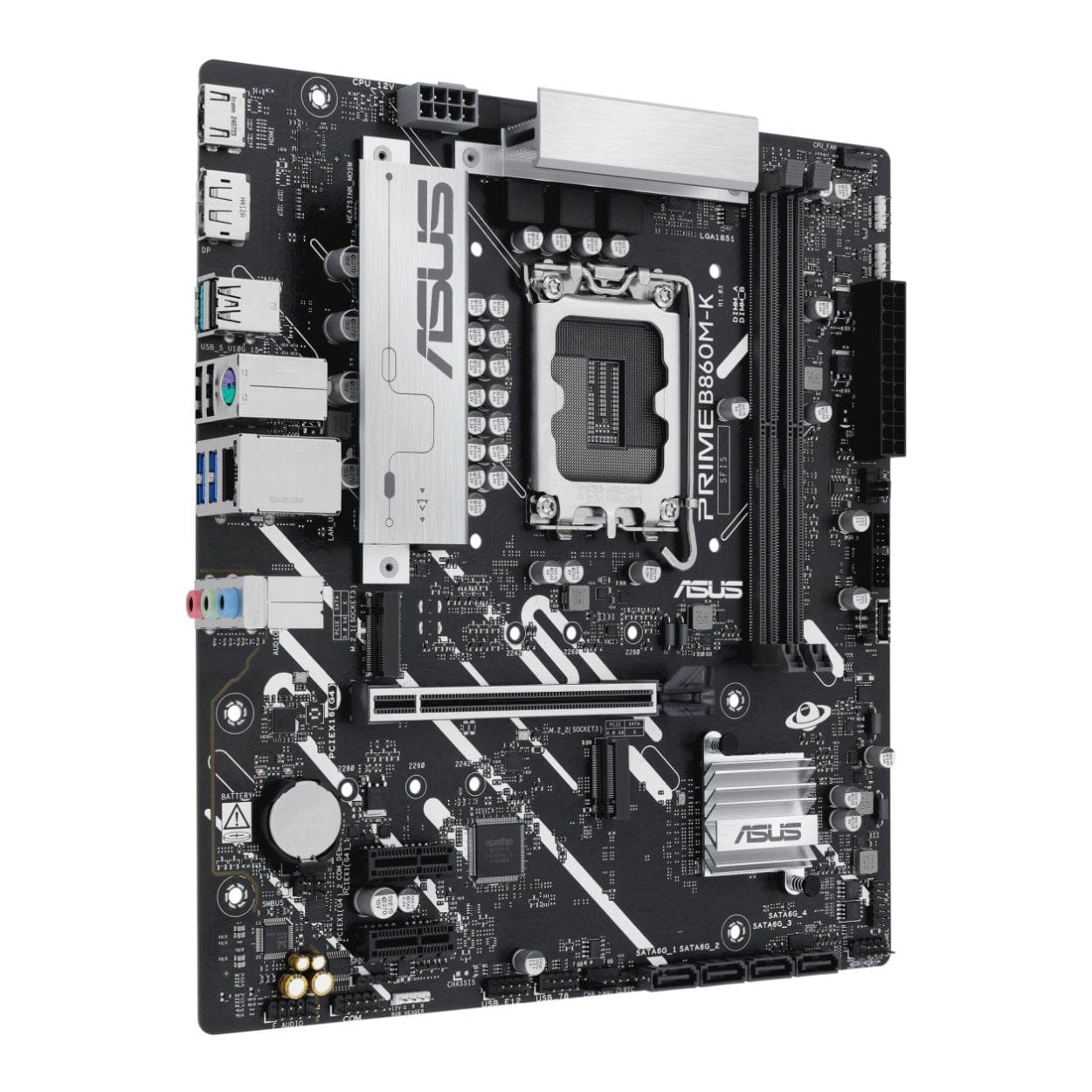

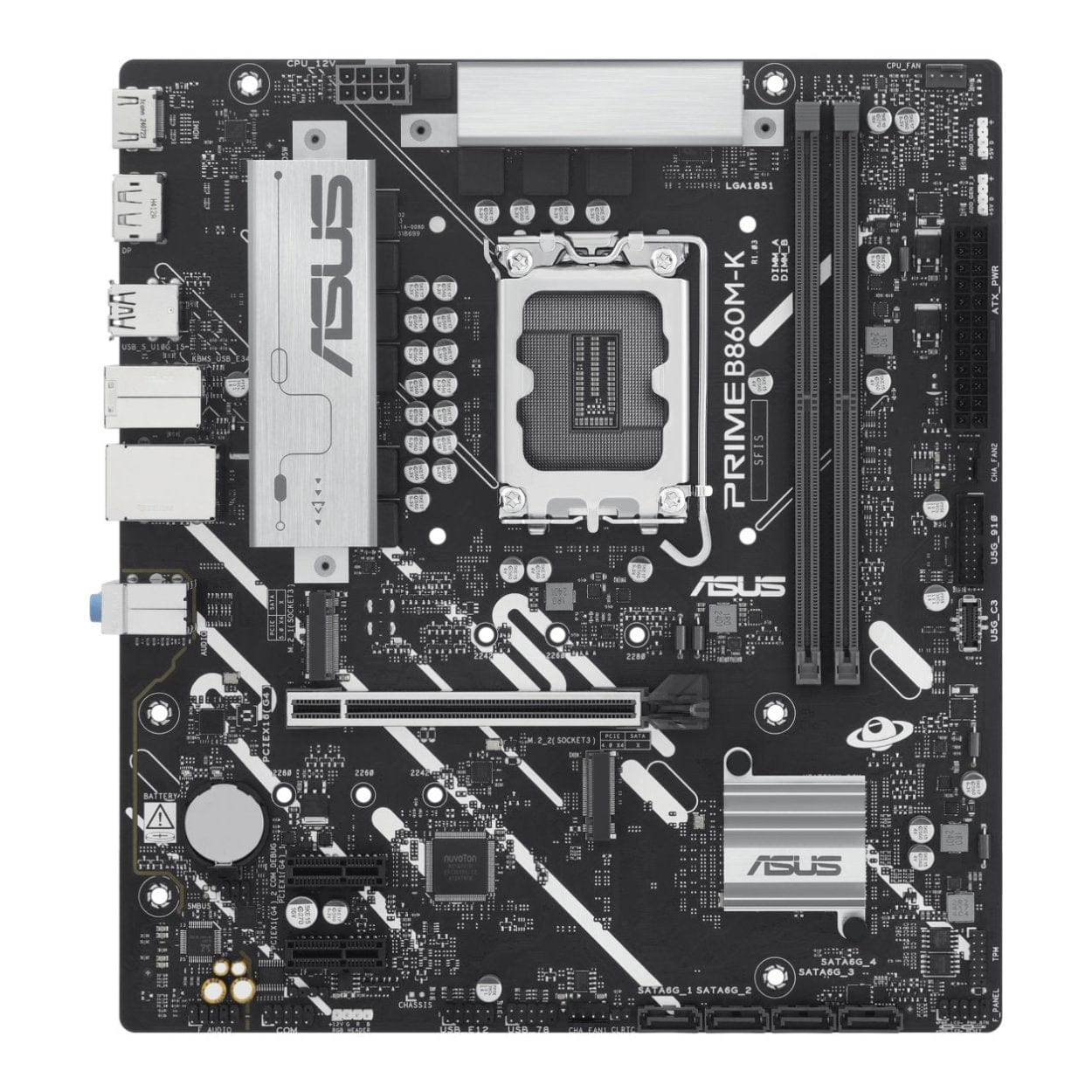

ASUS Prime B860M-K Intel LGA 1851 micro ATX Motherboard 90MB1JT0-M0EAY0

ASUS Prime B860M-K Intel LGA 1851 micro ATX Motherboard 90MB1JT0-M0EAY0

B860M-K
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Features:

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
• Intel LGA 1851 Socket: Support Intel® Core™ Ultra Processors (Series 2).
• Enhanced Power Solution: 6+1+1+1 Discrete MOS power design, 4-layer PCB, 8-pin ProCool power connectors, durable capacitors for stable power delivery.
• Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot.
• Ultrafast Connectivity: PCIe 4.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A port, front USB 5Gbps Type-C® connector.
• Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
• DIY Friendly Design: Q-Dashboard, Q-DIMM, Q-LED Core, Q-slot.
• Unmatched Personalization: Two Addressable Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting.
• Renowned Software: ASUS DriverHub, ASUS MyHotkey, Aura Sync.

AI Advisor

ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

Stable power is crucial for maximizing the performance of Intel^® Core^™ Ultra Processors (Series 2).The PRIME B860M-K features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel^® processors plus steady performance for day-to-day use.

AEMP III for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

DIMM Fit / DIMM Fit Pro

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.

Two M.2 slots (up to 128Gbps)

PRIME B860M-K offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that supports 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

Cooler by design

The PRIME B860M-K motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

ASUS Fan Xpert 2+

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Empowering connections

This motherboard offers a versatile range of connectivity, including support for PCIe 5.0 M.2, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C^® connection.

Personalization

The PRIME B860M-K enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

DIY friendly

The PRIME B860M-K motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

Technical Specifications:

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Compatible processor series: Intel Core Ultra (Series 2)

Supported memory types: DDR5-SDRAM

Maximum internal memory: 128 GB

Memory slots type: DIMM

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID levels: 0, 1, 5, 10

Ethernet interface type: 2.5 Gigabit Ethernet

Component for: PC

Motherboard form factor: micro ATX

Motherboard chipset family: Intel
