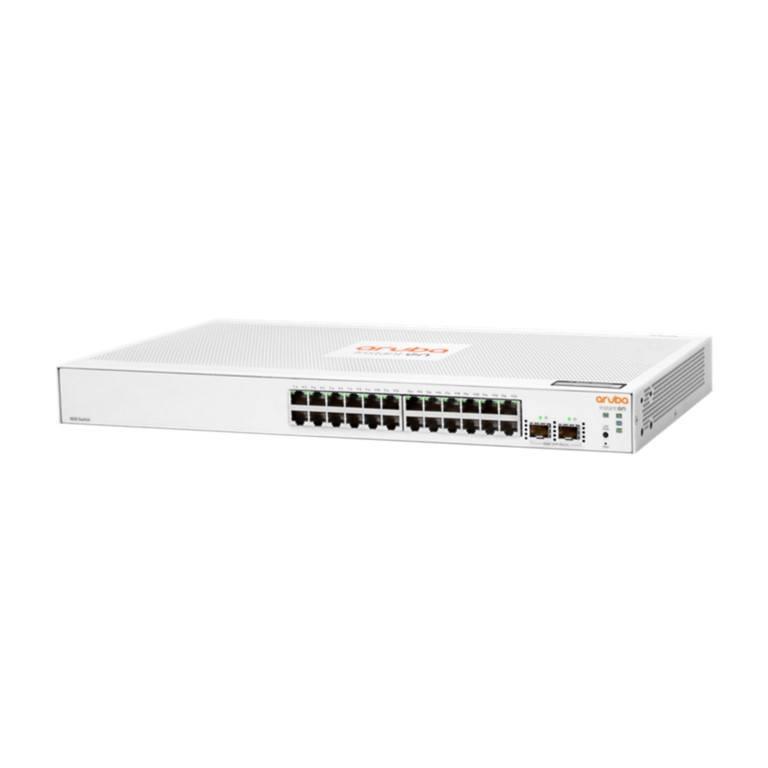

HPE Networking Instant On 1830 24-port Gigabit Smart Managed L2 Switch with 2-port SFP JL812A

HPE Networking Instant On 1830 24-port Gigabit Smart Managed L2 Switch with 2-port SFP JL812A

Features

Gigabit Connectivity for Small Businesses

Aruba Instant On 1830 Switch Series is a smart-managed Layer 2 Ethernet switch series ready to deploy in six models comprising of 8-, 24-, 48-port for non-PoE and Classs 4 PoE models.

Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.

With PoE models, you get up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port, 24-port and 48-port PoE models come with the power budget of 65W, 195W, and 370W respectively to support latest IoT devices.

8-port non-PoE switch can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

Simplify Network Deployment and Management

The Aruba Instant On 1830 Switch Series features easy-to-use, out-of-the-box, plug-and-play deployment.

The switches can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling.

Keep Your Business Protected with Integrated Security Features

The Aruba Instant On 1830 Switch Series is enhanced with security features such as VLANs, automatic Denial-of-service protection, Global Storm Control, and TPM (Trusted Platform module) based security to guard your network from unwanted or unauthorized access.

Global Storm Control Protects against conditions where incoming packets flood the LAN, causing network performance degradation for unicast traffic with an unknown destination, and for broadcast and multicast traffic.

Includes a Trusted Platform Module (TPM) for protected hardware-based generation and storage of cryptographic keys used for connection to the Aruba Instant On cloud portal.

Better Energy Efficient Features for Reducing Environmental Footprint

The Aruba Instant On 1830 Switch Series has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.

Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption.

Features compact and fan-less 8-port and 24-port non-PoE models for acoustically-sensitive environments.

PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).

Technical Specification

Differentiator: Entry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 2 SFP 1GbE ports.

Power consumption:

• Maximum: 100-127V: 19.1W ; 200-220V: 19W
• Idle: 100-127V: 7.6W ; 200-220V: 7.8W

Input voltage: 100 - 240 VAC

Ports: 24x RJ-45 10/100/1000 ports, 2x SFP 1GbE ports

Switching capacity: 52 Gbps

Throughput: 38.68 Mpps

Memory and processor: ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB

PoE capability: No

Operating Temperature: 0-40°C, 0-10,000 ft

Management features: Aruba Instant On Cloud; Web browser; SNMP Manager

Warranty: Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

Weight: 2.49 kg

Minimum dimensions ( H x W x D): 21.59 x 44.30 x 4.39 cm
