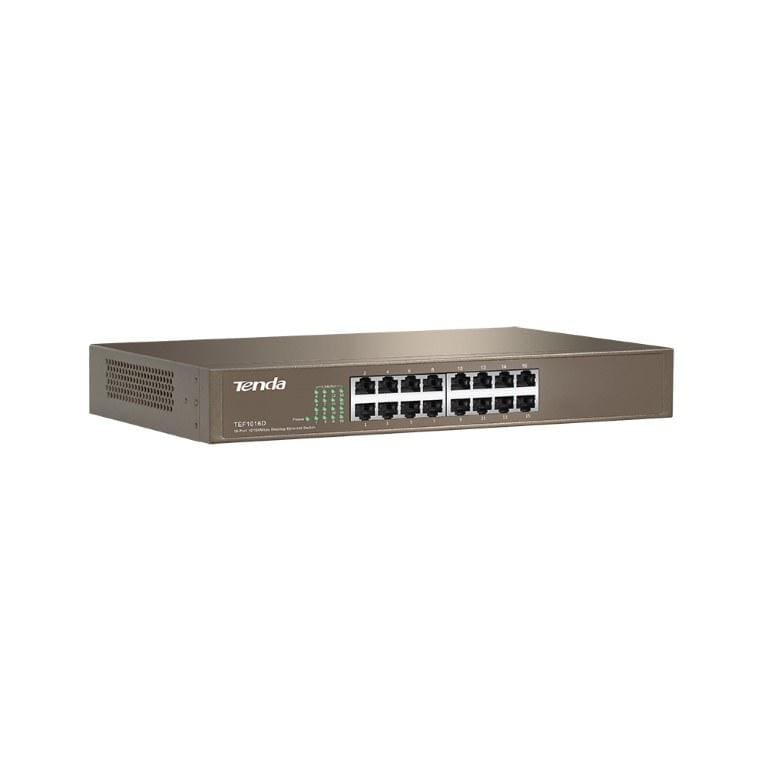

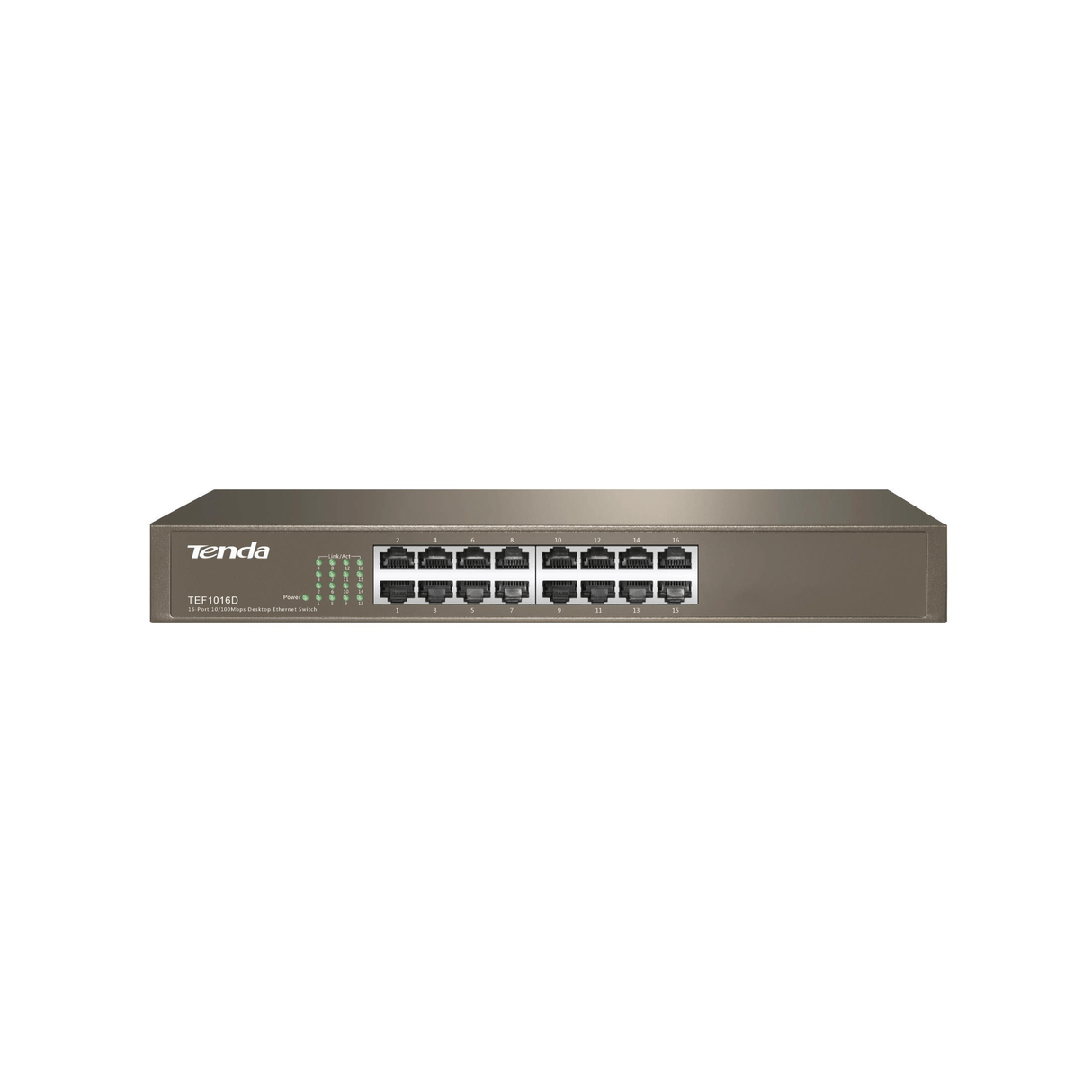

Tenda TEF1016D Unmanaged Switch Fast Ethernet Grey

The Tenda TEF1016D 16-Port 10/100 Switch is specially engineered to provide simple solution to expand SMB networks and campus networks at the best possible cost. Connect this 16-port switch to a router and add up to twenty three more computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in sturdy metal case, it is ideal for years of dependable use. Space-saving Design for Desktop & Rack Installation 100-Mbps speed, a switching capacity of up to 3.2Gbps and nonblocking wire speed forwarding meet the performance needs for a high speed and smooth network. Standards & Protocols Compliance Fully compliant with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX. Stable & Reliable Performance The switch is a Plug-and-Play device that requires no configuration or software. Once you connect the hardware, the switch is operating! Each port is able to autosense half/full duplex mode and auto detect MDI/MDI-X crossover. Inductive Lightning Protection Integrating professional circuits, Tenda New 16-Port Unmanaged Fast Switch can protect the power supply from inducive lightning (6KV in Common Mode Protection). Plug & Play The switch is a Plug-and-Play device that requires no configuration or software. Once you connect the hardware, the switch is operating! Each port is able to autosense half/full duplex mode and auto detect MDI/MDI-X crossover.

Specification

Network standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

LED Indicator

1* Power,16* Link/Act

Interfaces

16*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

294.0mmx180.0mmx44.0mm

Material

Metal

Level of protection

Lightning protection for ports: N/A
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

3.2Gbps

Packet forwarding rate

2.38Mpps

Buffer

1.25Mb

MAC address table

4K

Jombo frame

N/A

Power

Input: 100-240V AC 50/60Hz

Power consumption

Max:<6W

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting : support

Environment

Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing

Certification

CE, FCC, RoHS

Software

Protocols

CDMA/CD

MAC address learning

Auto-Learning and Auto-Aging

Funtions

plug-and-play
