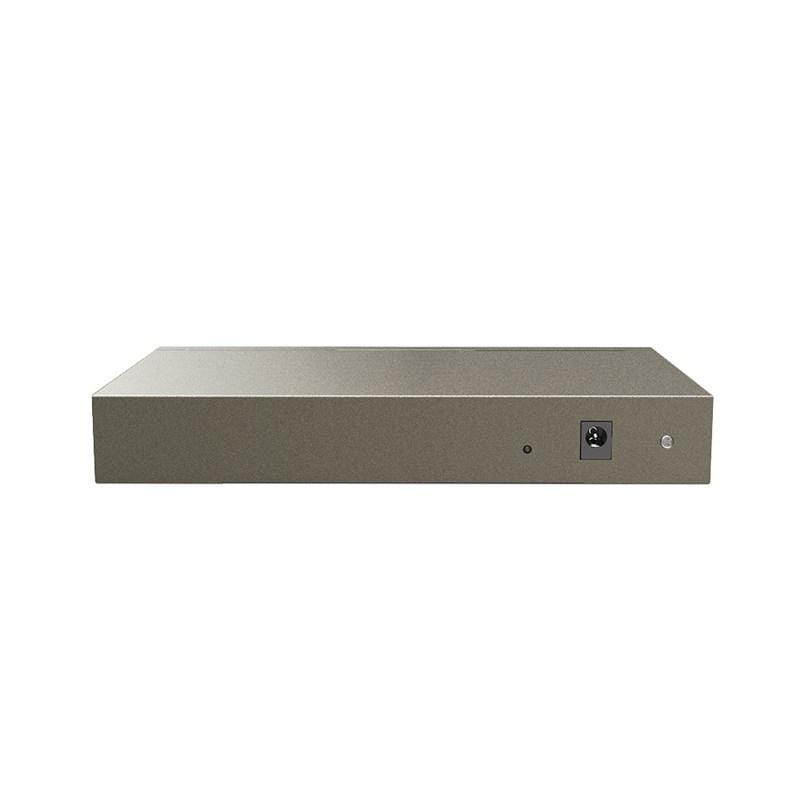

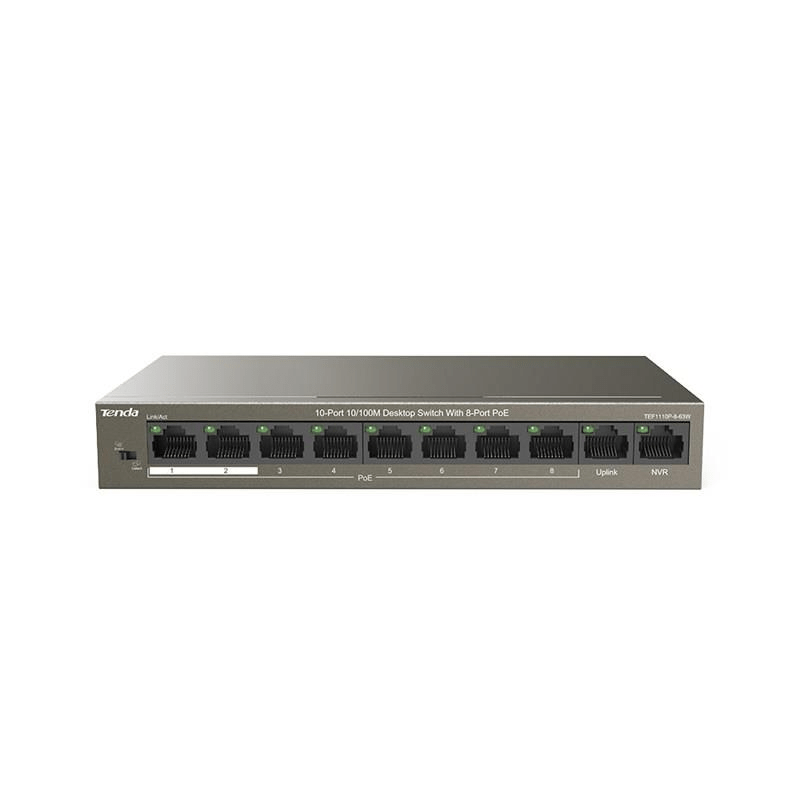

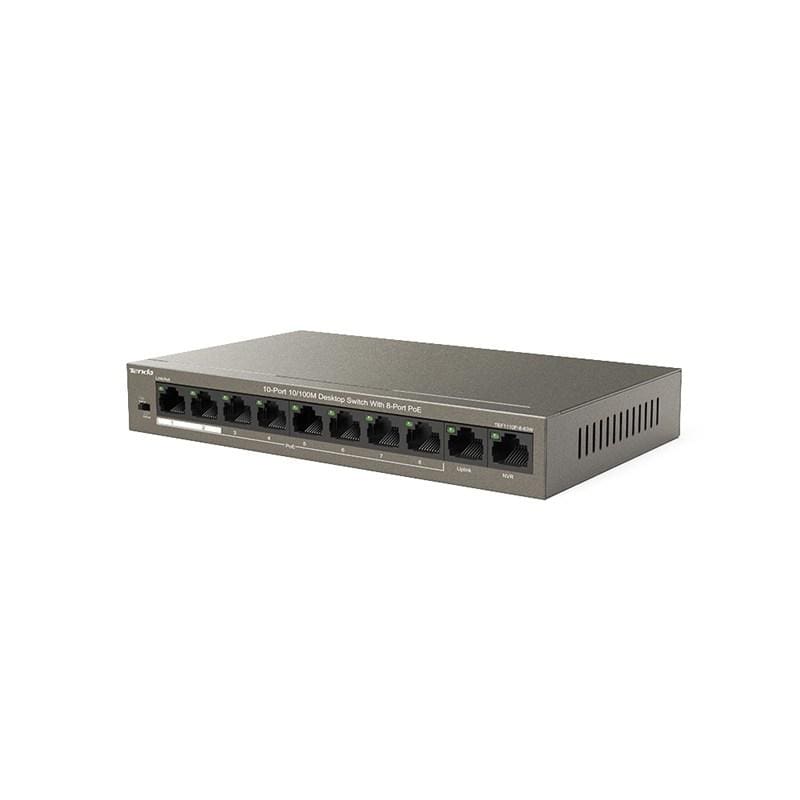

Tenda TEF1110P-8-63W 8-port 10/100Mbps + 2 Gigabit Desktop with 8 PoE Switch

TEF1110P-8-63W is an unmanaged PoE switch with 2 uplink ports, independently designed by Tenda. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. Featured with extend mode, One-key VLAN and QoS functions, TEF1110P-8-63W is a ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement. Dual uplink port, more convenient for connecting Router and NVR TEF1110P-8-63W is an unmanaged PoE switch with 2 uplink ports that can connect with Router & NVR. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 58W, and 30 W for a single port. TEF1110P-8-63W is an ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement. Up to 250 meters long distance transmission under the Extend Mode,beyond hundred meters transfer limitation Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1110P-8-63W can support 250 meters data transmission under the Extend mode, which can save the cost of your project with less devices used. Excellent lightning Protection TEF1106P-4-63W supports professional lightning protection of 6KV for uplink ports & 4KV for power, which can protect the switch from the inductive lightning strike coming from the thunderstorm weather.

Specification

Network standards

IEEE 802.3/3u/3x, IEEE 802.3af/at

LED Indicator

10* Link/Ack LED indicators
1 * Power LED indicator

Interfaces

8 * 10/100 Base-TX Ethernet ports (Data/Power)
2 * 10/100 Base-TX Ethernet ports (Data)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

177.5mmx104.0mmx26.0mm

Level of protection

Lightning protection for ports: 6KV
Lightning protection for power: 4KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

1.6 Gbps

Packet forwarding rate

1.48Mpps

Buffer

448K

MAC address table

1K

Jombo frame

N/A

PoE budget

Single port: AF: 15.4W, AT: 30W
Whole device: 58W

Input voltage

100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Environment

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS

Software

Funtions

Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.
Extend Mode:VLAN isolation is enabled. Port 1-8 will be isolated respectively (10/100Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps).
