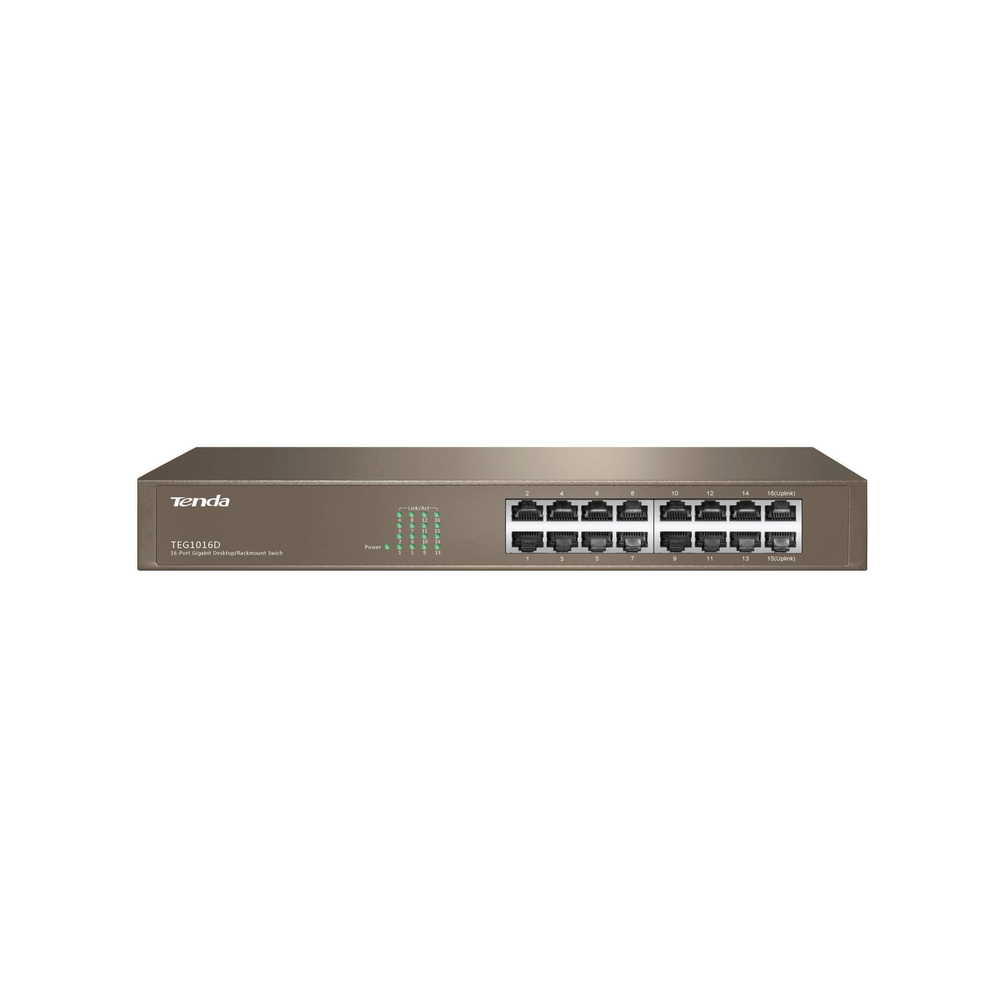

Tenda TEG1016D 16-port Gigabit Ethernet Desktop/Rackmount Switch

The TEG1016D and TEG1024D are a 16 and 24 port Gigabit switches respectively. They support auto MDI/MDIX, store-and-forward switching, and have an 8,000 MAC address table. The TEG1016D has a 32Gbps backplane bandwidth while the TEG1024D has a 48Gbps backplane bandwidth. They have compact 11” metal cases that are convenient to put on a desk or shelf for a small office network, but they are equally at home in a rack using the included 1U mounting kit.

Specification

Network standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

LED Indicator

1* Power,16* Link/Act

Interfaces

16*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

294.0mmx179.0mmx44.0mm

Material

Metal

Level of protection

Lightning protection for uplink ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

32Gbps

Packet forwarding rate

23.80Mpps

Buffer

2Mb

MAC address table

8K

Jombo frame

N/A

Power

Input: 100-240V AC 50/60Hz

Power consumption

Max:<12W

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting : support

Environment

Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing

Certification

CE, FCC, RoHS

Software

Protocols

CDMA/CD

MAC address learning

Auto-Learning and Auto-Aging

Funtions

plug-and-play
