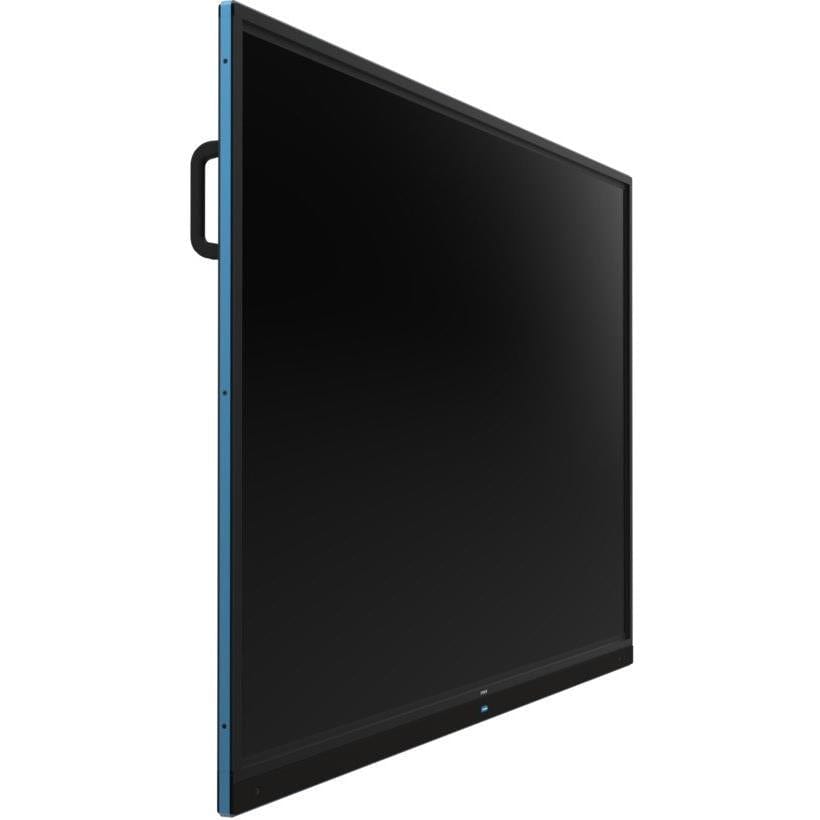

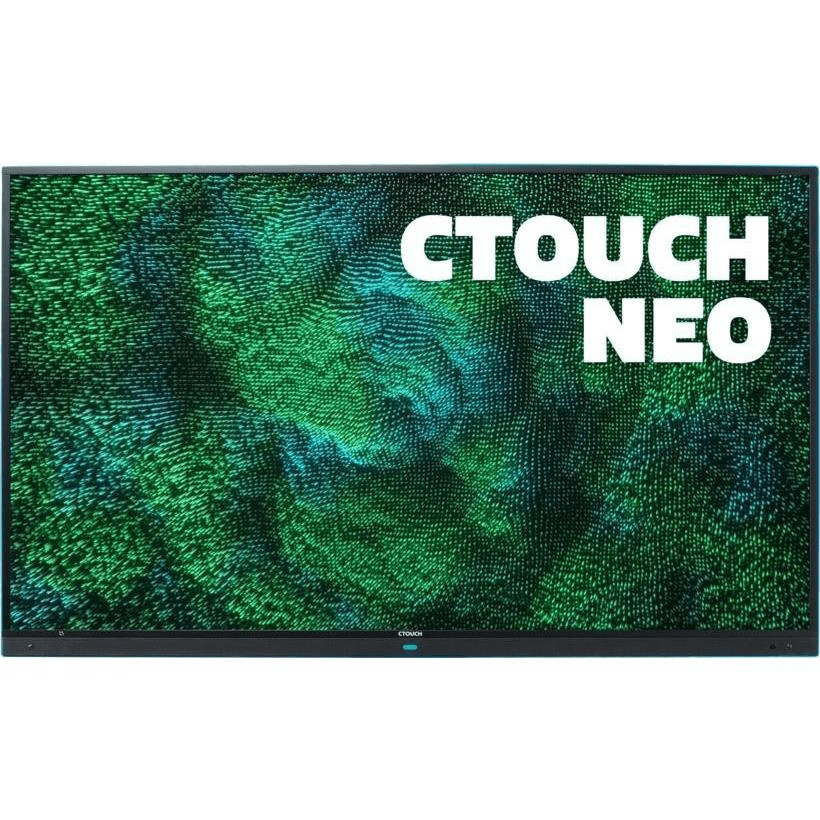

CTouch Neo 55-inch 4K UHD Interactive Touch Presentation Panel 10052655

CTouch Neo 55-inch 4K UHD Interactive Touch Presentation Panel 10052655

The CTouch Neo 10052655 55'' UHD Interactive Touchscreen has been developed with the feedback of numerous CTouch clients in mind, to address the challenges they face every day. This has resulted in the easiest-to-use touchscreen ever. To try it is to believe it.

Starting up the touchscreen, you will see the 4 most frequently used functions, and only those:

• Run the whiteboard tool, which has been made incredibly user friendly as well

• Share the screen of your device without having to install an app

• Use the built-in web browser

• Change the source to your preferred device

Combine this with a great writing experience, JBL optimised speakers and the possibility to add CTOUCH Neo to the Heartbeat programme and you have got an absolute game-changer.

Intuitive UI

The CTOUCH Neo is as simple to use as a toaster. Walk up to the screen, launch your preferred app and start your class or meeting right away.

Perfect sound with JBL® optimised speakers

The CTOUCH Neo is a versatile touchscreen, that can be used in any scenario. That’s why CTouch added front facing speakers, optimised by JBL®, to bring powerful sound to any room.

Wireless sharing - no additional app needed

Thanks to AirServer, wireless screen sharing can be done by using your device’s native sharing solution: be it AirPlay, Miracast or Google Cast.

Accessories that make a difference

Whether you would like to mount a big conference camera, or lock cables safely in place to prevent nasty surprises, CTOUCH Neo has got you covered.

Enjoy the Neo for a lifetime with Heartbeat

Keeping your shiny new CTOUCH Neo touchscreen in optimal form couldn’t be easier. Just enroll in the Heartbeat programme to receive a lifetime of security and functionality updates, while getting access to remote management tools and trainings as well. And at the end of its lifetime, CTouch will repurpose the touchscreen.

Touch system

• Touch system: IR Touch

• Touch points: 20

• Touch tools: hands or other solid (soft tip) object

• Accuracy: ±1 mm

• Minimum response size: > 2 mm

• Touch resolution: 32,767 x 32,767 (pixels)

• Interface: USB 2.0 compatible (full speed) HID complaint

• Supported OS: Windows, macOS, Chrome, Linux and Android

• Touch driver: Not required for Windows and single touch macOS

Panel

• Diagonal size: 54.6" (1,385 mm)

• Display resolution: 3,840 x 2,160

• Frame rate: 60 Hz

• Brightness: 450 cd/m² max.

• Aspect ratio: 16:9

• Contrast ratio (static): 1200:1

• Response time (gray to gray): 8 ms

• Display colours: 1.07 G

• Pixel pitch (W x H): 0.105 × 0.315 mm

• Viewing angle: 178° / 178°

• Service life: > 30.000 Hours

• Orientation: Landscape

Glass

• Glass: Triple S Glass (Smooth, Stripeless, Safety)

• Type: heat tempered, anti glare, safety glass, zero air-gap

• Thickness: 3.2 mm

• Hardness: 8 Mohs

Connectivity

• Video input (digital): 1x HDMI2.1, 2x HMDI2.0, 1x DisplayPort 1.2, 2x USB-C (USB 3.1 Gen 2; 65W)

• Video output (digital): 1x HDMI 2.1

• Audio input: 1x Mini Jack

• Audio output: 1x Mini Jack

• USB: 5x USB3.0 (type A) + 2x USB 2.0 (type A, 1x OTG + 1x USB2.0 Android) USB-C (data-only, top)

• RS232C: 1x DE-9F

• Wired network: 2x 10/100/1000Mbps

• Wireless network: WiFi 6 (2.4 & 5 Ghz)

• Module-slots: 1x OPS-slot (UHD@60Hz)

• NFC: built-in

• Human presence detection: built-in (2x)

Video

• Eye comfort: blue light filter

• Colour temperature: warm, cool, normal

• Picture modes: normal, auto, eco

Sound

• Power to tweeter/woofer: JBL® 50W

• Frequency range: 200 - 20 kHz

• Microphones: six Array far-field

Operating system

• System version: Android 11

• Chipset: Amlogic 311D2

• Memory: 4 GB

• On-board storage: 32 GB

OSD

• Languages: Dutch, English, German

Power

• Power supply: AC 100-240 V 50 / 60 Hz

• Power consumption (in operation): 88 W

• Ambient light sensor: built-in

Quality approvals

• Regulatory approvals: CE, UKCA, RoHS

• Green approval: WEEE

• ISO Standard: ISO9001 and ISO14001

• Warranty: 3 Year UK On-Site & Parts Warranty (Requires Registration for 3rd Year)

Dimensions & Weight

• Product dimensions (WxHxD): 1,279 x 789 x 99 mm

• Product weight: 36 kg

• VESA Mount (WxH): 400 x 400 mm, M6 Screw

Product accessories

• Accessories included: power cable (3 m, EU & UK), USB touch cable (3 m), HDMI cable (3 m), USB-C cable (1.8 m), remote control (incl. batteries), quick start guide & welcome noted • 2x writer passive pens, stage XXL, cable lock

Logistics information

• Box size (WxHxD): 1,414 x 945 x 232 mm

• Gross weight: 44 kg
