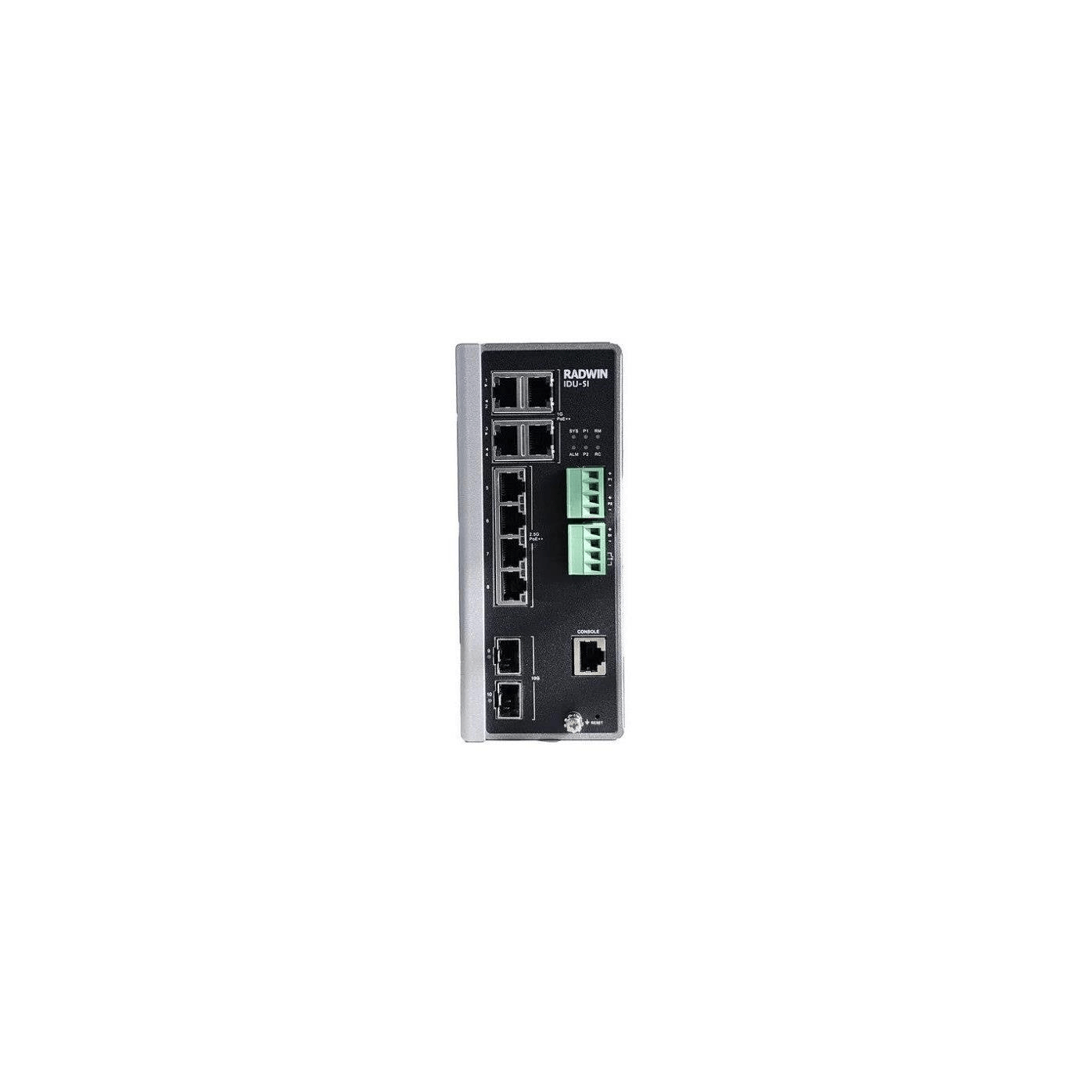

Radwin IDU-SI Layer 3 Industrial DC PoE Switch RW-7400-8008

Radwin IDU-SI Layer 3 Industrial DC PoE Switch RW-7400-8008

IDU-SI is a new addition to the RADWIN series of Indoor Units, designed to provide carrier class, industrial-grade Ethernet switching capabilities. The IDU-SI is a rugged, L2 and L3 switch that supports PoE for powering RADWIN radios as well as third-party devices such as CCTV cameras, Wi-Fi outdoor access points, IoT Gateways, etc.

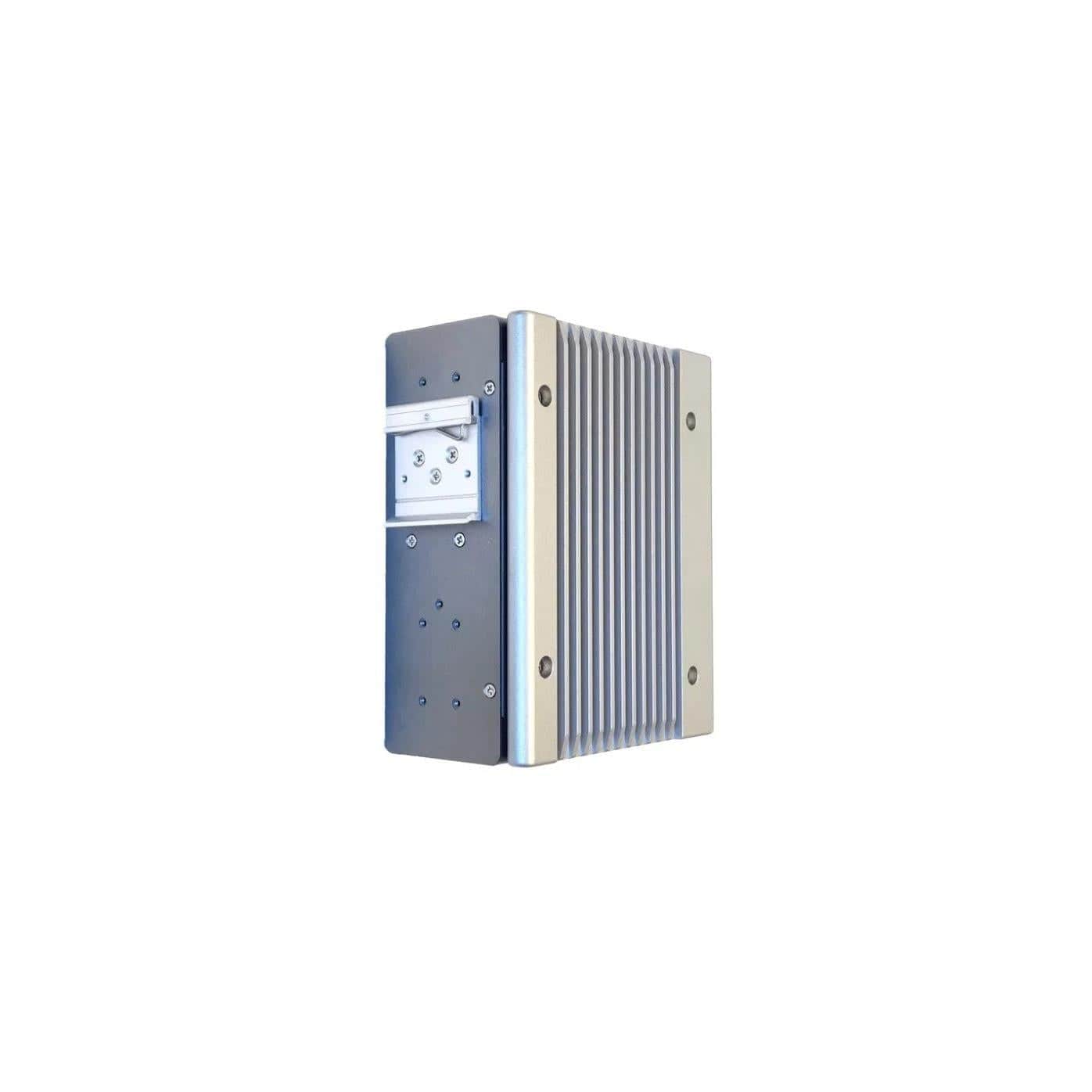

Extremely compact, it supports a wide temperature range (-40 to +75 Celsius) and comes with a DIN rail mounting kit with digital I/O relays, making it suitable for outdoor cabinet installations.

The IDU-SI is fanless, relying on passive cooling, and is extremely robust with extended MTBF, providing reliable and consistent performance.

The IDU-SI is typically sold in conjunction with RADWIN's PtP and PtMP radios, but it can also be used as a standalone L2/L3 switch for various applications.

Product Highlights

DIN-rain mount, fanless, carrier-class, industrial-grade, extended temperature Ethernet switch.

Supports up to 8 x RADWIN ODUs and standard PoE devices/

Two uplink SFP+ ports of 10GbE/1GbE

8 RJ45 user ports. Four rated up to 1GbE and supporting 90W, and 4 rated up to 2.5GbE supporting up to 90W PoE.

Comprehensive Layer 2 switching and advanced Layer 3 routing capabilities.

Carrier-class protected ring topologies supporting EPS (G.8031), ERPS (G.8032) and mission-critical Rapid Ring or MRP with a self-recover time of less than 20ms.

Redundant, dual DC power input.
