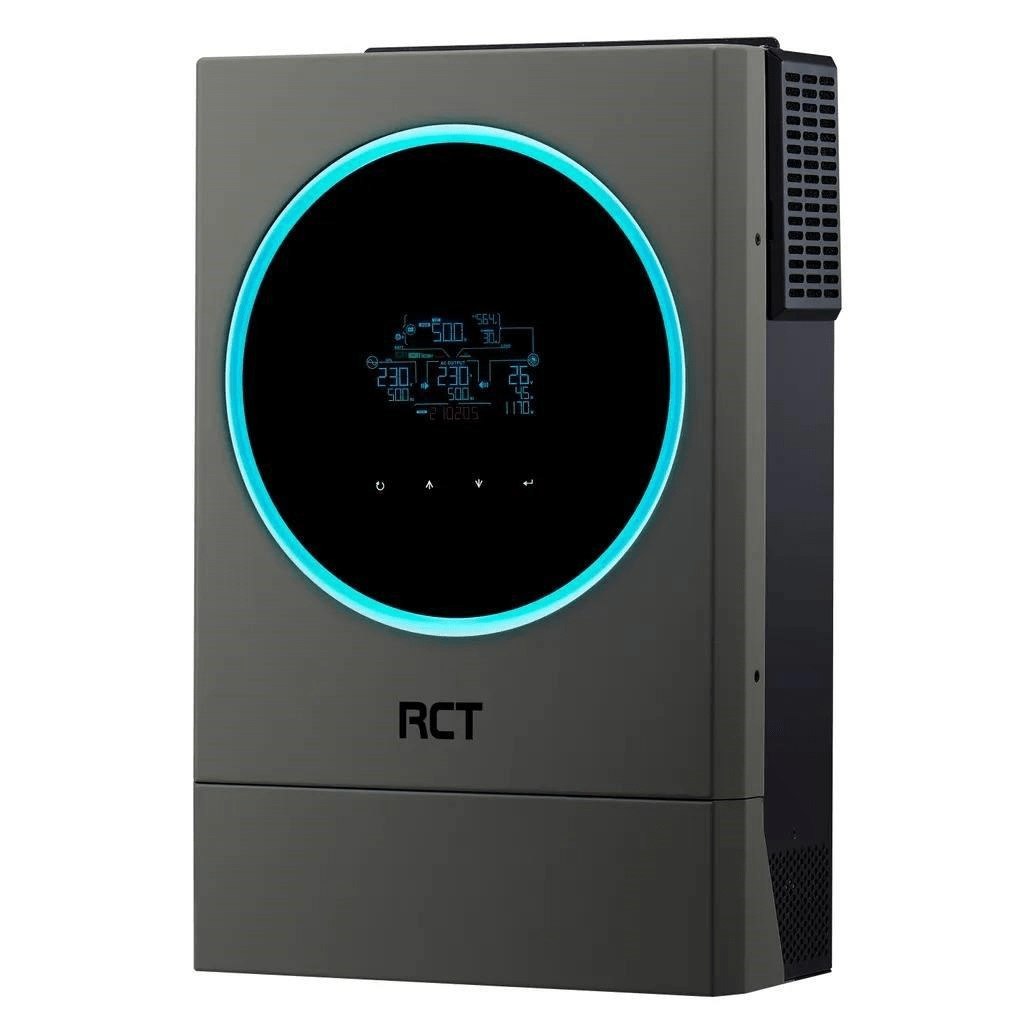

RCT Axpert MK4 5.6K 5.6kVA 5.6kW 48V Hybrid Inverter RCT-AXMK4-5.6K48V

RCT Axpert MK4 5.6K 5.6kVA 5.6kW 48V Hybrid Inverter RCT-AXMK4-5.6K48V

Pure sine wave MPPT solar inverter.
Customizable status LED ring with RGB lights.
Touchable button with 4.3" coloured LCD.
Wide DC input range.
Supports USB On-the-Go function.
Data log events stored in the inverter.
Built-in Wi-Fi for mobile monitoring (App is available).
Reserved communication port for BMS.
Battery independent function.
Parallel operation with up to 9 units.

Model: RCT-AXMK4-5.6K48V
Rated: 5600VA/5600W.

Input

Voltage: 230 VAC.
Selectable Voltage Range: 170-280 VAC (For Personal Computers), 90-280 VAC (Home Appliances).
Frequency Range: 55 Hz/60 Hz (Auto sensing).

Output

AC Voltage Regulation (Batt. Mode): 230VAC + 5%.
Efficiency (Peak): 93 %.
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
Waveform: Pure Sine Wave.
Overload Capacity: 5s @ ? 150% Load, 10s @ ? 110% ~ 150% Load, 100ms @ ? 200% Load.
Battery

Battery Voltage: 48 VDC.
Floating Charge Voltage: 54 VDC.
Overcharge Protection: 66 VDC.

Solar charger & AC charger

Solar Charger Type: MPPT.
Maximum PV Array Power: 6000 W.
MPP Range @ Operating Voltage: 120 ~ 450 VDC.
Maximum PV Array Open Circuit Voltage: 450 VDC.
Maximum Solar Charge Current: 120 A.
Maximum AC Charge Current: 120 A.

What's in the box
1 X Inverter
