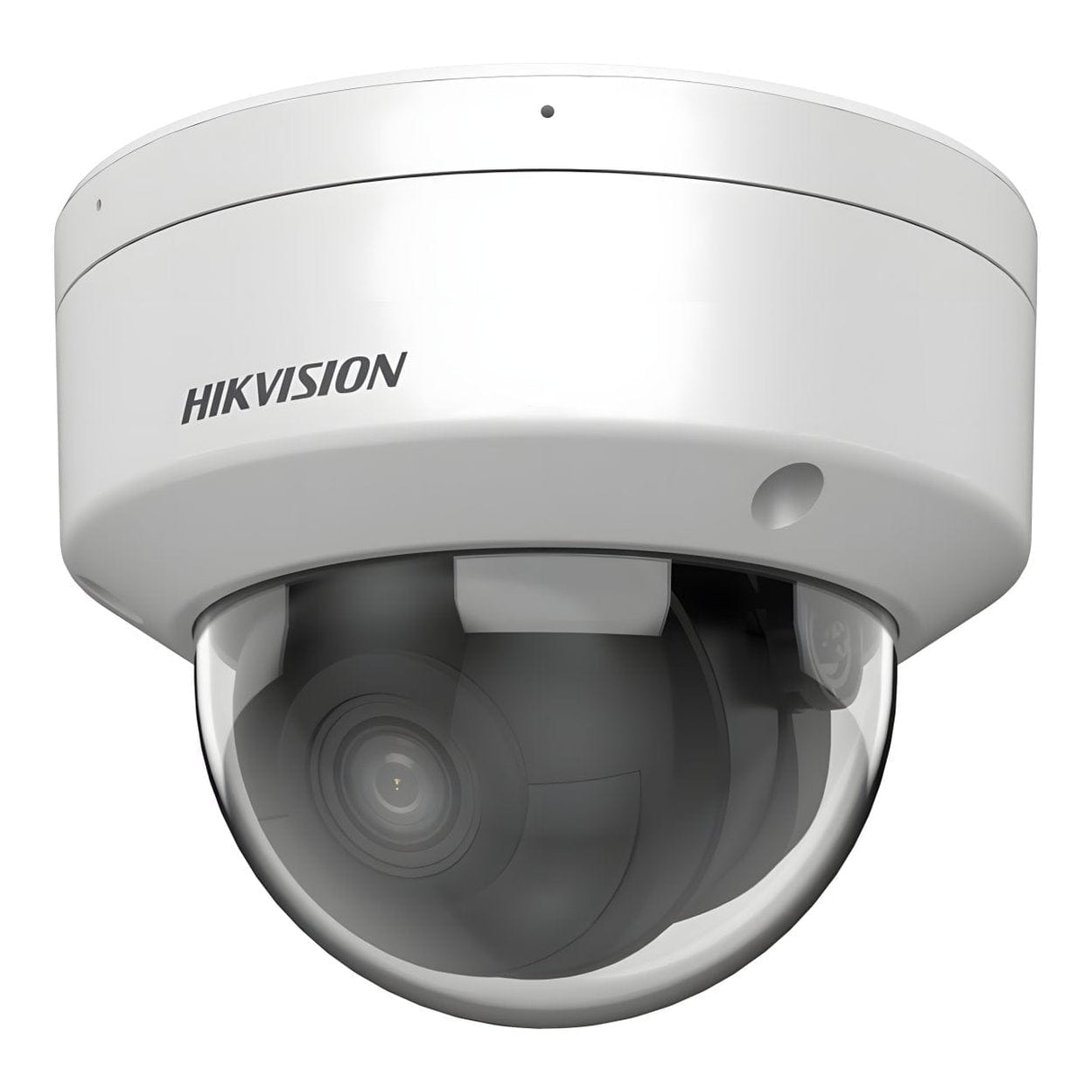

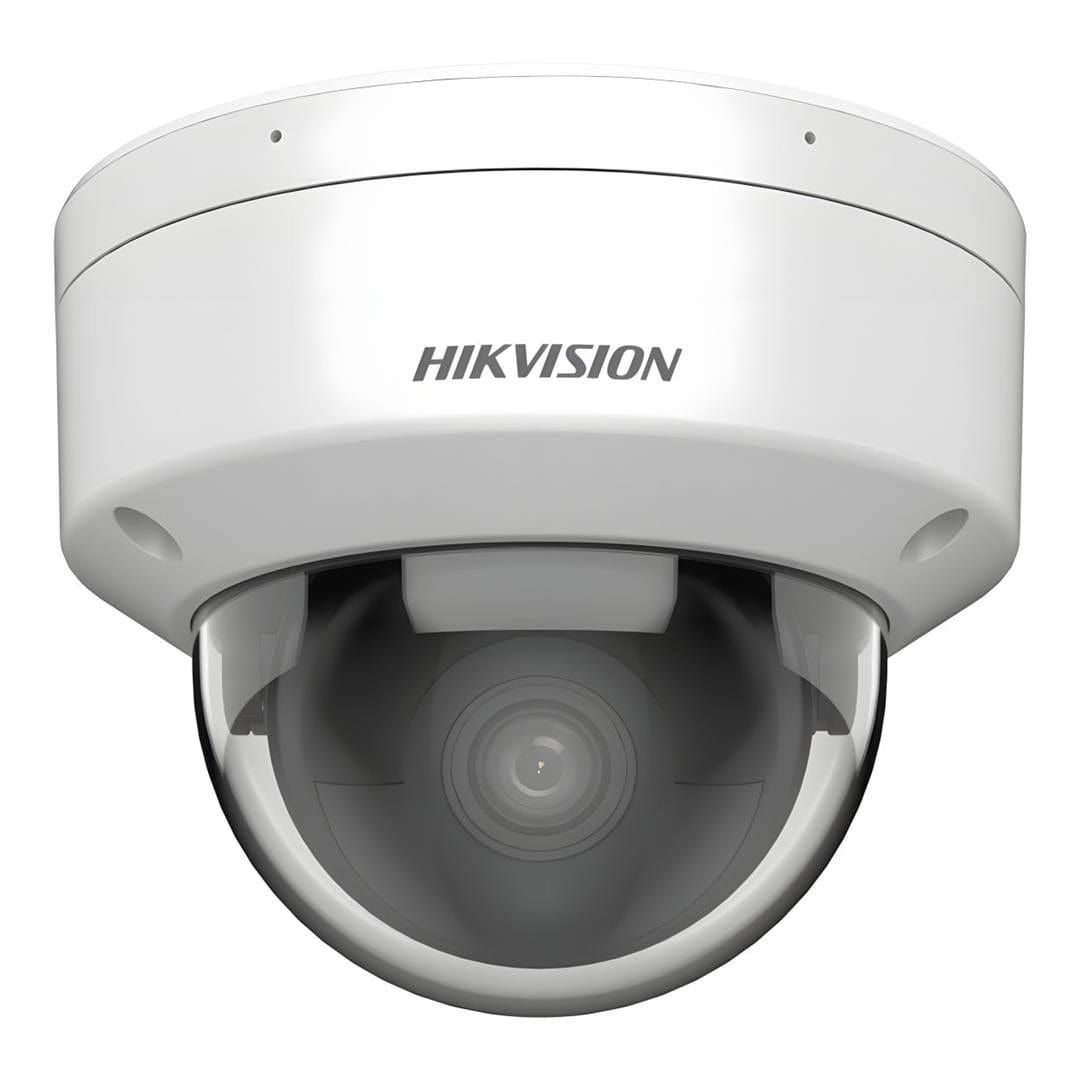

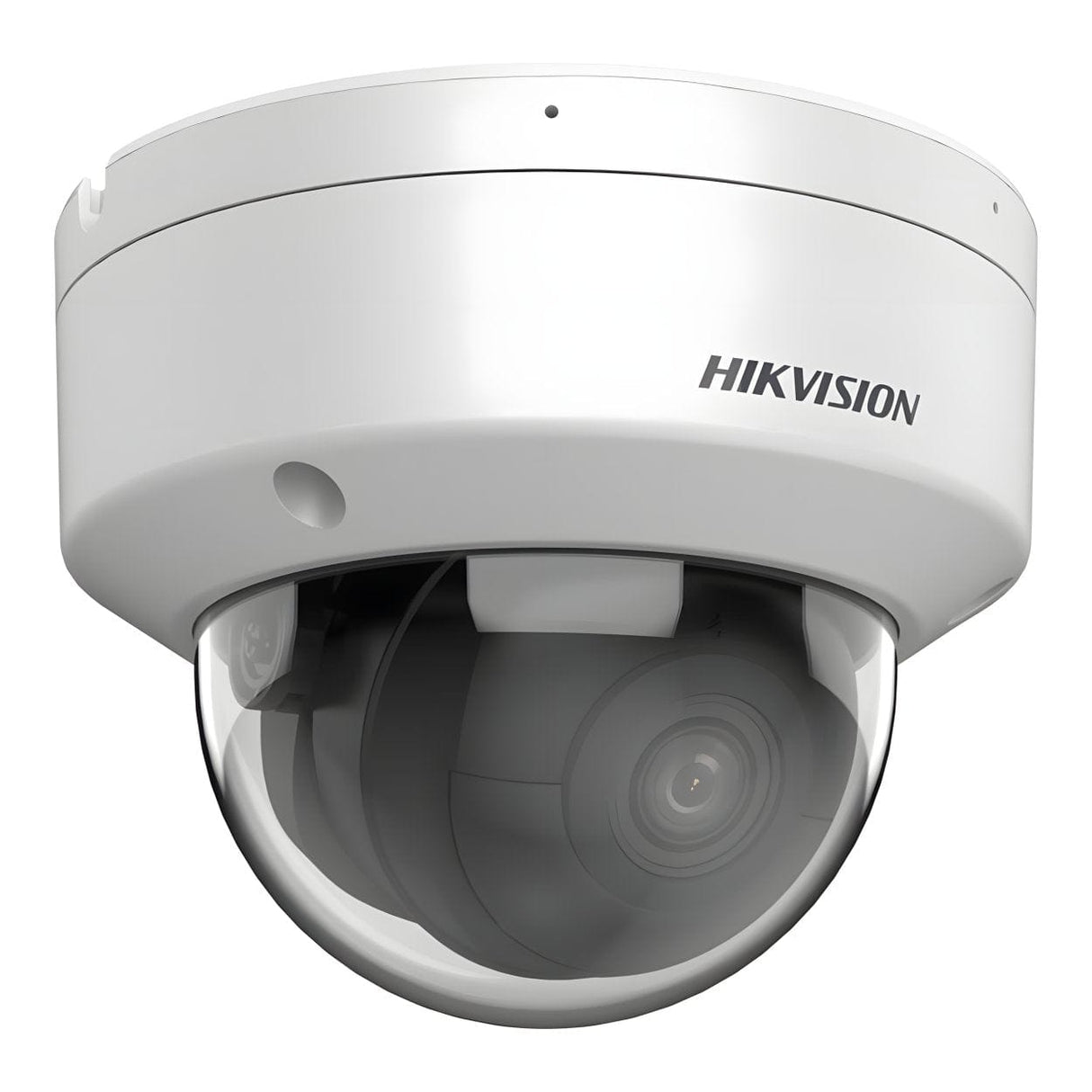

Hikvision 8MP 2.8mm Fixed Dome Network Camera Powered by Darkfighter DS-2CD2186G2H-ISU(2.8mm)

Hikvision 8MP 2.8mm Fixed Dome Network Camera Powered by Darkfighter DS-2CD2186G2H-ISU(2.8mm)

Features

• Excellent low-light performance via powered-by-DarkFighter technology
• High quality imaging with 8 MP resolution
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67) and vandal-resistant (IK10)

Technical Specification

Image Sensor: 1/8" Progressive Scan CMOS

Max. Resolution: 3840 x 2160

Lens Type: 2.8mm Fixed focal lens

Focal Length & FOV: Horizontal FOV 105.1°, Vertical FOV 54.8°, Diagonal FOV 128.2°

Depth of Field: 3.3 m to ∞

DORI: D: 89 m, O: 35 m, R: 17 m, I: 8 m

Supplement Light Type: IR

Supplement Light Range: Up to 30 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm

Ethernet Interface: 1x RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone: Yes

Audio

• 1x input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
• 1x output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm: 1x input, 1x output (max. 12 VDC, 30 mA)

Power: 12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection or PoE: IEEE 802.3af, Class 3, max. 9.5 W

• Please note: Power supply is not included
