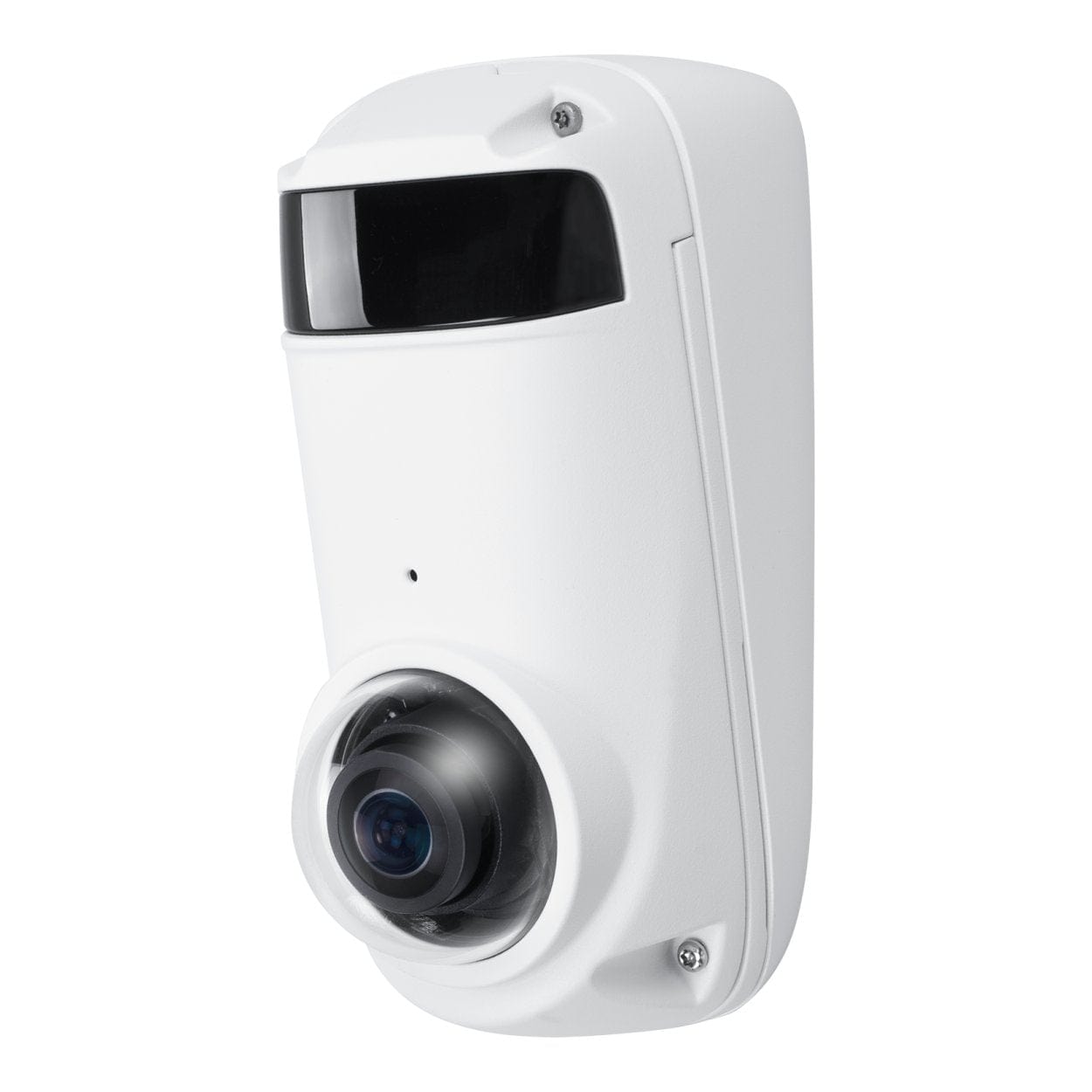

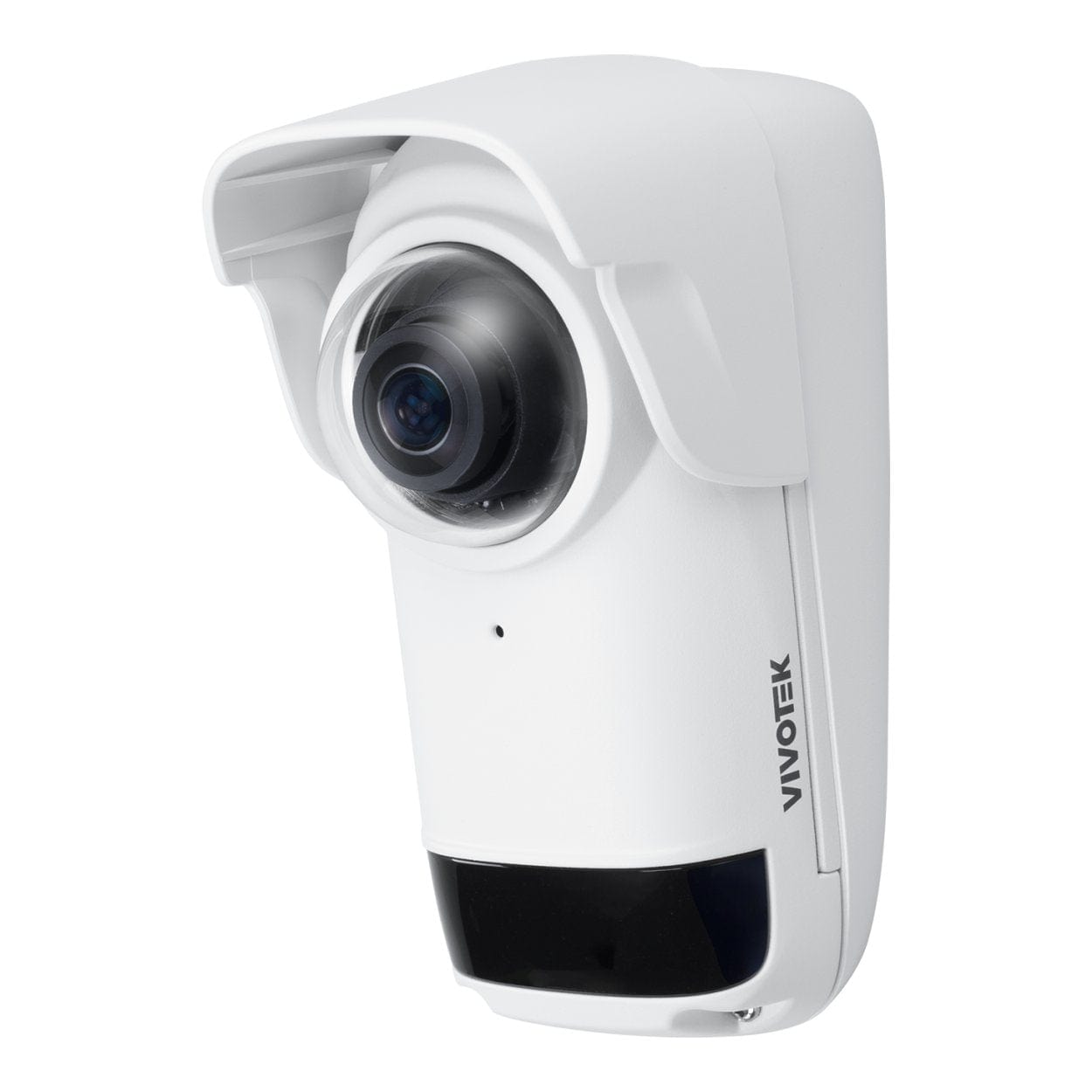

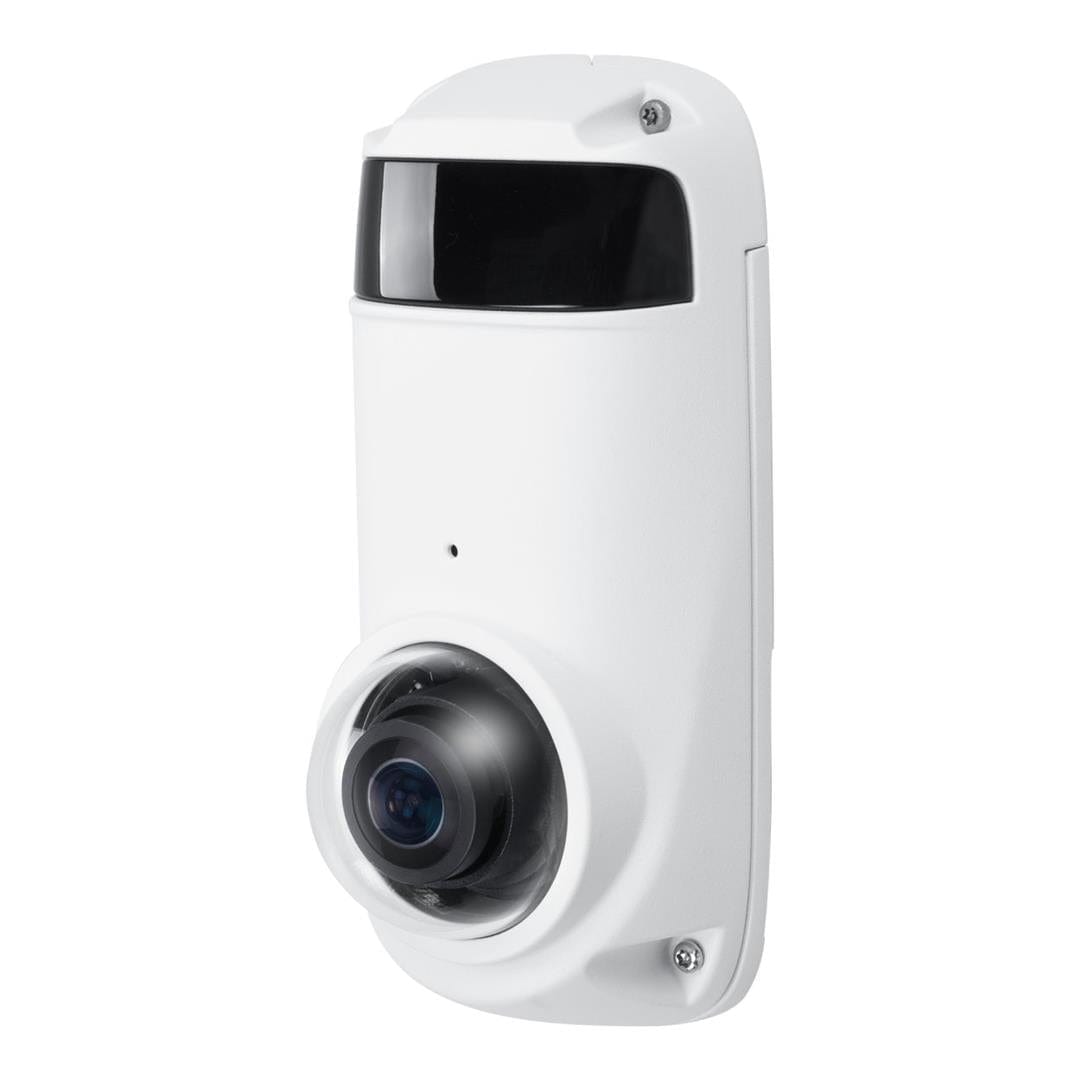

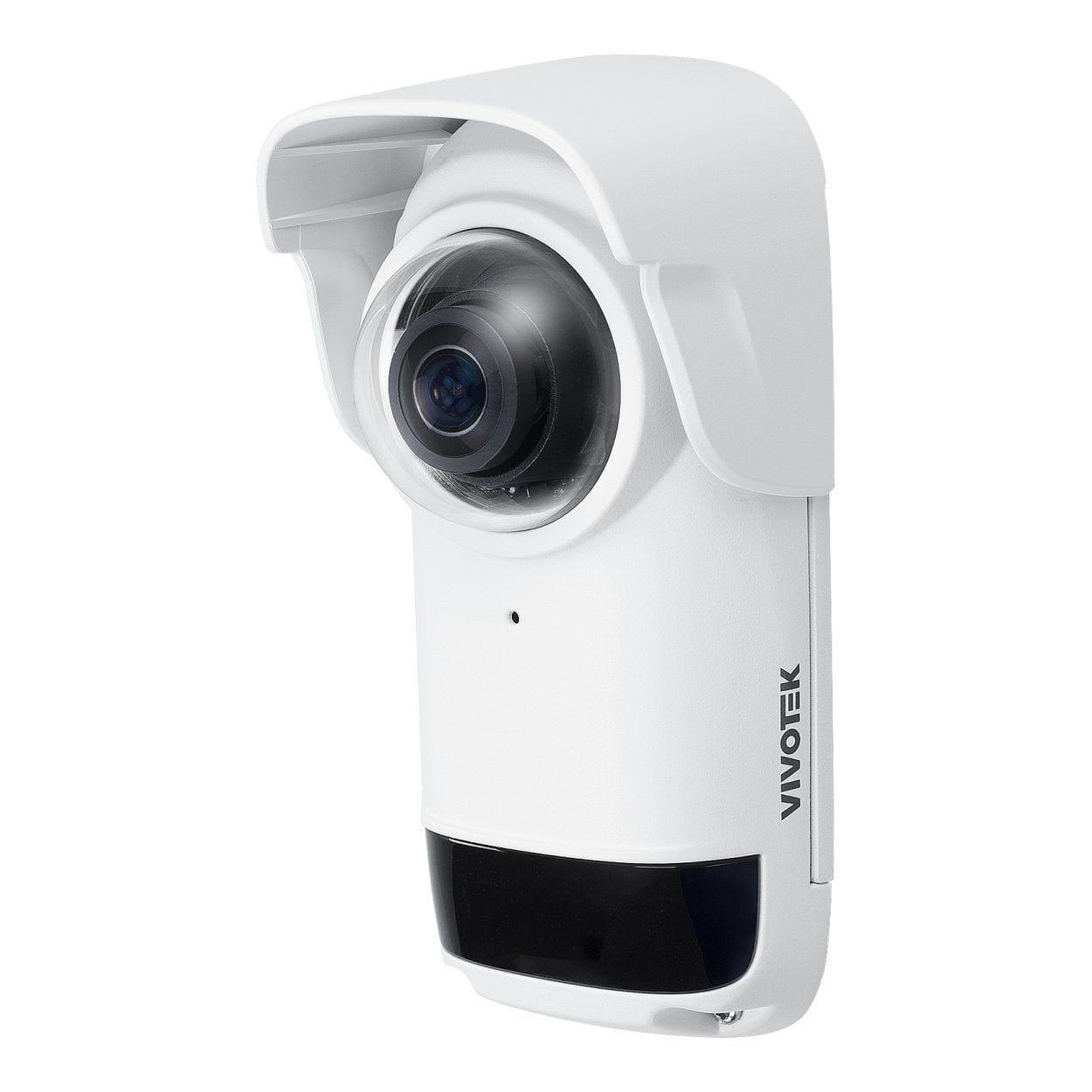

VIVOTEK 5MP 1.47mm IR Compact Panoramic AI Network Camera CC9381-HV-V2

VIVOTEK 5MP 1.47mm IR Compact Panoramic AI Network Camera CC9381-HV-V2

Features

• WDR Pro for Unparalleled Visibility
• Weather-proof IP67 & Vandal-proof IK10+ rated
• ±20° Tilt Lens
• Built-in Microphone
• 3D Noise Reduction for Low-light Conditions

Enhanced Coverage with included Tilt Bracket

The compact panoramic camera boasts a wide field of view, but the included tilt bracket offers even more flexibility. It allows you to tilt and adjust the camera angle by 15~20 degrees, ensuring you can capture even hard-to-reach areas and eliminate potential blind spots in your security coverage.

Uncover Video Insights with Vision Object Analytics

The compact panoramic camera, equipped with VIVOTEK AI technology, empowers you to enhance investigation efficiency by identifying people and vehicles based on unique attributes like color, gender, and type. Streamline your search process and minimize duplicate entries with precise object tracking.

180-degree View with Clear Evidence

Eliminate blind spots and gain a complete picture of your surroundings with its expansive 180-degree field of view. Seamlessly capture every detail in stunning high-resolution with smooth, crystal-clear video at 30fps for effortless identification and review. This empowers you to see everything, from every angle.

See Clearly, Night and Day

Darkness shouldn't compromise your security. The compact panoramic camera boasts a cutting-edge Smart IR (Infrared) technology. With an effective night vision range of up to 20 meters, you can rest assured that your property is under constant surveillance, day or night.

Technical Specification

Image Sensor: 1/2.8" Progressive CMOS

Max. Resolution: 2560 x 1920 (5MP)

Lens Type: Fixed-focal

Focal Length: 1.47 mm

Field of View: 180° (Horizontal), 120° (Vertical), 180°(Diagonal)

WDR Technology: WDR Pro

Illuminators: Built-in IR illuminators up to 20 meters with Smart IR , IR LED*4

Audio Capability: One-way Audio

Interface: Built-in microphone

Effective Range: 5 meters

Connectors: RJ-45 cable connector for 10/100 Mbps Network/PoE connection

Power Input: IEEE 802.3af PoE Class 0, Max. 10.26W/6.96W (IR on/off)

• Power supply is not included

Packing Contents

• Quick installation guide
• Mounting bracket
• Tilt bracket
• Screw pack
• Sunshield
