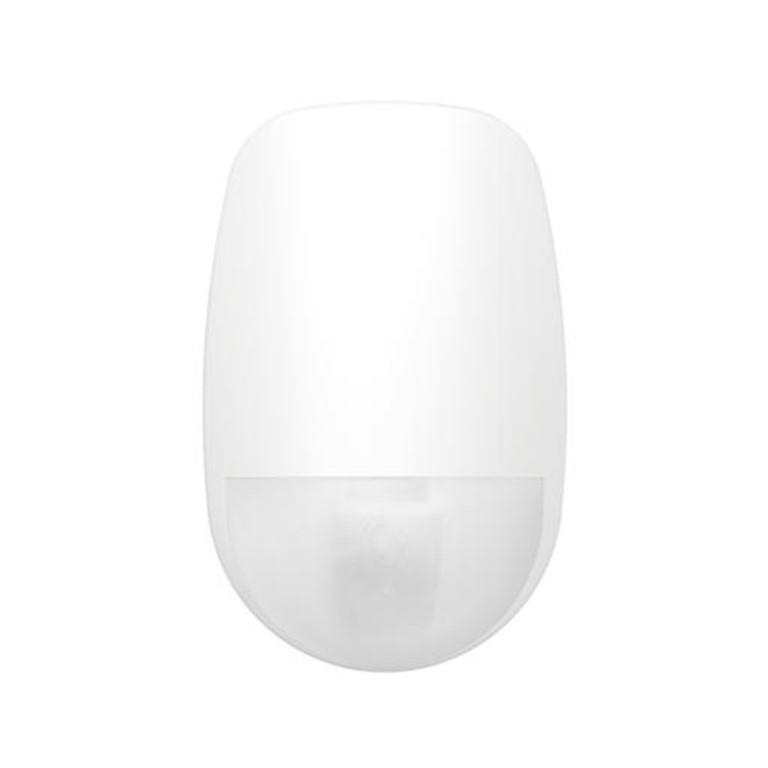

Hikvision AX Pro Series Wireless PIR Curtain Detector DS-PDC15-EG2-WE
- Brand:Hikvision
Hikvision AX Pro Series Wireless PIR Curtain Detector DS-PDC15-EG2-WE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
* Next Business Day Shipping Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Gurantee
Price Match Gurantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description
Hikvision AX Pro Series Wireless PIR Curtain Detector DS-PDC15-EG2-WE
DS-PDC15-EG2-WE is a two-way wireless detector featuring a solid curtain coverage up to 15m length by 3.6m height, it suitable for perimeter protection by setting up detection "curtain" walls or windows.
Features
- Long range with narrow angle detection
- Fully remote configurable through APP
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission
Technical Specification
Detection Method: Passive Infrared
Detection Range: 15m
Detection Angle: 6.3°
Detection Zones: 18
Detectable Speed: 0.3～2m/s
Pet Immunity: None
White Light Filter: 6500lux
Digital Temperature Compensation: Support
Creep Zone Protection: Support
Feature
Digital Processing: Support
Sealed Optics: Support
Tamper Protection: Front ; Rear
Environment Temperature Indicator: Support
Signal Strength Indicator: Support
Interface
Power Switch: Power Up Enrolling
LED Indicator: Blue (Alarm)
Transmission
Transmission Technology: Tri-X Wireless
Transmission Method: Two-Way RF Wireless
Transmission Frequency: 868MHz
Transmission Security: AES-128 Encryption
Transmission Range(Free Space): 1.6Km
Frequency Hopping: Support
Enrolling Method: Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life: Up to 5 years (standby time)
Battery Type: 1x CR123A
Typical Voltage: 3V
Dimension(WxHxD): 65.5mm × 103mm × 48.5mm
Weight: 128g
Mounting Height: 2.4 to 3.6m
Mounting Method: Wall
Application Scenario: Indoor
Bracket: Optional Wall & Ceiling Accessory
