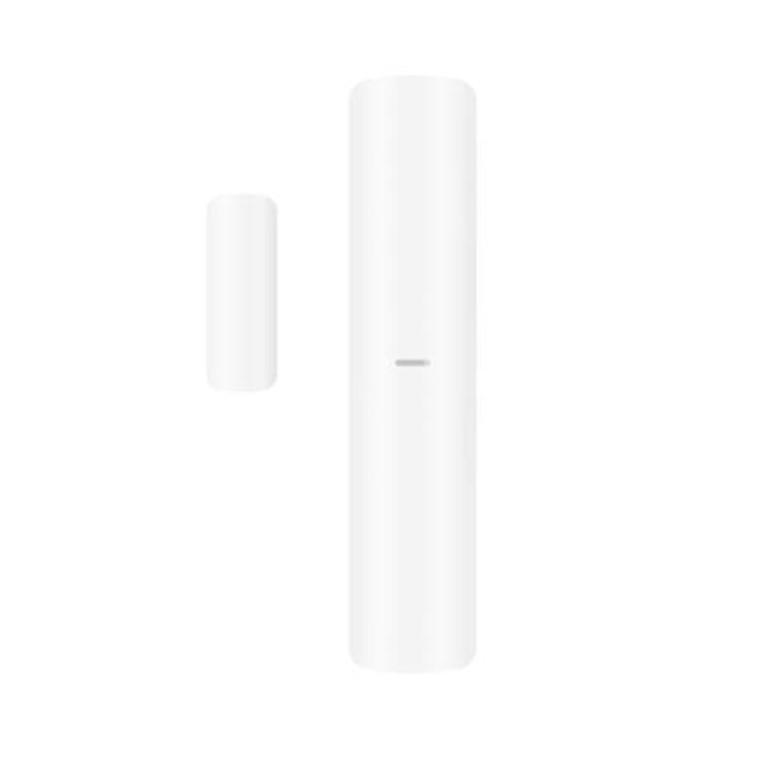

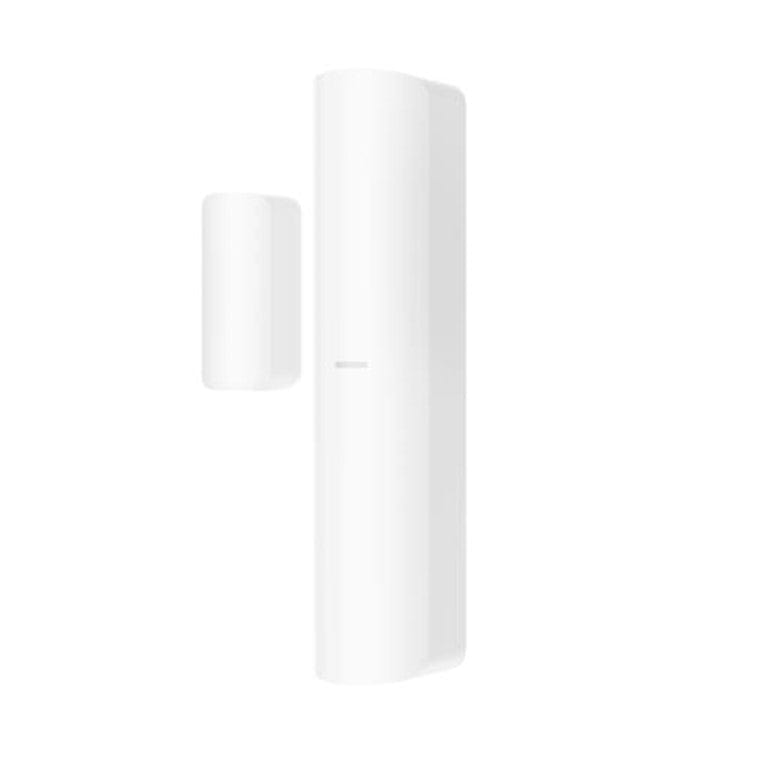

Hikvision AX Pro Wireless Magnet Detector DS-PDMC-EG2-WE(B)

Hikvision AX Pro Wireless Magnet Detector DS-PDMC-EG2-WE(B)

Features

• Slim design for an unobtrusive (unnoticeable) installation
• Fully remote configurable through APP
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission

Technical Specification

Detection Performance

• Detection Method: Opening Contact
• Detection Gap: 43 mm Max

Feature

• Digital Processing: Support
• Tamper Protection: Front; Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Alarm Input: Normally Closed; Normally Open; Impulse Count
• Power Switch: Power up enrolling
• LED Indicator: Blue (alarm)

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 868MHz
• Transmission Security: AES-128 Encryption
• Transmission Range(Free Space): 1.6Km
• Frequency Hopping: Support
• Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

• Standard Battery Life: Up to 5 years (standby time)
• Power Supply: Battery powered
• Battery Type: 1x CR123A
• Typical Voltage: 3V

General

• Weight: 59 g
• Application Scenario: Indoor
