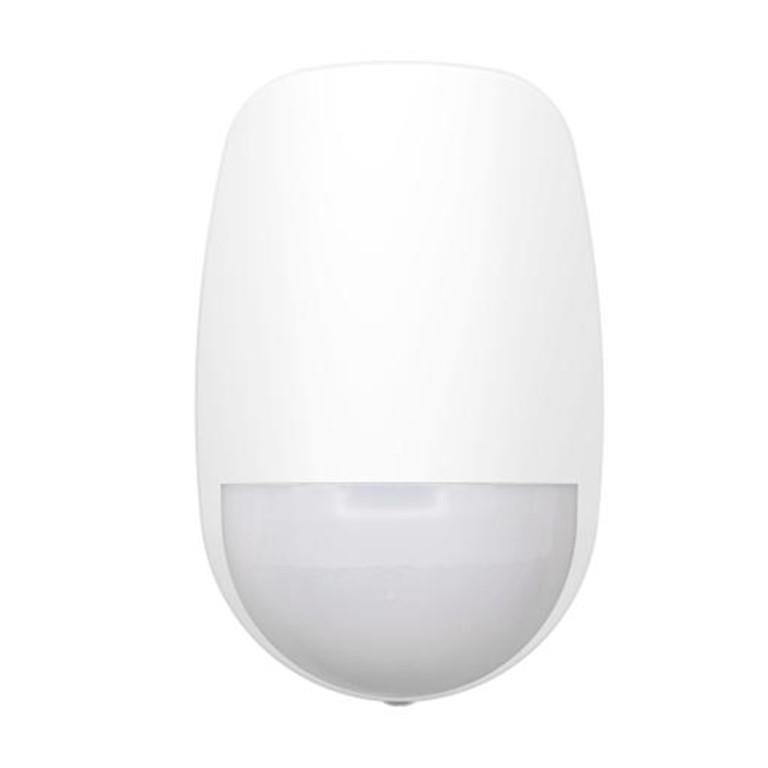

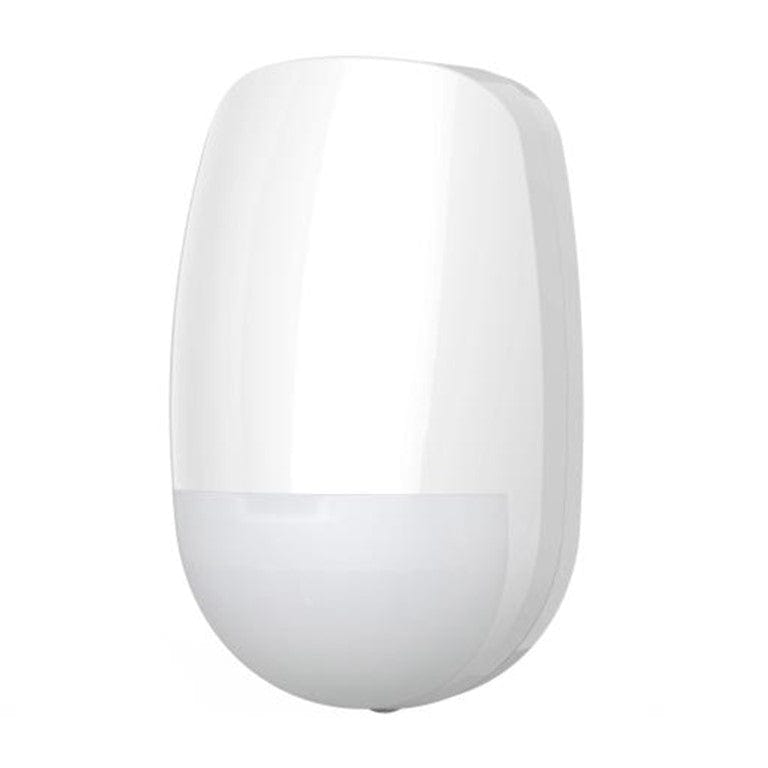

Hikvision AX Pro Wireless PIR Detector DS-PDP15P-EG2-WE(B)

Hikvision AX Pro Wireless PIR Detector DS-PDP15P-EG2-WE(B)

Features

• Detection Range: 15m/85.9°
• Up to 30 kg pet immunity
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• Fully remote configurable through APP
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission

Technical Specification

Detection Performance

• Detection Method: Passive Infrared
• Detection Range: 15m
• Detection Angle: 90°
• Detection Zones: 84
• Detectable Speed: 0.3～2m/s
• Sensitivity: High; Auto; Pet
• Pet Immunity: 30Kg
• White Light Filter: 6500lux
• Digital Temperature Compensation: Support
• Creep Zone Protection: Support

Feature

• Digital Processing: Support
• Sealed Optics: Support
• Tamper Protection: Front; Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Power Switch: Power Up Enrolling
• LED Indicator: Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 868MHz
• Transmission Security: AES-128 Encryption
• Transmission Range(Free Space): 1.6Km
• Frequency Hopping: Support
• Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

• Standard Battery Life: Up to 5 years (standby time)
• Power Supply: Battery Powered
• Battery Type: 1x CR123A
• Typical Voltage: 3V

General

• Dimension(WxHxD): 65.5 mm x 103 mm x 48.5 mm
• Weight: 128 g
• Mounting Height: 1.8 m to 2.4 m
• Mounting Method: Wall
• Application Scenario: Indoor
