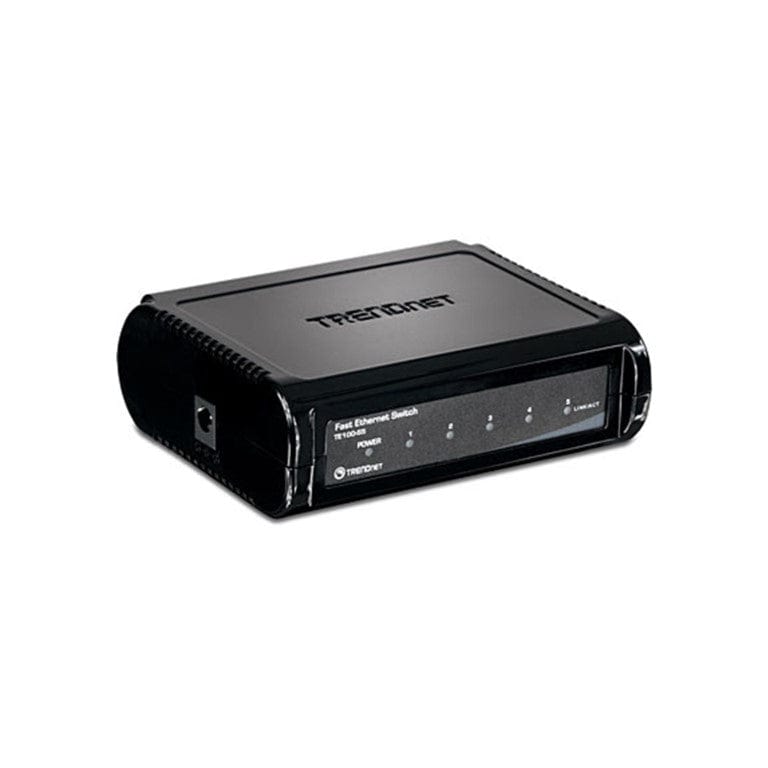

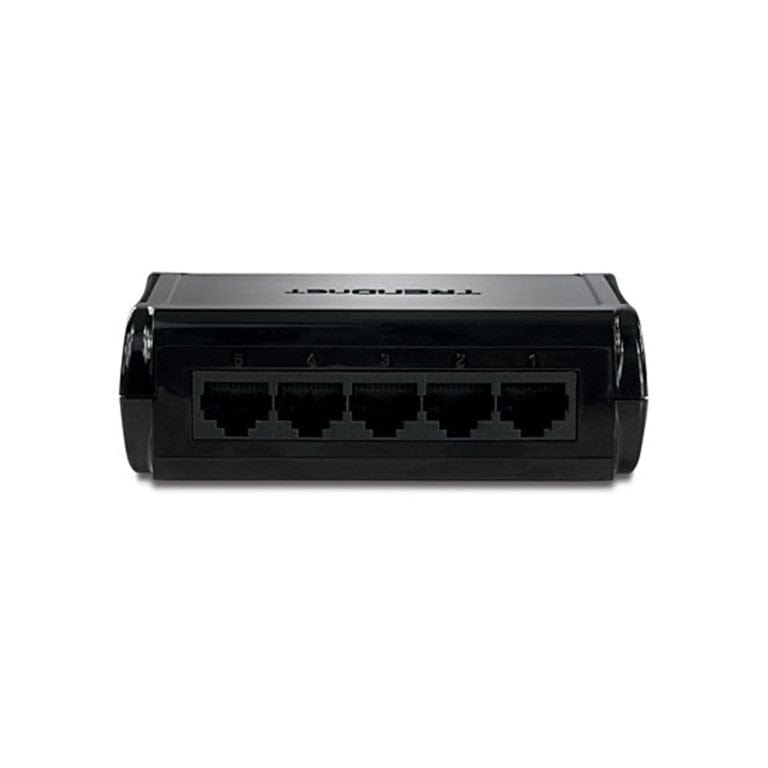

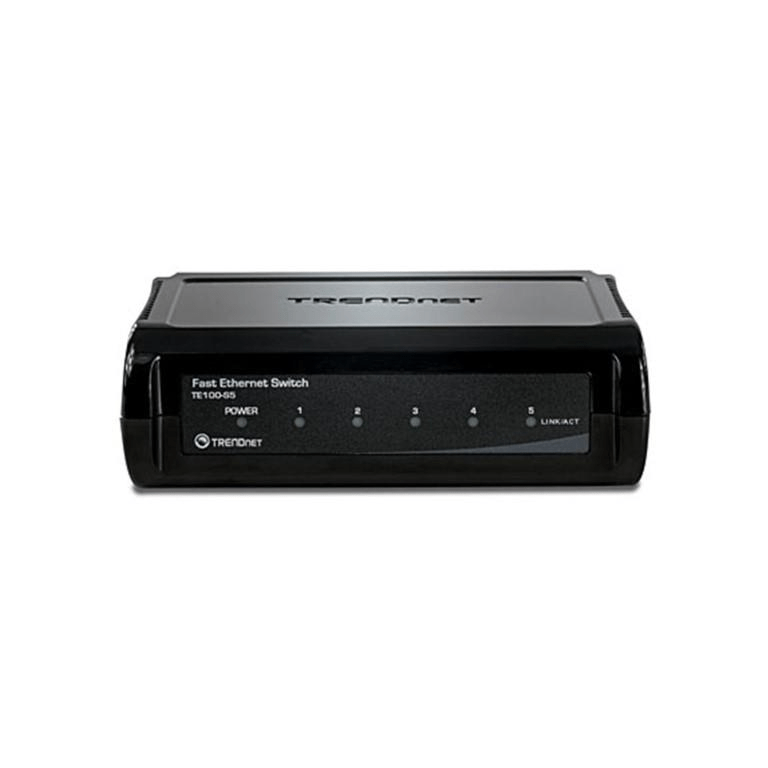

Trendnet 5-port Fast Ethernet Unmanaged Switch TE100-S5

Trendnet 5-port Fast Ethernet Unmanaged Switch TE100-S5

TE100-S5 is an Auto-MDIX switch designed specifically to boost network performance by eliminating network congestions and unnecessary network traffics. Each port on the Switch provides dedicated bandwidth and can negotiate between 10/100Mbps network speeds and half/full duplex modes. Plug and Play provides cost-effective and high performance solutions.

Features

• 5x 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports
• Compliant with IEEE 802.3 / IEEE 802.3u standards
• IEEE 802.3x Flow Control support
• Provide 1K MAC address entries
• Compliant with Windows, Linux, and Mac Operating Systems.
• Store-and-Forward Switching method
• Non-blocking Architecture
• Diagnostic LEDs
• Plug & Play

Technical Specification

Product: Trendnet 5-Port 10/100Mbps Switch

Switch type: Unmanaged

Interface: 5x 10/100Mbps Auto-MDIX RJ-45 Ports

Data Rate:

• Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
• Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)

Filtering Table: 1K entries per device

Switching capacity: 1Gbps Forwarding Capacity

Networking standards: IEEE 802.3 10Base-T , IEEE 802.3u 100Base-TX , IEEE 802.3x Flow Control
