Easy access to video conferencing solutions

• Communicate safely and easily by adding the AVer CP10 to your meeting spaces. This new touch panel augments business interactions with antibacterial and anti-fingerprint glass, an intuitive interface, and an ergonomic viewing angle for video conferencing and meeting scheduling. It’s compatible with all devices in the AVer USB CAM series to provide versatile collaborations.

One Touch Starts Efficient Communication

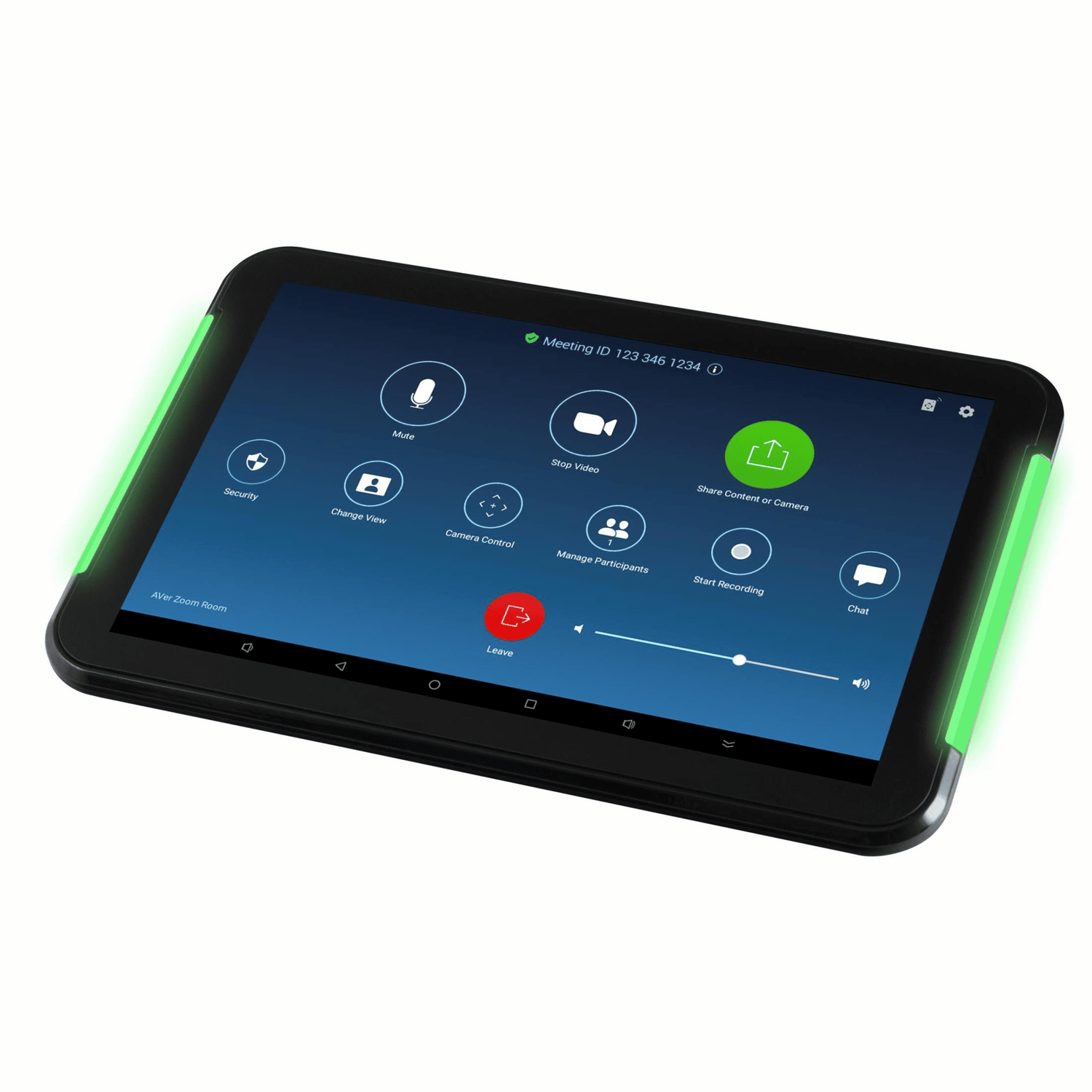

• Initiate meetings with just one touch. The AVer CP10 is seamlessly integrated with Zoom Rooms software, and its capacitive-touch sensor supports 10-point touch on a 10.1-inch anti-fingerprint screen. The CP10 is always on standby.

One Cable Connects Everything

• Simplify meetings via a single Ethernet connection that delivers both power and camera control. With the CP10 in the room, it’s incredibly easy to keep the table clear of clutter so you can focus on your work.

* Note: PoE injector is an optional item.

One Antibacterial Solution Keeps Everyone Safe

• Enjoy a safer environment with the CP10’s antibacterial touch screen. This innovative technology lets you touch the screen without leaving germs on the surface. Get the 24/7 Antibacterial protection you need.

One Intuitive Interface Simplifies Operation

• Anyone can use the CP10 to run a video call, thanks to its intuitive interface. Also, the integrated AVer PTZApp enables camera setup and control, including features like visual preset points. You can even personalize the system to improve productivity.

One Step Sets up the Best Viewing Angle

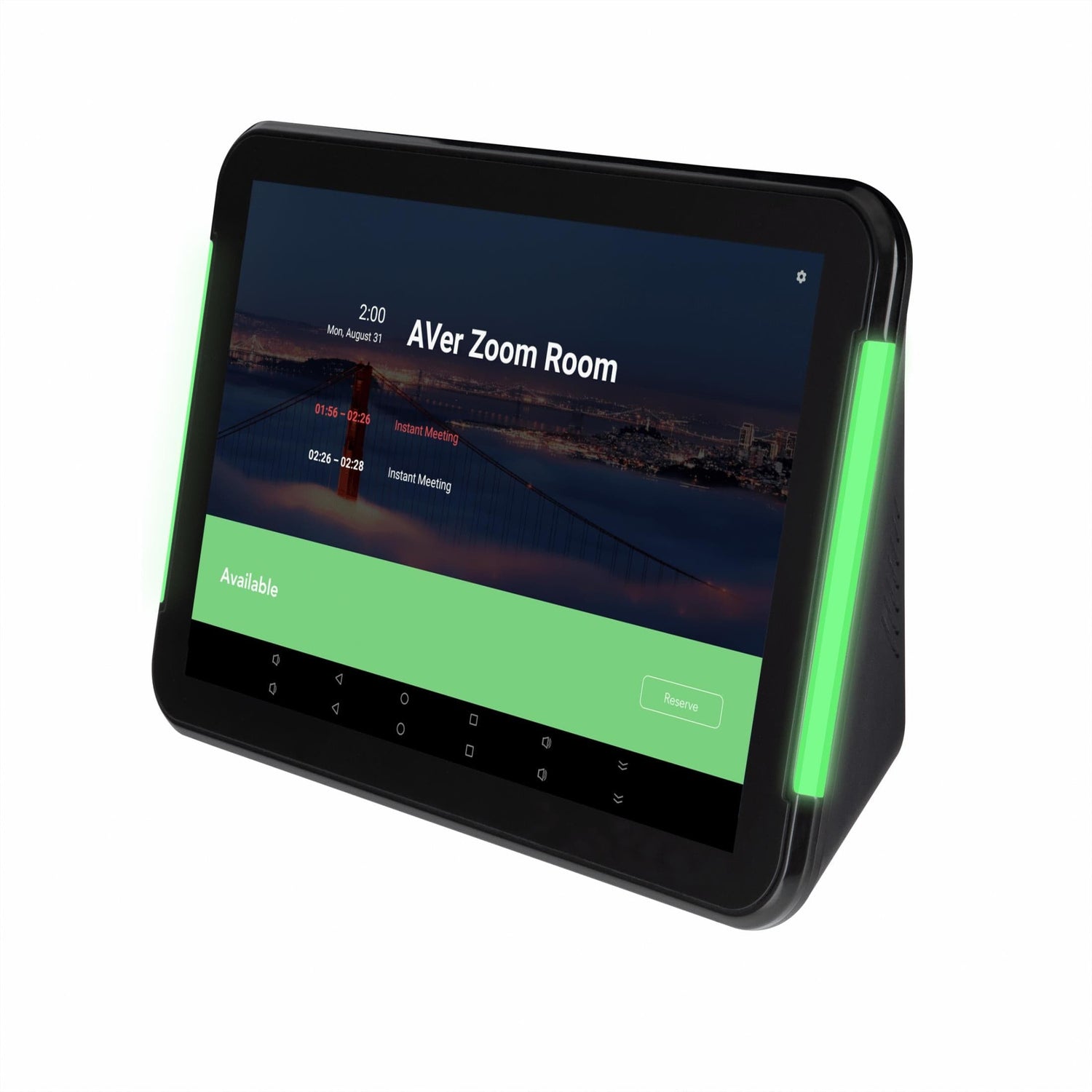

• Setting up the CP10 requires minimal time and energy. Plug in one cable and it’s ready to use. A built-in stand offers a comfortable 23° viewing angle for ergonomic tabletop usage, or you can use it as a scheduling panel, installing it on the wall via its convenient slide-in mount.

Specifications*

*Specifications may vary depending on countries and are subject to change without notice.

Display:

• Antibacterial glass panel*

• 10.1-inch anti-fingerprint screen

• Resolution: 1280 x 800

• Aspect ratio: 16:10

• Comfortable and ergonomic viewing angle:

  • Built-in table stand with a 23° display angle

  • Optional wall mount with a 68° display angle

*Antimicrobial glass is FDA (USA) &SIAA (JP) certified.
*Unlike normal antimicrobial film or spray, CP10’s glass uses ion exchange technology to maintain antibacterial effectiveness for the product’s lifetime.

Technology:

• Capacitive-touch sensor supports 10 touch points

• Side LED bar clearly reveals meeting status: Muted/unmuted/room availability*

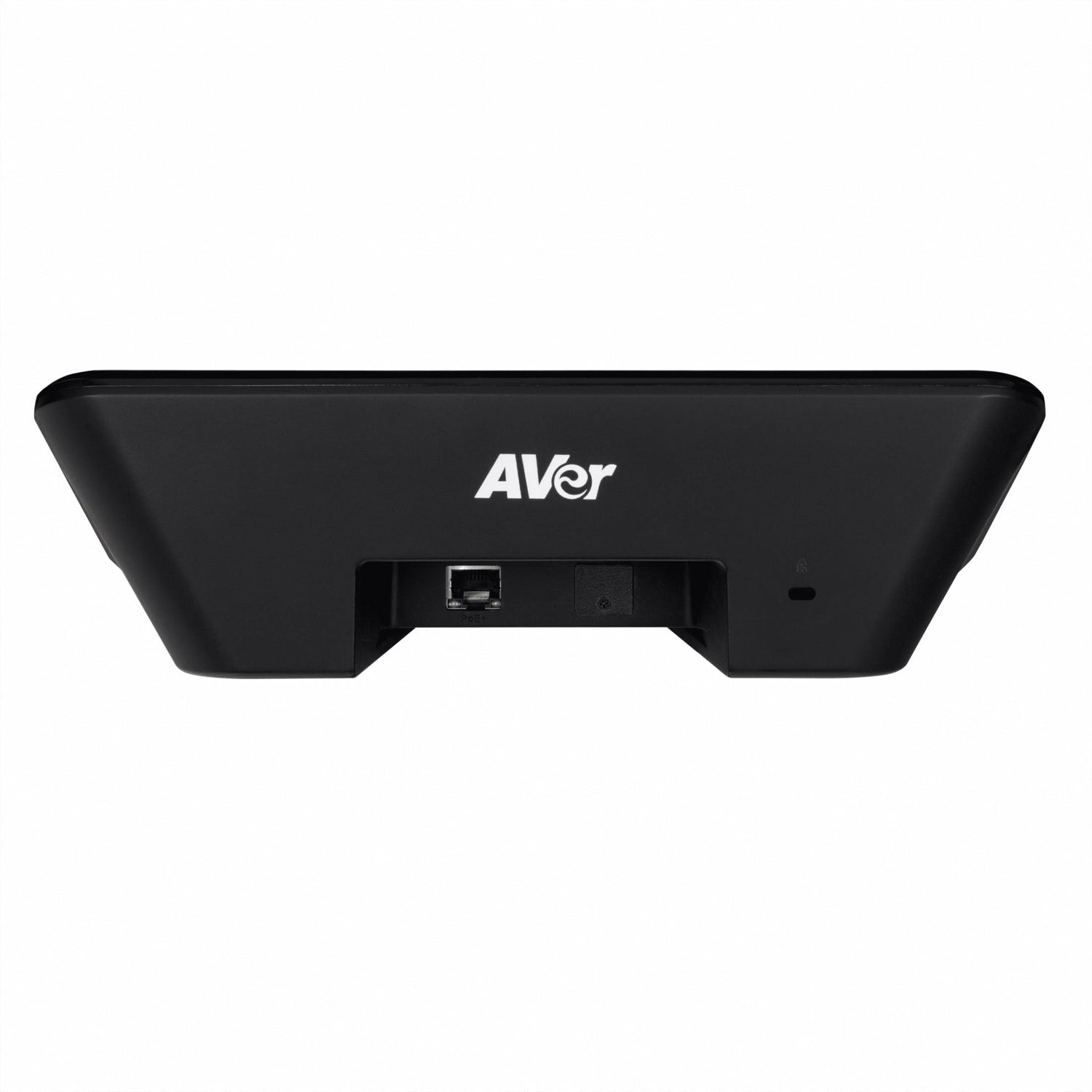

• A single RJ45 cable carries both data and power to keep the table neat

• G-sensor for screen rotation

System:

• Android 10

Mount and Security:

• Wall-mount kit (optional)

• Kensington security lock

Connectivity:

• Power over Ethernet (PoE+)

• USB 2.0 Type A (x1) for diagnostics and firmware upgrades

Power:

• Consumption: 12V/1A

Optional Accessories:

• 1-port POE+ injector, compatible with 802.3 at or af standard

• Wall mount

Warranty:

• Unit: 2 years

Environmental Data:

• Operation temperature: 0 to 40°C

• Operation humidity: 20% to 80%

• Storage temperature: -20 to 60°C

• Storage humidity: 20% to 80%

Dimensions:

• Package dimensions: 328 (L)x 215 (W)x 125 (H)mm

• Package weight: 1kg / 2.2lbs

• CP10 unit: 250 mm x 174 mm x 85 mm / 0.9 kg

Package Contents:

• CP10

• Quick Start Guide

• Warranty statement

Applications for Meeting Collaboration:

• Zoom Rooms controller app (preinstalled)

• AVer PTZApp2: Camera setting software (preinstalled)*

• View live video, set camera parameters

• Intuitive touch interface for camera control

• Compatible with AVer USB cameras

*1. The PTZApp2 on the CP10 is different from the PC version.
*2. The PTZApp2 on the CP10 will first support CAM520 Pro, CAM520 Pro2, VC520 Pro, VC520 Pro2, and VB130 via Ethernet connection. Support for these and other Aver USBCAMs via USB connection to PC will be available in August 2021.
