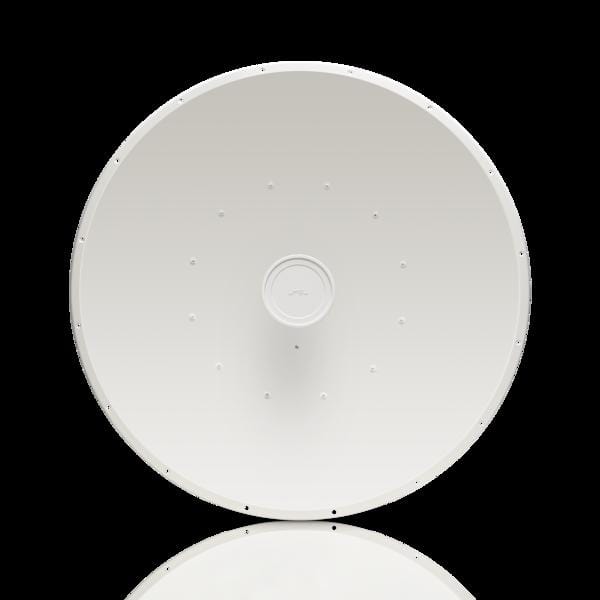

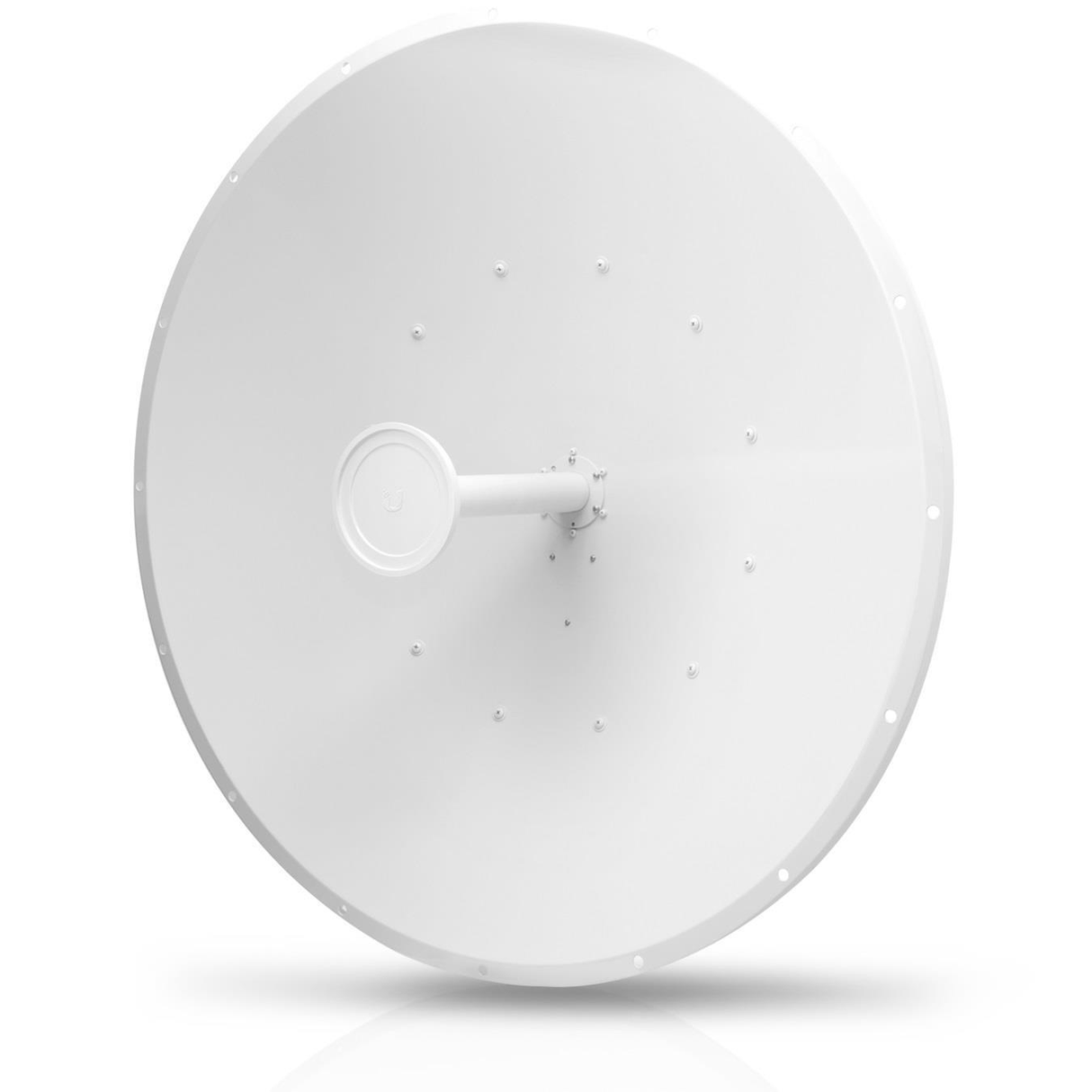

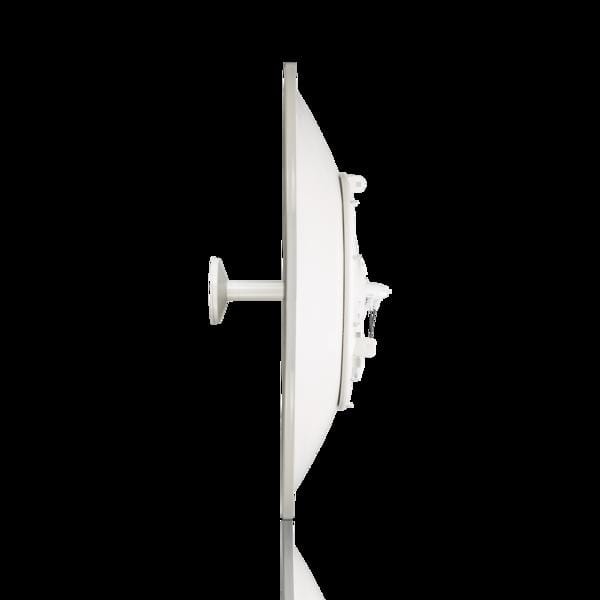

Ubiquiti 34 DBi Network Antenna AF-5G34-S45

Ubiquiti 34 DBi Network Antenna

Compact Footprint for Deployment Flexibility
The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.

Plug and Play Integration
The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.

Advanced RF Isolation Design
The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high‑capacity, multipoint networks.

airFiber X Conversion Kit
The 5 GHz RocketDish to airFiber® Antenna Conversion Kit, model AF-5G-OMT-S45, converts
the RocketDish RD-5G30 or RD-5G34 antenna for use with the airFiber AF-5X radio.

Specifications:

• Ubiquiti Networks AF-5G34-S45
• Antenna gain level (max): 34 dBi
• Frequency band: 5.1 - 5.8 GHz
• Horizontal beam width (5 GHz): 3°
• Polarization: Dual polarization
• Voltage Standing Wave Ratio (VSWR): 1.4:1
• Survival wind speed: 200 km/h
• Width: 1050 mm
• Depth: 421 mm
• Height: 1050 m
