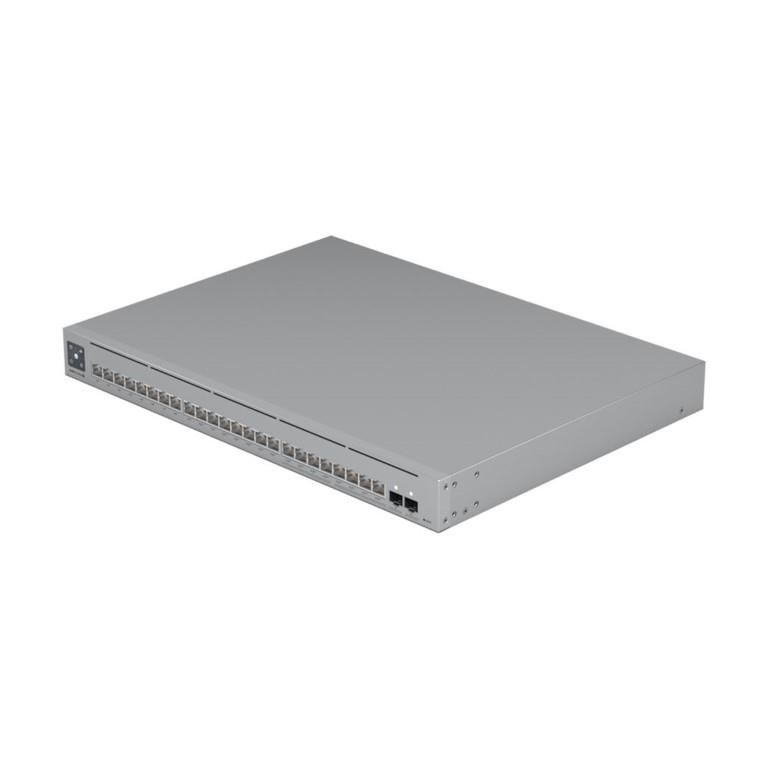

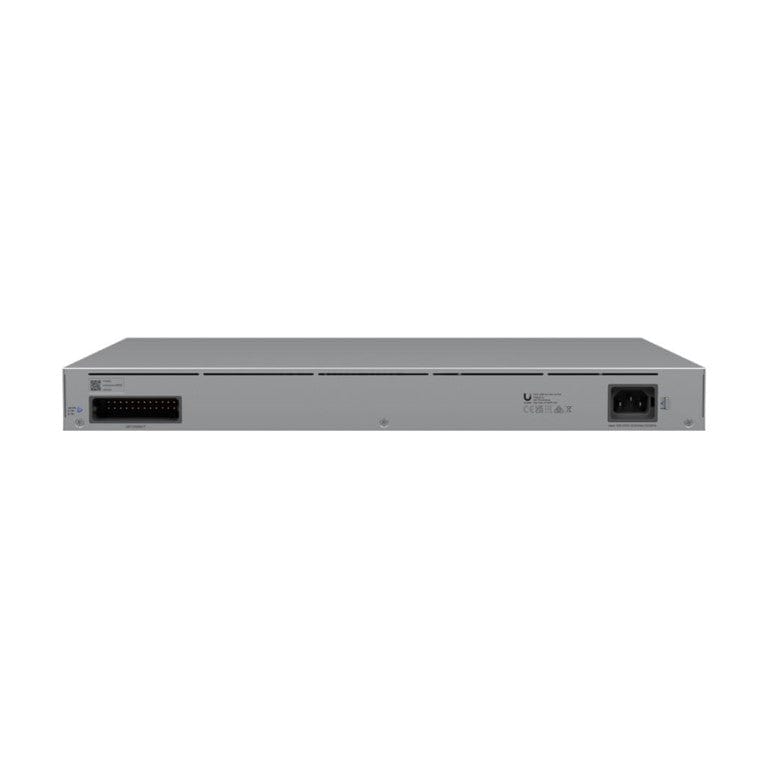

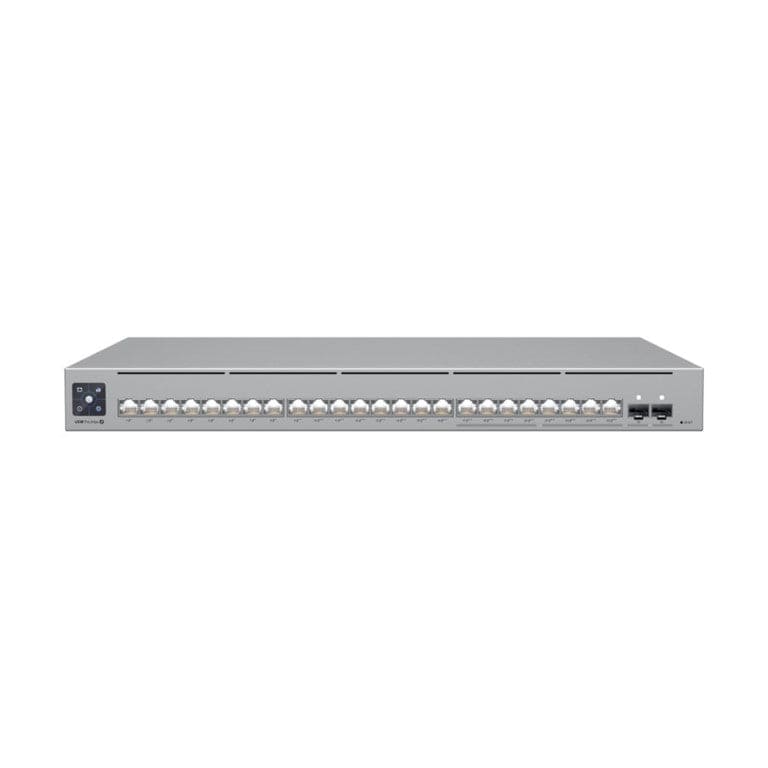

Ubiquiti UniFi Pro Max 24-port GbE PoE Managed Switch with 2x SFP+ ports USW-PRO-MAX-24-POE

Ubiquiti UniFi Pro Max 24-port GbE PoE Managed Switch with 2x SFP+ ports USW-PRO-MAX-24-POE

A 24-port, Layer 3 Etherlighting switch capable of high-power PoE++ output.

Features

• Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network* (Pair with UniFi Etherlighting Patch Cables for optimal brightness.)
• 8x 2.5 GbE PoE++ ports
• 16x GbE ports including 8x PoE+ and 8x PoE++
• 2x 10G SFP+ ports
• DC power backup ready
• 400W total PoE availability

Technical Specification

Management interface: Ethernet In-Band
Networking interface

• 16x GbE RJ45 ports
• 8x 1/2.5 GbE RJ45 ports
• 2x 10G SFP+ ports

PoE interface

• 8x PoE/PoE+ (Pins 1, 2+; 3, 6-)
• 16x 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput: 56 Gbps
Switching capacity: 112 Gbps
Forwarding rate: 83.328 Mpps
Power method

• 1x Universal input, 100—240V AC, 50/60 Hz
• 1x USP-RPS DC input

Power supply: AC/DC, internal, 450W
Supported voltage range: 100-240V AC
Max. power consumption: 50W (Excluding PoE output)
Total available PoE: 400W
Max. PoE wattage per port by PSE

• PoE: 15.4W
• PoE+: 30W
• PoE++: 60W

Voltage range PoE mode: PoE: 44—57V ; PoE+: 50—57V
LCM display: 1x 1.3" touchscreen
Button: Factory reset

Switching Features
Layer 2 features

• IGMP snooping
• STP / RSTP with priorities and port-level disable
• Port isolation
• Storm control
• Voice VLAN
• Port mirroring
• LACP port aggregation
• Multicast / broadcast rate limiting
• MAC address blocking
• Flow control
• 802.1X control
• Jumbo frames
• Proprietary loop protection
• DHCP snooping / guarding
• Egress rate limit
• LLDP-MED
• Port restricted by MAC
• Device isolation with ACLs

Layer 3 features

• DHCP for locally-managed networks
• DHCP relay
• Inter-VLAN routing between networks on same switch
• Static routing between local networks
• Network isolation with ACLs

Etherlighting
Ethernet

• Locating
• Speed/link
• Native VLAN/network

SFP+

• Locating
• Speed/link
• Native VLAN/network
