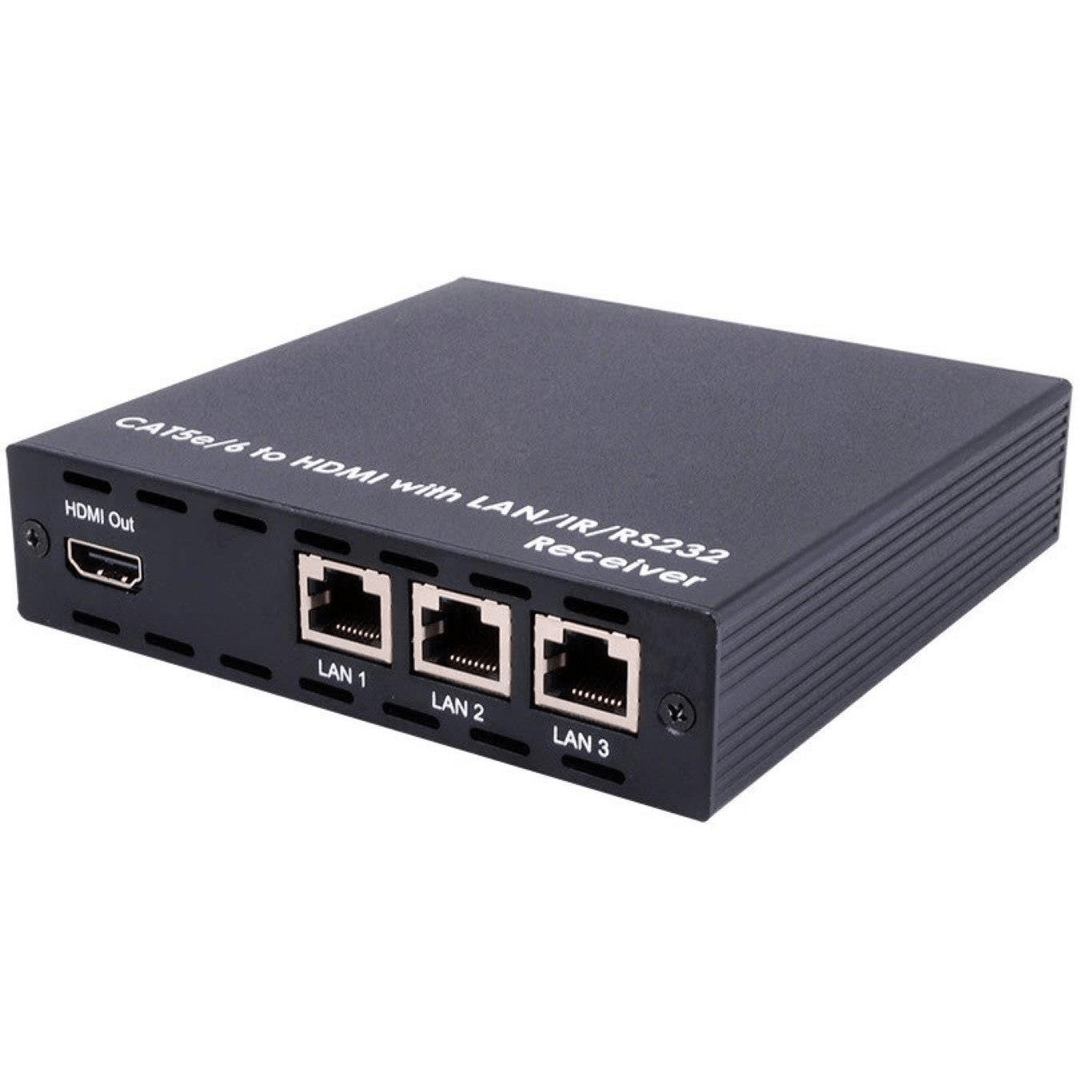

Cypress HDMI to CAT5E PoE Receiver CH-1109RX

Cypress HDMI to CAT5E PoE Receiver

Cypress HDMI over CAT5e/6/7 Receiver with 24V PoC and 3 LAN Serving

The CH-1109TXC & RXC set features 5-Play™ HDBaseT™ technology. This will allow the user to distribute uncompressed HDMI™ (audio/video), 2-Way IR, 2-Way RS-232, PoE and 3 individual Ethernet connections over a single CAT5e/6/7 up to a distance of 100m.

Specifications:

• HDMI 1.4 compliant with 3D formats and 4k×2k resolution support
• Supports CEC bypass function
• Simultaneous transmission of uncompressed video and audio (1080p@60Hz/-Deep Color) over a single CAT5e/6 type cable for up to 100m (300ft.)
• Audio support up to 7.1CH Dolby TrueHD and DTS-HD Master Audio
• Connect and share up to 6 Ethernet connections at speeds up to 100Mbps
• Various controls over HDMI: CEC, RS232 and IR
• 5Play™ convergence: HD video, audio & Control ports (IR and RS232)/LAN/PoC
• Installation friendly
• Single power supply powers both units, receiver unit is powered through the transmitter
