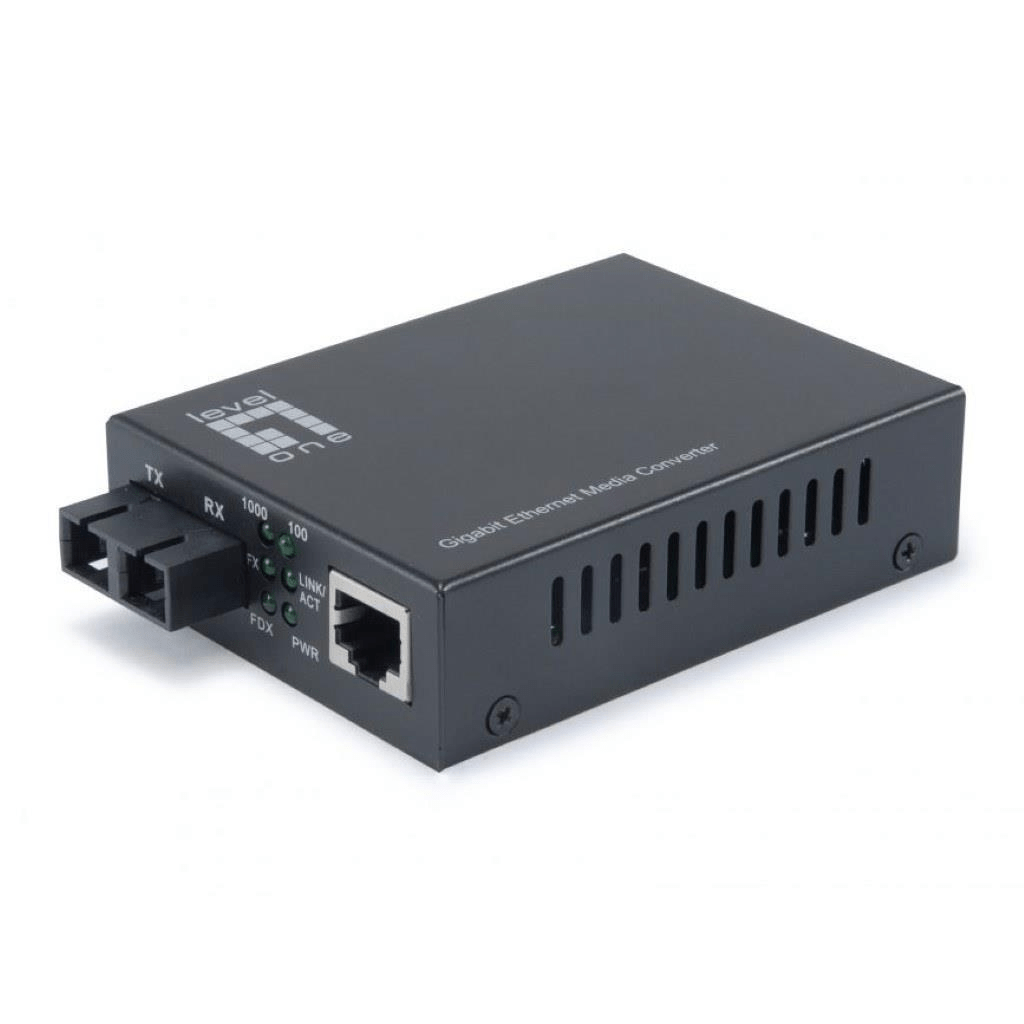

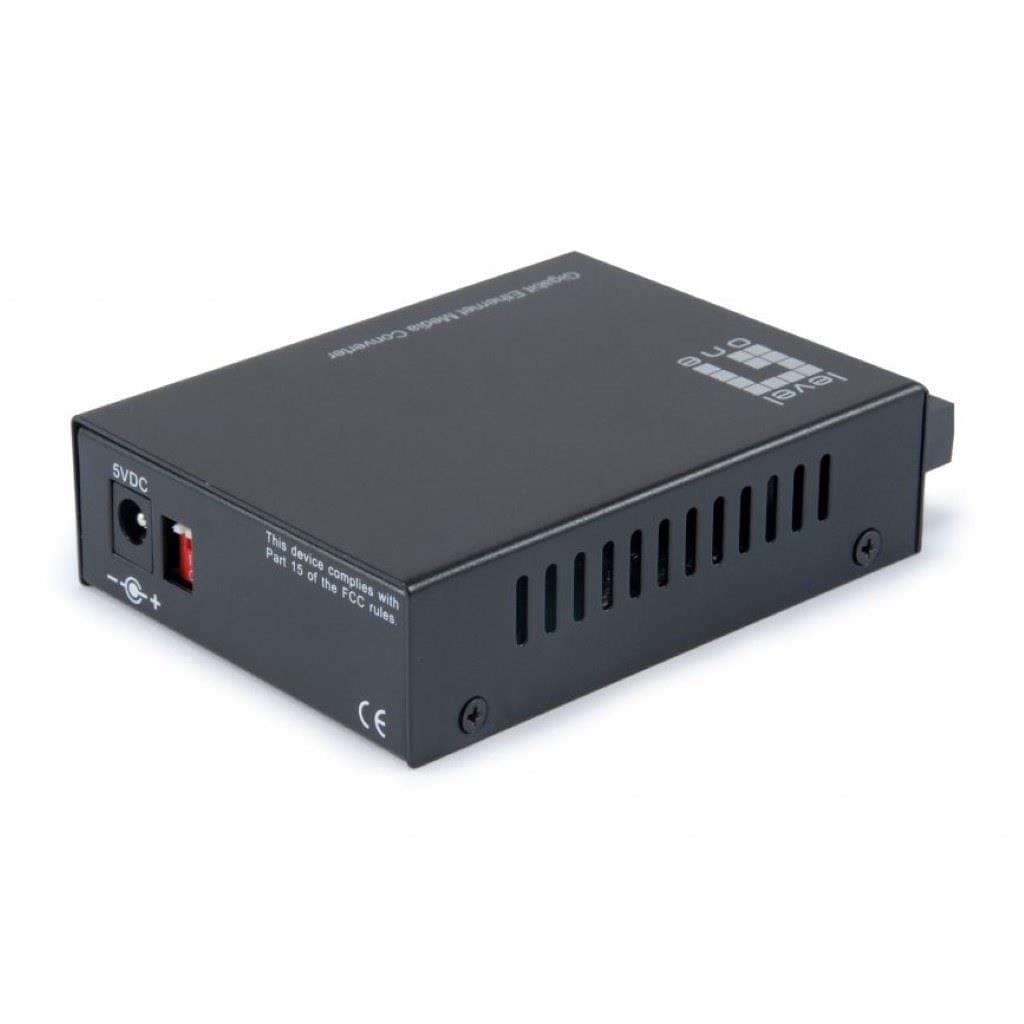

LevelOne GVT-2001 RJ45 to SC Gigabit Multi-Mode Fiber Media Converter 540677

The GVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 550m.The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode. The GVT-2001 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” converter rack, which can accommodate up to 14 units for use in a central wiring closet.

Features

• Transfers data from 10/100/1000Base-T copper to fiber interfaces

• 1000Base-SX Multi-mode fiber for the link up to 550m

• 9K jumbo frames to increase data transfer rates

• Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology

• IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

• Dip switches for customized configuration

• Supports low-time lag transmission

• Supports the transmission of extra-long packets up to 1.6KB

• -10°C to 55°C operating temperature range
