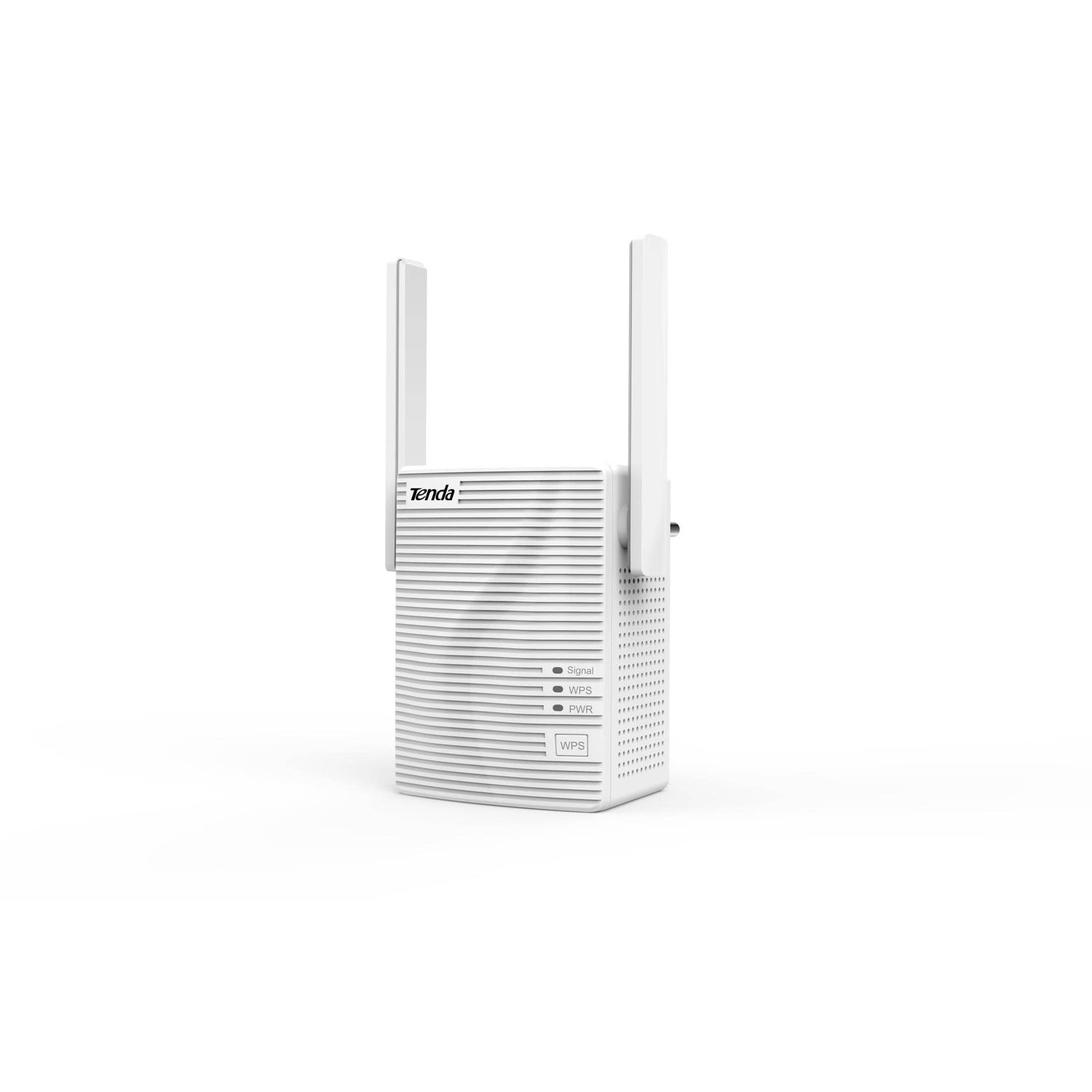

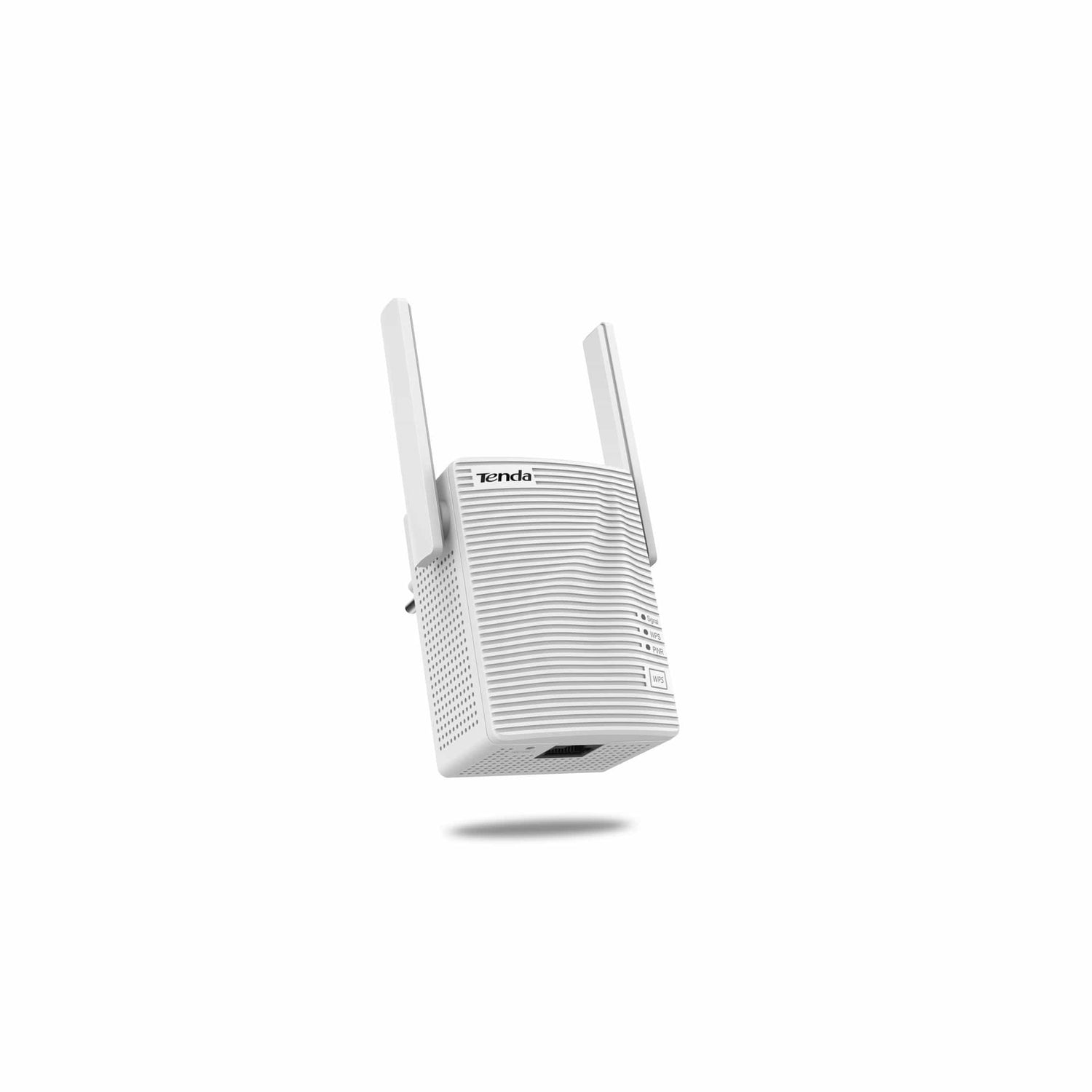

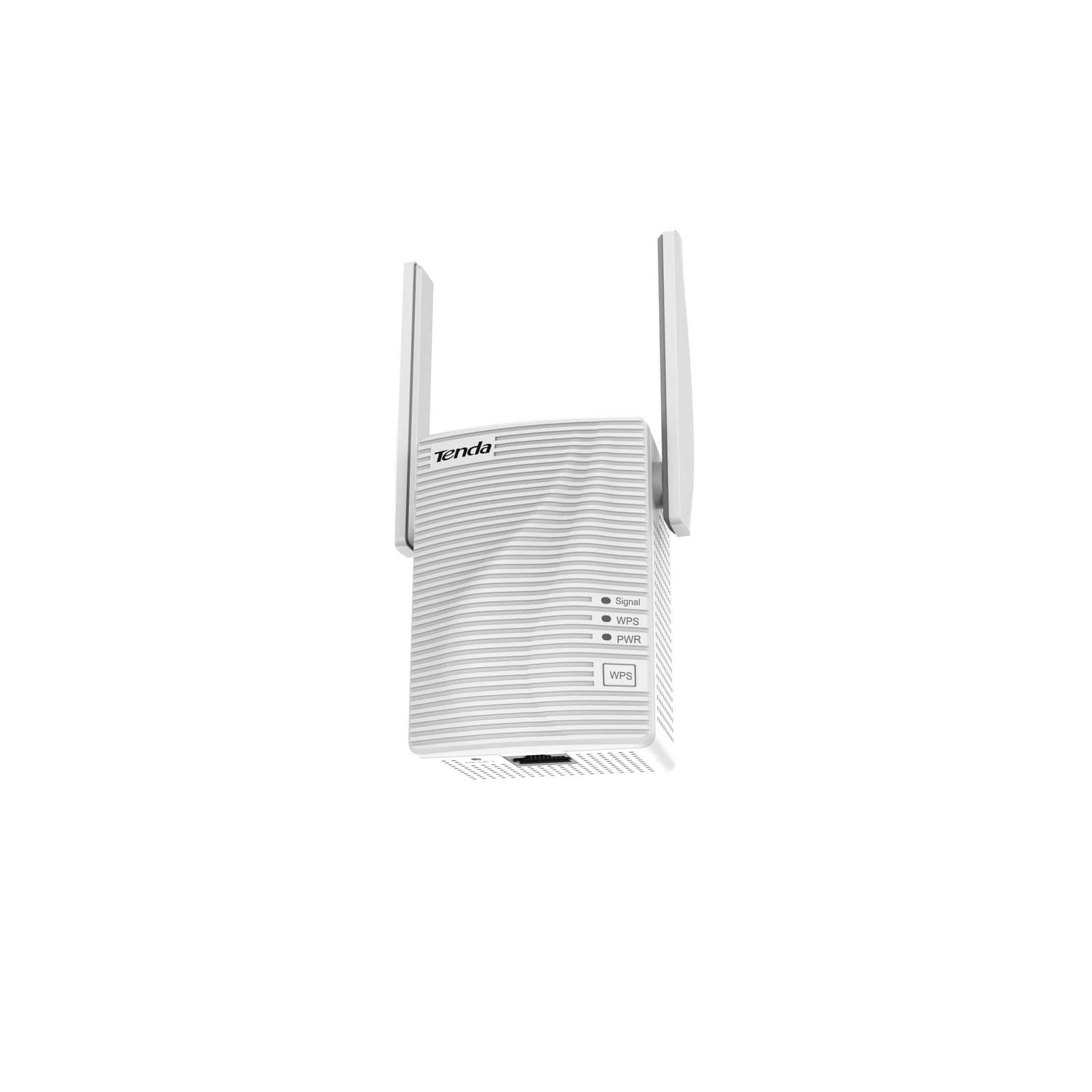

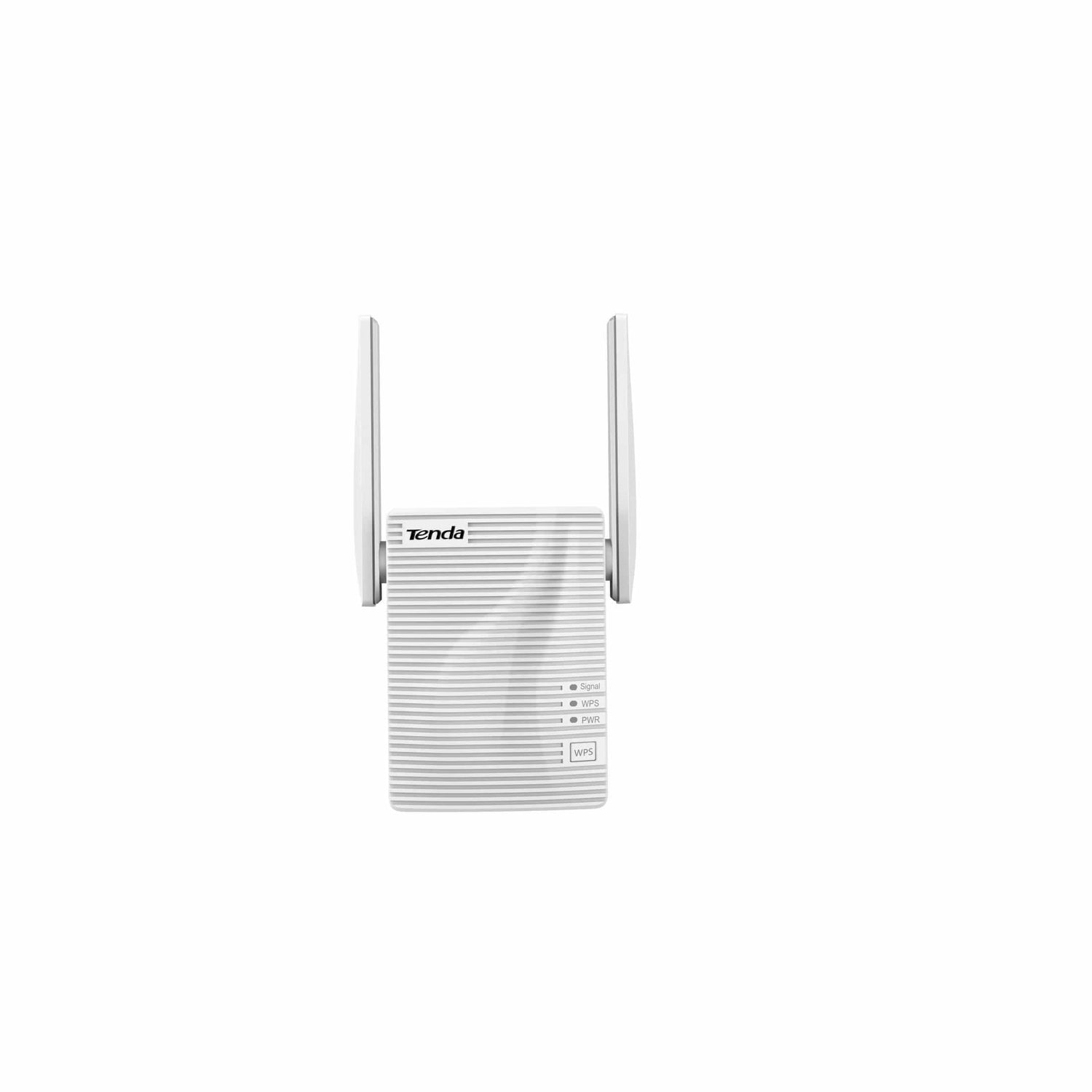

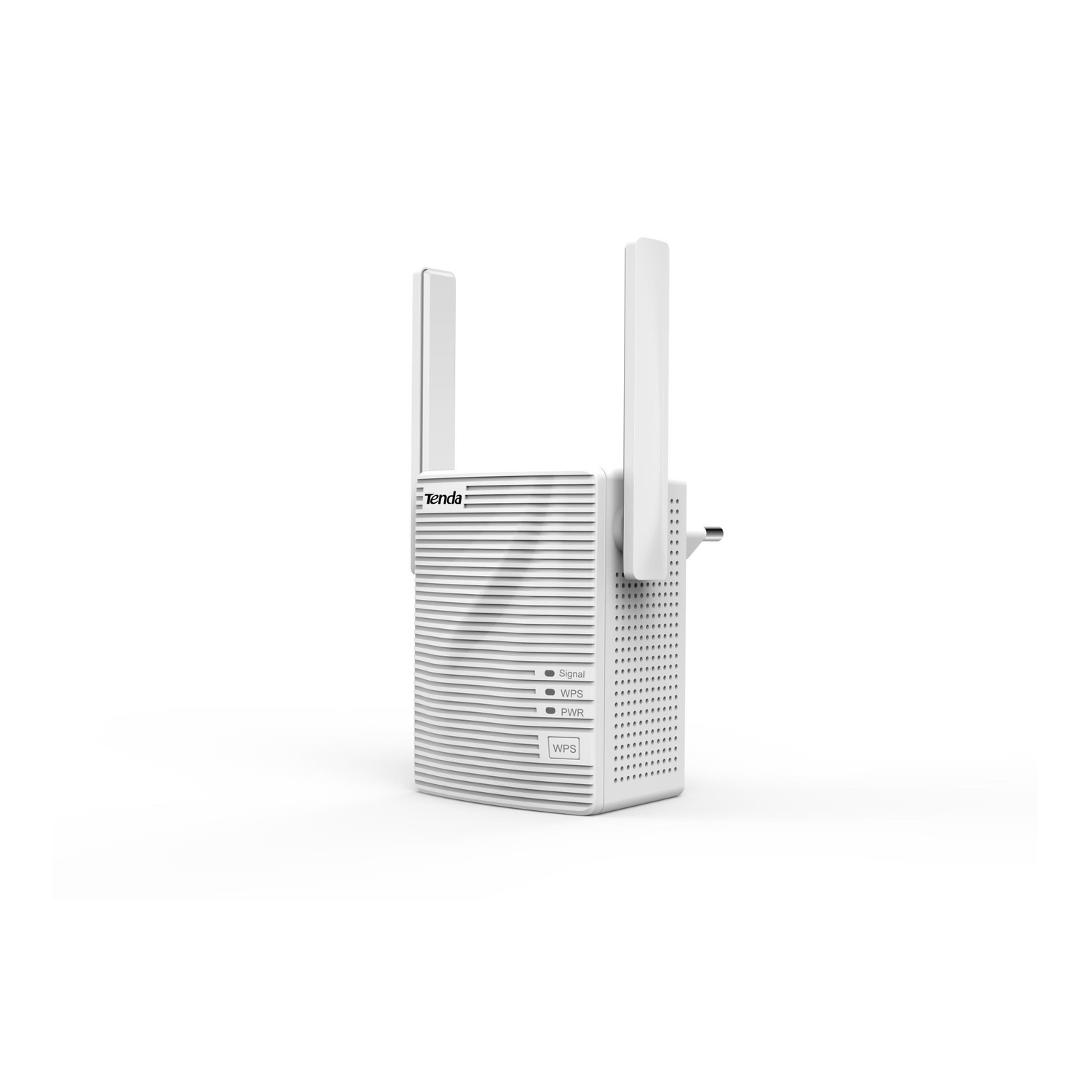

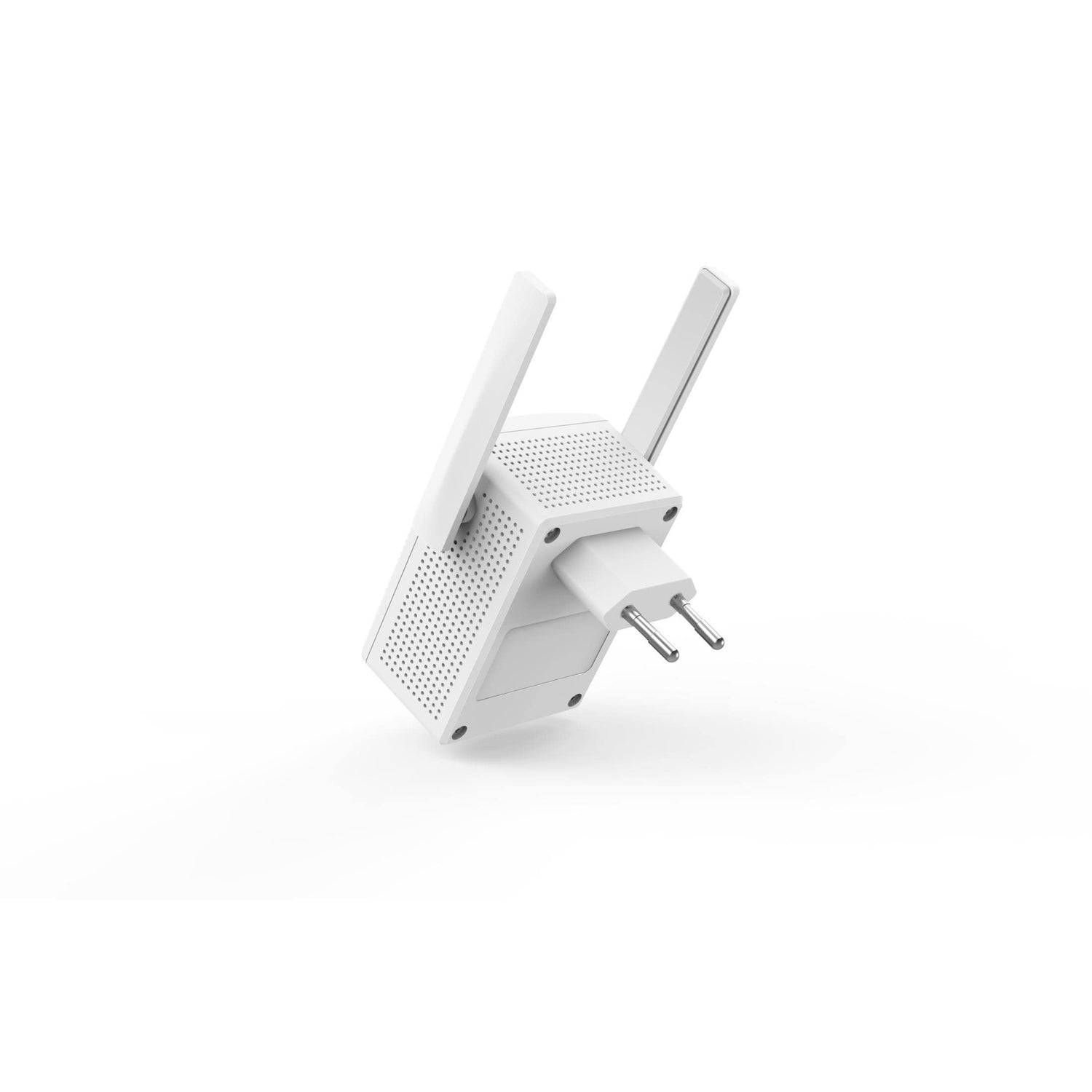

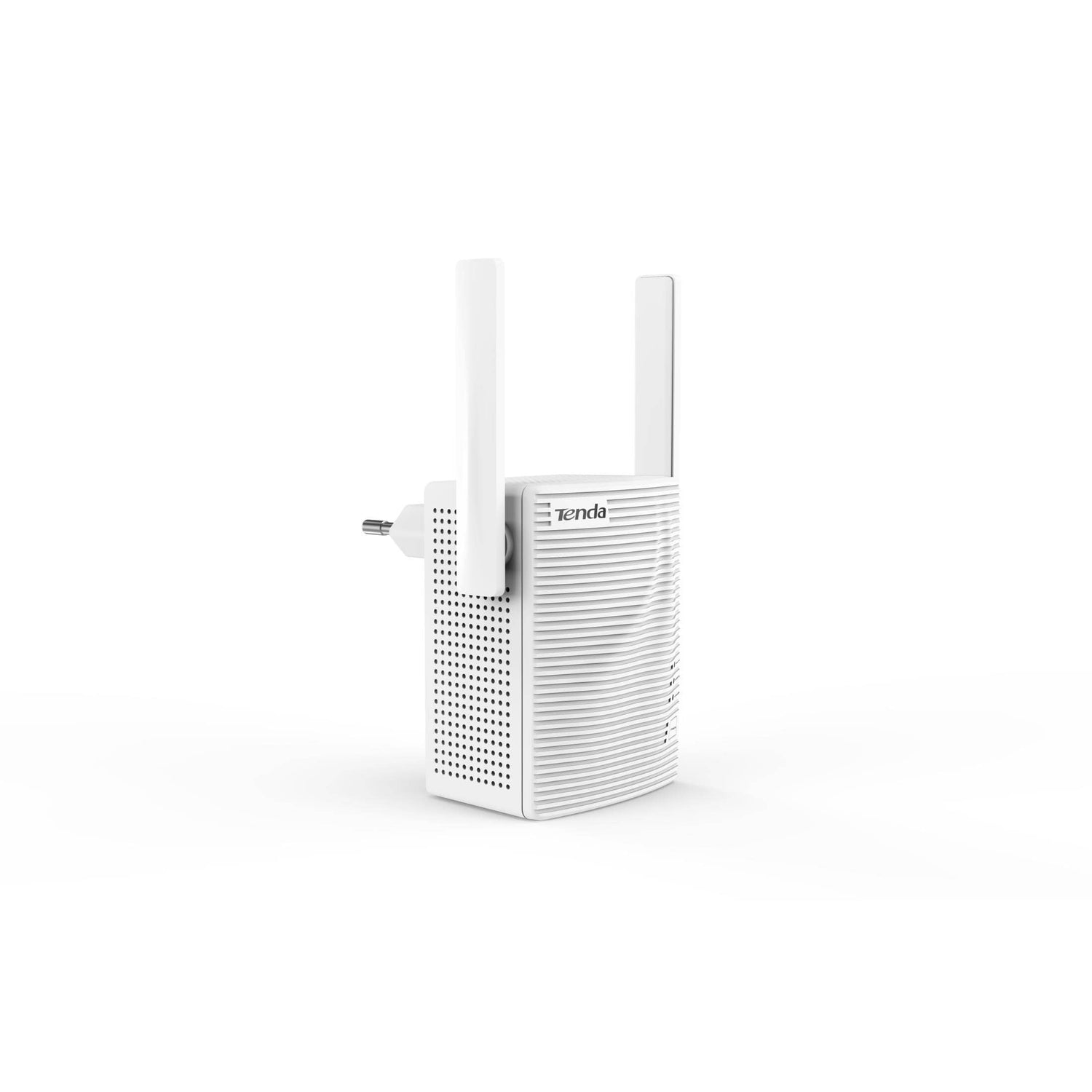

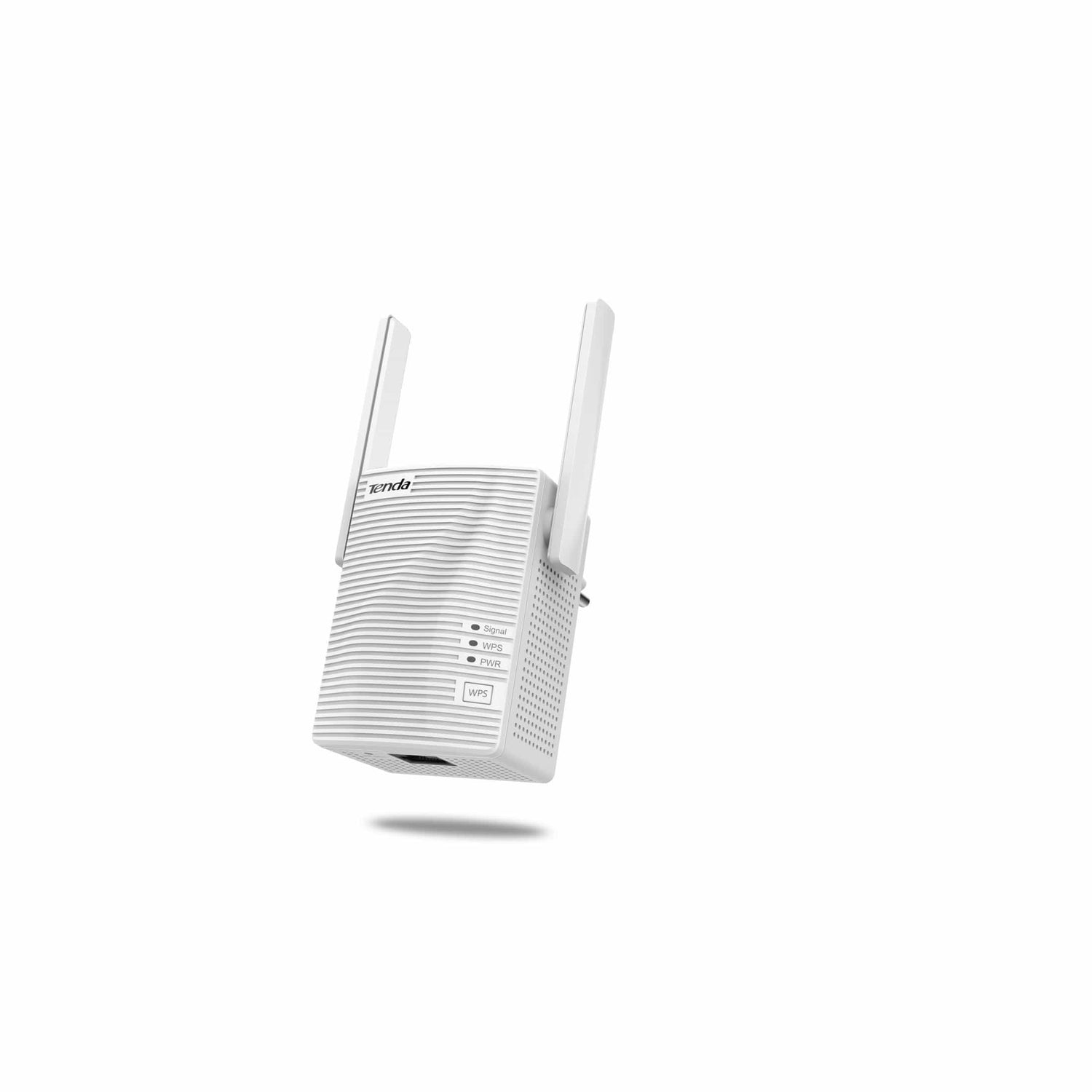

Tenda A18 1200Mbps Wireless Dual Band Wall Plugged Range Extender

Tenda A18 1200Mbps Wireless Dual Band Wall Plugged Range Extender

Works Well with Optical Routers for Strong Wall Penetration Capacity on 5 GHz Band

Ordinary 11AC routers performs poorly on wall penetration on 5 GHz band. With A18 to repeat 5 GHz WiFi network, data transmission rate on 5 GHz band can be up to 867 Mbps, giving a full play to your 100 Mbps optical broadband. By resolving the weakness of WiFi coverage on 5 GHz band, A18 brings you with fast internet experience at home.

Scan Quality Channel Automatically for Stable, Reliable and Fast Internet Experience

Equipped with high quality PCB dual band antennas, the radio frequency distance between antennas of A18 has been improved to um. Each antenna provides both 2.4 GHz and 5 GHz WiFi networks, and extends WiFi networks both on 2.4 GHz and 5 GHz bands . A18 can automatically select high quality channel for you when signal fluctuates, and keeps your devices online even in the move by switching to the network with stronger signals automatically.

Specification

Interfaces

1*10/100Mbps RJ45

Antenna Type

2 * External 2dBi dual-band omni-directional antenna

Button

1 * WPS Button
1 * Reset Button

LED Indicator

1 * Signal LED
1 * WPS LED
1 * Power LED

Power Supply

9V0.8A, built-in

Power Consumption

5.2W (max power consumption)

Dimension

80mm*58mm*48mm(L x W x H)

Wireless

Wireless Standard

IEEE802.11b,IEEE 802.11g, IEEE 802.11n, IEEE 802.11a,IEEE 802.11ac

Frequency

5 GHz(11ac)
2.4 GHz

Data Rate

5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps

RSSI

2.4 GHz
11b-1M:-97dBm
11g-54M:-76dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
5 GHz:
11a-6M:-95dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
11ac-80M-MCS9:-63dBm

Transmission Power

<20dBm

Wireless Modes

Repeater Mode，Access Point Mode

Wireless Security

Default encryption mode: Mix WPA-PSK/WPA2-PSK
WPA algorithm: TKIP

Others

Certification

CE, FCC、RoHS

Plug Type

US、EU、UK、BR、AU、AR

Package Contents

1 * AC1200 Dual Band WiFi Repeater
1 * Quick Installation Guide

System Tool

Firmware upgrade, Restore factory settings, Login password, and Reboot

Environment

Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: (10~90)% RH, non-condensing
