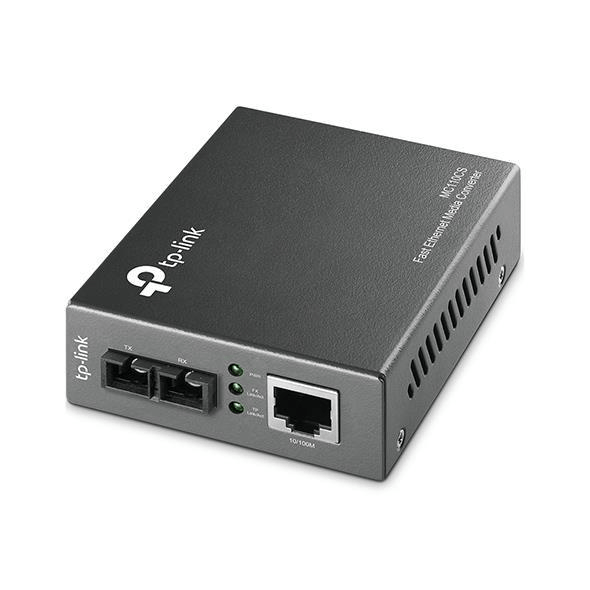

TP-Link MC110CS 10/100 Mbits Single-Mode Media Converter Network 100 1310 Nm Black

TP-Link MC110CS 10/100 Mbits Single-Mode Media Converter Network 100 1310 Nm Black

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 12.5 miles (20km).

Specifications

TP-LINK MC110CS

Maximum data transfer rate: 100 Mbit/s

Networking standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3x

Ethernet LAN data rates: 10,100 Mbit/s

Fiber optic connector: SC

Connectivity technology: Wired

Maximum transfer distance: 12500 m

Wavelength: 1310 nm

Fiber mode structure: Single-mode

Product colour: Black

Power consumption (max): 2.4 W
