Ubiquiti airFiber 60Ghz HD PtP Netwotk Radio AF60-HD

Ubiquiti airFiber 60Ghz HD PtP Netwotk Radio AF60-HD

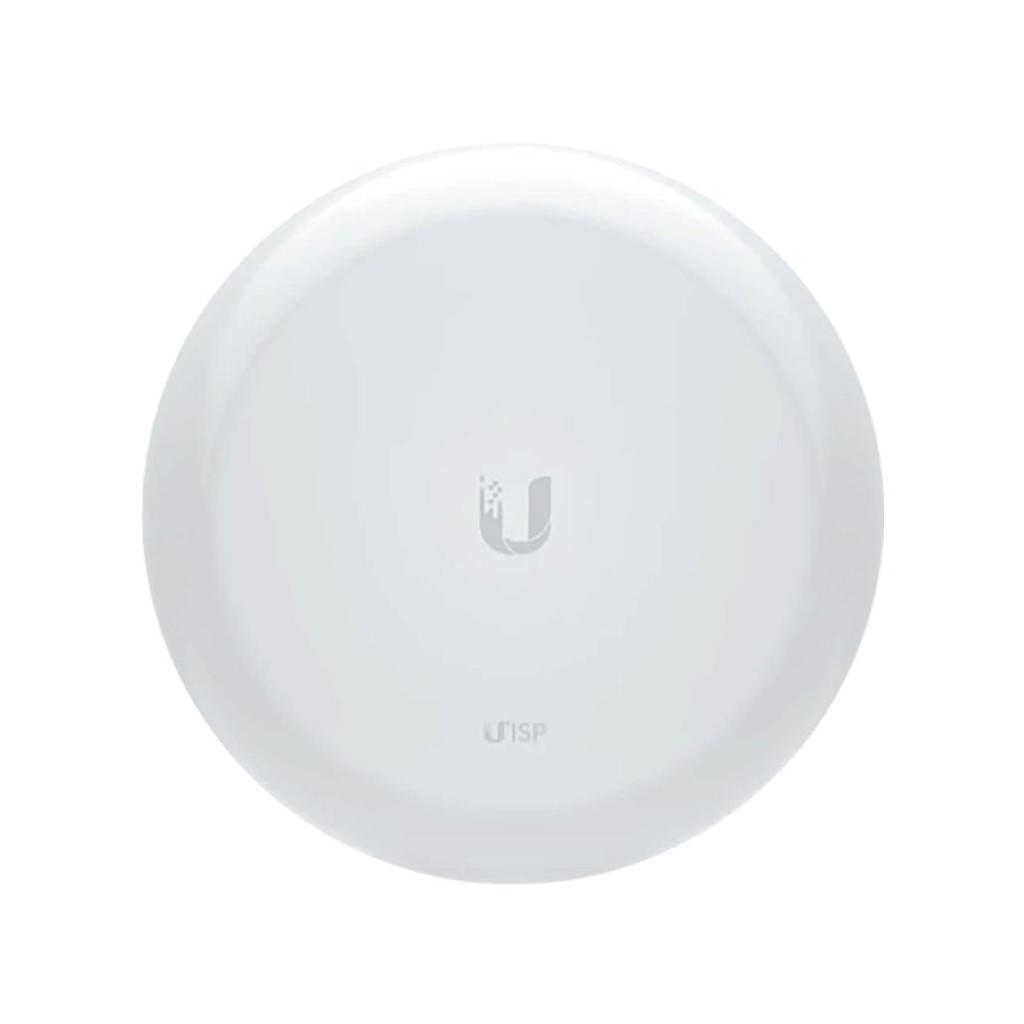

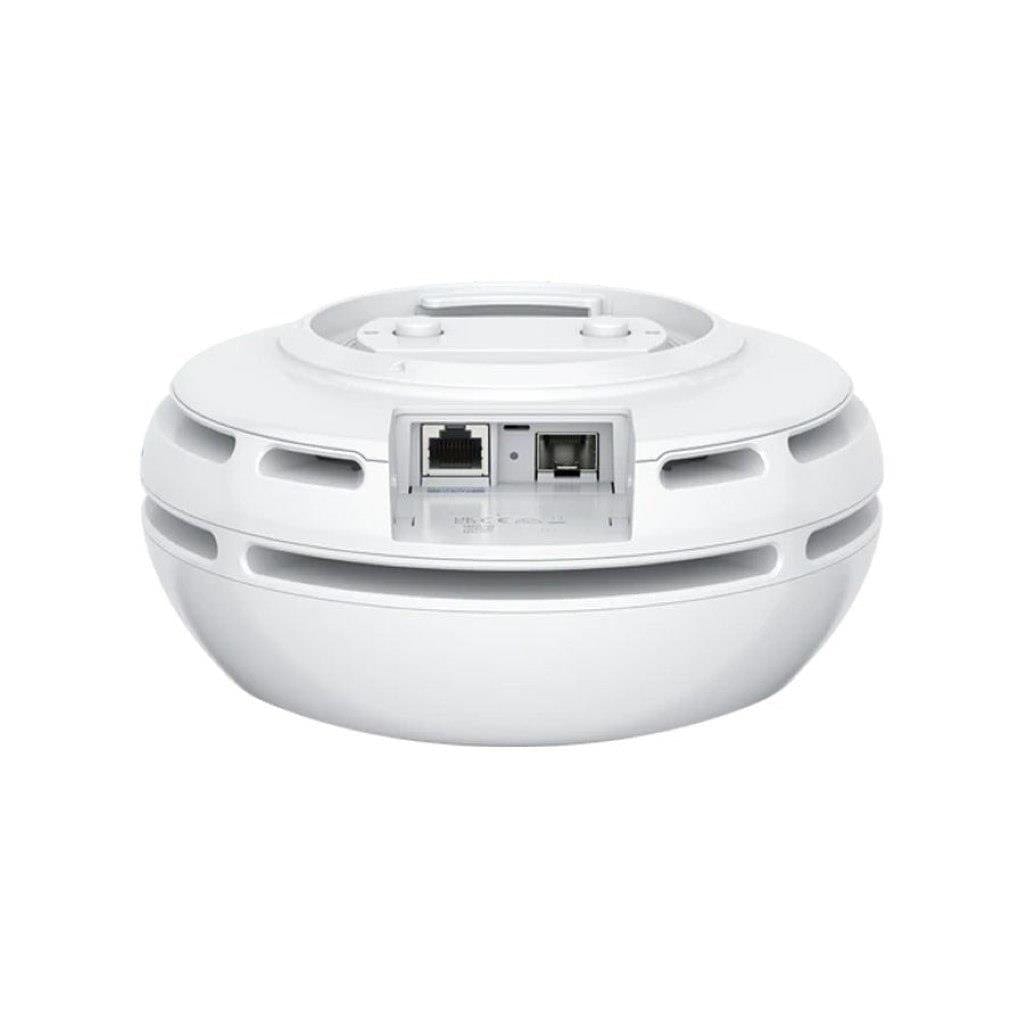

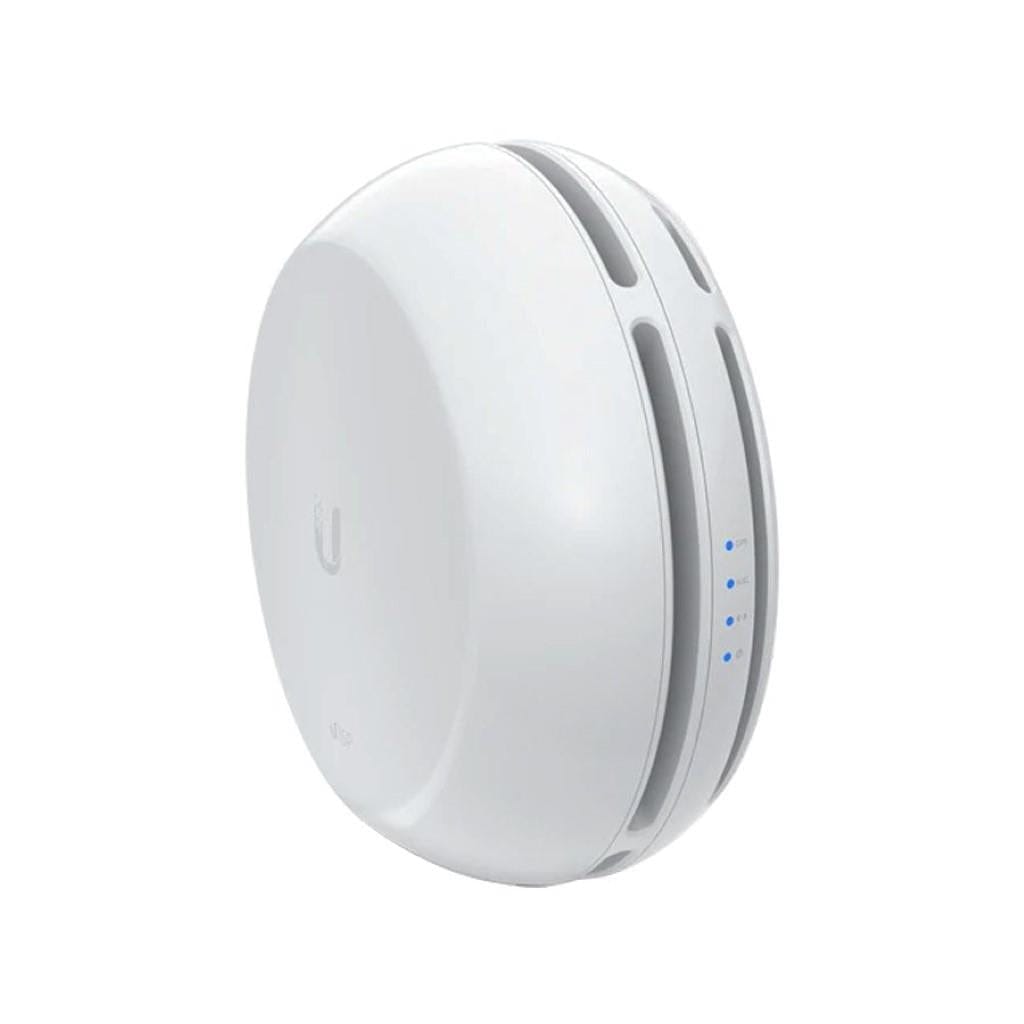

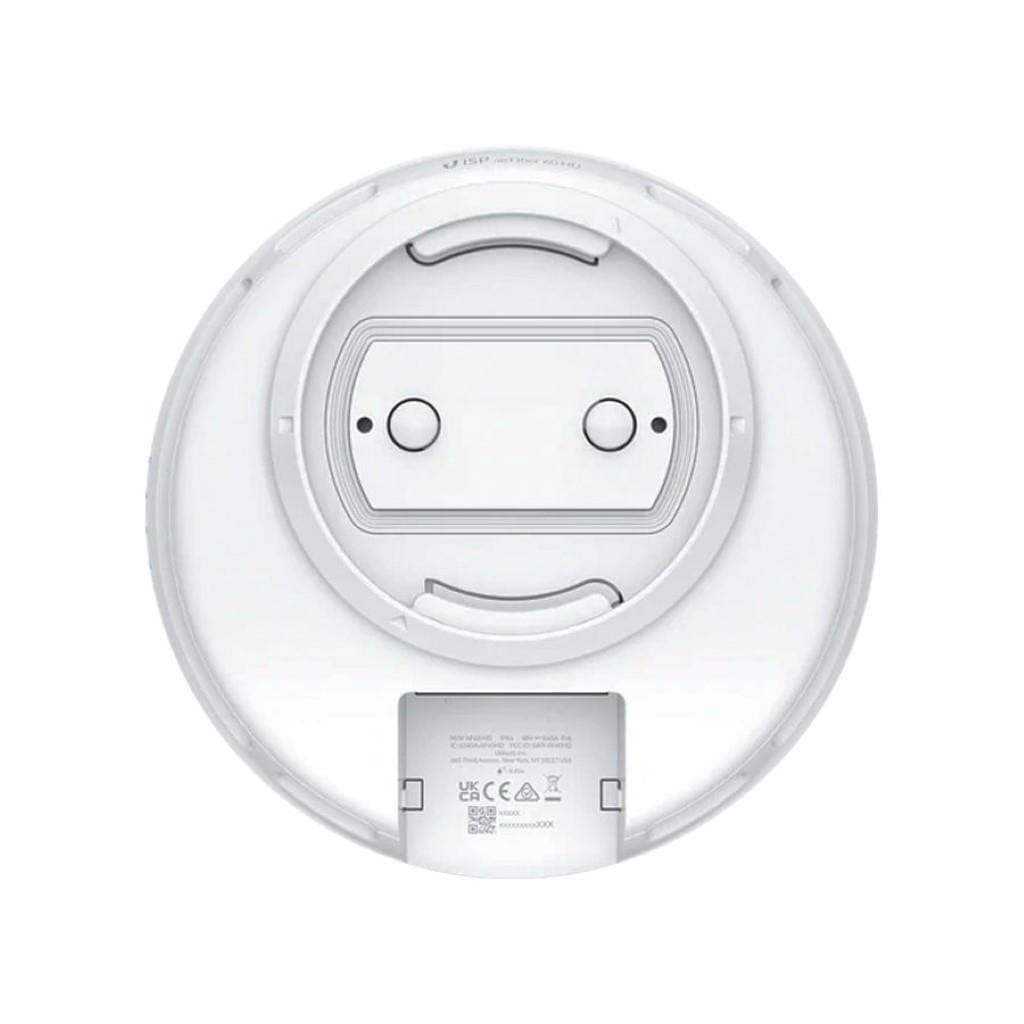

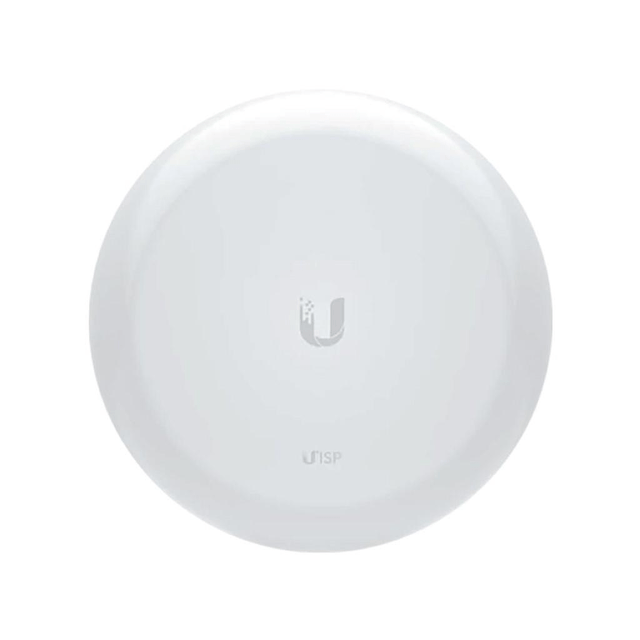

The airFiber 60 HD (AF60 HD) is a 60 GHz radio designed to create superior mid-range, point-to-point (PtP) links up to 2 km. The AF60 HD delivers low-interference, low-latency throughput within the 60 GHz spectrum. Compact and highly durable, the AF60 HD also features integrated GPS and a Bluetooth management radio to simplify setup, configuration, and monitoring. This bridge is ideal for ISPs looking to maximize signal linking with cost-effective equipment.

Features:

• Low-interference 60 GHz spectrum

• Up to a 2 km link range

• Supports channel bonding to achieve up to a 6 Gbps throughput rate

• (1) 10G SFP+ port

• Terragraph-certified

• Integrated GPS

Note: Managed with UISP Version 1.4.0-beta.10 and higher.

Technical Specification

Data Rate: Up to 6Gbps (with channel bonding enabled)

Ethernet Ports: 1x 10/100/1000

Hardware Button: Reset

Max. Power Consumption: 29.31W

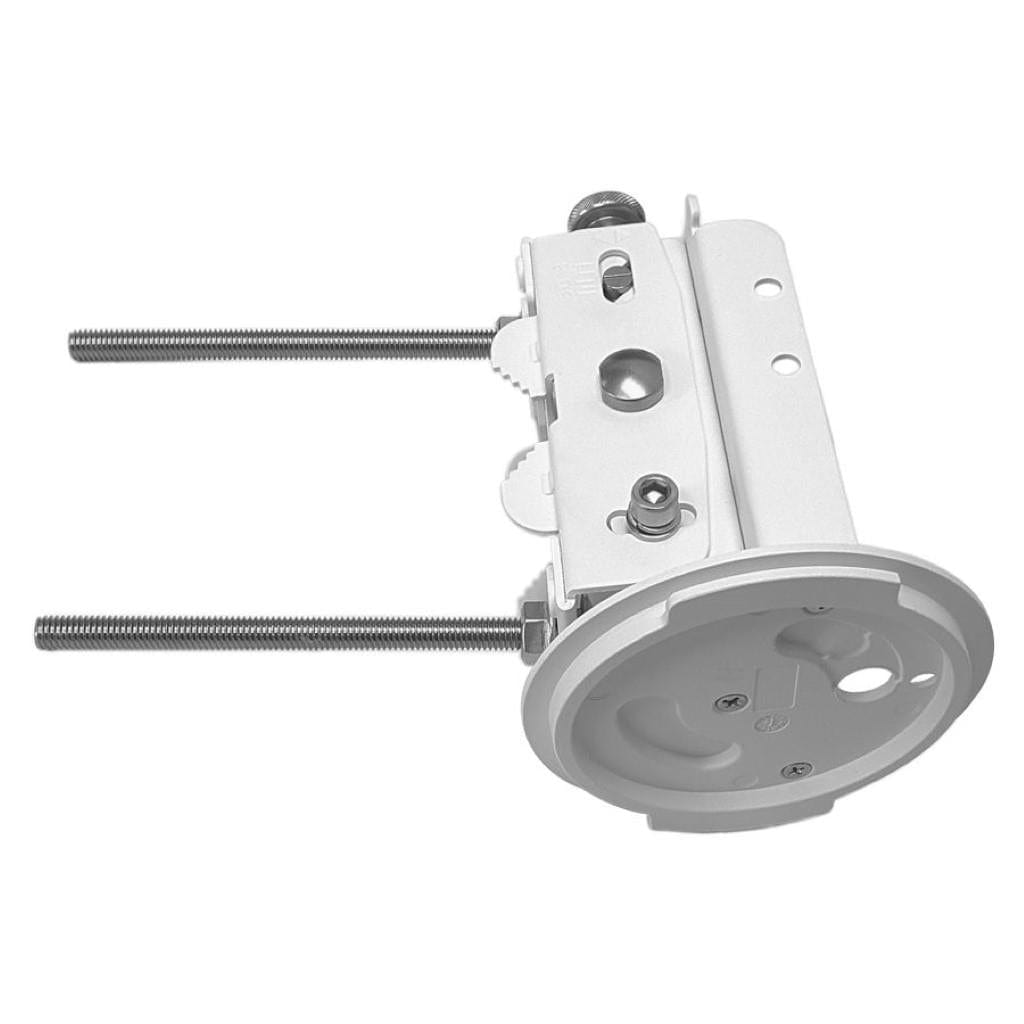

Mounting: Pole-Mount

Operating System: airFiber

Operating Temperature: -40°C to 55°C

PoE Input: 48V Passive PoE

PoE Output: None

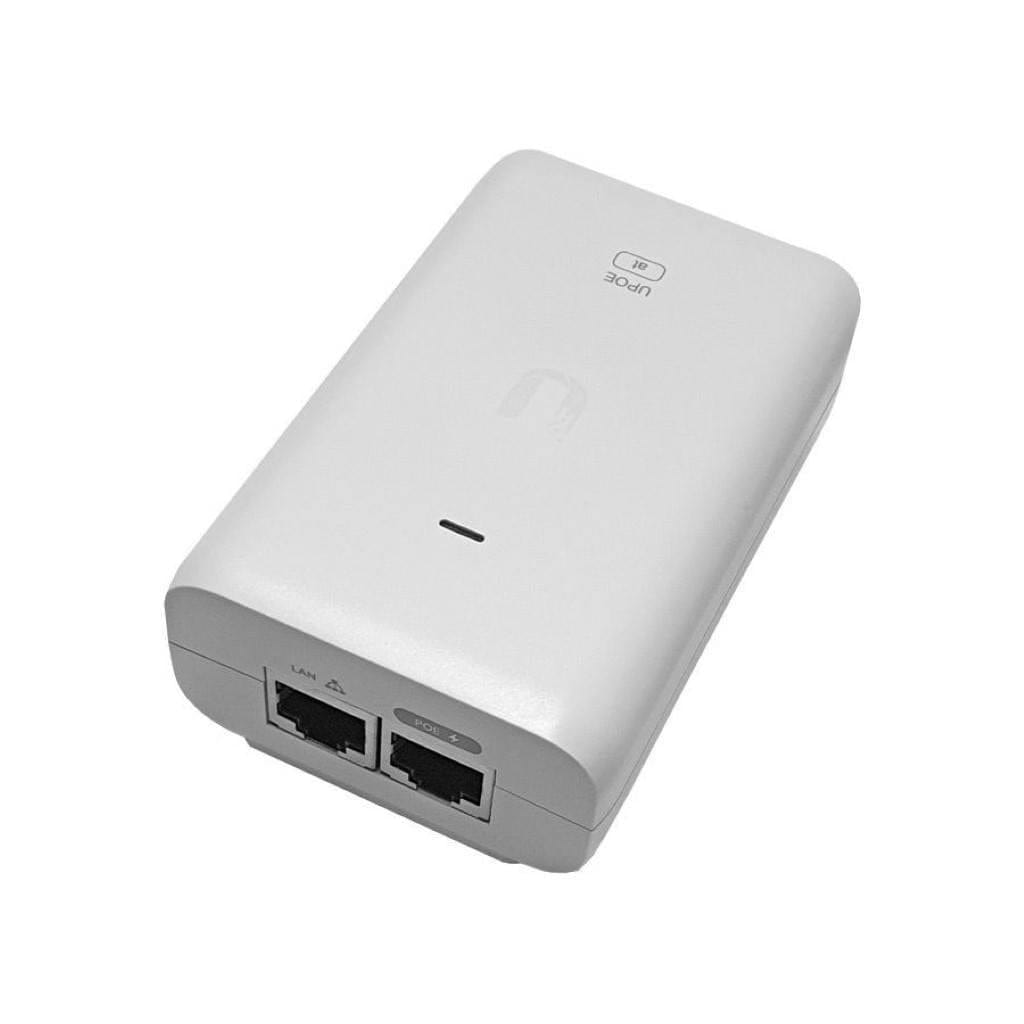

Power Input: 48V 0.65A PoE Injector (Included)

Serial Interface: None

SIM Slots: None

Supported Voltage Range: 44V-52V (48V +-10%)

USB Ports: None

Other: 1x 10Gbps SFP+ Port
