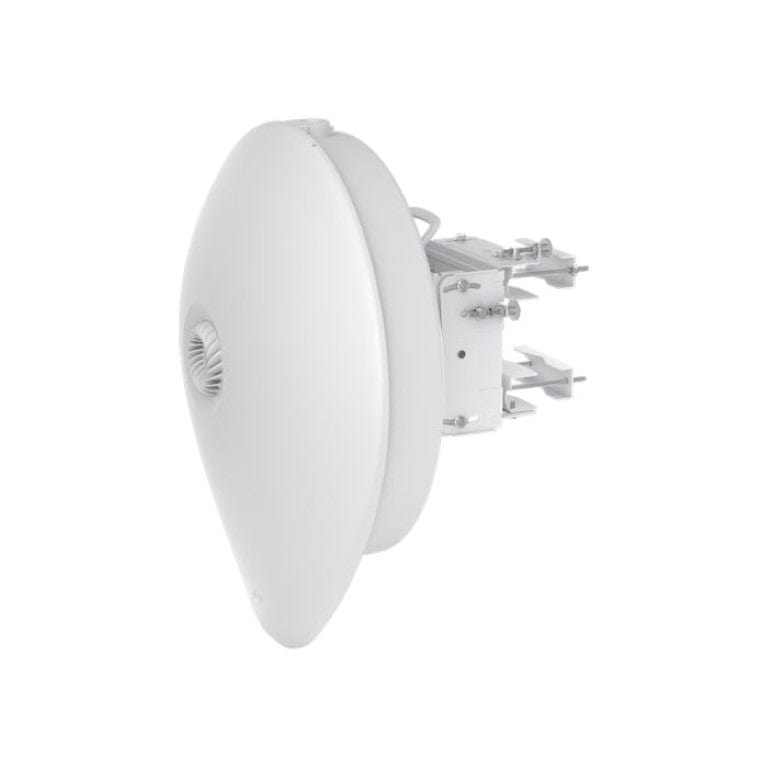

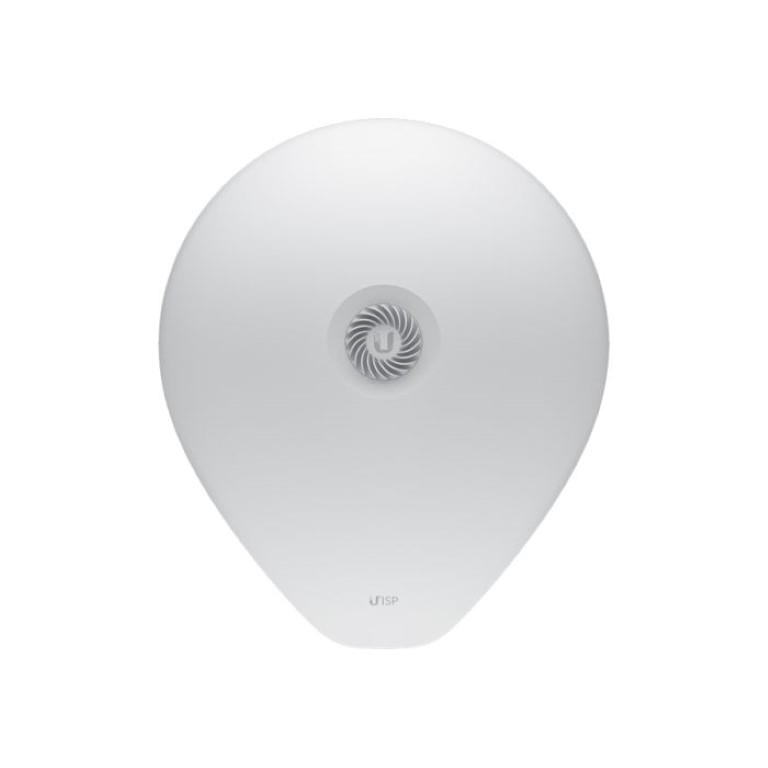

Ubiquiti UISP airFiber 60 Xtreme-Range 60GHz Network Radio Bridge AF60-XR
Multi-gigabit, 60 GHz bridge designed to create long-distance links and deliver 5.4 Gbps total throughput (2.7 Gbps duplex) over them.
Features
- 15+ km link range
- 2.7 Gbps duplex
- 5 GHz 800+ Mbps weather-resilient backup radio
- 1x GbE and 1x 10G SFP+ port

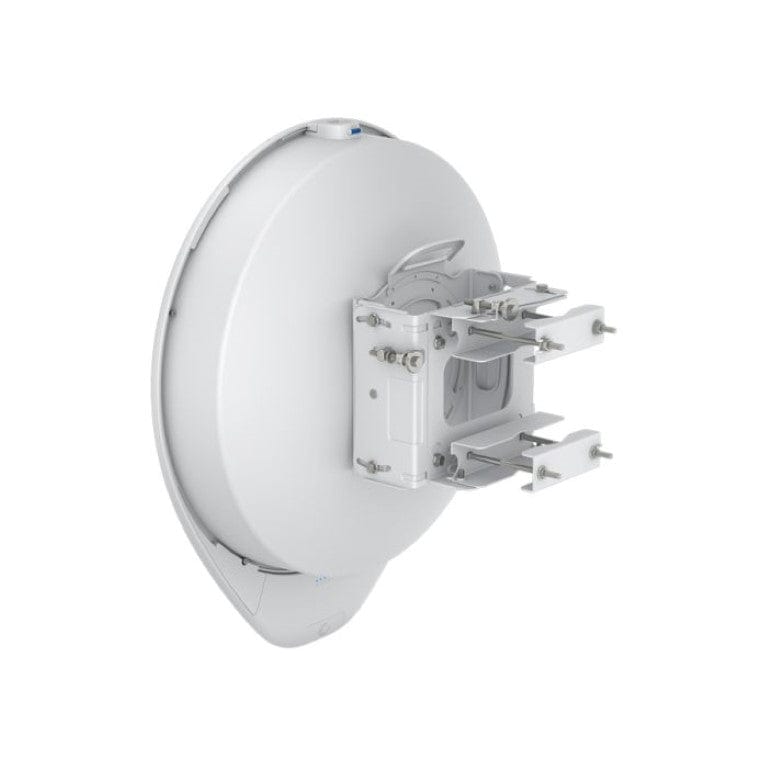

- Precision alignment mount
- Integrated GPS & Bluetooth
Please Note: This product should be purchased in pairs in order to form links.
Technical Specification
Mount material: Galvanized steel
Mounting:
-

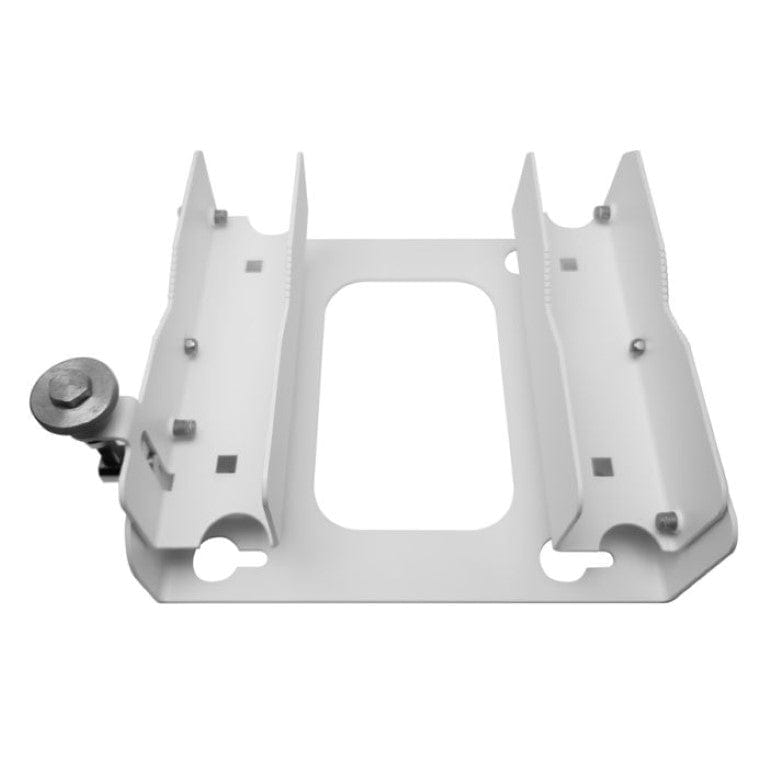

Precision alignment kit (included)
-
Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15") on pipe outer diameter
Weatherproofing: IPX6
Memory: DDR3L 1GB
-
1x GbE RJ45 port
-
1x 1/10G SFP+port
-
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
-
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Supported voltage range: 44–54V DC ; 22–27V DC
RF connections: Internal
Button Factory: reset
Ubiquiti specific features: Integrated 60 GHz radio, discovery protocol, Wave technology
Services: UISP, ping watchdog, NTP client, device discovery
Tools: Antenna alignment, discovery utility, ping, trace route, speed test
Network: Bridge mode
Max. range: 15+ km
Encryption: WPA2-PSK (AES)
Channel bandwidth: 2160, 1080 MHz
Operating channels*: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz (*Depends on regulatory region.)
Management radio: 2400–2483.5 MHz
Modulation: 16QAM, BPSK, QPSK
Polarization: Vertically linear
Beamwidth
-
Azimuth: 3 dB 1.4°
-
Elevation: 3 dB 1.4°
Modulation: BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6)
Antenna gain: 26 dBi
Polarization: Dual-linear
Beamwidth
-
Azimuth: 3 dB 5°
-
Elevation: 3 dB 5°
Electrical downtilt: 0°
