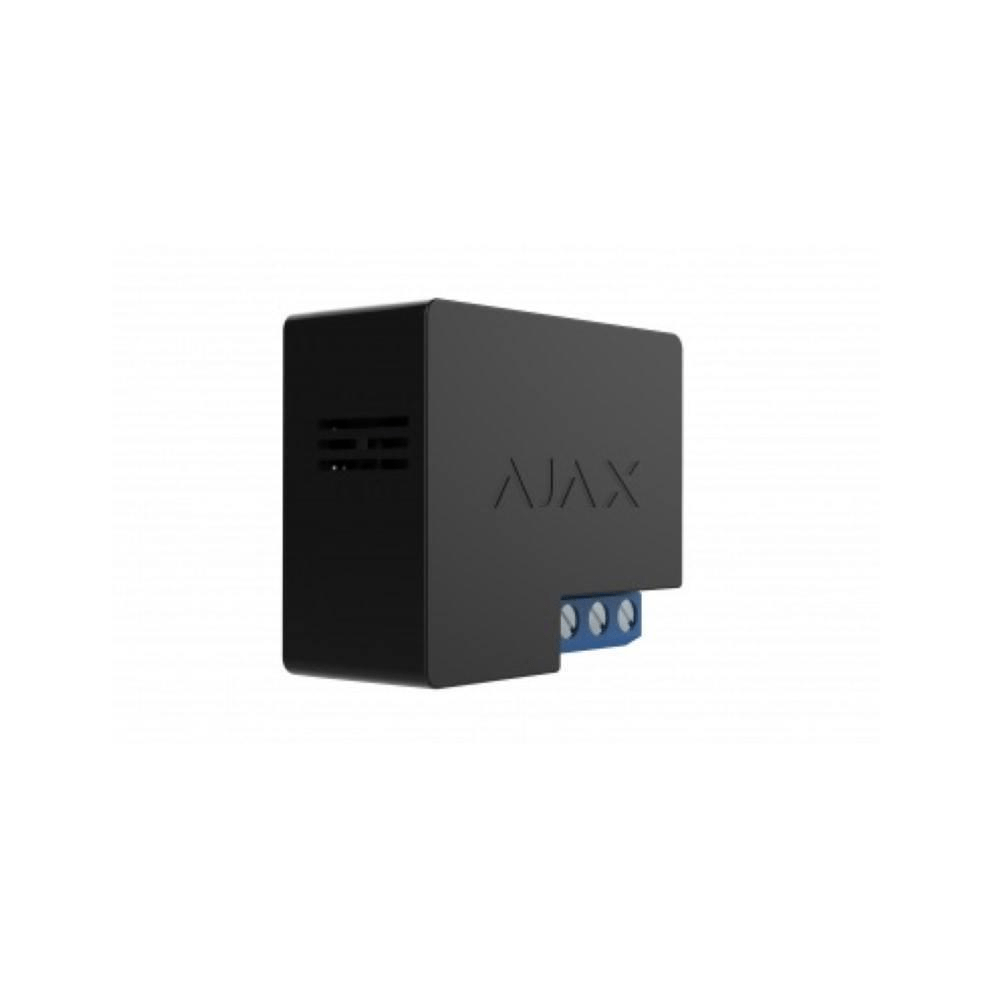

Ajax WallSwitch Relay Wi-Fi Jeweller Black 38189.13.BL1

Ajax WallSwitch Relay Wi-Fi Jeweller Black

The device connects directly to the 110 V~/230 V~ source and closes/opens the circuit on command. The relay can handle loads of up to 3 kW, which is enough to connect a very power-hungry device. Thanks to WallSwitch, this feature of the device may become known it displays power consumption in the Ajax app.

Installation

No extra effort

Connecting WallSwitch to the hub takes less than a minute — it's enough to scan a QR code with the Ajax app. The miniature relay (39×33×18 mm) is easy to place in a recessed wall plate, the body of an electrical appliance, or an electrical panel with DIN Holder. A flexible external antenna ensures stable communication.

Always in touch

We developed the Jeweller radio protocol to ensure uninterrupted interaction of all security system devices. The radio protocol uses frames to synchronize device communication, authentication to prevent forgery, and encryption to protect against hacking.

Specifications:

Classification: Radio channel relay unit

Device type: Remote-controlled

Installation method: Into wall plate

Compatibility: Operates with all Ajax hubs, range extenders

Actuating element: Relay

Relay service life: 200,000 switch-ons

Maximum load current: 13 A

Maximum current protection: Yes (13 A)

Maximum temperature protection: >65°C
