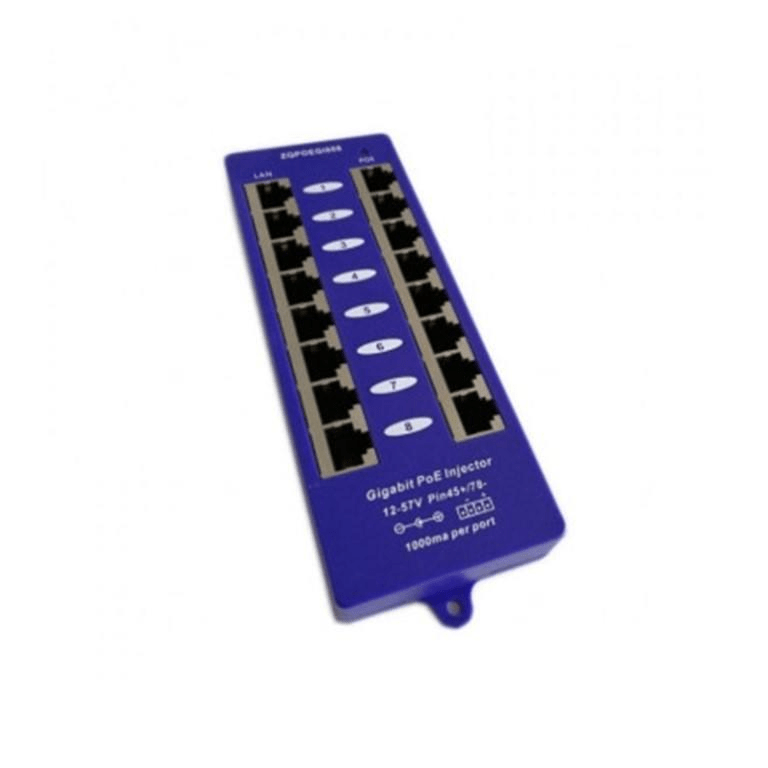

Acconet 8-port Gigabit Passive PoE Injector Hub CT-POE-PP8G

Acconet 8-port Gigabit Passive PoE Injector Hub CT-POE-PP8G

The ZQPOEI008 passive Poe Injector is used 10/100/1000M Ethernet, The LAN RJ45 sockets is form “Switch/PC/HUB ” 1/2 & 3/6 & 4/5 & 7/8 are transmitting data. The POE Rj45(power+data) socket is to deliver data and power. Pin 1/2 & 3/6 & 4/5 & 7/8 transmitting data, Pin 4/5(+) & 7/8(-)for power. Passive PoE is composed of 8 set of Rj45 sockets and one 60V DC power jack. Input power requests 90W or more AC To DC Power converter.The input dc hole diameter is 2.1mm and the other end OD id is 5.5mm.

The sum total output power must be lower than the Max input power of AC-DCpower converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter i: 10W per RJ45 set (1 set = 2 x Rj45 sockets). For example, 8 x 10W = 80W for 8 port Passive PoE panel.

Features

• Use with any ethernet switch
• Flexible power (DC 12V TO 57V)
• 10/100/1000Mbps fast ethernet
• Ideal for IP Cameras,VOIP,WiFi
• 8 Port Injector (8Lan & 8Lan+PoE port)

Technical Specification
