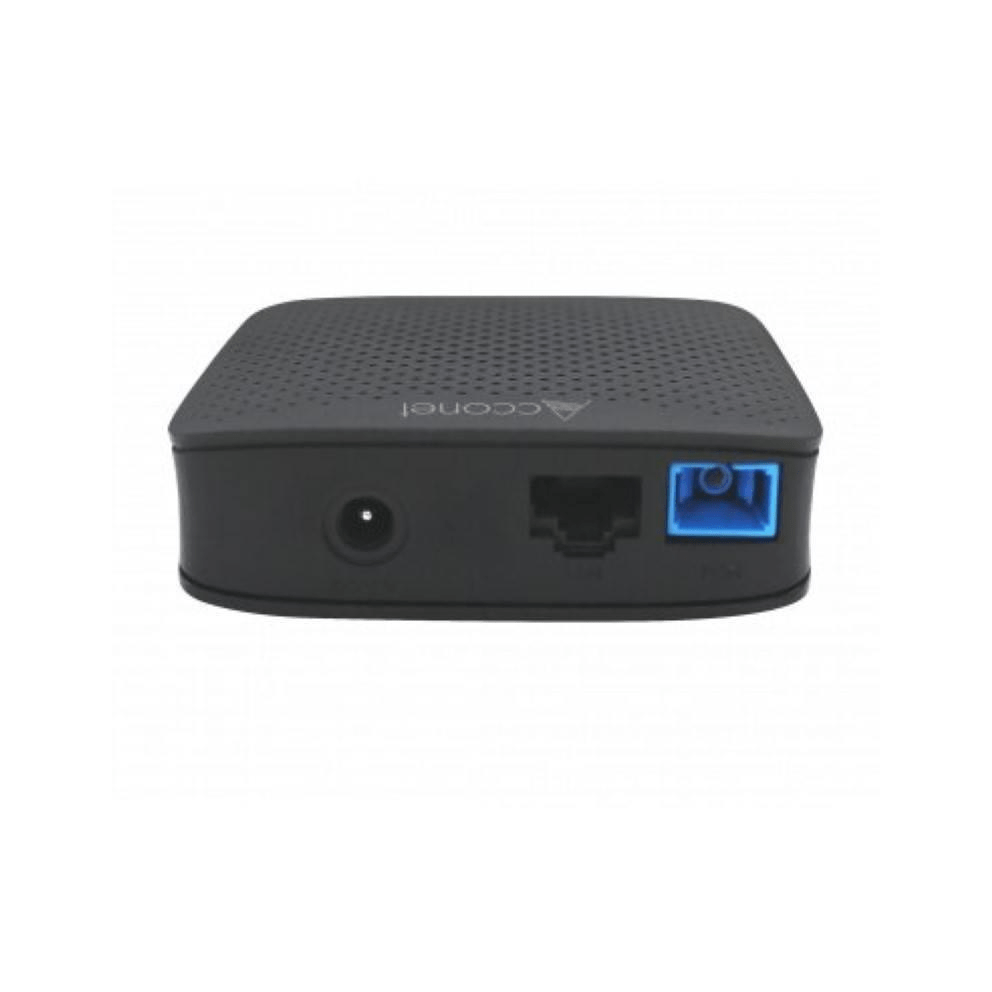

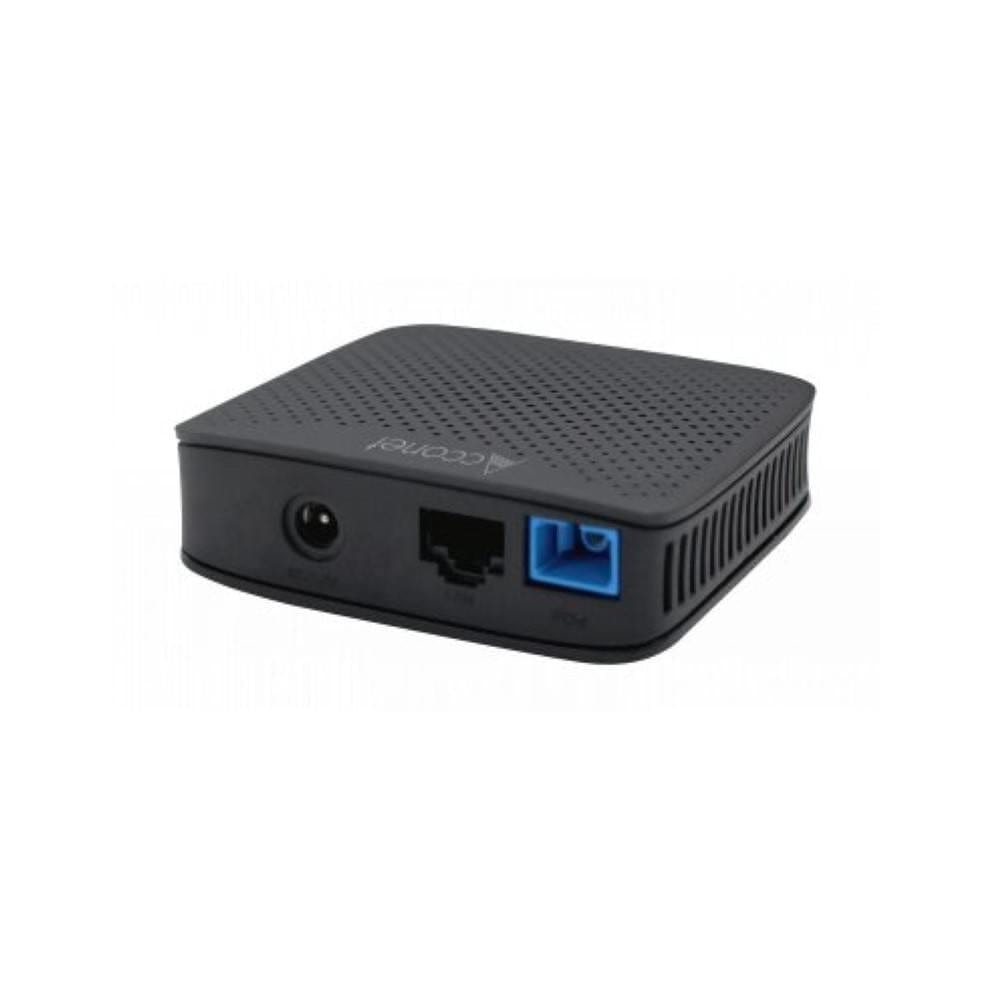

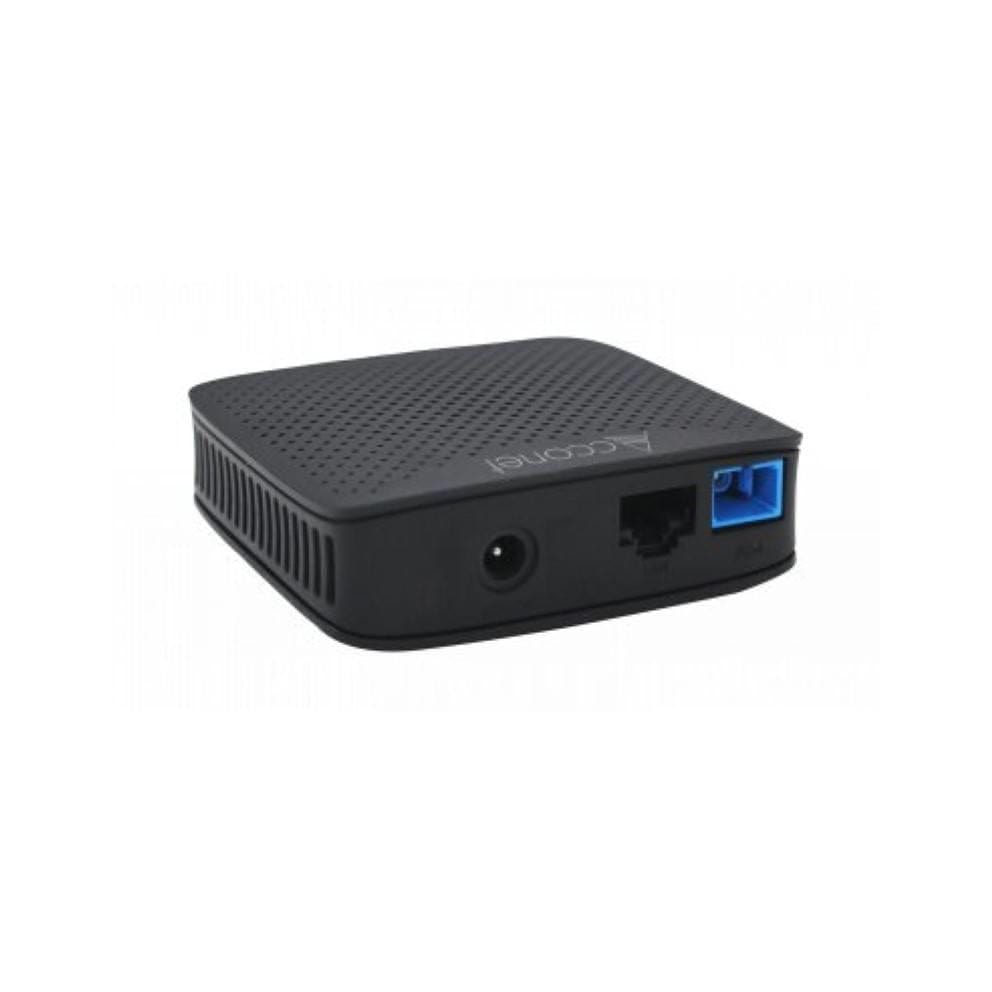

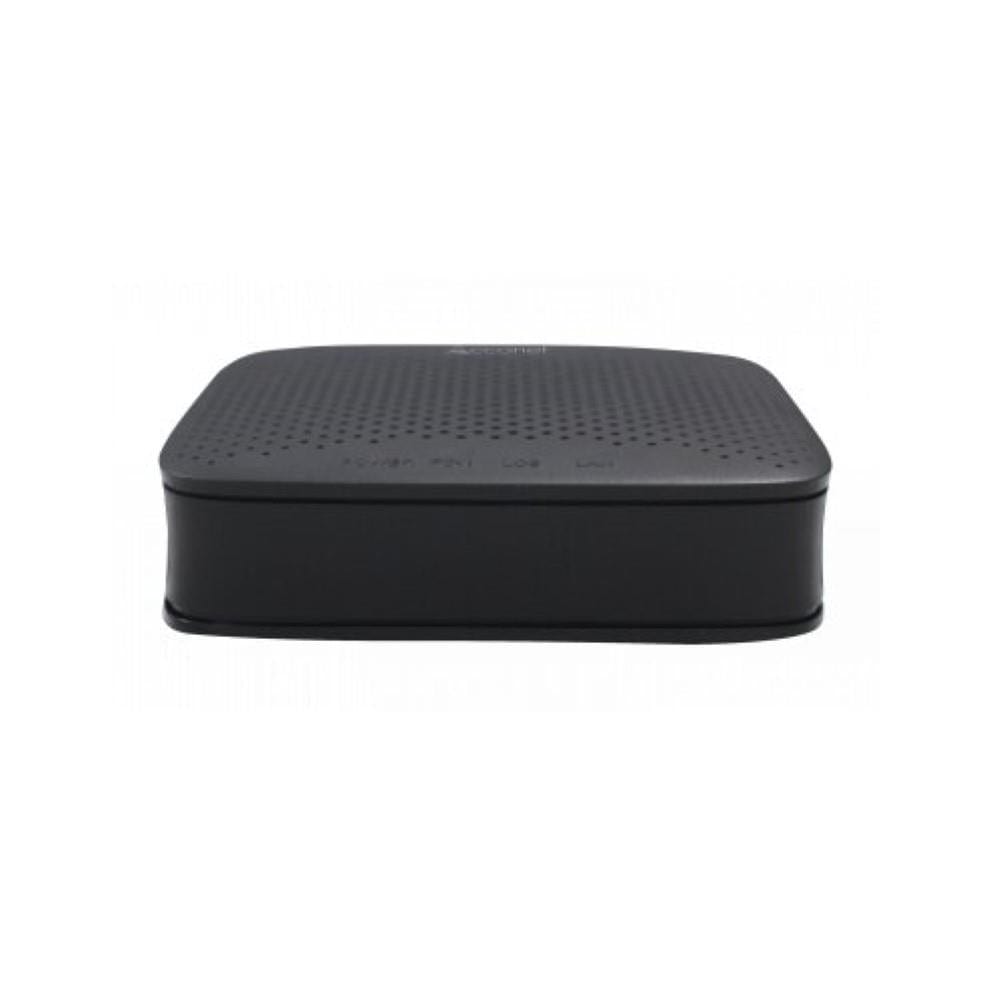

Acconet xPON Multi-service Broadband Access Gateway AC-FIB-XPON-1PV1

Acconet xPON Multi-service Broadband Access Gateway

AC-FIB-XPON-1PV1 is the Acconetdeveloped intelligent home gateway oriented for the integrated multi-service network.

AC-FIB-XPON-1PV1 is compatible with EPON and GPON networks: complied with the international standard ITU-T G.9844/988 and IEEE802.3ah, PRC Communication Industry Standard GB/T33845-2017 and YD/T 1475-2006, and China Telecom EPON/GPON Technical Requirement CTC. Standing out with great interoperability and operability, AC-FIB-XPON-1PV1 can interconnect well with OLTs of mainstream manufacturers in the industry.

Excellent Access Capacity

GPON: supports the PON transmission rate of downlink 2.5Gbp/ uplink 1.25Gbps. Connected with OLTs, it can realize 1:128 splitting ratio. The covering radius of the network can reach to 20km.
EPON: supports the PON transmission rate of downlink 1.25Gbp/ uplink 1.25Gbps. Connected with OLTs, it can realize 1:64 splitting ratio. The covering radius of the network can reach to 20km.

Secure Service Carrying Ability

For ensuring the secure service carrying ability of ONU, Acconet has developed techniques including VLAN, STP, port isolation, ACL, QoS, security filtering and Broadcast Storm Control.

High Service Control Capability

AC-FIB-XPON-1PV1 supports DBA and Rate-Limit. AC-FIBXPON- 1PV1 series also supports advanced dynamic bandwidth distribution and accurate bandwidth limit, which enables users to share 2.5Gbps (GPON) and 1.25Gbps (EPON) bandwidth resource appropriately. In addition, the QOS function of AC-FIBXPON- 1PV1 guarantees a reliable service quality and service priority.bandwidth resource appropriately. It also supports QOS function, which guarantees a reliable service quality and service priority.

Specifications:

• Up to 2.5Gb downlink & 1.25Gb uplink
• 1 x SC/UPC port
• 1 Gbps LAN
• 12V DC PSU
