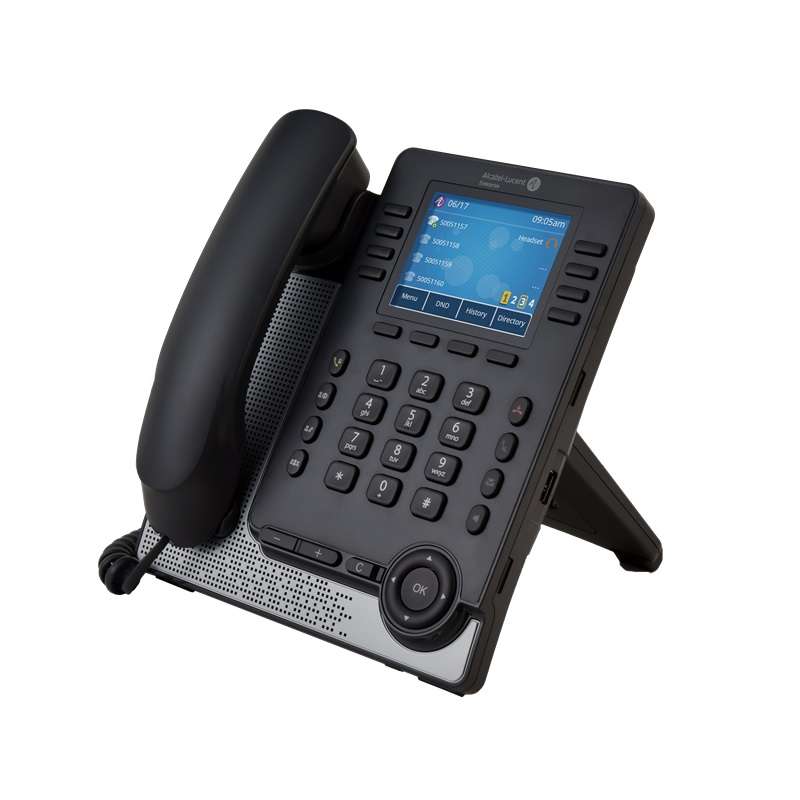

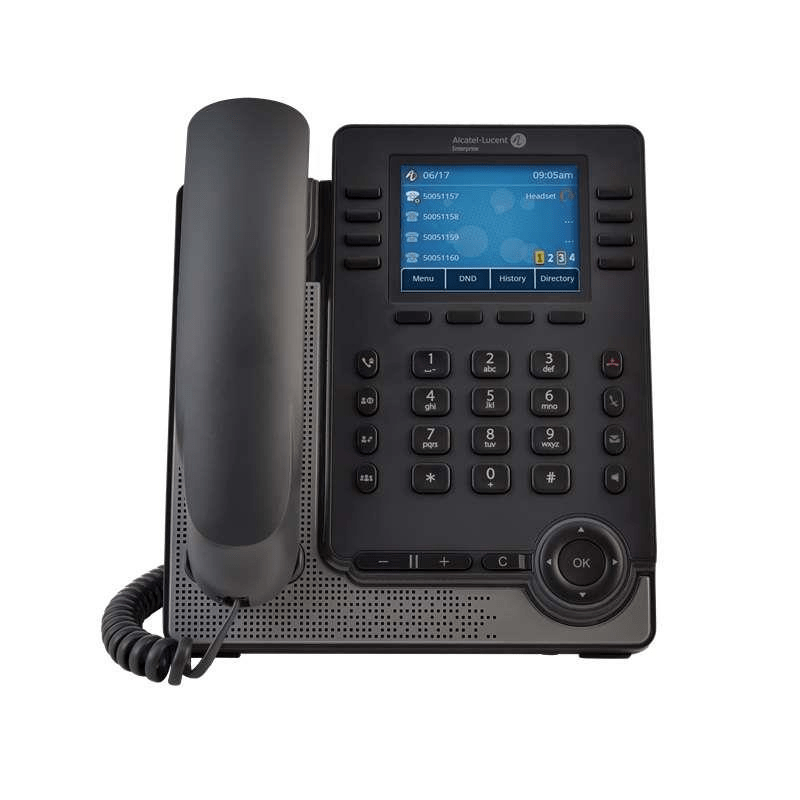

Alcatel-Lucent Myriad M7 8-Line SIP Handheld Deskphone 3MK27003AA

Alcatel-Lucent Myriad M7 8-Line SIP Handheld Deskphone

The M7 DeskPhone from Alcatel-Lucent Enterprise offers a rich SIP communications experience with intuitive navigation and conversation comfort. This elegant DeskPhone provides super wideband audio in hands-free mode with echo cancelling and double talk performance. The large 3.5” color screen, makes it quick and easy to connect. The user experience is enhanced with a 4-way navigation key, 8 line keys, 4 soft keys and a userfriendly interface. The M7 DeskPhone includes USB A/C ports making it more than a phone. It is possible to connect to a PC as an external loud speaker to take advantage of the super wide band speaker phone or plug external devices such as Expansion Module (EM20 or EM200), headset, conference module etc. The M7 DeskPhone supports a Wi-Fi dongle. The M7 DeskPhone includes an adjustable foot stand and comes with customizable faceplates to promote brand awareness. The standard SIP protocol provides the rich telephony features supported by the major open SIP servers in the market. The M7 DeskPhone can operate in Power over Ethernet (PoE) mode (Class 2) and with a Wi-Fi dongle.

Super Wideband HD Voice
The Myriad series delivers high sound clarity with rich voice intonation.

Exceptional 360° Audio Tuning
Handsfree audio performance remains the same regardless of user position relative to the phone.

Elegant Design
The Myriad Series boasts a sense of modern elegance by integrating an intuitive user interface with an elegant design inspired by the Eiffel Tower. The M5 and M7 phones also come with customizable faceplates to promote brand awareness.

Audio Hub
The Myriad Series integrates 2 USB ports (A/C) for external device connectivity. Users can turn phones into an Audio Hub by connecting them to PC. This allows them to take advantage of the phone’s Super Wideband HD speaker for better sound quality.

Enterprise-grade Features
Through enterprise-grade endpoints, the Myriad Series delivers rich telephony features to facilitate business efficiency and boost teamwork.

Broad Compatibility
The standard SIP protocol provides seamless integration with major open SIP servers such as Asterisk, BroadSoft, Metaswitch, and Enreach (Centile).

Features:

• Bluetooth 4.1 connectivity
• Super wideband audio quality
• Large 3.5” color screen and 4-way navigation button
• Elegant phone with an adjustable foot stand
• Customized faceplate
• Rich telephony features with standard SIP protocol
• Effortless Deployment

Specifications:

• Height: 183mm (7.2 inches)
• Width: 207mm (8.2 inches)
• Depth: 35mm (1.4 inches)
• Weight: 810 (1.79 lbs) incl. handset and foot stand
• Color: Black
• Adjustable foot stand: 40° and 55°
• Wall mountable
• Display: 3.5 inches color LCD, 320×240
• Keys: 8 line keys with LED, 4 menu keys, Volume control keys (+ and -), Navigator: 4 way navigation + OK, Hands-free, mute and message keys, Call hold, call transfer and redial key, Dial pad
• Telephony Features: 8 SIP accounts, Call forward, call waiting, call transfer, call hold/resume, redial, Mute/unmute, voicemail, DND, auto answer, Local 5-party conference, Call log, local contacts (1000)
• Audio Characteristics: G.722, OPUS, iLBC, G711 (A-law and Mu-law), G.729AB, VAD (Voice Activity Detection), Comfort Noise Generation (CNG), Acoustic echo cancellation, DTMF: In-Band, RFC2833, SIP INFO, Hearing Aid Compatible (HAC)
• Power: Power over Ethernet (IEEE 802.3af), Class 2, External Power supply: 5V/2A (Optional accessory)
• Connectivity: RJ-45 LAN: 10/100/1000M Ethernet, RJ-45 PC through 10/100/1000M Ethernet switch, RJ-9 connector for corded handset, USB Type A and USB Type C
• Network and Protocols: SIP v2 (RFC3261), Static IP and DHCP, IPv4/IPv6, IEEE 802.1AB/LLDP-MED/QoS, TR069
• Configuration: Web-based management, ALE Easy Provisioning Server (EPS), ALE Easy Deployment Server (EDS)
• Security: Authentication: Basic or digest, 802.1x, Denial of service (DoS) attack protection: Flooding, ARP Spoofing protection, Transport: TLS 1.2/1.0 and SRTP, Shipped with (X509v3) certificate installed, Certificates for 802.1x EAP-TLS
  (either Alcatel-Lucent or customer certificates), Supporting SHA2 ALE Certificate, SCEP, OpenVPN
• Languages: Multi-language support (menu): Arabic, Chinese (simplified), Chinese (traditional), Czech, Danish, Dutch, English (American), English (British), Estonian, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Russian, Slovak, Slovenian, Spanish, Swedish, Turkish
• Safety: EN 60950-1: 2006 +A11: 2009 +A1: 2010 +AC: 2011+A12: 2011 +A2:2013, IEC 60950-1: 2005 +A1: 2009 +A2: 2013, EN 62368-1: 2014 +A11: 2017, CAN/CSA-C22.2 NO. 60950-1-07 +Am1: 2011 +Am2: 2014, ANSI/UL 60950-1-2014
• EMC: EN 55032, CISPR 32, EN 55024, CISPR 24, EN 61000-3-2, EN 61000-3-3, FCC 47 CFR Part 15 B Subpart B, ICES-003 Issue 6 Canada, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 55024, CISPR 24, CISPR 32, EN 55032, EN 61000-3-3 / IEC 61000-3-3
• Eco Design: ErP 2009/125/EC, WEEE 2012/19/EU, ROHS 2011/65/EU, CHINA ROHS 2: GBT 26572-2011, REACH: European regulation: N° 1907/2006, Proposition 65, Packaging: EU Directive 94/62/EC
• Hearing Aid Compatibility: US: Section 68.316 (HAC) and 68.317 of FCC 47 C.F.R. Part 68, Canada: CS-03 Part V, Issue 9 +Amendment 2, Australia/NZ: AS/ACIF S040: 2001
• Environmental Conditions: Operating temperature: -5°C to +45°C, Relative humidity: 5% to 95%, Storage/transportation temperature:, -25°C/+70°C
• Accessories: 3MK27006AA EM20 Expansion module, 3MK27007AA EM200 Expansion module, 3MK27008AA wall mounting kit, 3MK08005US external power adapter (US), 3MK08005EU external power adapter (EU), 3MK08005RW external power adapter (AU/UK)

Packaging:

• M7 DeskPhone
• Wired wideband handset
• Foot stand
• 1.5m Ethernet cable (cat5e)
• Safety sheet
• Quick user guide
