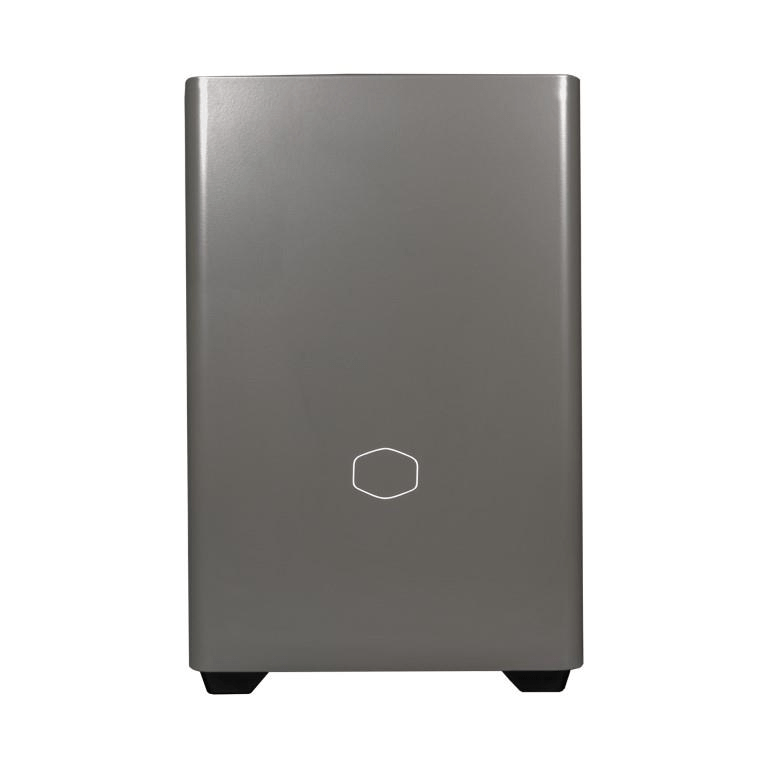

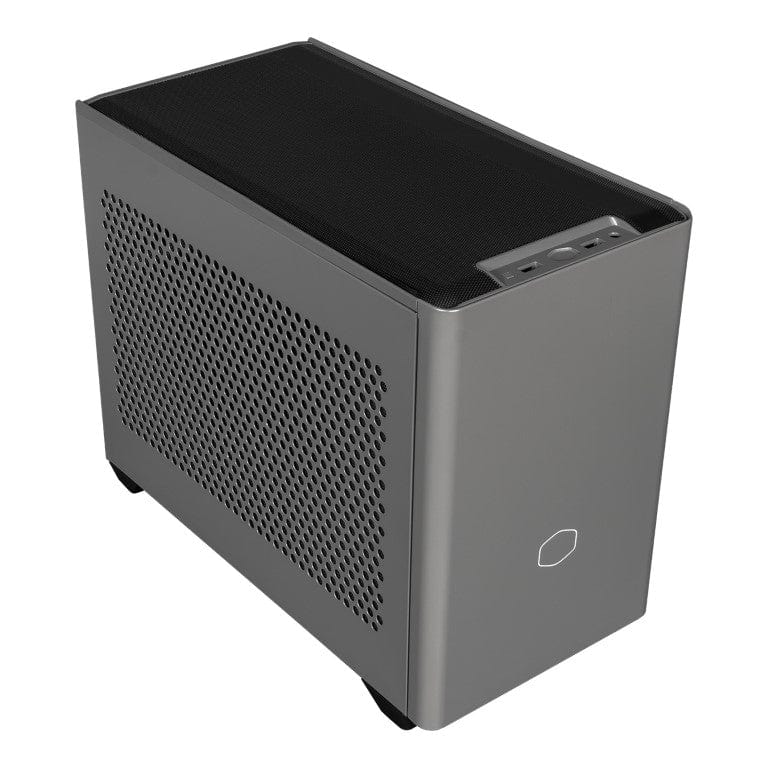

Cooler Master MasterBox NR200P MAX mini-ITX Case with PSU and Cooling Solution

Cooler Master MasterBox NR200P MAX mini-ITX Case with PSU and Cooling Solution

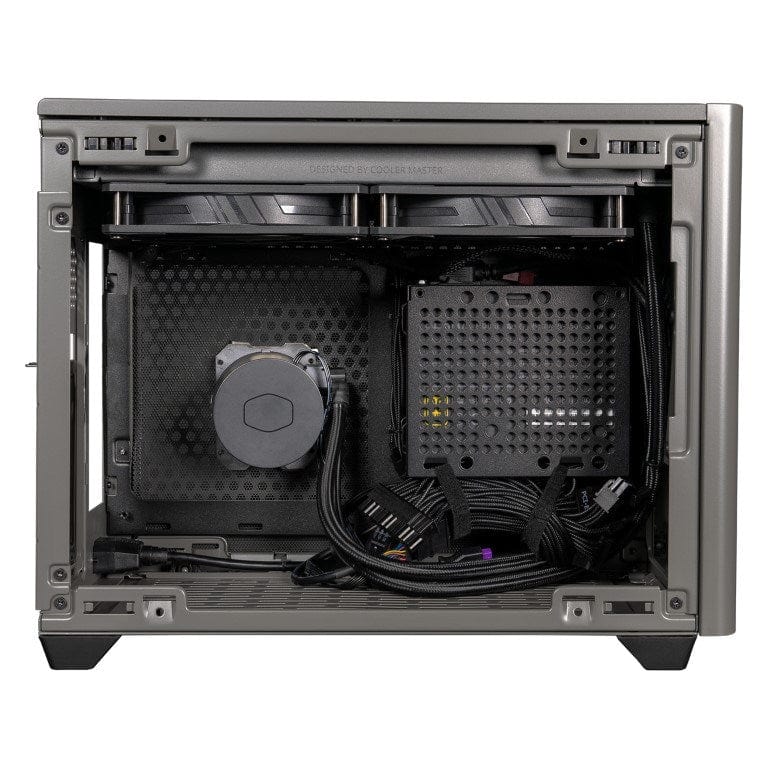

STREAMLINE YOUR BUILD EXPERIENCE

The pre-installed, pre-routed power supply and CPU-cooler allows for ease of building and optimal cable & tubing management. Install a motherboard, HDDs and finish off with a GPU: no hassle, no routing. Stow away excess cables and you’re good to go.

DESIGNED FOR HIGH-END ITX SYSTEMS

The NR200P MAX thermal and power delivery solutions are specifically tuned to ensure compatibility with any high-end system a user can dream of. Being only 18 liters in volume, the NR200P MAX is design to simultaneously satisfy power, performance, and minimal footprint.

PATENTED QUICK INSTALL GPU PANEL

This exclusive, removable GPU panel design simplifies the process of mounting large GPUs in SFF chassis, enabling greater hardware support and hands-free installation.

TEMPERED GLASS AND VENTILATED STEEL LEFT SIDE PANEL OPTIONS

NR200P MAX offers users multiple options to customize the appearance and performance of the system. The included ventilated steel panel is ideal for keeping power hungry builds cool and running efficiently, while the edge-to-edge tempered glass panel provides a premium aesthetic.

TAILOR-MADE PREMIUM COOLING AND POWER DELIVERY

Next gen systems are becoming more and more power hungry and to power it all, NR200P MAX implements a 850W Gold certified PSU with custom length textured cables specifically designed to cover all performance needs.

A 280mm radiator, two pre-installed SickleFlow PWM 140mm fans, and a highly acclaimed 3rd gen Cooler Master pump/CPU block provides reliable cooling for the CPU. AMD sockets up to AM4 and Intel sockets up to LGA1700 are fully supported.

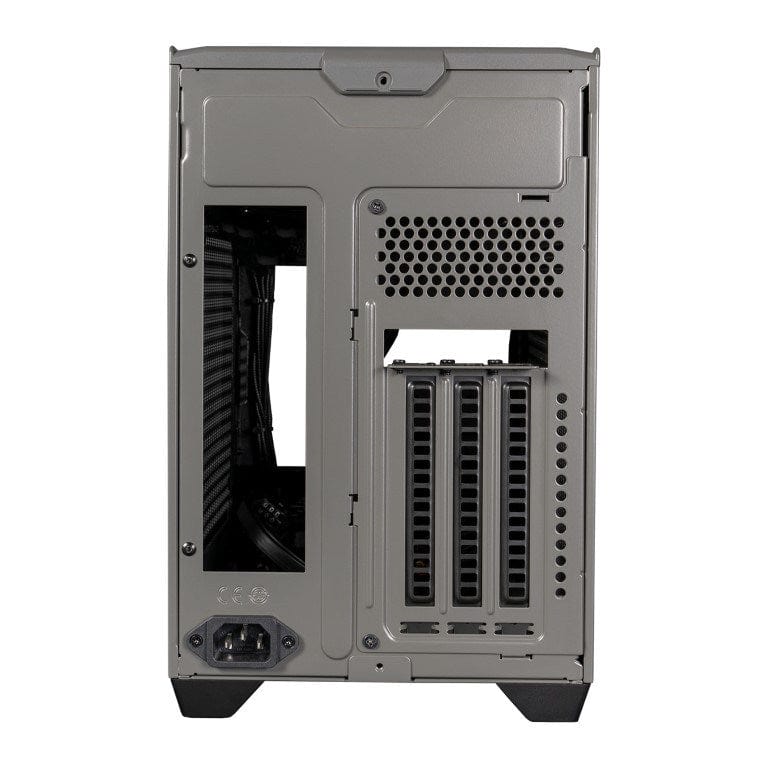

TRIPLE-SLOT GPU SUPPORT

NR200P MAX supports high performance triple-slot GPUs up to 336mm in length and 140mm in height, four 6+2 pin power cables included. The chassis has been specifically designed for a vertically mounted GPU to ensure powerful performance.

VERSATILE HARD DRIVE SUPPORT

NR200P MAX provides three dedicated 2.5” hard drive mounting locations. For extra storage, two optional 3.5” hard drive mounting locations may be available depending on hardware configuration.

EASILY ACCESSIBLE M.2 DRIVES

The motherboard tray is designed for unrestricted access to any m.2 drives installed behind the motherboard. The ventilated paneling ensures that m.2 storage drives installed in this location runs cool and reliably.

PREMIUM PCIE GEN4 RISER CABLE INCLUDED

NR200P MAX comes equipped with a premium shielded PCIe Gen4 Riser Cable to ensure both maximum compatibility and performance with all graphics cards.

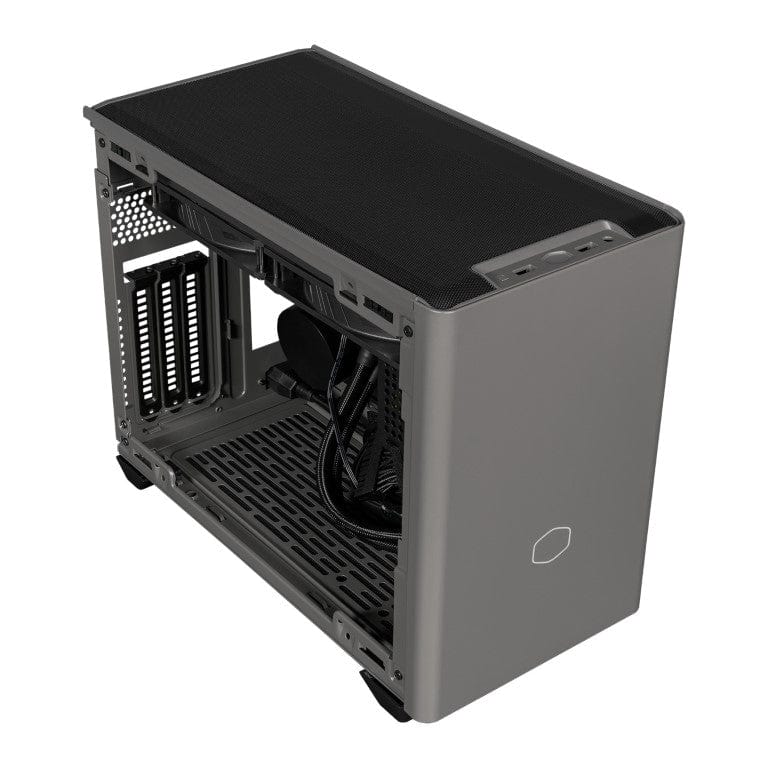

360° ACCESSIBILITY

All exterior panels can be removed for component installation and cable management. The frame may also be disassembled for advanced access and freedom of customization in building complex systems.

COOLING EFFICIENCY BEYOND COMPARE

NR200P MAX’s built-in 280mm radiator boasts unmatched cooling efficiency owing to a 25% increase in aluminum fin surface area.

Compatible with a wide variety of Intel and AMD sockets (all brackets included), the AIO’s upgraded Gen3 dual-chamber pump is bound to keep any CPU running at optimum performance. Included Sickleflow 140 Non-LED fans utilize a two-tier sealing mechanism to prevent dust accumulation, resulting in longer serviceable life span and silent performance.

INCREASED RADIATOR DISSIPATION AREA

NR200P MAX’s radiator features a 25% increased aluminum fin surface area, outshining similarly sized water-cooling solutions on the market. Unmatched in thermal performance, this tailor-made AIO is built to support a wide range of power-hungry components.

FEATURING THE LATEST GEN3 DUAL-CHAMBER PUMP

Cooler Master’s newly released dual-chamber pump allows you to enjoy a silent CPU cooling experience and heightened performance. Upgraded internal impeller and housing design enhances cooling efficiency while minimizing excessive noise.

CUSTOM LENGTH PRE-ROUTED TUBING

Pre-routed for a user-friendly installation experience, water cooling components feature tailored length tubing for fast and hassle-free assembly.

SICKLEFLOW 140MM PWM FANS INCLUDED

NR200P MAX features Cooler Master’s highly acclaimed SickleFlow fans, designed with optimized curved blades for silent performance and heat dissipation efficiency. Sealed, secured fan bearings prevent dust accumulation or lubricating oil leakage, maximizing operation stability and life span.

PERFORMANCE UNBOUNDED

The pre-installed, 80 Plus Gold efficiency PSU features 16AWG PCIe full-modular, high efficiency cables tailor-made to allow ease of installation without the hassle of cable management. Tailor-made to a small form factor, this PSU allows clearance for the largest, widest graphics cards while making the most of NR200P MAX’s 18 liter chassis.

VGOLD TECHNOLOGY BASED

Cooler Master celebrated VGold power solutions are renowned for extraordinary performance delivery and high reliability, capable of satisfying all levels of performance needs.

QUIET FDB FAN

The 92mm FDB fan delivers quiet, and highly efficient cooling.

16AWG PCI-E CABLES

NR200P MAX’s power supply comes with 16AWG PCI-e cables, providing less resistance, greater power delivery efficiency, and overall safer user environment.

FULL - MODULAR CABLING

Full modular cables reduce clutter, minimize the hassle of cable management, while allowing users to keep the airflow path efficient and obstruction-free.
