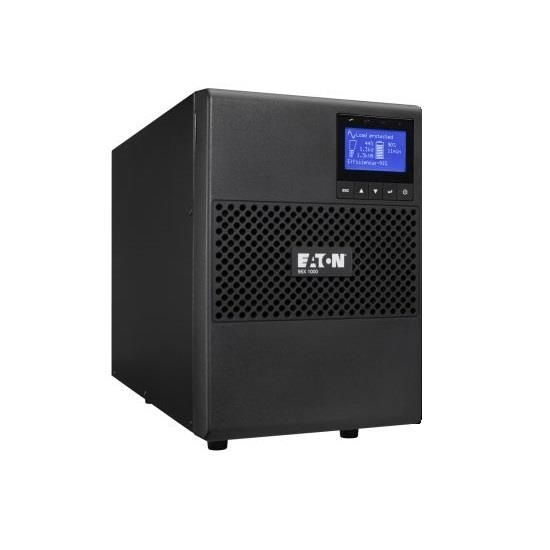

Eaton 9SX 1000i On-Line UPS 1000VA 200-240V Tower 9SX1000I

Eaton 9SX 1000i On-Line UPS 1000VA 200-240V Tower 9SX1000I

Features

Performance and Availability

• Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.
• The internal bypass allows service continuity in case of internalfault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems.
• With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.
• Stronger, longer battery life: Eaton ABM battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.

Manageability

• The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.
• The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
• Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.
• 9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.

Flexibility

• One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.
• More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.

Advanced protection for

• IT
• Networking
• Storage
• Telecom
• Infrastucture
• Industrial
• Medical

Technical Specification

• ABM & Temperature compensated charging method (user selectable)
• Automatic battery test
• Deep discharge protection
• Automatic recognition of external battery units

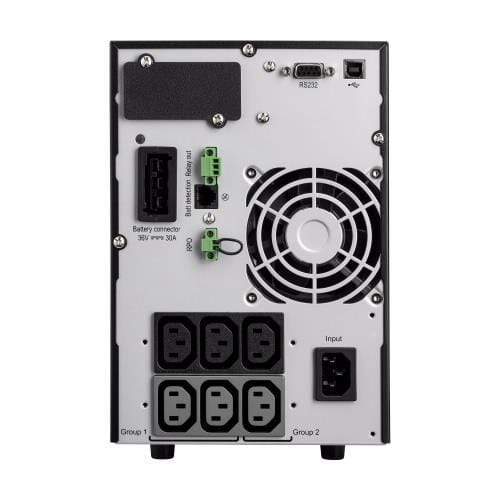

• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote power off
• Mini-terminal block for output relay
• Dry contacts (2 outputs, 1 input, optocoupler, DB9)

• UPS
• (2) IEC-IEC output cables
• USB cable
• Serial cable
• Safety instructions
• Quickstart guide
